Category: Blackbody Calibration Source

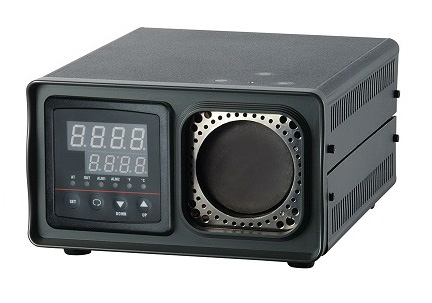

The BBS500-57 is a lightweight Blackbody ideal for the calibration verification of pyrometers and thermal imaging cameras. Used for temperature ranges between 50 to 500°C. Cost-efficient and easy to transport, this Blackbody can quickly be used in many plants, laboratories, and factories.

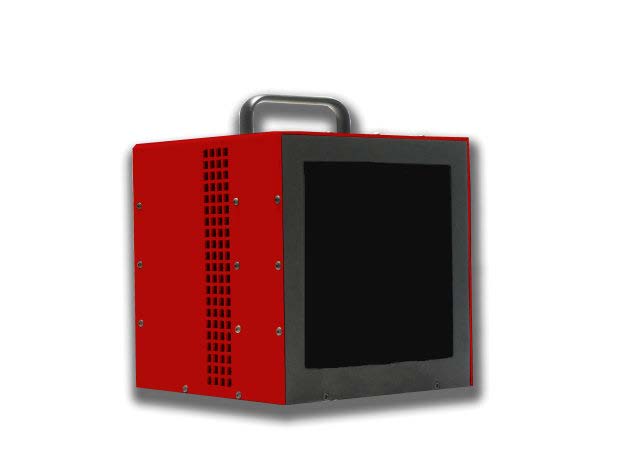

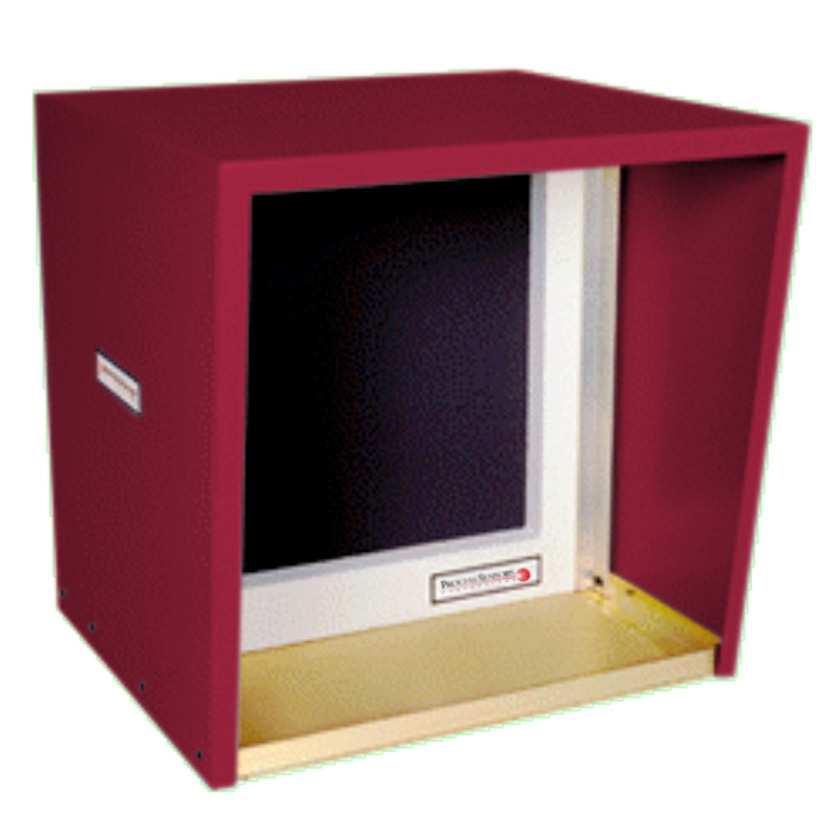

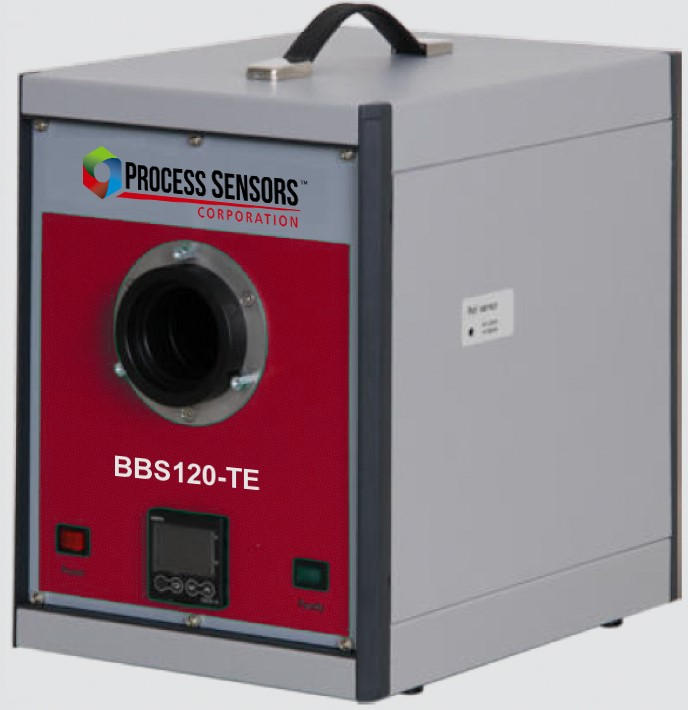

Various Blackbodies with a large uniform extended area emitter plate used for thermal imaging camera calibration and focal point array detectors (FPA). Comes in a variety of emitter sizes and temperature ranges (-30 to 150ºC).

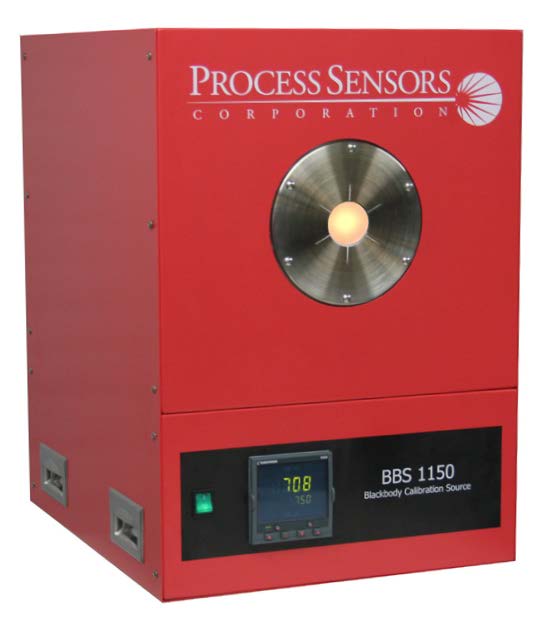

The BBS1150 is perfect for mid to high temperature applications. User selectable temperature set points within 200° to 1150°C (BBS1150). Simply adjust the set point on the precision digital PID controller to any temperature within the specified temperature range and the BlackBody should stabilize and begin reading.

The PSC Model BBS1150 will attain the set point temperature, stabilize and produce the radiometric temperature readings necessary for precision calibration of non-contact infrared thermometers, thermal imaging detectors/camera, focal plane array detectors, heat flux meters, spectrophotometers and optical devices.

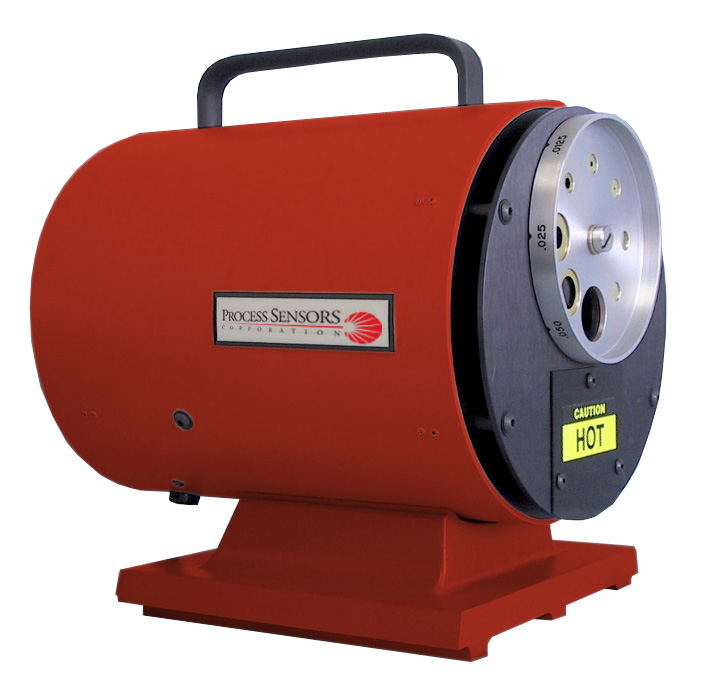

The BBS1050 and BBS1200 Compact Blackbody Sources offer high accuracy in up to 1″ aperture in a compact form factor. Designed for compact mid to high temperature applications (50 to 1200°C), making them ideal for smaller systems.

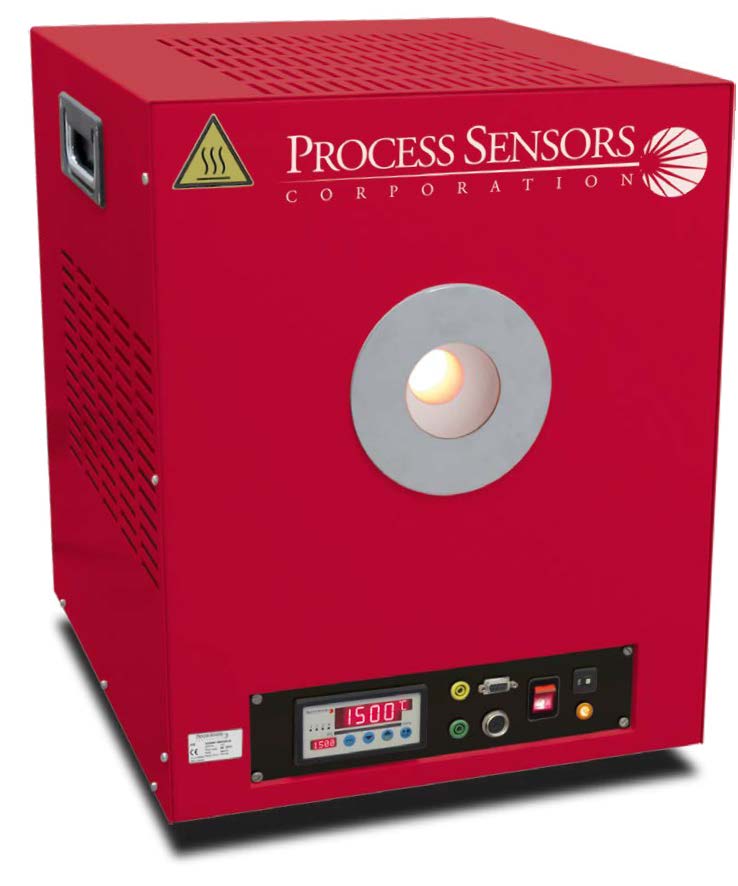

The BBS1500i-40 is a highly stable calibration source which provides automatic calibration. It is ideally used for the calibration of short wavelength pyrometers and thermal imaging cameras between 50 and 1500°C. The large aperture size allows for easy alignment between the blackbody and the device under test.

The BBS 1500i-40 is an adjustable temperature blackbody source with a wide temperature range of 50 to 1500°C (122 to 2732°F) and a 40 mm (1.57”) aperture. It is capable of precise calibration of pyrometers/thermal imaging cameras with spot sizes up to 24 mm. The BBS 1500i-40 outperforms other blackbodies on the market within fast heat up times: 1450°C in 40 minutes. With its cylindrical cavity for providing uniform temperature radiation and simultaneous display of set point and actual temperature values, the BBS1500i-40 is a reliable and easy to read blackbody source.

The BBS1500i-40 is unique in that it can generate calibration certificates for PSC infrared sensors under test using the new SensorCal3, PSC software. It combines the features of a precisely controlled temperature source with the calibration and adjustment tasks. The BBS1500i-40 communicates with connected pyrometers and transmits and receives measurement data for manual or fully automatic tasks.

This premium blackbody calibration source is calibrated using a Process Sensors Diadem ultra-high accuracy transfer standard pyrometer. Once calibrated, the blackbody is used to calibrate PSC Metis, Sirius and Capella infrared sensing models. A PC is connected to the BBS1500i-40 and a pyrometer undergoing calibration. The SensorCal3 PC software can then generate a calibration certificate.

The BBS1500-38 is a highly stable calibration source which provides automatic calibration. It is ideally used for the calibration of short wavelength pyrometers and thermal imaging cameras between 300 and 1500°C. The large aperture size allows for easy alignment between the blackbody and the device under test.

The BBS 1500-38 is an adjustable temperature blackbody source with a wide temperature range of 300 to 1500°C (572 to 2732°F) and a 38 mm (1.49”) aperture. It is capable of precise calibration of pyrometers/thermal imaging cameras with spot sizes of up to 1 inch. The BBS 1500-38 outperforms other blackbodies on the market within fast heat up times: 1300°C in 50 minutes. With its cylindrical cavity for providing uniform temperature radiation and simultaneous display of set point and actual temperature values, this precision blackbody is a reliable and simple to operate.

The BBS1500-38 is a high temperature blackbody calibration source providing high emissivity, uniformity, and stability. And is used as a precision Radiance Source for Calibration of Infrared Thermometers, FPA Detectors, Thermal Imaging, Cameras, Radiometers, Heat Flux Meters, and Spectrophotometers.

This premium blackbody calibration source is calibrated using a ultra-high accuracy transfer standard pyrometer.

The Process Sensors BBS1700 Benchtop blackbody calibration source operates in a wide temperature range from 300°C to 1700°C (572°F to 3272°F). This blackbody calibration source provides a large 1-inch aperture with high accuracy and uniformity, long term stability and a fast slew rate.
