Category: Box Compression Tester

Instrument for Physical Testing, Measure of Quality and Properties

  • SCT

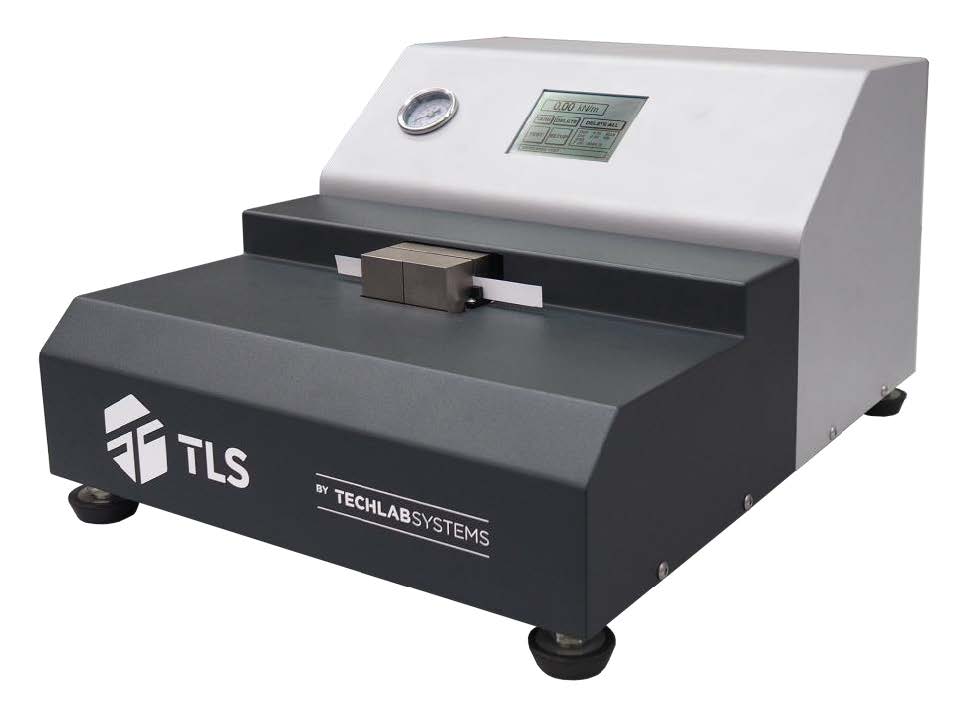

    SCT

    Measures compressive strength in short span SCT samples of paper and cardboard to international standards.

    Designed to meet standards: ISO 9895 – TAPPI T826 – DIN 54518 – SCAN Q46 – UNE 57142 – BS 7325

    Standard Features:

    • Digital display
    • LYNX Compatible
    • Built-in RS232 data output
    • Clamping force 2300 ± 500 N
    • Compatible with Quality Test Management LYNX Software System
  • CDM-5

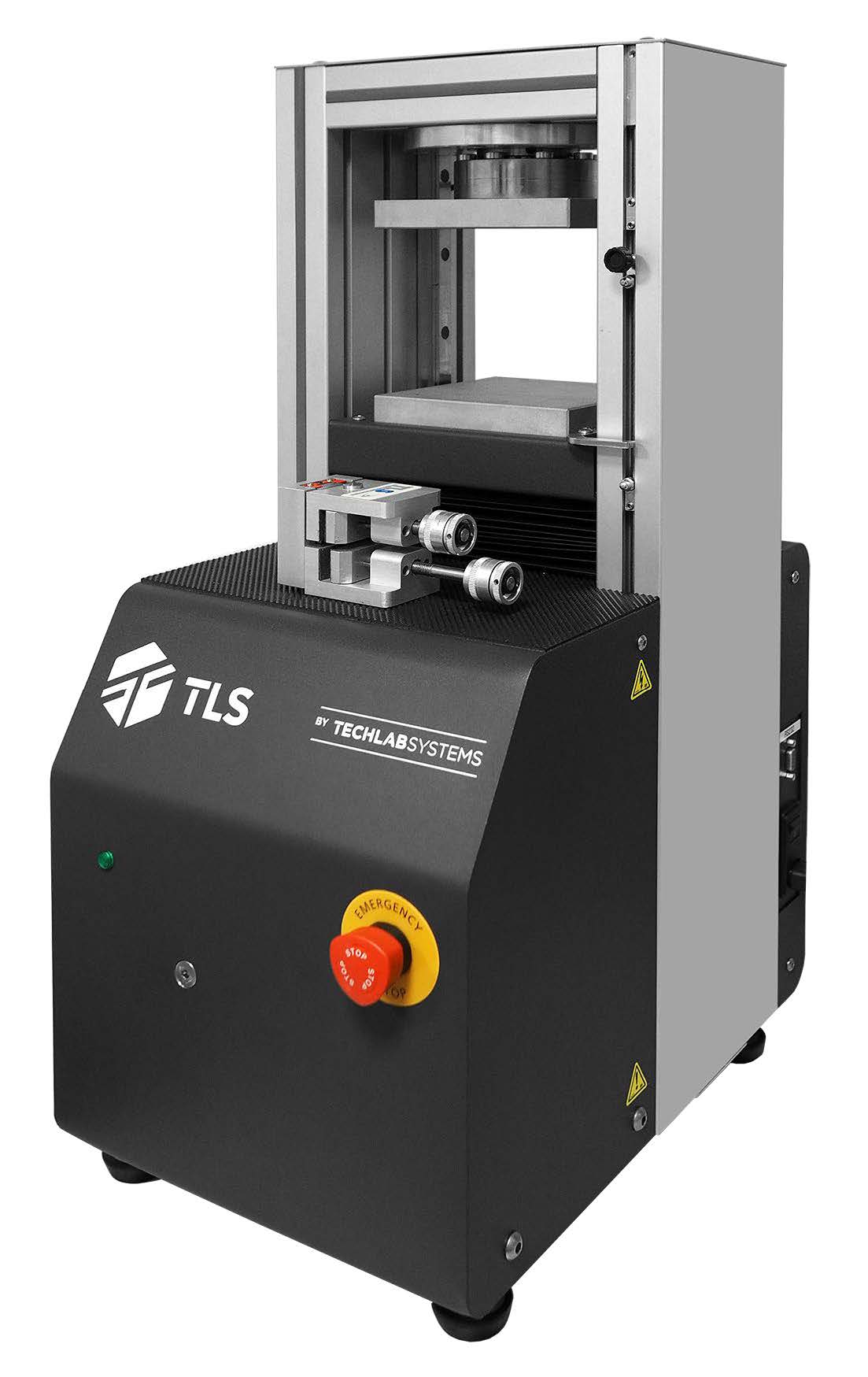

    CDM-5

    With Laptop PC + LYNX Testing Software System

    The Crush Tester is used to measure the compressive strength of samples Paper (Liner & Medium) Corrugated Board: CMT – RCT – CST-TCS – FCT – PAT.

    According to standards:
    ECT test: APPITA/AS 1301.444s, DIN EN ISO 3037, FEFCO 8, ISO 13821, SCAN P33, TAPPI T 811, T 823, T 838, T 839
    FCT test: APPITA/AS 1301.429s, DIN EN ISO 3035, FEFCO No. 6, SCAN P32, TAPPI T 825
    RCT test: APPITA/AS 1301.407s, ISO 12192, SCAN P34, TAPPI T 822
    CMT test: APPITA/AS 1301.434s, ISO 7263, SCAN P27, TAPPI T809
    CCT test: SCAN P42, TAPPI T 843, UNE ISO 16945
    PAT test: APPITA/AS 1301.430s, FEFCO No. 11, TAPPI T 821

    Standard Features:

    • Robust construction
    • Easy to use
    • Force range  from 10 to 5000 N  (resolution 0.01% = 0.5N)
    • Selectable units in N – Kg & lb
    • Statistics:  Max – Min – Average & Standard Deviation
    • USB interface and closed loop control from PC
    • Automatic return of the lower plate after every test
    • Overload  protection
    • Compatible with the popular Quality Test Management LYNX Software Systemç
      LYNX Testing software – basic level
    • Laptop PC included (data acquisition and control)
  • Validator™

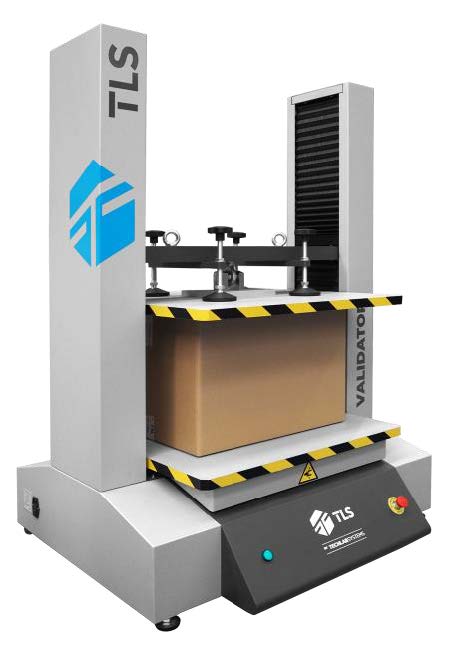

    Validator™

    Designed for testing compressive strength in Packing and Packaging specifications according to international standards. Designed for medium sized packages.

    Standard Features:

    • Robust construction
    • Max. Force 25 kN
    • 3 Load cells for highest accuracy
    • Digital Display for load & deflection (in PC)
    • Platen size: 800 x 800 mm
    • Oscillating (ISO-FEFCO) & Fixed Plate (TAPPI)
    • Precision Ball Screw drive system
    • Top fixed and parallel plate  (TAPPI)
    • Maximum opening between platens: 910 mm
    • Force reading in N – Kg & Lb
    • Deflections reading: mm/in.
    • Automatic return to test position
    • RS-232 data output
    • PC Closed Loop Control
    • Compatible with the widely popular Quality Management software package LYNX Plus and LYNX Pro
    • LYNX Pack testing software
    • Includes PC Touch Screen 22″
  • Val™ series

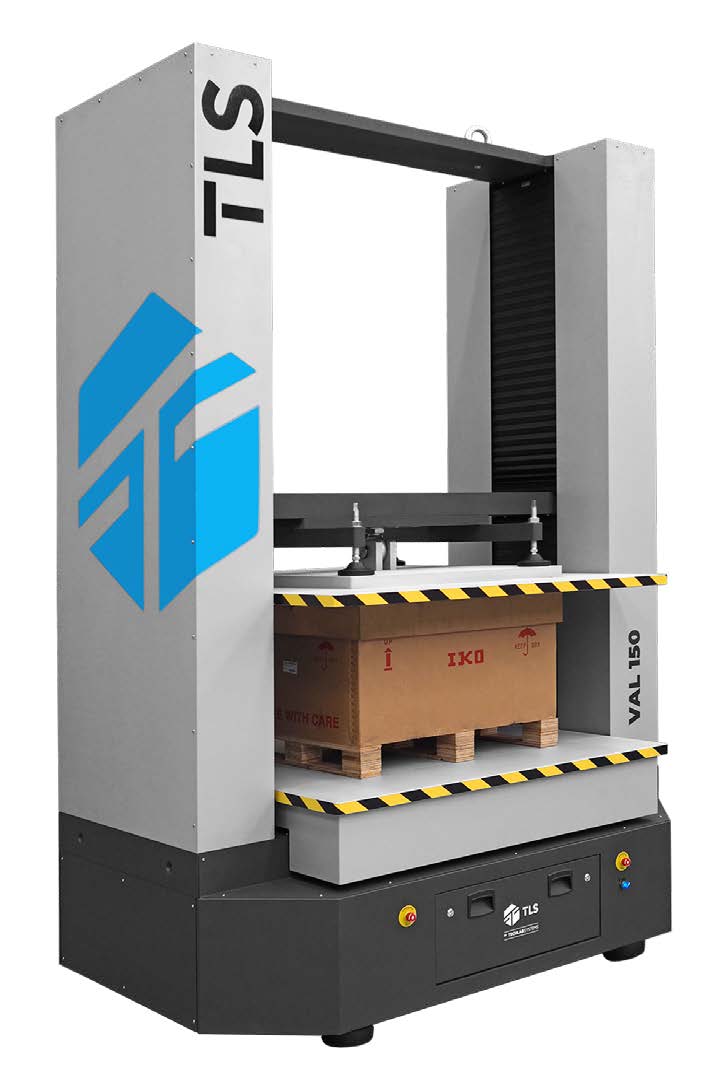

    Val™ series

    Designed for testing compressive strength in Packing and Packaging specifications according to international standards. Designed for larger packages or when higher compressive forces are needed.

    Standard Features:

    • Robust construction
    • Range: 30kN to 300kN
    • Platen size: please check options
    • 3 or 4 Load cells for highest accuracy
    • Digital Display for load & deflection (PC)
    • Oscillating (ISO-FEFCO) & Fixed Plate (TAPPI) Precision Ball Screw drive system
    • Top fixed and parallel plate  (TAPPI)
    • Force reading in N – Kg & Lb
    • Deflections reading: mm/in.
    • Automatic return to test position
    • RS-232 data output
    • PC Closed Loop Control
    • Compatible with the widely popular Quality Management software package LYNX Plus and LYNX Pro
    • LYNX Pack testing software
    • Includes PC Touch Screen 22″
