Category: Burst Test

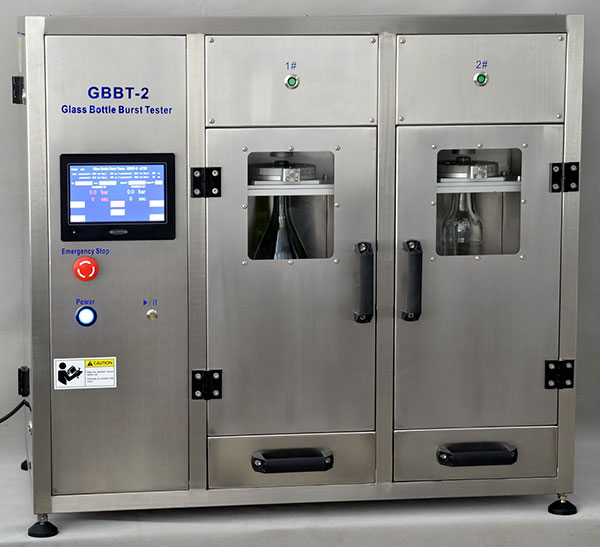

The GBBT-2 is an instrument for testing the internal pressure resistance of glass containers. It has been widely used by the glass container manufacturers and users. As a standard testing instrument for the glass container industry, it offers an important technical reference to the manufacturers for maintaining or improving the product quality and performance. Designed for easy operation and maintenance, comply with the testing standard of ISO 7458:2004. The pressure test of containers is made up to a predefined pressure point (trial test) or until destruction.

Characteristics:

• Dual station which is more efficient and convenient for uninterrupted test
• PLC integrated & Touch screen control
• User defined test cycle (up to 4 steps of pressure and holding time) satisfies different test request
• Automatic clamping and filling system
• Easy operation
• Easy sample installing, with auto clamping and water filling system
• Linear pressurization
• Can store 10 operators and 30 products
• User define the product lot number and sequence number
• Reviews the real-time testing curve
• Stainless steel design ensures the durability of tester
• Advanced safe door design ensures the safety of operator during a test.
• Special trash bin design makes the glass trash collection easily.
• RS232 output
• Can be connected to either printer or software

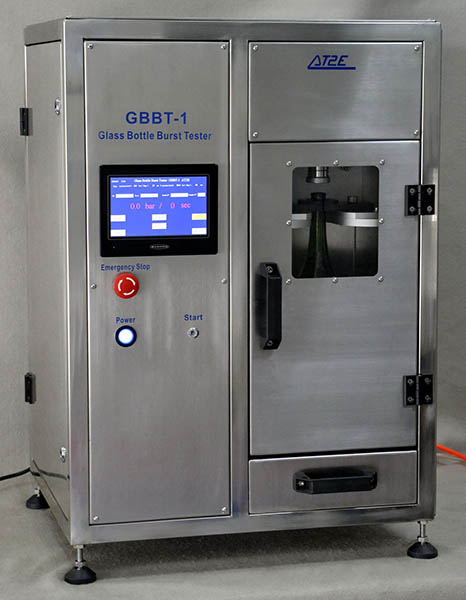

The GBBT-1 is an instrument for testing the internal pressure resistance of glass containers. It has been widely used by the glass container manufacturers and users. As a standard testing instrument for the glass container industry, it offers an important technical reference to the manufacturers for maintaining or improving the product quality and performance. Designed for easy operation and maintenance, comply with the testing standard of ISO 7458:2004. The pressure test of containers is made up to a predefined pressure point (trial test) or until destruction.

Characteristics:

• PLC integrated & Touch screen control
• User defined test cycle (up to 4 steps of pressure and holding time) satisfies different test request
• Automatic clamping and filling system
• Easy operation
• Easy sample installing, with auto clamping and water filling system
• Linear pressurization
• Can store 10 operators and 30 products
• User defines the product lot number and sequence number
• Reviews the real-time testing curve
• Stainless steel design ensures the durability of tester
• Advanced safe door design ensures the safety of operator during a test.
• Special trash bin design makes the glass trash collection easily.
• RS232 output
• Can be connected to either printer or software

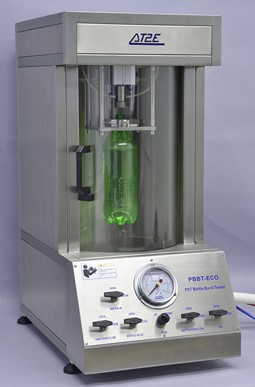

PBBT-ECO PET Bottle Burst Tester is a specialized test equipment for testing the internal pressure resistance of PET bottles. It provides a high pressure, rapid pressurization testing function for the PET bottles. The PBBT-ECO is capable to test the capacity of resilience under certain pressure or the rupture test of the PET bottle.

Using and maintenance of PBBT-ECO are easy and simple. It’s free of electricity, which makes it more compatible and adaptable to different working environments. It’s suitable for both plastic container manufacturers and users. Additional booster could be chosen. It may help the PBBT-ECO free of high pressure source.

Characteristics:

• Electric free and easy for maintenance
• Applicable to 3.3 L bottle (consult us for bigger size)
• Adaptable for different finish with compatible clamping system (optional).
• Stainless steel design ensures the durability of tester
• Ramp pressure adjustable by regulator
• Various of safety design

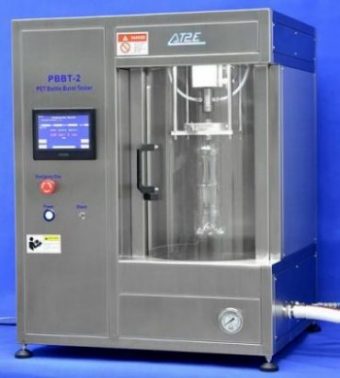

For PET bottles – Simulating filling process PBBT-2 PET Bottle Burst Tester is a specialized test equipment for testing the internal pressure resistance of PET bottles. It’s designed in accordance with the three international test methods which are commonly used. Users can choose the test method basing on their requirement. The PBBT-2 is capable to test the capacity of resilience under certain pressure or the rupture test of the PET bottle. Through the reproduction of the pressurization, the process has been linearized and it increases to the predetermined point or the point of bursting.

After selecting the test program, the cycle will start automatically depending on the settings. The touch screen displays the pressure value in real time and record the maximum pressure and burst pressure. Optional part water recycling system could provide way of saving water and avoiding the unsteady pressure of tap water which may influence a normal test. Additional booster could be chosen. It may help the PBBT-2 free of high-pressure source.

Characteristics:

• Standard equipment for the PET bottle industry.
• 3 international test methods are available
• PLC integrated & Touch screen control
• Automatic clamping and filling system
• Can store 10 operators and 30 products
• User defines the product lot number and sequence number
• Display curves of pressure and volume expansion during the test
• Monitors and records the temperature of the water during the test
• Applicable to 2.5 L bottle (consult us for bigger size)
• Stainless steel design ensures the durability of tester
• RS232C data output: connected to either printer or software
• Integrated calibration function

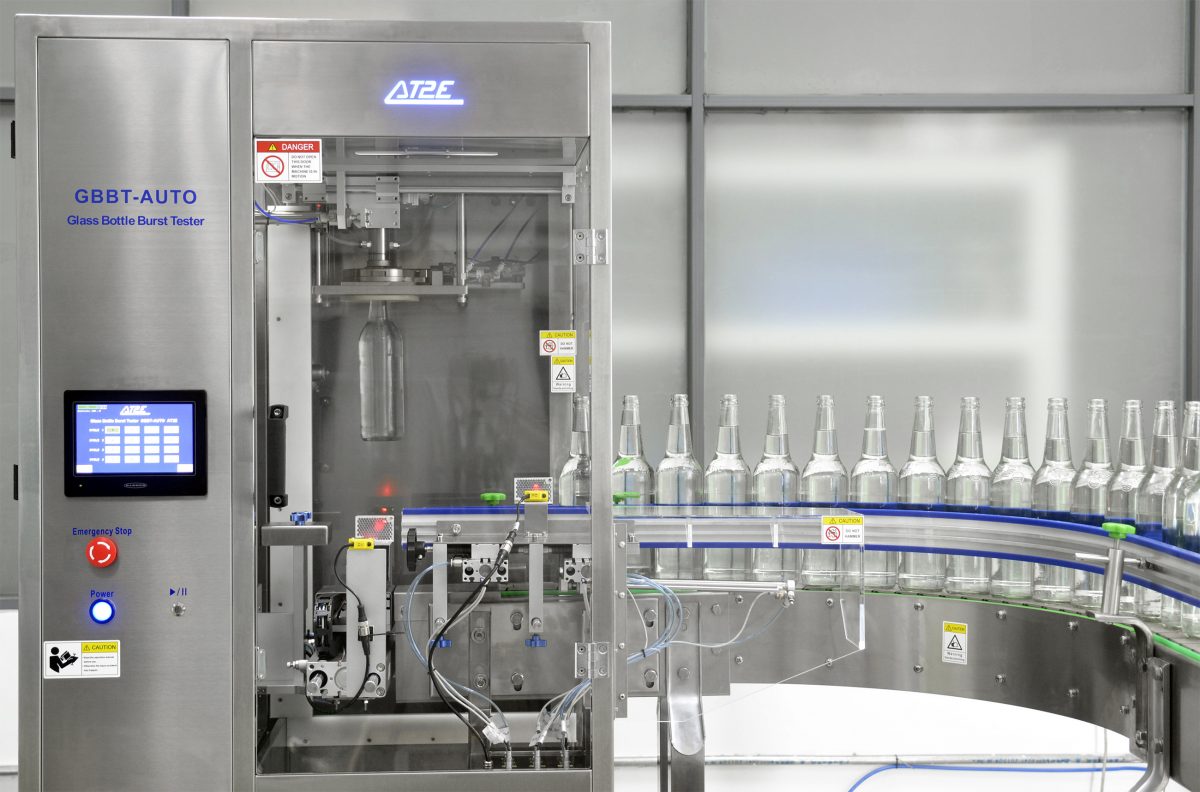

GBBT-AUTO Automated Glass Bottle Burst Tester is a full-automatic instrument for testing the internal pressure resistance of glass containers. The GBBT-AUTO adopts full automated controlling system, no operator is required during the test process, and the test data will be sent to the data acquisition system automatically, making the test procedure easier and more efficient.
