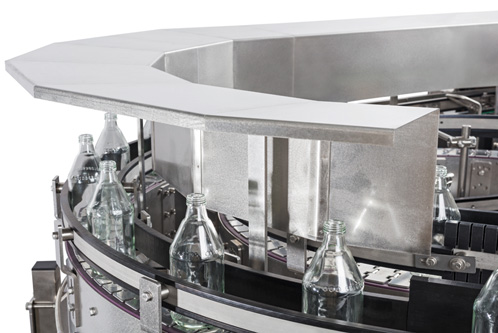

• Conveyor construction made out of stainless steel
• Conveyor stands made of 50x50mm stainless steel tubes with adjustable calotte feet (max. conveyor height 1500mm)
• Depending on the project conveyor chains made out of stainless steel or plastic are possible. Multichain conveyors are made as gapless construction
• Curve conveyors are made with magnetic chain guides and magnetic conveyor chains
• Chain sprockets are dividable
• Bottle railings are made out of 40x8mm full profile stainless steel, with plastic bottle guides depending on the requirements of the project
• Railing holders made of stainless steel, adjustable where necessary
• Piping for the conveyor lubrication made of seamless stainless steel pipes, with shut-off tap and nozzles. For the connection to the existing lubrication system
• Stainless steel wire-basket cable trays, open. Other variations upon request
• Standard SEW SA47 / 57 drive (other variations upon request)

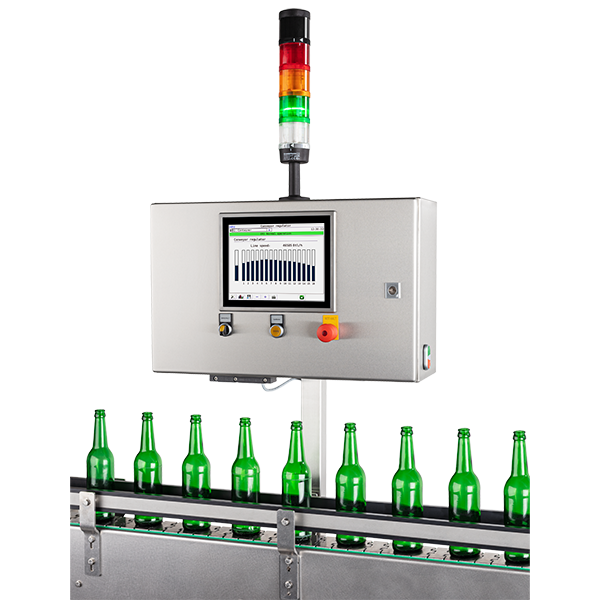

Miho Pascal 2 is an intelligent conveyor control system for modern bottling plants of any size. Its two outstanding features are:

1. Miho Pascal 2 fulfills all conveyor control tasks that are required in filling lines. Its performance is in many respects well above any standard performance. For example, gaps can be closed with a precision that is unmatched. miho Pascal 2 thus ensures for a par ticularly smooth, quiet and gentle bottle transpor tation.

2. Miho Pascal 2 is a highly efficient system since between two aggregates (for example, the washing machine and the filler) only one control module is required, regardless of how many inspection and rejection systems are installed between the two production machines.

By using the intelligent conveyor control system, the miho Pascal 2, the efficiency of plants can be considerably increased. When planning a system, we implement our 30 years of experience in the realization and optimization of container conveyor systems.
