Category: Corrugated Testing

Instrument for Physical Testing, Measure of Quality and Properties

  • BT10

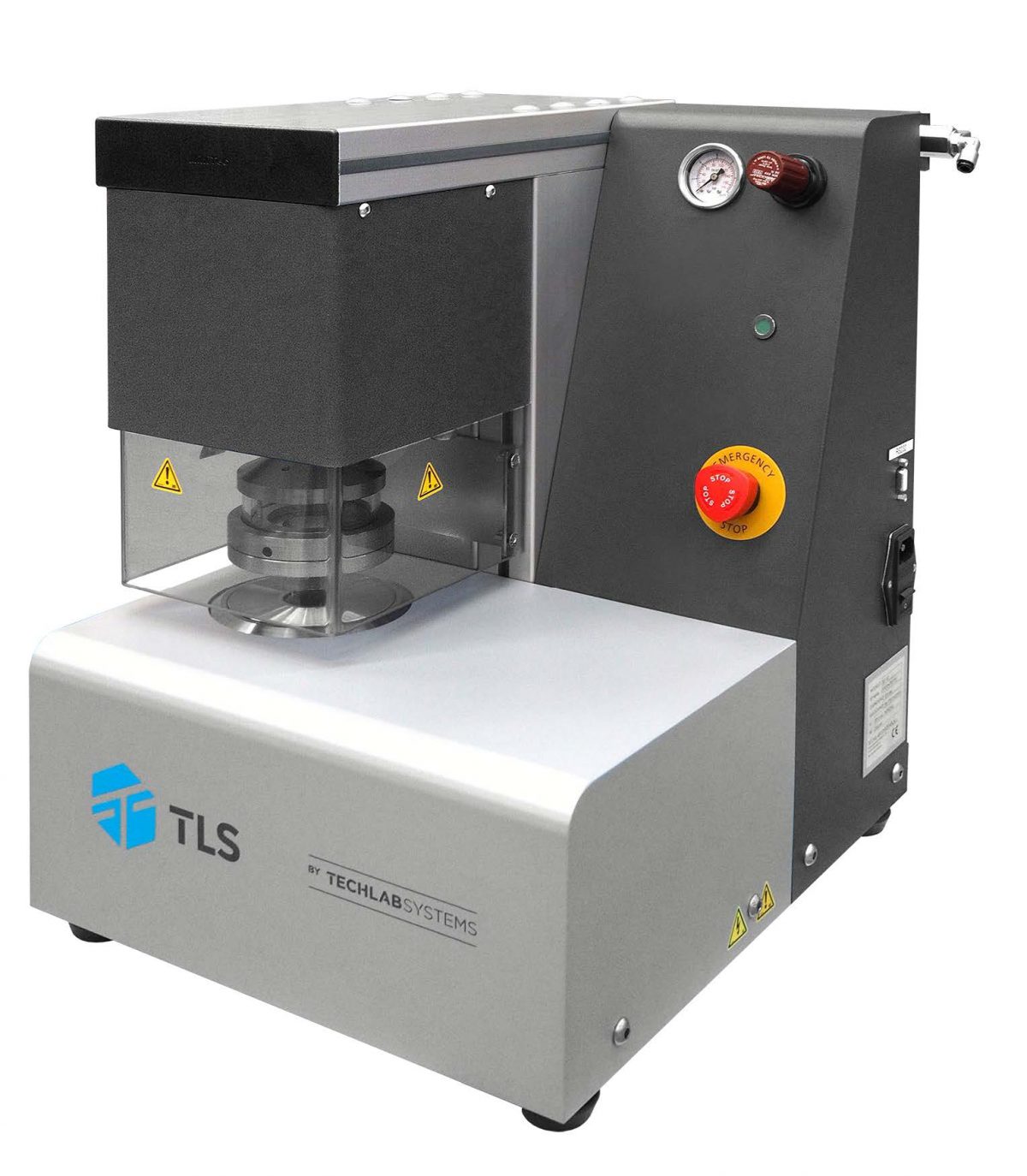

    BT10

    To determine the bursting resistance of Paper and Corrugated Board. According to standards: DIN EN ISO UNE 2758 – DIN EN ISO UNE 2759 – SCAN P25/P24 – TAPPI T403 / T807 / 810 PAPTAC D19P/D8 – BS 3137 – AP/AS 1301,403

    Standard Features:

    • Units, in  kPa – Kg/cm2 – Bar & PSI
    • Measure range from:
      • Paper: from 0 to 1500 kPa
      • Board: from 200 to 5.000 kPa
    • Statistics: Max = Min = Average and Standard Deviation
    • Operating security system
    • Pneumatic operation of clamping system
    • Acrylic protection screen (tests area)
    • Compatible with Quality Test Management LYNX Plus & Pro
    • LYNX Testing software – basic level
    • LYNX  Management Module with basic statistics
    • Mini PC included (data acquisition and control)
  • Medium Fluter

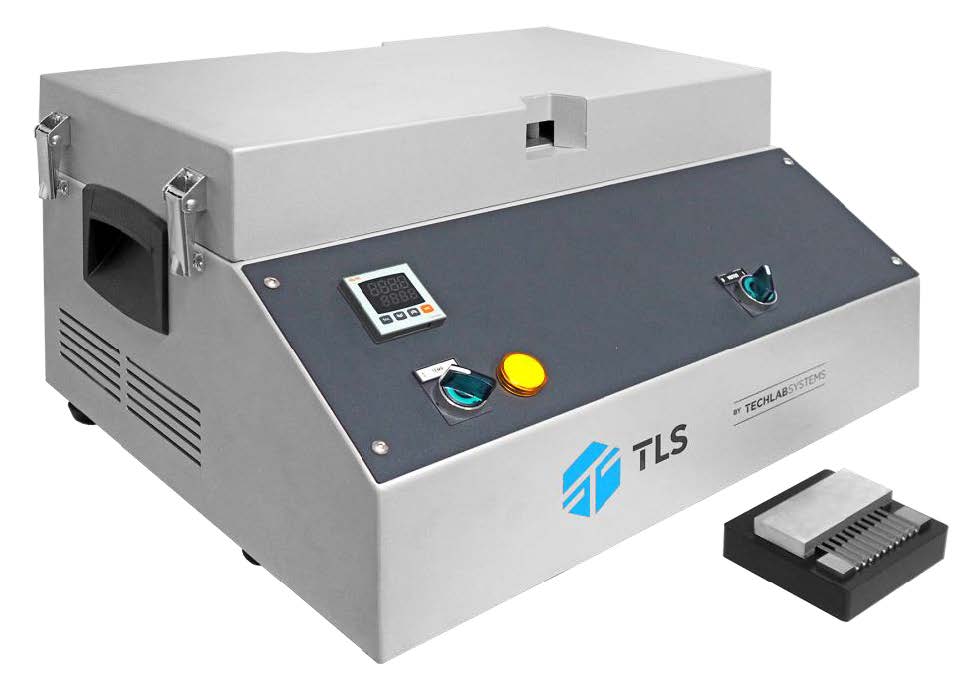

    Medium Fluter

    Is a simple laboratory device to simulate de corrugating of medium paper for CMT and CCT tests. According to standards: ISO 7263 – DIN 53143 – TAPPI T809 – CPPA D24 – SCAN P27…Standard Features:

    • Robust and precise equipment
    • Easy to use
    • Precise controlled temperature
    • Programmable temperature with digital display: 177 ºC  ±2 ºC

  • PT48

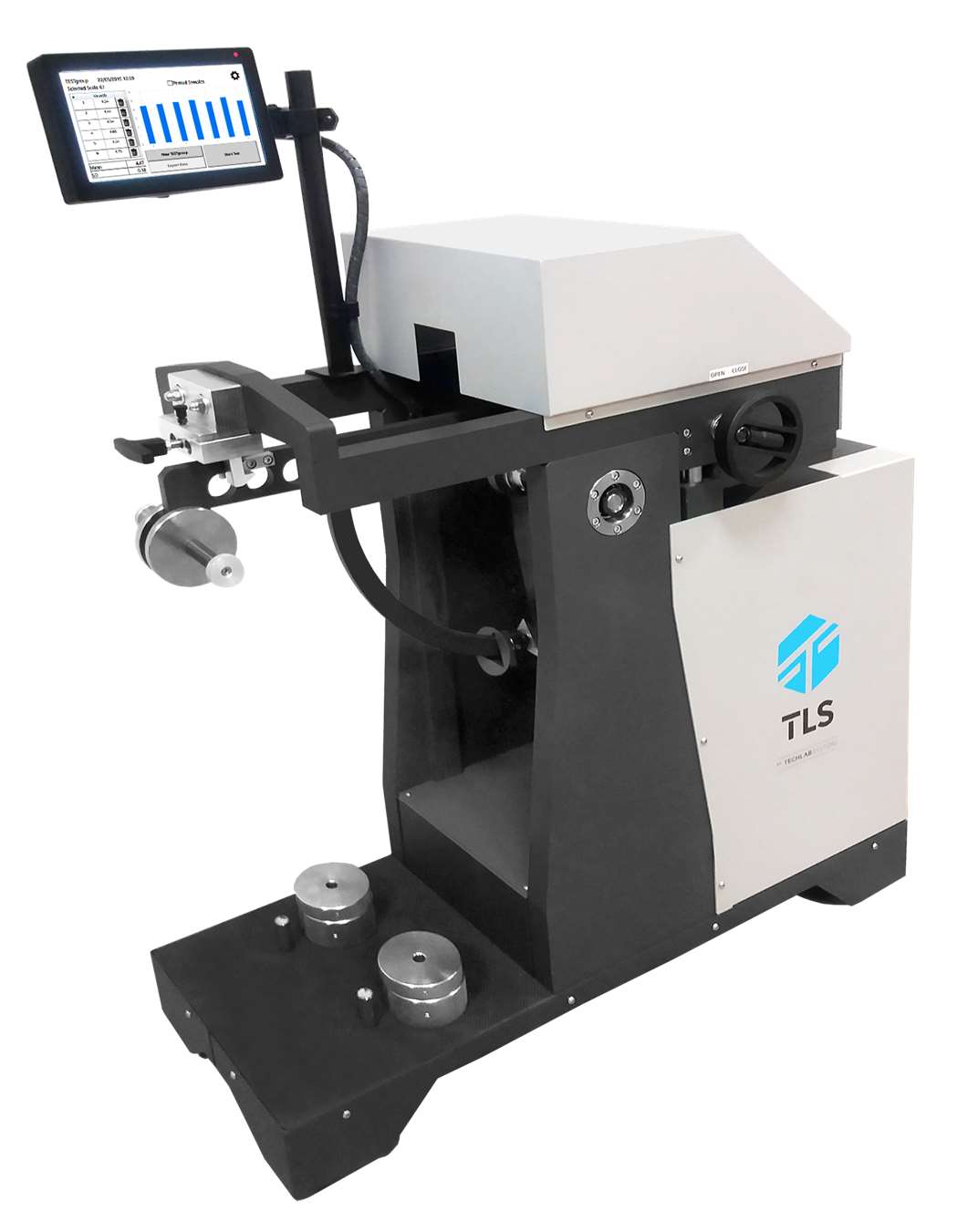

    PT48

    To determine the resistance or energy absorbed by corrugated board, especially those employed for the manufacture of packaging materials.

    Designed to meet standards: UNE ISO 3036 – SCAN P23 – DIN 53142 – TAPPI T-803 – FEFCO 5…

    Standard Features:

    • Strong steel frame, designed  to avoid any vibrations during test (Subsequently, energy losses are avoided)
    • Touch Screen Controlof 10” and USB port
    • Pendulum arm with a circular angle of 90º
    • Striking head in the shape of a triangular pyramid
    • Release mechanism, with safety system
    • Safety cover screen.
    • Self-tightening grips with adjustable closing pressure to clamp the sample.
    • 4 reading scales of units in Joules
    • Reading resolution: 0.01 J (on 4 scales)
    • Compatible with our widely popular Test Management System software package LYNX
  • M5

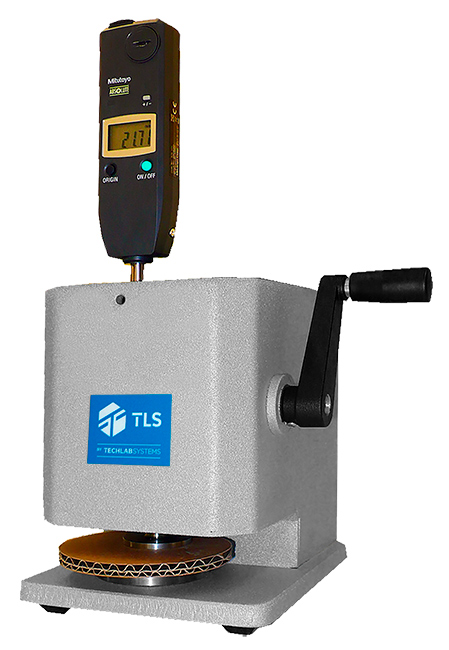

    M5

    Effective instrument for quickly and accurately determine the thickness of CORRUGATED CARDBOARD.
    According to standards: DIN EN ISO NF UNE 3034 – FEFCO No 3 – SCAN P31…

    Standard Features

    • Range: 0 to 15 mm
    • Resolution:  0.01 mm (10 microns)
    • Contact area:  10 cm2
    • Contact pressure: 20 kPa ( 200 g/cm2 )
    • Digital display with reset to “0” function
    • Manual drive by ergonomic handle
    • Robust and precise equipment
    • Compatible with Quality Integral Management LYNX Plus & Pro System
  • COBB

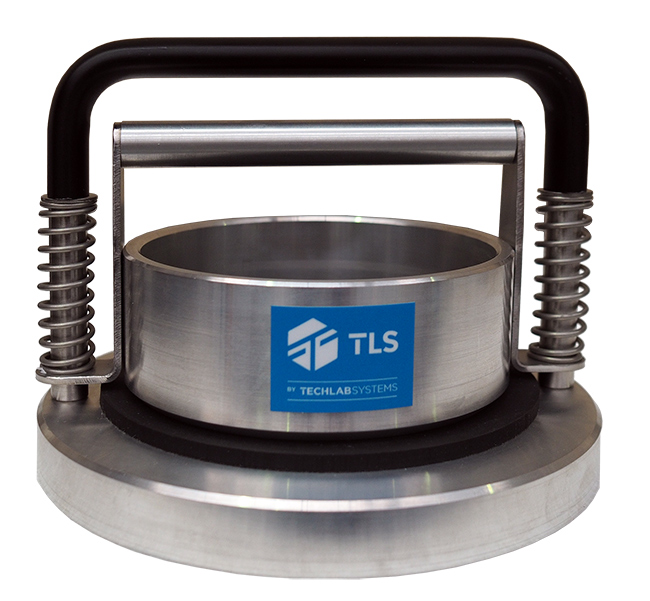

    COBB

    To determine the capacity of water absorption Corrugated Board.
    According to standards: ISO 535 – TAPPI T441 – NF Q 03 018 – NF Q 03 035 – FEFCO 7 – DIN 53132 – EN BS 20535 – SCAN P12…

    Standard Features:

    Quick clamping of the sample (by spring)

    • Test area – 100-50-25 or 10 cm2 (to choose)
    • Stainless steel
    • hand roll – 10 Kg
    • Soft rubber gasket
    • All in stainless steel
  • Air Permeability

    Air Permeability

    To quickly and accurately determine the Smoothness, Air Porosity and Softness (or Compressibility) in paper and cardboard using the GURLEY method. This is the most popular and traditional model for the measurement of porosity / air permeability in medium value materials. Materials with lower air permeability can also be tested using optional plates with a smaller orifice diameter.

    According to standards: TAPPI T460 – ASTM D 726 – APPITA / AS 1301-420 – BS 5926 – CPPA D.14 – ISO 5636/5 – NF Q 03-078 – SCAN P-19 y P-53

    Standard Features:

    • Digital reading in seconds(4320 model)
    • Cylinder graduated 20 oz. and diameter measuring 1 square inch.
    • Salida RS-232
    • Compatible with the Integral Managemennt System LYNX
  • Air Permeability

    Air Permeability

    To measure accurately the Smoothness & Air Permeability (or Porosity) of materials such as paper and cardboard, wovens, plastics and membranes.

    • Densometers are the accepted standard for measuring the porosity of materials such as papers, wovens, plastics and membranes.
    • All Densometers measure the time required for a given volume and of air (25cc to 400cc) to flow through a standard area of material being tested under light uniform pressure.
    • Certain models, such as the S-P-S Tester, are also used to measure surface smoothness and material softness (or compressibility) of materials tested..
    • Manual and automatic units available.

    According to Standards: TAPPI T460 – T536 – T490.

    Standard Features:

    • Automatic and manuel test mode
    • Output units: BEKK – BENDTSEN – GURLEY – SHEFIELD.
    • Choice of various volumes of air
    • Automatic calculation of Medium values of Standard Desviations
    • Not require use of oil
    • Pneumatic operation
    • RS-232 output
    • Compatible with the Integral Managemennt System LYNX
  • Porosity

    Porosity

    For measuring the porosity, air-permeability or air-resistance of materials having low permeability. Typical materials include coated papers, plastics and membranes. High Pressure units are recommended whenever a standard unit would yield excessive easurement times.

    According to Standards: TAPPI T-536-88 and ASTM D-726-58, Method B.

    Standard Features:

    • Automatic and manuel test mode
    • If the Densometer is equipped with 4320 Digital Module with RS-232 output is compatible with theLaboratory Managemennt System LYNX
  • Smoothness Meter

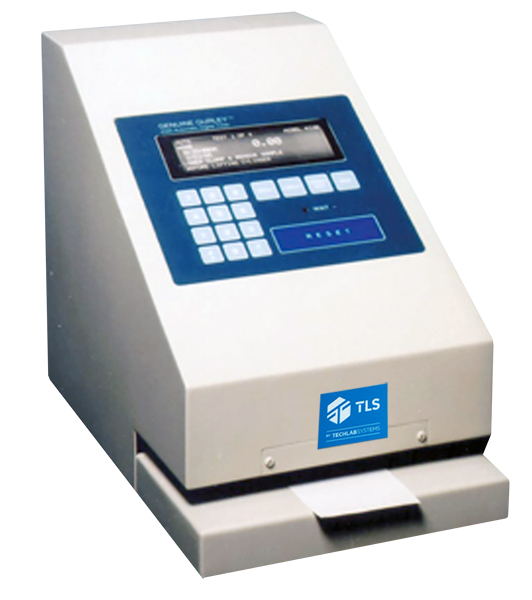

    Smoothness Meter

    To measure accurately the Smoothness & Air Permeability (or Porosity) of paper and paperboard samples. According to Standards: TAPPI T460 – T536 – T490.

    Standard Features:

    • Automatic and manuel test mode
    • Output units: BEKK – BENDTSEN – GURLEY – SHEFIELD.
    • Choice of various volumes of air
    • Automatic calculation of Medium values of Standard Desviations
    • Not require use of oil
    • Pneumatic operation
    • RS-232 output
    • Compatible with the Integral Managemennt System LYNX
  • Humidimeter

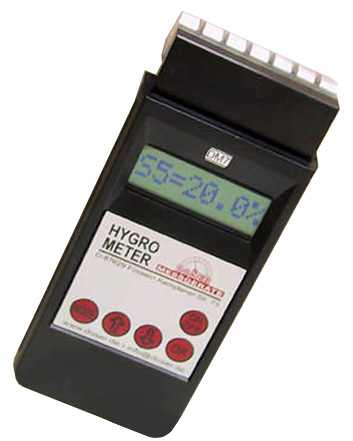

    Humidimeter

    To measure the moisture or water content in Corrugated Cardboard

    Standard Features:

    • Direct reading of moisture in %
    • Works with a standard 9V blockbattery
    • Easy to use
    • With contact electrodes
