Category: Crown Cap

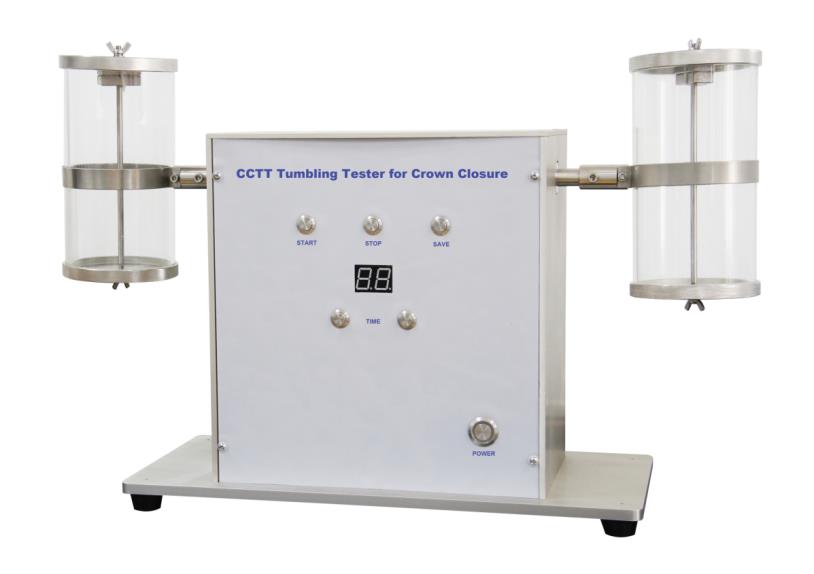

The CCTT Tumbling Tester for Crown Closure is mainly applicable to determine the shedding condition metal and coating off the situation. It is an indispensable instrument for cap manufacturing enterprises, breweries and quality inspection institutions.

Attribute

• Two sample chamber design for high efficiency
• Time setting adjustable

Test procedure:

• Take 50 pcs cleaned caps and divided into two group, each group 25 pcs caps, weigh two group caps, accuracy should be 0.1mg
• Put caps into sample chamber, turn 50 minutes (time adjustable) at a speed of 20 RPM per minute
• Take out the caps and clean the wear film attached on the cap ,weigh them again, accuracy should be 0.1mg
• Calculate the loss weight of the two group’s caps. Take the average of two group loss weight as the cap abrasive wear value.
• Compare to standard qualified range to determine if the value is within the range.

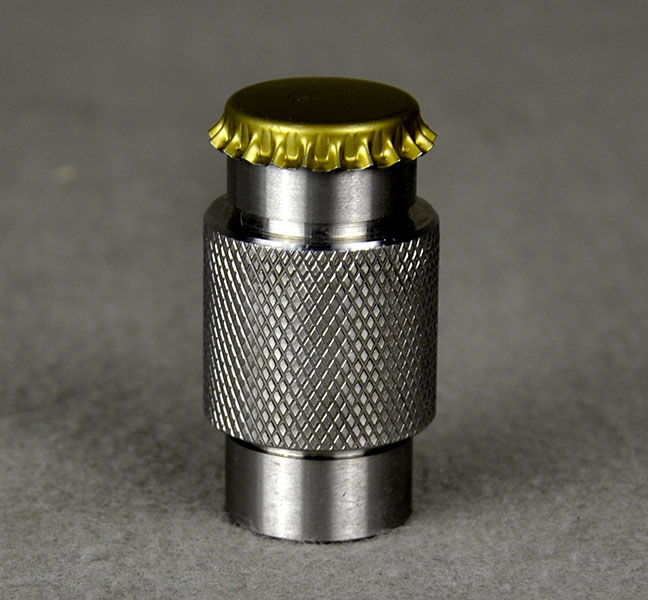

The aim of this unit is to test whether the internal diameter of the tested sample is within standard or not.

– Judgment of reference: the small end must adapt to the internal circle of the samples, while the larger end should not adapt to the internal circle of the samples.

– It can be custom-made as different diameters.

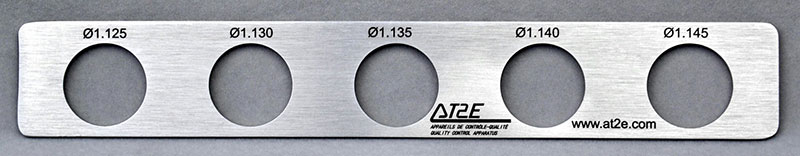

The aim of this unit is to test whether the outside diameter of the tested sample is within standard or not.

– Judgment of reference: the samples must adapt to the larger hole, while the samples must not adapt to the small hole.

– It can be custom-made as different diameters in numbers of holes.

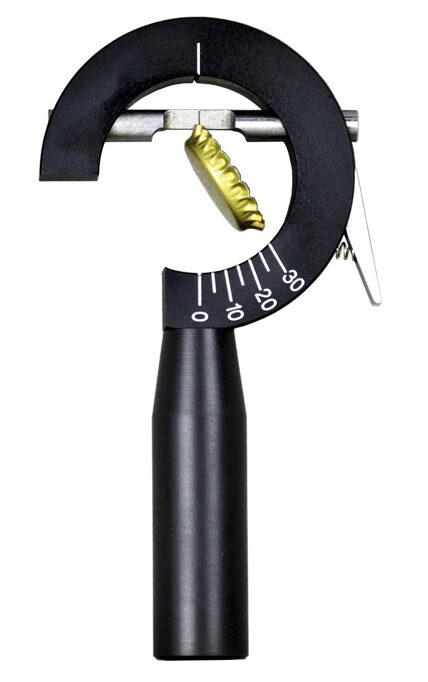

This unit is used to get a rapid and accurate measure of angle α of the crown cap.

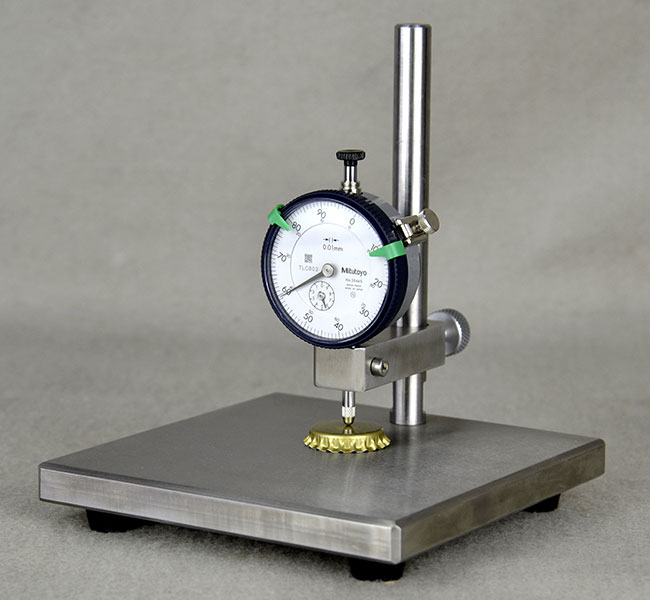

This unit has an excellent basis for measuring. It’s easy to use. Crown cap height and thickness are measured by analog indicator. It is widely used in crown cap, brewery and beverage industries.

Quality control gauges for checking the threaded tops of glass and plastic containers. Check the threads, outside diameter, spacing, etc.

Comb. Finish Gauge 28mm-PCO-1816 PET

Comb. Finish Gauge 28mm Pet/28-969-1716

Comb. Finish Gauge 38mm Glass/38-1663

Comb. Finish Gauge 38mm Pet/38-1690

Comb. Finish Gauge 28mm Glass/28-1650RE

Comb. Finish Gauge 28mm-PCO-1810 PET

Comb. Finish Gauge 28BPF

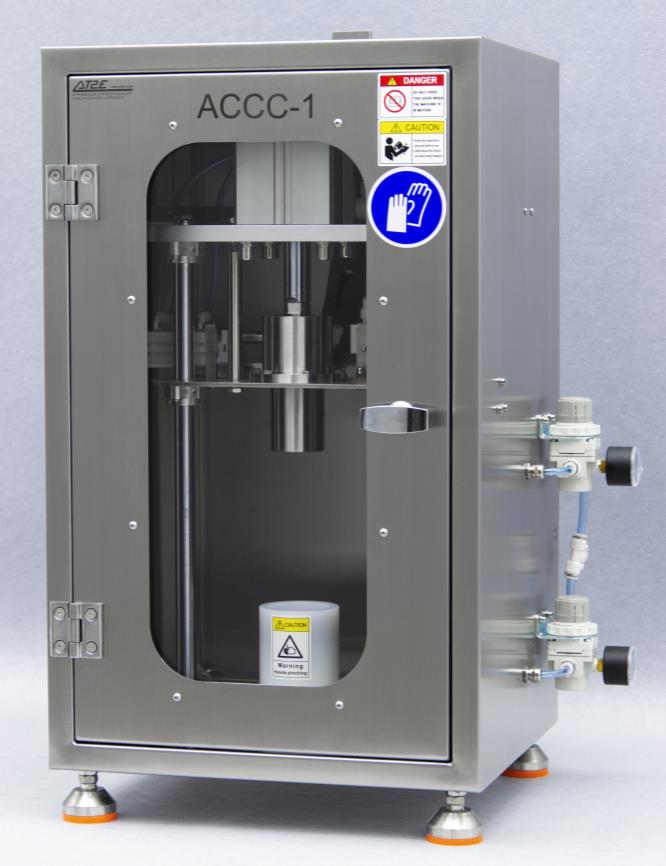

The AT2E ACCC-1 is an automated crown cap capper for laboratory using purpose.

Features:

•  Pneumatic controlled.
•  Various of safety design.
•  Full automatic capping, the capping process will be accomplished when operator closes the door.
•  Customize bottle spacer according to the sample dimensions.
•  Stainless steel frame, strong and durable.
•  Efficient cap preload design, up to 12 caps can be preloaded.

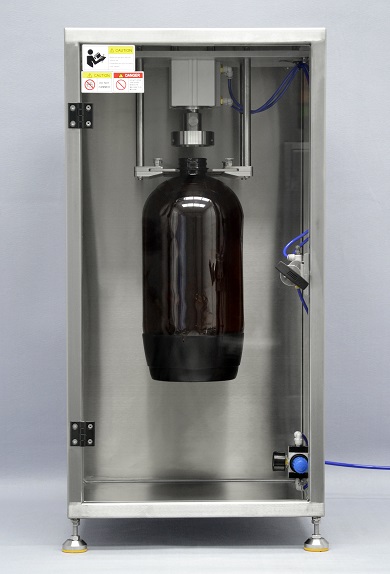

The AT2E ACD-1 is an automatic capping device for laboratory using purpose.

Features:

• Pneumatic controlled.
• Various of safety design.
• Full automatic capping, the capping process will be accomplished when the operator closes the door.
• Customize bottle spacer according to the sample dimensions.
• Stainless steel frame, strong and durable.
