Category: Cutters

Instrument for Physical Testing, Measure of Quality and Properties

  • Twin Blade Cutters

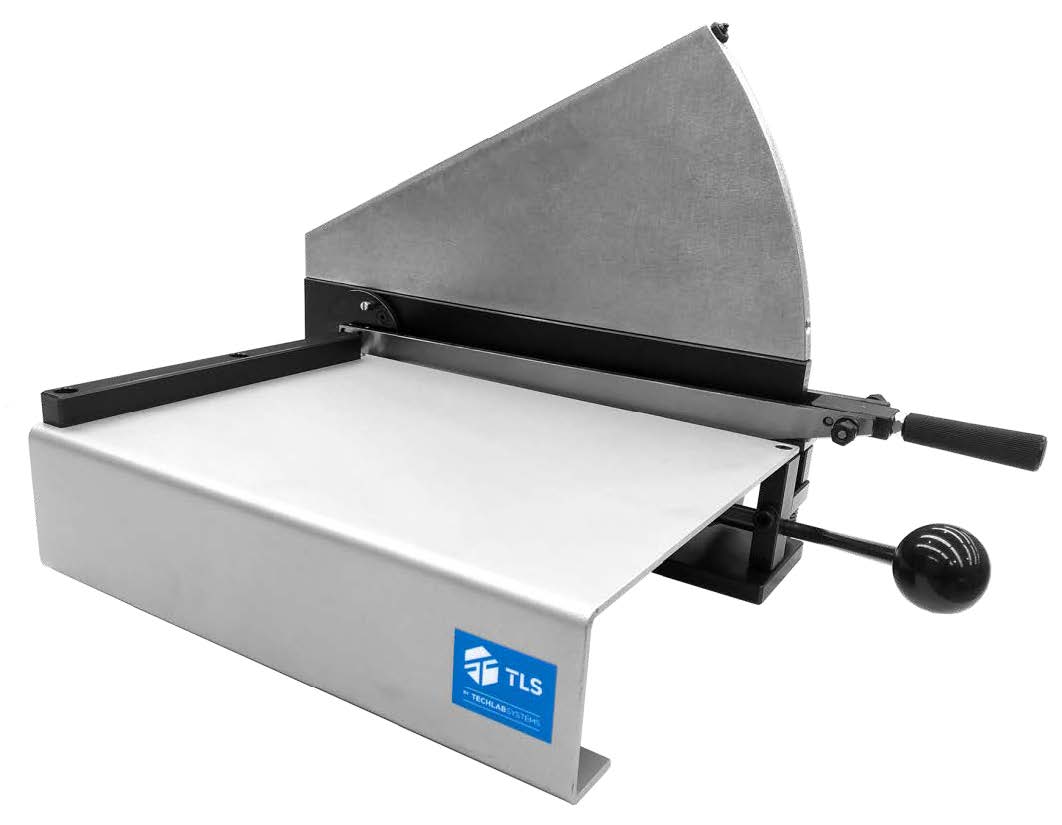

    Twin Blade Cutters

    APPLICABLE STANDARDS: ISO 1924-2/3 – SCAN P38/P67 – ASTM D828 – TAPPI T494 – TAPPI T456 – APPITA/AS 1301.448 – PAPTAC D.34 – DIN 53112 Teil 1 – ISO 3781 – ISO 12625-4/12 – JIS P8113…

    Standard Features:

    • Fixed blade and two movable cutter blades
    • Size : : 455 x 285 x 270 mm (width x depth x height)
    • Equipment is provided with methacrylate security cover protection
  • Pneumatic ECT Cutters

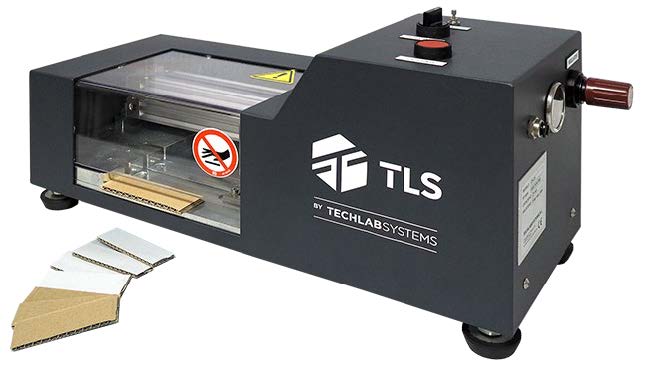

    Pneumatic ECT Cutters

    For precision cutting of corrugated cardboard samples for ECT compression testing on the Sample Crush Tester.

    APPLICABLE STANDARDS:
    PAT tests: APPITA/AS 1301.430s, TAPPI T 821, FEFCO No. 11
    ECT tests: APPITA/AS 1301.444s, ISO 3037, ISO 13821, DIN 53149, SCAN P33, TAPPI T 811, TAPPI T 823, TAPPI T 838, TAPPI T 839, FEFCO No. 8

    Standard Features:

    • Easy to use
    • Safety of use
    • Robust design
    • With ejection system of the samples after making the cut
    • Thickness of samples up to 15 mm
    • CE marking
    • Cutting width (to select one upon request)
  • CD

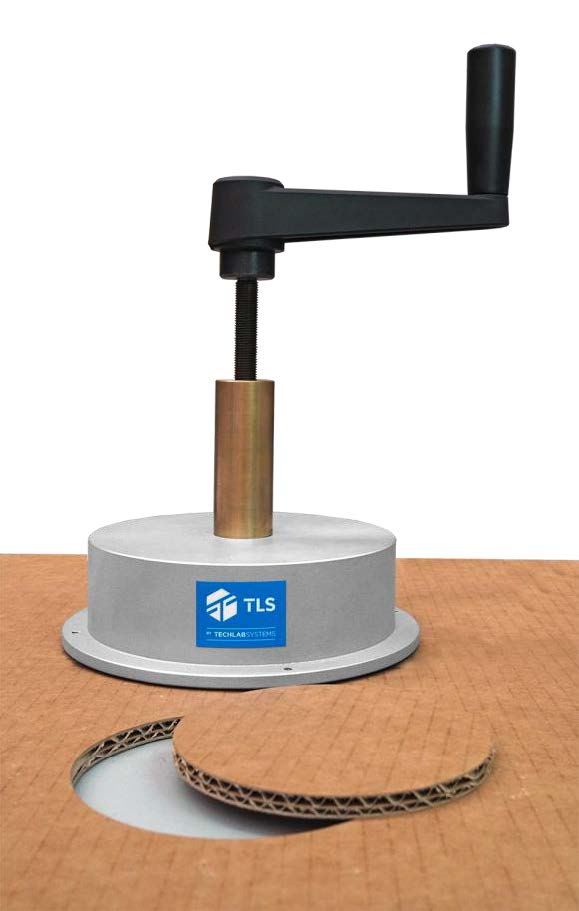

    CD

    Standard Features (corrugated board):

    • Cut depth easily adjustable for different sample thickness
    • Blade remains totally covered by the security chassis
    • Three fix pins avoid displacement of the equipment during the cut operation
    • Sample cut up to 10 mm thickness

    Standard Features (paper – paperboard – cardboard):

    • DISC series
    • Rotating handle (pushing down and turning simultaneously) results in a perfect cut of the sample
    • Replacement of blades is easily done on the side of the equipment.
    • The lowering movement of the blades is always blocked by the lateral pin of the equipment (2 hands needed for cutting). To unblock the blades, pull the little pin and rotate it a quarter.
    • Sample cutting up to 5 mm thick
  • Samples Presses cutter

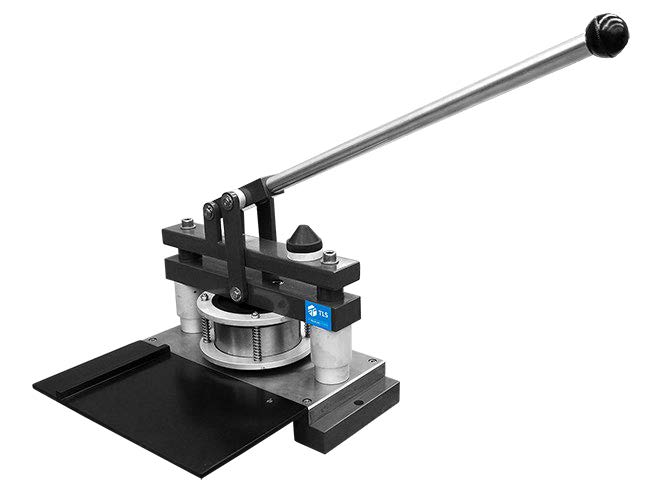

    Samples Presses cutter

    Standard Features:

    • Cut rectangular, square, or circular precision samples
    • High accuracy  (+/- 0.1mm)
    • Cuts paper board, tissue paper, aluminum foil, and more
  • PP Series

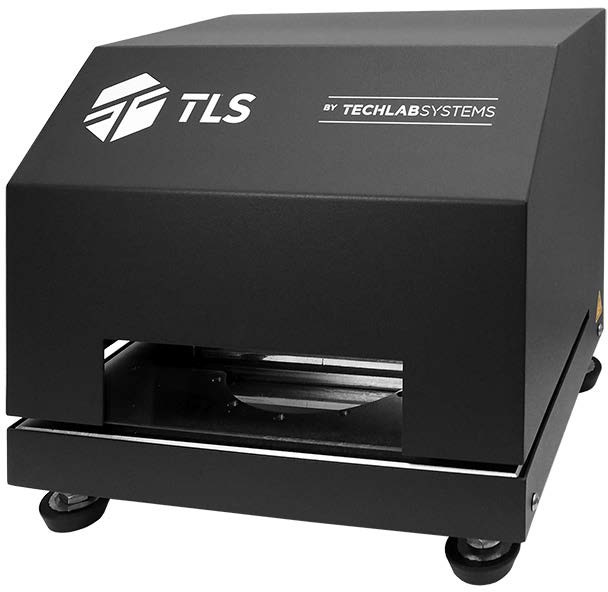

    PP Series

    APPLICABLE STANDARDS: ISO 1924-2/3 – SCAN P38/P67 – ASTM D828 – TAPPI T494 – TAPPI T456 – APPITA/AS 1301.448 – PAPTAC D.34 – DIN 53112 Teil 1 – ISO 3781 – ISO 12625-4/12 – JIS P8113…

    Standard Features:

    • Cut rectangular, square, or circular precision samples
    • High accuracy  (+/- 0.1mm)
    • Cuts paper board, tissue paper, aluminum foil, and more
    • Equipment is provided with methacrylate security cover protection
