Category: Dimensional

Measure range: 0-150mm, 0-200mm, 0-300mm

A convenient device for quick check of dome height of a glass bottle

Features:

• Aluminium and water-proof design
• LED light equipped
• Graduation equipped
• Button on/off

CM CircoMeter is for measuring the outside circumference and diameter of different kinds of products like cables, plastic pipe, bottles, etc.

FHS Fill height syringe is used to adjust water level in a bottle to a pre-determined fill height.
It’s a useful tool for accurate and quick checking the content of bottle.

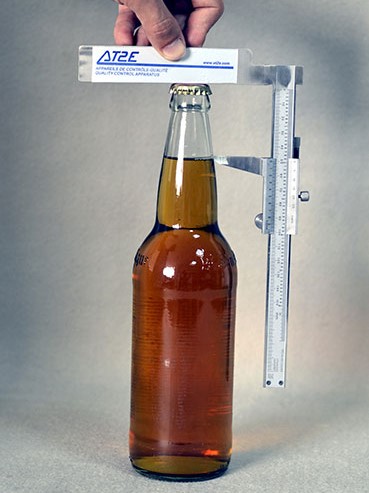

Simple and useful measuring tool for fill height measurement. It’s designed for all size bottles. Gauge may be preset in inches or millimeters to check fill height level on production line or may be used to measure exact fill point of bottle and then compared to standard. Rule may be raised or lowered to compensate for the thickness of various crown caps.

A convenient device for quick check of glass bottle during production.

Features:

• Stainless steel design with white glass and LED light
• Button on/off
• Adjustable light intensity (Optional)
• Bottom light (Optional)

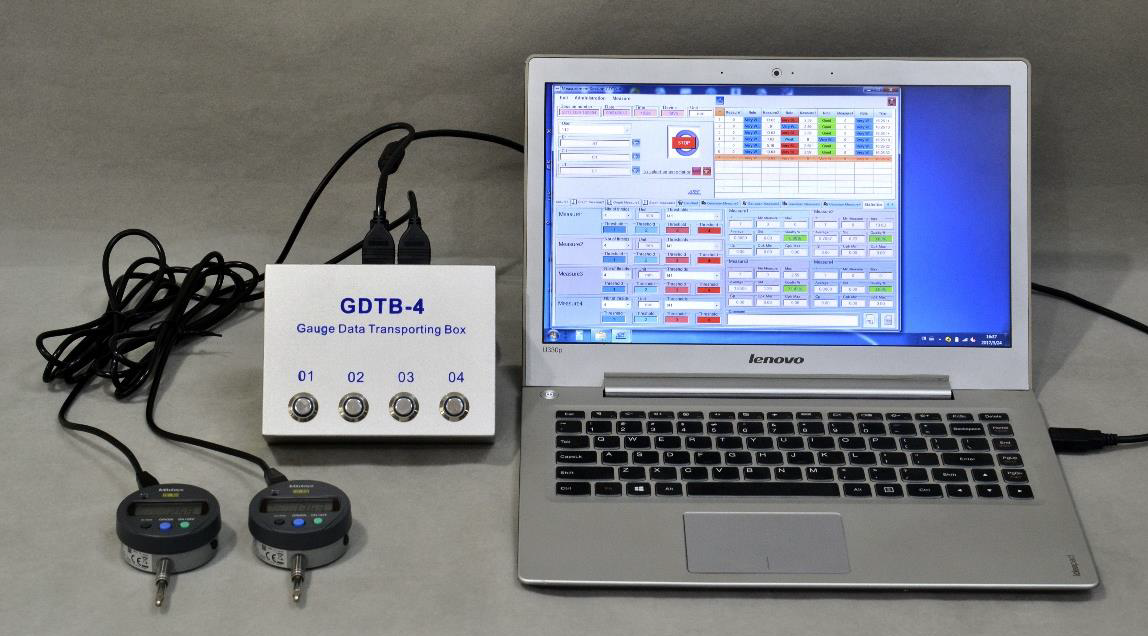

GDTB-4 Gauge Data Transportation Box is a data process box specially developed for collecting the data from Mitutoyo digital gauges. With the GDTB, users are able to collect the Mitutoyo digital gauges’ data and send to data acquisition system or AT2E’s “QUALIGAUGE” software. It is able to connect up to 4 gauges.

With GDTB-4 and “QUALIGAUGE” software, date can be transferred from any Mitutoyo digital gauges. User can review and manage all the saved data. Data report and graph are available with the “QUALIGAUGE” software which is very useful for data and result analyzing.

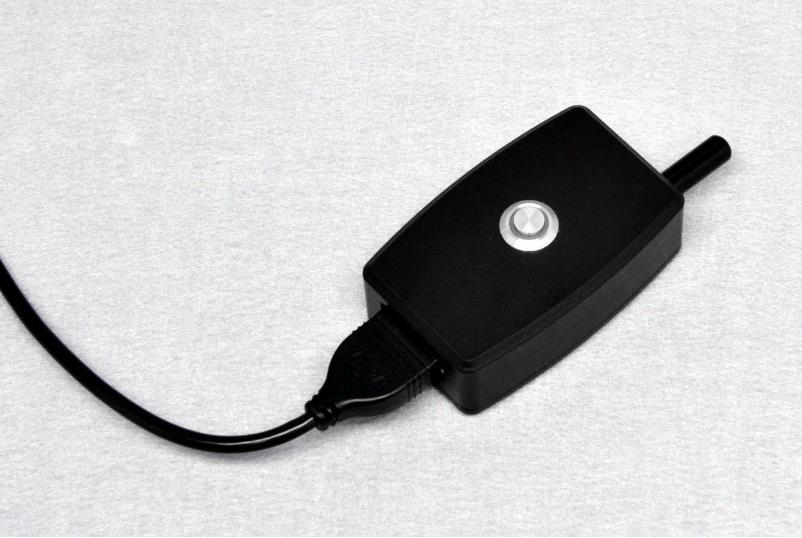

GDTB-1 Gauge Data Transportation Box is a data process box specially developed for collecting the data from Mitutoyo digital gauges and sending to PC directly.

With GDTB-1, operator just needs to press the button to transfer the data from any Mitutoyo digital gauges to lots of files in PC instead of keyboard typing, available for “Word file”, “Excel file’, “txt” file and so on… It will be much more efficient and it can avoid typing errors.

RDMG-1 Reform Depth Measurement Gauge

RDMG-1 Reform Depth Measurement Gauge is a digital gauge for measuring reform depth of ROPP Closure. For fast and easy measurement, the zeroization base is equipped.

TDG-1 Thread Depth Gauge

TDG-1 Thread Depth Gauge is a digital gauge for measuring thread depth of ROPP Closure. For fast and easy measurement, the zeroization base is equipped.

Technical specifications:

• Measuring range : 0-10 mm
• Resolution : 0.01 mm
• Accuracy : ±0.01 mm

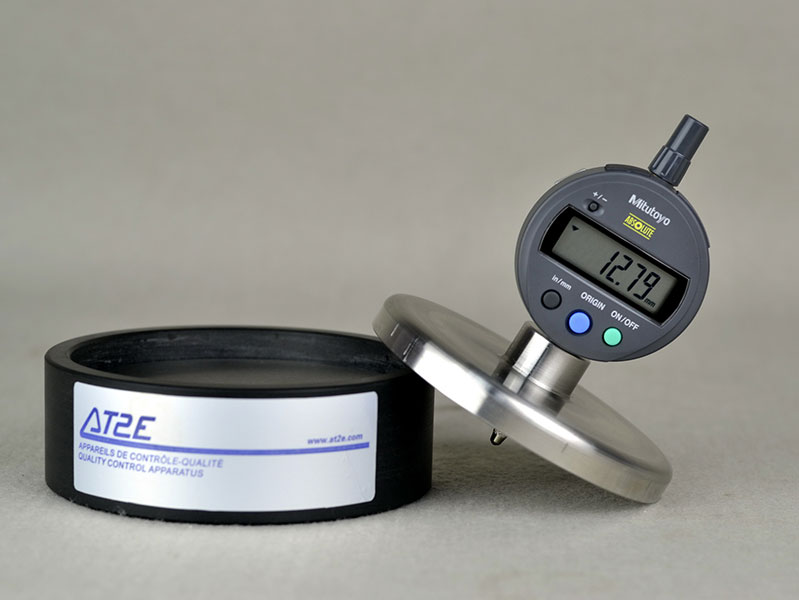

The BCG – Base Clearance Gauge is specifically designed for measuring the dome height in the bottom of PET containers. The Base Clearance Gauge adopted with a high accuracy Mitutoyo digital indicator with built-in port for serial communications. The ultra-flat measurement base ensures the high accuracy of measuring.

Feature:

• Reliable and simple to use
• Ideal for on-site measurements near the blowing line.

For quick and easy verify of the centricity of the injection point of a blown bottle.

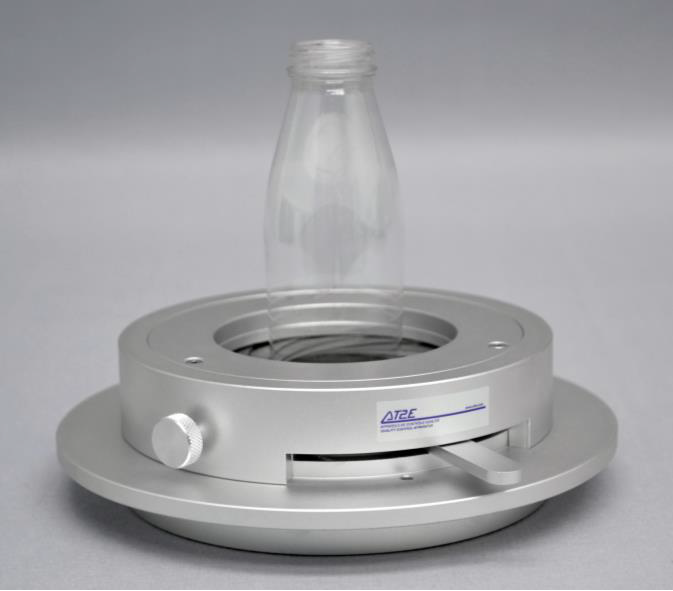

The GCG Gate Center Gauge is for quick and easy verify of the centricity of the injection point of a blown bottle. The adjustable centering clamp and easy-observing scale enables the quick and easy operation.

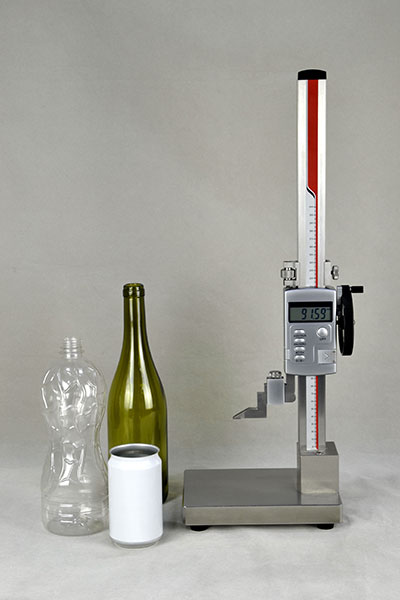

HG-1 Height Gauge which is equipped with a measuring platform can be used to measure the height of bottle, can and other packaging.

The gauge can be connected to AT2E “SeamCheck” software or SPC system via the adapter and cable.

BTG-D Digital Glass Bottle Wall Thickness Gauge is a manual operating gauge which is used for measuring the wall thickness of glass bottles. It can offer quick and convenient way of thickness measurement for glass bottle production.

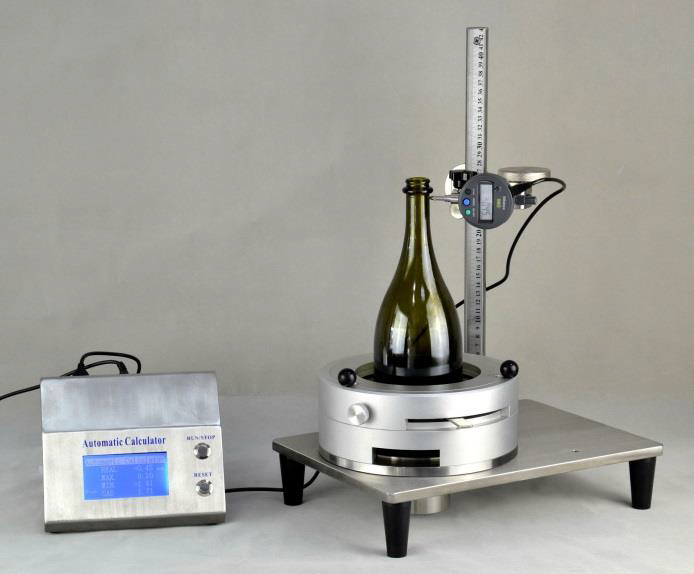

UBPT-1 Universal Bottle Perpendicularity Gauge is used to measure the perpendicularity (deviation) of bottle and it’s a standard equipment for packaging and beverage industries.

It’s applicable for various sizes of bottle with the special design of clamping and rotatory system. With automatic calculator, data can be sent to the calculator and read easily. The MAX, MIN, and SAD (Sum of absolute difference between “MAX” and “MIN”) values will be displayed on the calculator which is very convenient for the operator.

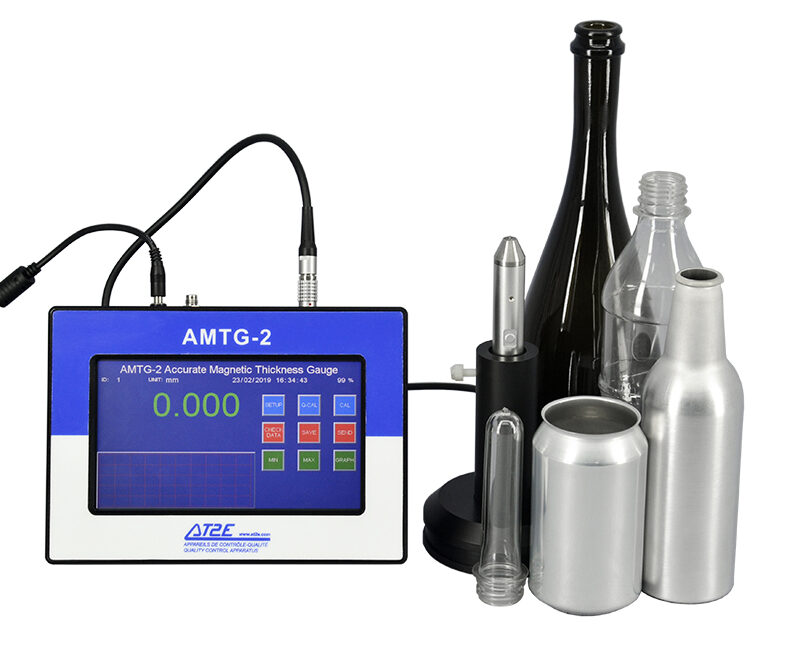

The “AMTG-2” is a portable feeler gauge. It is used to measure the thickness of non-magnetic materials, such as plastic, glass, ceramic, aluminum, titanium, copper etc… The accuracy of the measurement is not affected by the shape of the samples.

It’s designed by basing on the method of the Hall Effect. Simple and rapid measure as below:

• Place the steel ball on one side of the sample and the probe on the opposite side
• Move the sample and let the probe to be the tested position
• The steel ball will be drawn by the probe automatically
• The Hall Effect sensor on the probe measures the distance between the probe tip and the steel ball

Advantages:

• Non-destructive measure
• High resolution 7” touching screen
• Dynamic display: measuring value / graph / date / hour / battery life
• Full aluminum frame
• Fast and accurate measurement of the thickness
• Achieving accurate thickness measurement in corners, small radius and some irregular shape.
• Display real-time measurement value
• Max. and Min. mode: Automatic capture of the maximum or minimum value
• Value difference function: Display the value difference between preset value and actual measured value
• “CYCLE” function: Record the Max, Min, Average value & Graph during a predefined time. “Delayed start & Auto-stop” function frees the hands of operator and it’s convenient for large-size sample measuring.
• Alarm function: Programmable, warns the high or low preset value by sound or visual indication
• Password function enables the safety of the calibration data and measuring data.
• Can store 9999 measurement data

Standard configuration:

• Standard probe with cable and stand
• Using manual
• Foot switch
• Charger
• Portable case
• Steel balls and supports: 1.59 / 3.18 / 4.76 mm（Steel ball diameter)
• Calibration blocks:0.23 / 0.5 / 1 / 2 / 3 / 4 / 5 mm (Custom-made thickness of block is available)
