Category: Empty Bottle Inspection

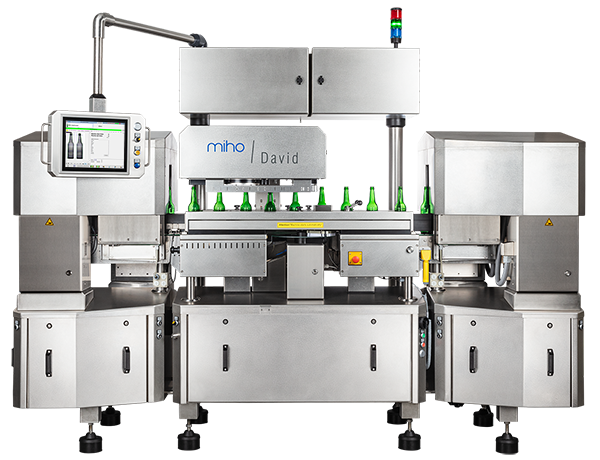

Complete inspection of empty bottles after the washer and before the filler: base, finish, thread, sidewall…

• Individually configurable
• Latest computer technology on the platform miho VIDIOS®.
• Up to 72,000 bottles per hour
• lighting throughout with maintenance-free high-performance LEDs
• Machine design by the highest hygienic standards
• Optimum accessibility: easy to use
• Eco-design: reduced power and air consumption
• No format parts required for different bottle types
• Low operating costs
• Continuous further development

500 machines in use worldwide

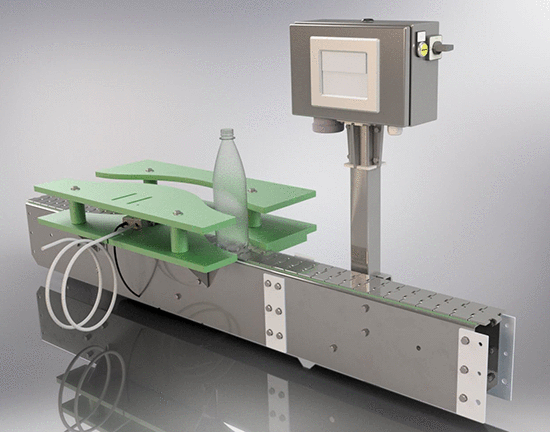

Very accurate inspection of the bottle for residual liquids containing caustic solution after the washing machine and before the filler. Wetting through caustic solution will already be detected as a fault. Water residues are strictly distinguished from caustic residues. The machine is operated by using a 5.7“ touchscreen with access through a user defined password.

Comprehensive statistics for individual types of faults are available. Connection to an external production data acquisition system is possible.

Upon detecting a bottle that is wetted with caustic solution, a floating signal is emitted, which, for example, activates the bottle stopper or a line shutdown. In addition, the operator is informed by an optical and/or acoustic signal.
