Category: Folding Carton Testing

Instrument for Physical Testing, Measure of Quality and Properties

  • IBT

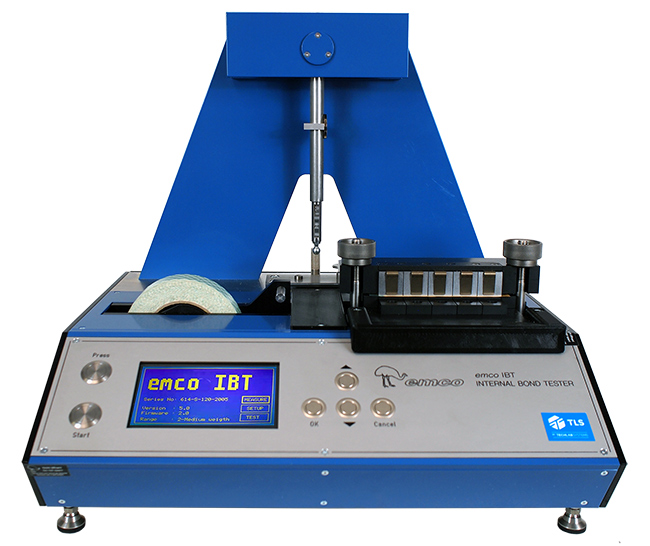

    IBT

    INTERNAL BOND TESTER model IBT
    Method to determine of the internal bond strength of single and multi-ply paper and paperboard by dynamics delaminating Scott Bond method according TAPPI T569 om-09 –

    Standard Features:

    • Sample preparation integrated for 5 samples simultaneous (bonding, pressing, cutting)
    • Processor controlled clamping pressure and press time
    • 4 measuring ranges approx. 52.5 J/m2 to 2100 J/m2 (Scott bond low and high included)
    • Statistic function (AVG – average value, DEV – standard deviation)
    • Selective indication of measurements in: J/m2, ft-lb/sq.in. or mJ/sq.in.
    • Monitoring of the climatic conditions
    • Output of measuring data and parameters to PC
    • Self calibrating
    • Automatic pendulum test according to DIN 51 222
    • Digital reading
    • Includes Cable and Test Software
  • FT-10

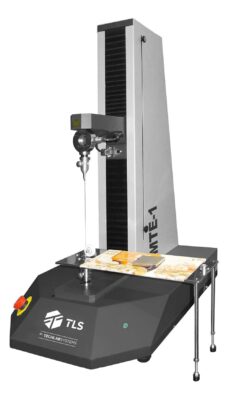

    FT-10

    With 1Mini PC + Testing Software + Management Module with basic statistics, included

    To determine the static and dynamic friction coefficients of Paper, Carton …samples. According to the ASTM D1894 – ASTM D2534 – ASTM D4521 – TAPPI T549 – ISO 8295 – ISO 15359 – BS 2782 pt8 – DIN 53375 Standards

    Standard Features:

    • Management Module with basic statistics
    • Easy to operate
    • 10N Load cell
    • Performs tensile tests (grips optional)
    • Determines Dynamic and Static friction coefficient automatically
    • Compatible with our widely popular Test Management System software package LYNX Plus and Pro
    • Testing software – basic level
    • Mini PC (data acquisition and control)included
  • OP50

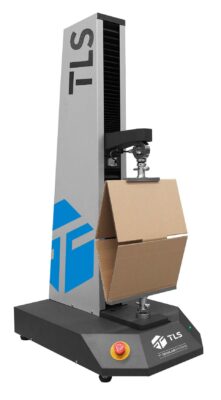

    OP50

    This equipment quickly and accurately determines the force necessary to unfold and to open to boxes and cardboard cases.

    Standard Features:

    • Management Module with basic statistics
    • Robust and highly accurate
    • Load Cell 50N force capacity
    • Quick return to initial start position
    • Additional grips allows these tests:
      Separation glued lines – Bending – Static & Dynamic Friction Coefficients – Tension / Compression
    • Compatible with our widely popular Test Management System software package LYNX Plus & Pro
    • Testing software – basic level
    • Laptop PC (data acquisition and control)
