Category: Label Inspection

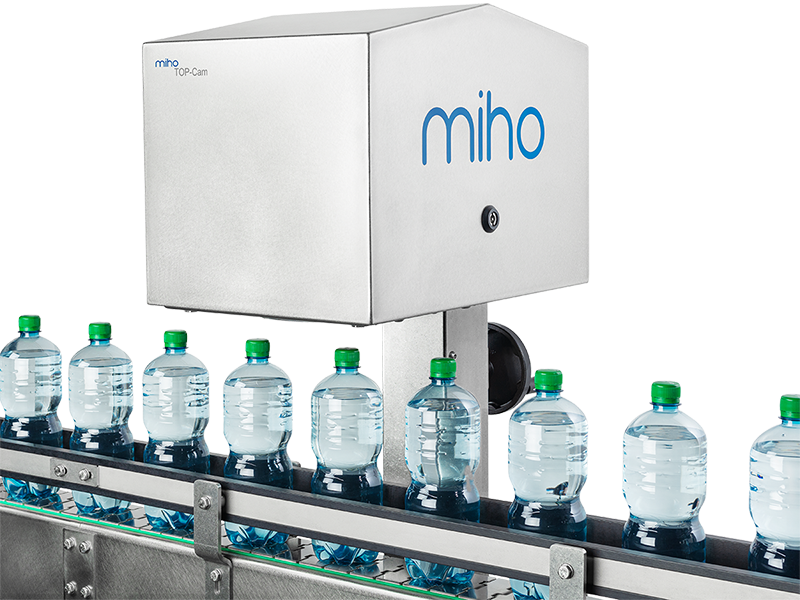

Camera illumination unit in free flow for sealing surface inspection (RGB).

• Optical finish control (stand-alone)
• State-of-the-art, digitalised and flexible colour camera mirror system
• Easy accessibility, maintenance-friendly design

No container alignment is necessary.

The inspection is carried out by a colour camera and an application-specific high-power LED lighting system.

The containers can be checked for the following criteria, among others:

• Detection of damage to the sealing surface of glass and PET bottles
• Detection not only of external but also of internal damage thanks to special triple ring lighting (RGB) with colour camera for image recording

Evaluation unit for checking the presence of labels and the position of glass and PET bottles. The inspection is carried out by using colour cameras and a high-performance LED lighting system.

Comprehensive statistics of the individual types of fault are available. A serial fault detection is implemented. Connection to an external production data acquisition system is possible.

The camera lighting unit is fitted as standard in the labelling machine. With wrap-around labels, assembly is also possible at the outfeed of the labelling machine.

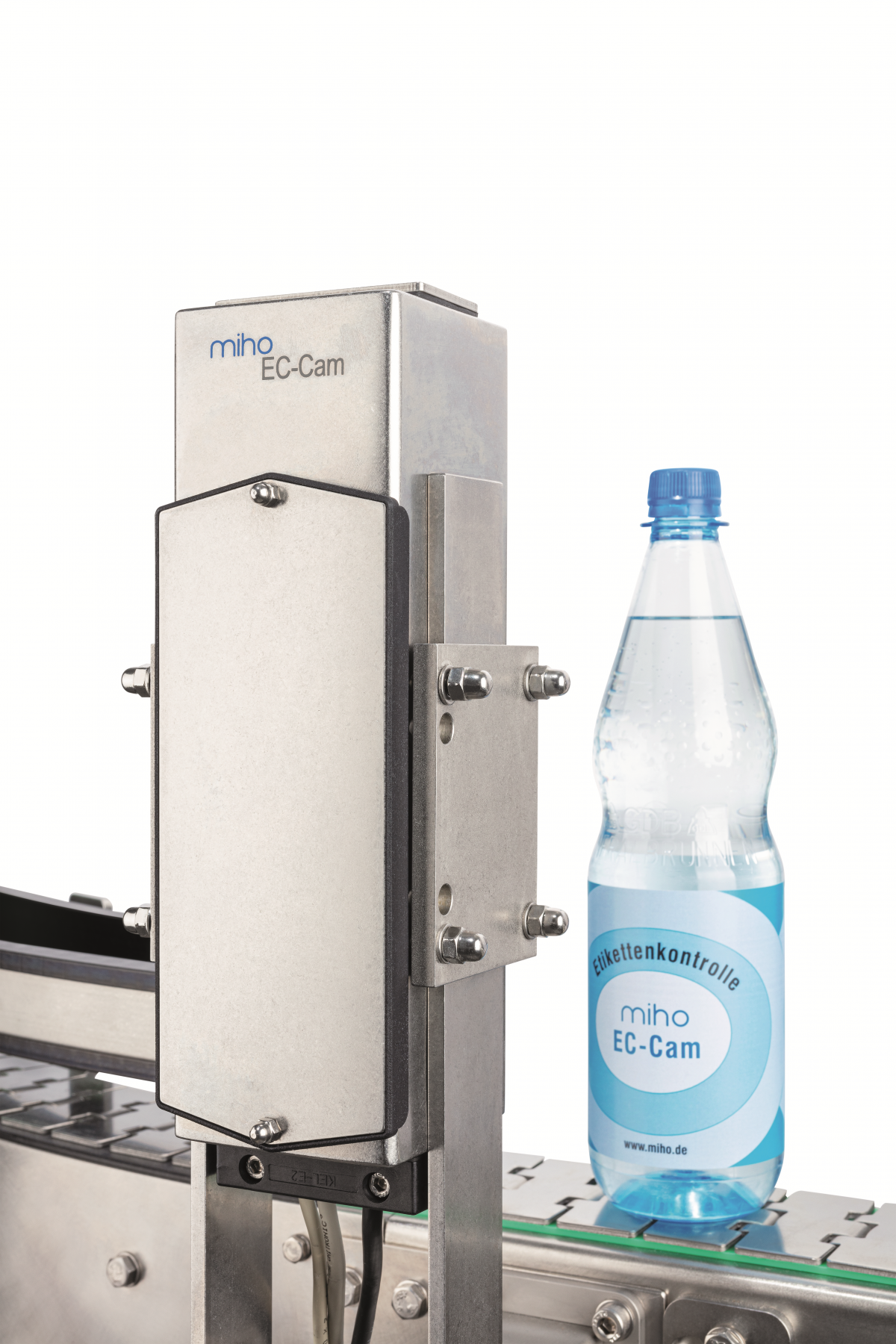

Camera lighting unit for integration in a labelling machine for checking the labels.

Labels can be checked for the following criteria:

• presence
• correct position
• presence of best before date

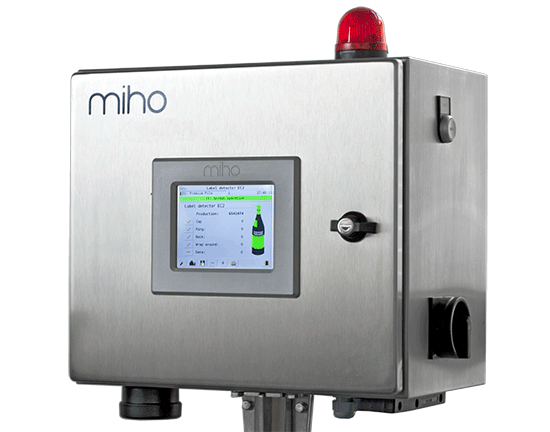

Label Inspection Unit miho EC 2 to detect the presence of labels directly in the labelling machine, on the aligned bottle. Touch user interface in stainless steel housing, for the evaluation of up to 12 reflected light sensors (accessories).

Comprehensive statistics for individual types of faults are available. A series fault detection is implemented. Connection to an external production data acquisition system is possible.

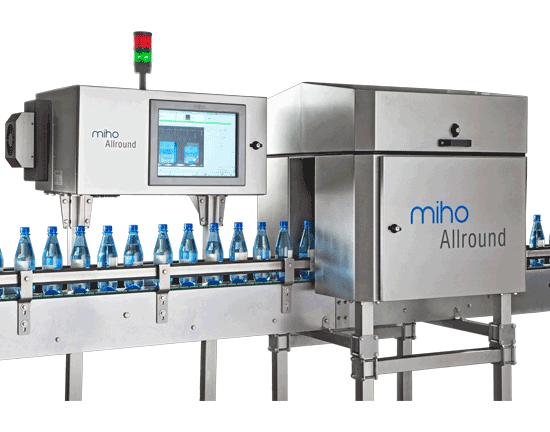

For a final quality inspection of filled and labelled containers by at least 4 cameras to ensure a 360 ° inspection.

Labels can be inspected for the following criteria:

• presence
• accuracy
• correct position
• intact
• expiry date and EAN barcode: check presence and completeness
• expiry date and EAN barcode: check the logical integrity as permanent error
• optional: imprints; ACL: Sorting by comparison with a reference bottle
• Tax label control
