Category: Paper Testing

Instrument for Physical Testing, Measure of Quality and Properties

  • M5

    M5

    To measure with accuracy of thickness of Tissue Paper…
    According to standards: NF DIN EN ISO UNE 12625-3 – SCAN P47…

    Standard Features:

    • Range: 0 to 10 mm
    • Reading Resolution: 0.001 mm (1 microns)
    • Contact area:  10 cm2
    • Contact pressure: 2 kPa ( 20 g/cm2 )
    • Digital display with reset to “0” function
    • Manual drive by ergonomic handle
    • Robust and precise equipment
    • Compatible with the Labo Test Management System LYNX
  • MTE-1

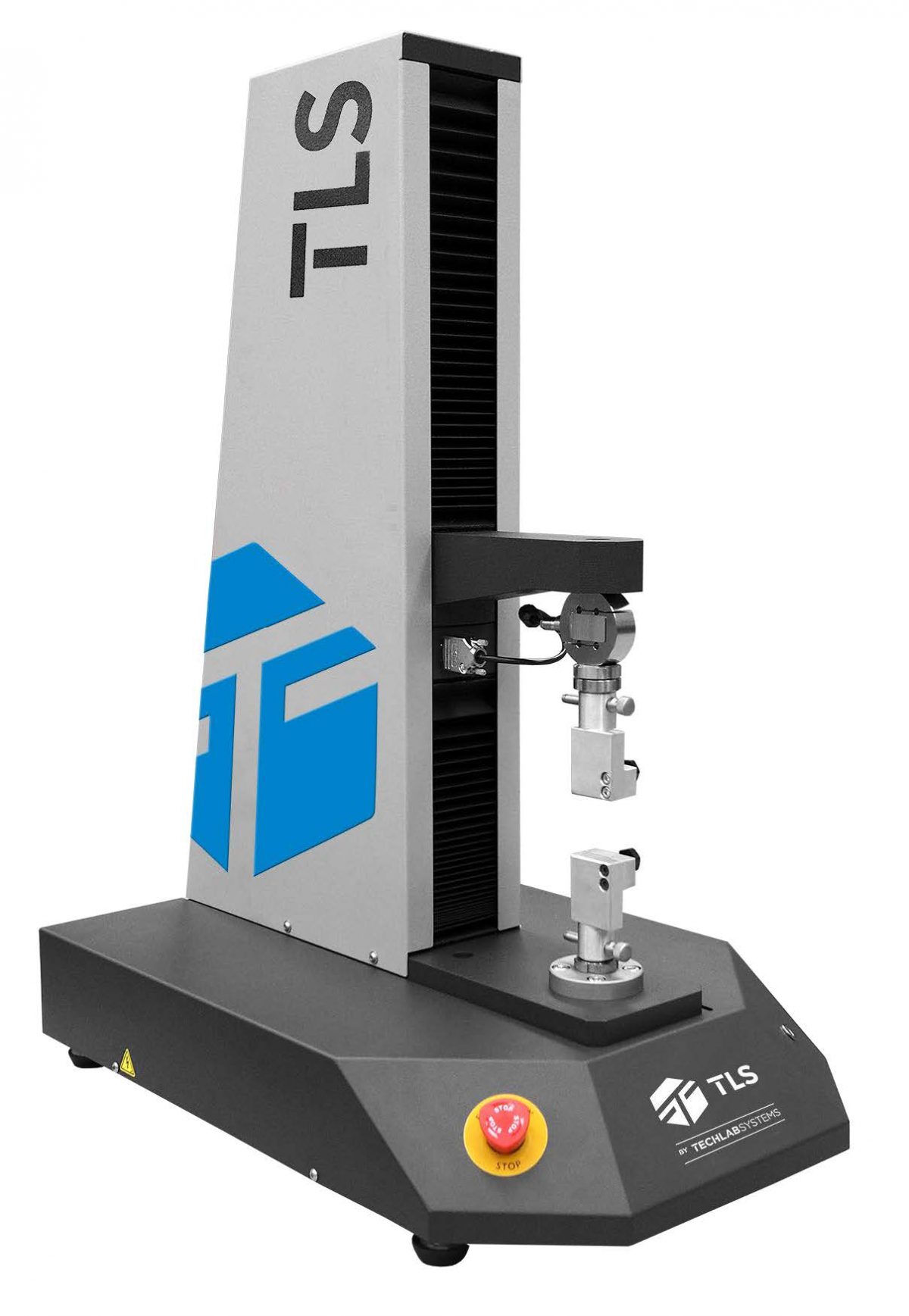

    MTE-1

    For determination of tensile strength and elongation of paper (Kraft, Liner, Tissue…)

    The software allows to obtain the value of the T.E.A., which is the Tensile Energy Absorption (TEA) of the paper and which is defined as the area under the force-elongation (energy) curve.

    According to Satandards: DIN EN ISO UNE 1924-2 / DIN EN ISO UNE 1924-3/ DIN ISO UNE 3781 / DIN ISO UNE 12625-4 / DIN ISO UNE 12625-5 / DIN ISO UNE 15754/ FINAT-1-2-3 / SCAN P38 / SCAN P67/ TAPPI T494 / TAPPI T 456 / TAPPI T 541/ PAPTAC D34

    Standard Features:

    • Robust and highly accurate (max. capacity of force 1kN)
    • Load cells are available 1000 – 500 – 250 – 100 – 50 or 10 N
    • Quick return to initial start position
    • With additional grips it is possible to make tests of :
      Separation glued lines – Bending – Static & Dynamic Friction Coefficients – Tension / Compression
    • Compatible with/the Integral Test Management System LYNX
    • LYNX Testing software – basic level
    • LYNX  Management Module with basic statistics
    • Mini PC included (data acquisition and control)
  • Tearing Tester

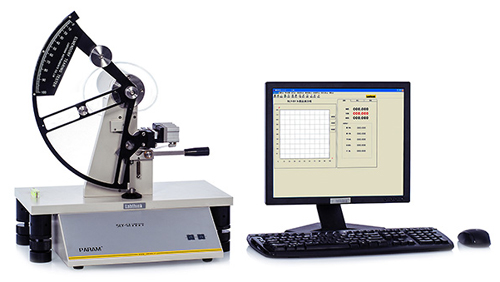

    Tearing Tester

    For determinig the Tearing Resistance of Paper and Board. According to the standards: ISO 6383-2 – DIN EN ISO UNE 1974 – ASTM D 1922 – ASTM D 1424 – TAPPI T414 – DIN EN ISO UNE 13937-1…

    Standard Features:

    • Computer controlled tester
    • Included Software, desktop PC with Windows O.S.
    • Fast and easy data acquisition
    • Pneumatic clamping and release device of the sample
    • Integrated sample cutter
    • Tearing range is easy to change
    • Selectable capacities of the pendulum
    • Assistant system of horizontal adjustment by compuetr
    • Computer controls test, multifond units display
    • Easy to operate
    • The testers is supplied with one of both Basic pendulum to choose
    • Compatible with the Integral Managemennt System LYNX
  • Water Absorption Tester (WAT)

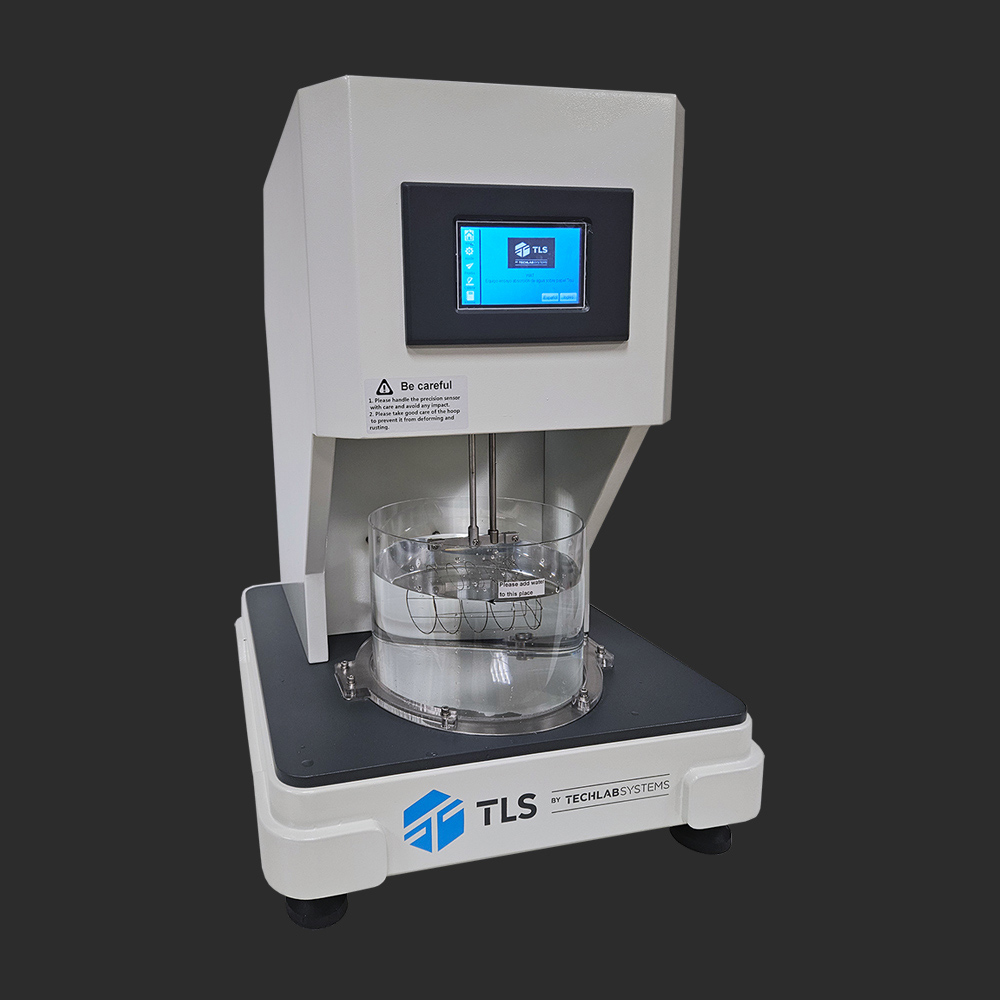

    Water Absorption Tester (WAT)

    The automatic tissue paper water absorption tester is robust and is characterized by its intuitive and simple operation through a touch screen.
    The water container (3 liters) is filled with distilled water. In the WAT menu, the immersion time and the sample drain time are set in an inclined position. The sample cut according to the standard The standard supply includes a 100g weight for WAT equipment checks. is then deposited inside the basket and the “test” button is pressed. After detecting the dry weight of the sample, the basket will be immersed in water for the set time. After 30 seconds of immersion, the basket will automatically raise and tilt 30º to drain the sample for 60 seconds.
    The standard supply includes a 100g weight for WAT equipment checks
