Category: Portable IR Thermometers

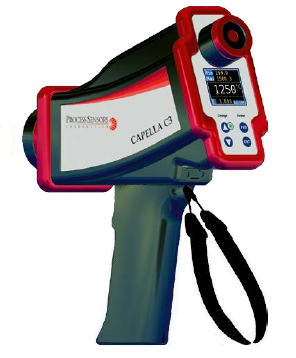

The Capella C3 Series of hand-held, battery operated 1- and 2-color IR thermometers brings all the advanced measurement capabilities of PSC fixed mounted pyrometers to the workplace in portable form. This rugged, comprehensive model series offers green laser or through lens sighting, ultra fast speed of response, short-wave devices for precise measurement of metals, welding, molten glass, furnace refractory, kilns, semi-conductors and ceramics. Features temperature ranges from 250°C to 3300°C.

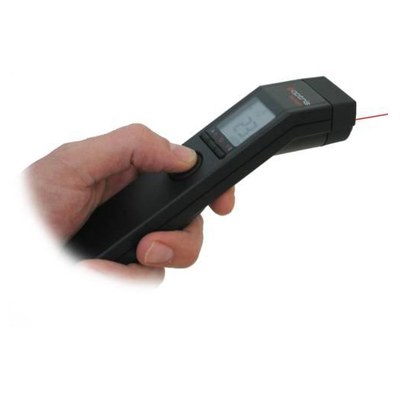

The PSC MS MiniSight portable thermometers enable you to measure objects as small as 13mm across a wide temperature range. Just spot the object, press the trigger and the infrared thermometers will show the temperature in an instant. Capable of reading temperatures of -32 to 760°C

The PSC MS MiniSight series of portable IR thermometers offers affordable instant non-contact termperature measurements in a small, hand-held device.

A wide temperature range of -32 to 760°C, laser aiming and optical resolution of up to 40:1 allow technicians to carry out accurate non-contact surface measurements for electrical and mechanical maintenance, HVAC checks, automotive testing and other applications, anywhere that temperature is a factor.

The PSC MiniSight and PSC MiniSight Plus enable you to measure objects as small as 13mm. Just spot the object, press the trigger and the infrared thermometers will show the temperature in an instant. Functions like MAX and MIN temperature results are shown in the display right away.

The PSC MiniSight Pro adds a data memory integrated USB interface and software PSCconnect support data storage, data processing and reporting on PC.

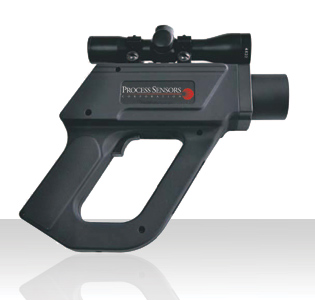

A handheld portable IR thermometer series with temperature ranges beginning at 0°C and ending at 1800°C. Enables precise aiming at extended targets due to twin lasers and built-in optical telescope.

Twin lasers and a built-in optical telescope simplify precise aiming on small targets at extended distances with Process Sensor Corp.’s latest addition to their range of portable infrared thermometers.

The Models PSC PTLST-20-1M and 2M feature a dual grip handle to assist steady aiming. Typical applications for the portable instrument are slag free molten metals and crucibles, furnace surveys in the steel, glass and refractory industries, molten glass, semiconductor wafers, composites, ceramics, induction heating of metals and spot measurements in vacuum furnaces.

Two models offer temperature ranges of 650 to 1800 °C on the 1M version, or 385 to 1600 °C on the 2M. Spectral responses of 1.0µm and 1.6µm respectively, enhance measurement accuracy when monitoring relatively low or variable emissivity targets. The two lasers are mounted such that the beams converge at the target distance, illuminating the measured area. A Ni-MH rechargeable battery provides a generous 25 hours of operation without the lasers, and 5 hours with the lasers and display back-lighting on. Other outstanding features include an internal 2000 reading data logger, and max/min audible, and visual three color alarm signaling on the integral display. A USB interface and included PSC Connect software are provided for downloading data to a computer for storage and analysis.
