Category: Pulp Testing

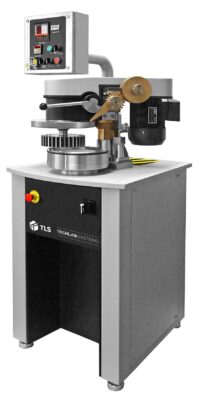

• High economic for a fast operation and small volume of pulp (30 g)
• Can beat from 5 to 40 g of pulp in concentrations from 5 to 50 % (max. 450 ml of suspension)
• Excellent repetitive to be used in quality control and research
• Security element protection for the user and equipment
• Up and down beater cylinder by electric automatic operation

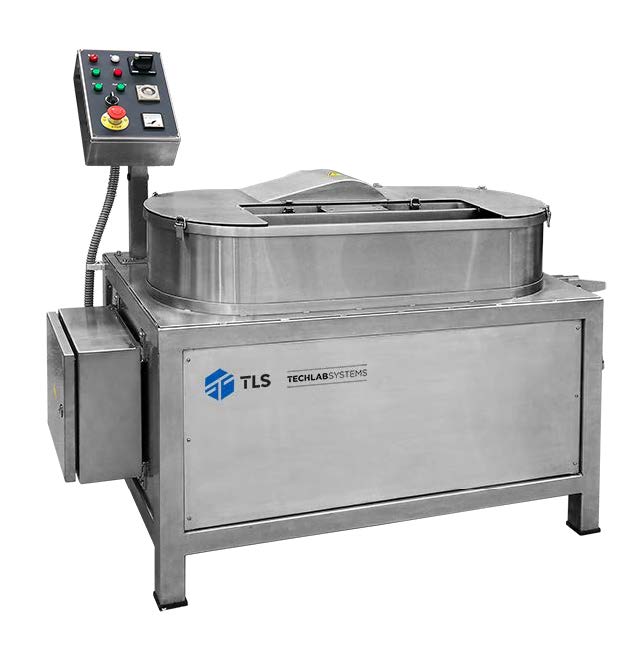

Beater type “Valley” for laboratory beating of pulps under standardized conditionsAccording to standards: ISO 5264/1 – SCAN C 25 – TAPPI T200 & 205 – PAPTAC C.2

Standard Features:

• Beating tank made of stainless steel
• Repeatable and adjustable beating pressure by means of a weighted lever
• Volume of tank: 25 litres
• It allows to work out the used strength to obtain the wished freeness value
• Sample size: 360 g
• Carrying out coloring tests and mass pasting
• Security cover – CE mark

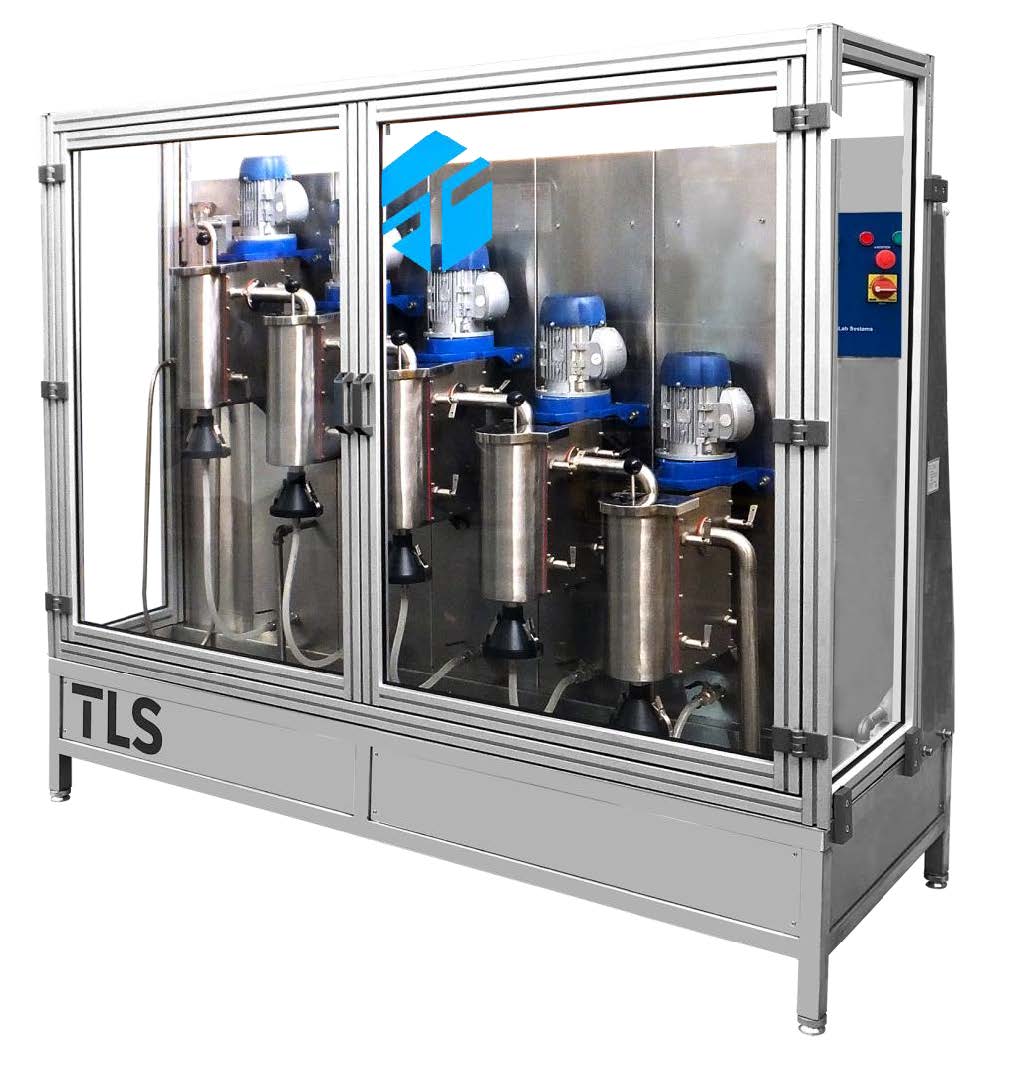

Standard Features:

• Manufactured in stainless steel
• Each classifying unit is equipped with a stirring motor
• Easy replacement screen frames
• Vacuum pump to accelerate the drainage at the end of the test
• Protection cabin (aluminum profile and transparent polycarbonate walls)
• CE Marked

The standard version is supplied with :
1st Station, sieve of a mesh opening of ASTM 16 mesh
2nd Station, sieve of a mesh opening of ASTM 30 mesh
3rd Station , sieve of a mesh opening of ASTM 50 mesh
4th Station, sieve of a mesh opening of ASTM 100 mesh
5th Station, sieve of a mesh opening of ASTM 200 mesh

NOTE: Other sieves of a mesh opening can be supplied

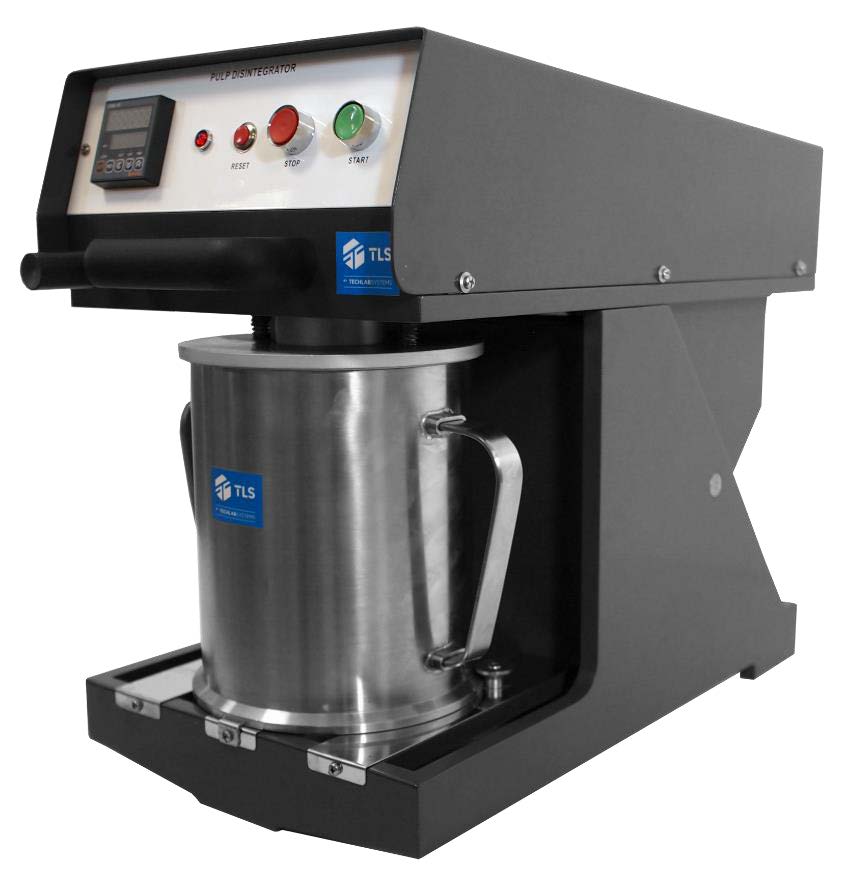

Standard Features:

• New Design, modern and compact
• Made of stainless steel
• Movable top, easy to clean
• Digital pre-selection of the revolutions
• High-performance motor of low voltage
• Low noise level
• Electronic parts protected and installed in the upper part
• Acryl container according standard (optional made of stainless steel)
• Mechanical and electrical safety with additional stop button
• Digital display: 2 lines
• Easy and ergonomic use

To manufacture paper samples in the Laboratory, according to: ISO 5269/1 – TAPPI T205 – SCAN C26 – PAPTAC C4

Standard Features:

• A base in communication with the formation recipient
• A grill covered with a metallic mesh
• Blade Size: 159 mm. diameter
• Upper metalic screen: 150 mesh according to TAPPI
• Screen bottom bracket: 20 mesh
• Suction height: 800 mm.
• Made of Stainless Steel
• Drainage time: 3.8 ± 0.2 seconds, at 20 ° C ± 1 º C

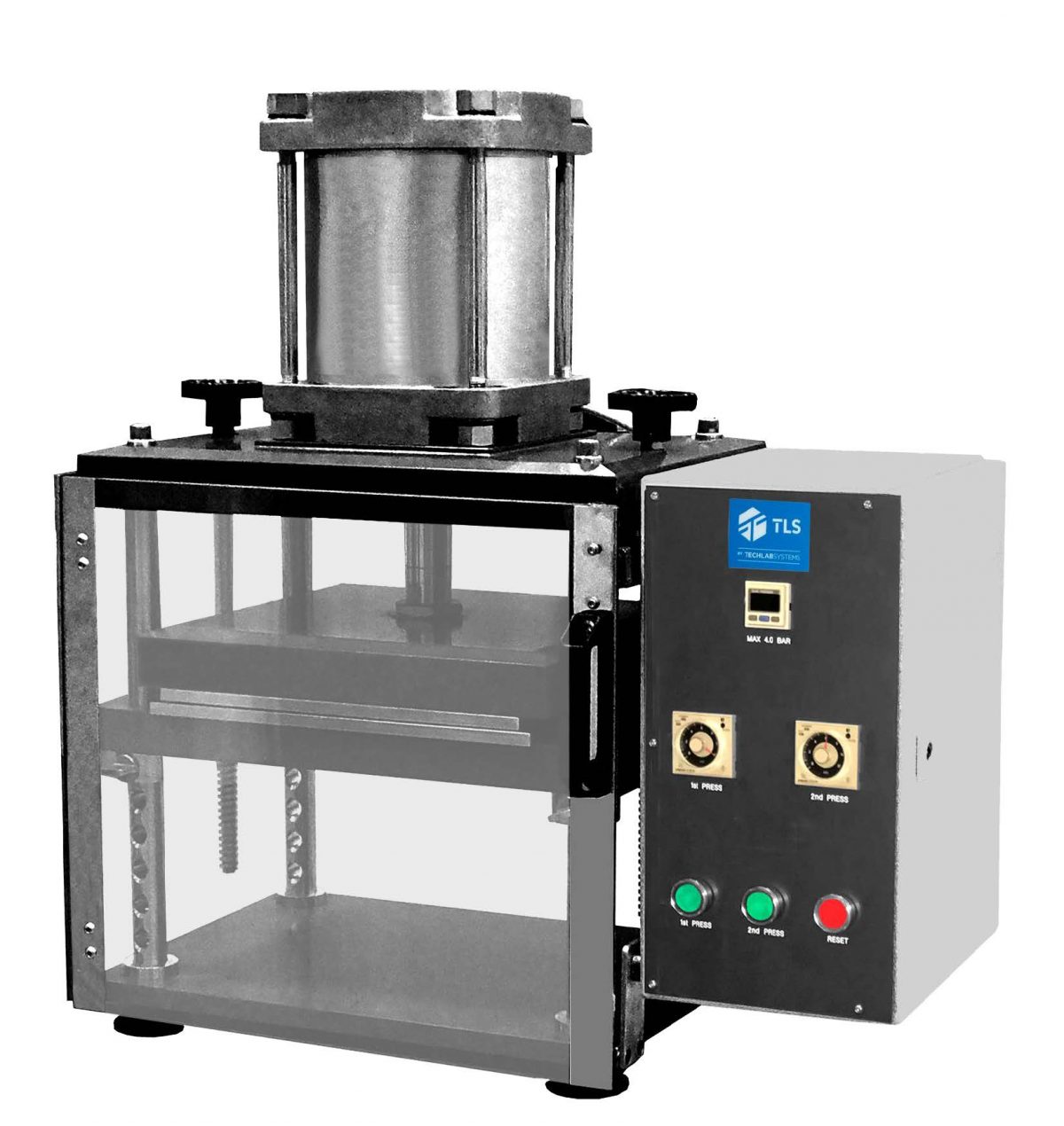

Standard Features:

• Press made of corrosion-proof materials
• Max. opening: 210 mm
• Stroke: 75 mm
• Pressure max. force: 16 KN
• Plate dimensions: 350 x 350 mm
• Time pressure controlled by two timers, adjustable
• Drainage channel incorporated to evacuate the water
• Security door with electrical interlock
• CE marked

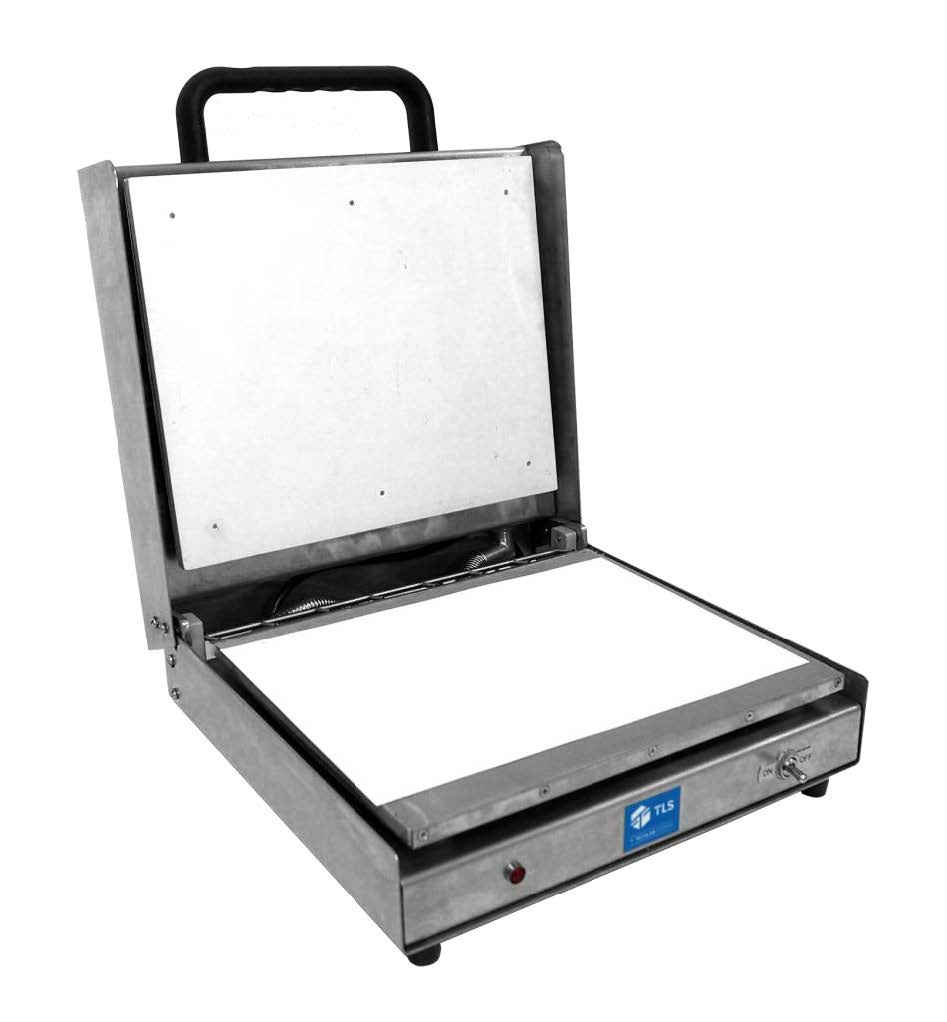

For fast drying of wet paper pulp sheets mainly from laboratory sheet former according to TAPPI or SCAN standards

Standard Features:

• Rapid drying wet sheets of paper
• Rectangular drying plates
• Uniform heat transfer through special plate (stainless steel)
• Temperature controlled by an integrated thermostat (RD-10 model) with temperature regulation from room temperature up to + 180ºC ± 10°C
• Digital temperature controller up to + 180ºC ± 1°C (SDR series)

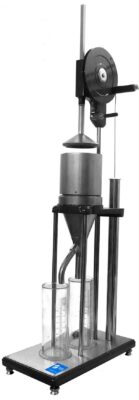

To determine the refining degree and draining velocity of paper fibres, according to: ISO 5267/1 – SCAN C 19/M3 – NF Q 50-003 –  BS 6035/1…

Standard Features:

opening and closing the cone by weight release

• Easy to use and clean
• Stainless steel
• Robust equipment
• Ergonomic

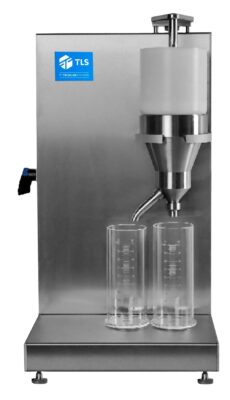

To determine the refining degree and draining velocity of paper fibres, according to: ISO 5267/1 – SCAN C 19/M3 – NF Q 50-003 –  BS 6035/1…

Standard Features:

opening and closing the cone pneumatically

To determine the refining degree and draining velocity of paper fibres, according to: ISO 5267/1 – SCAN C 19/M3 – NF Q 50-003 –  BS 6035/1…

Standard Features:

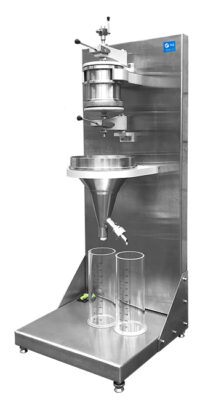

Canadian Standard Freeness Tester
