Category: Reject System

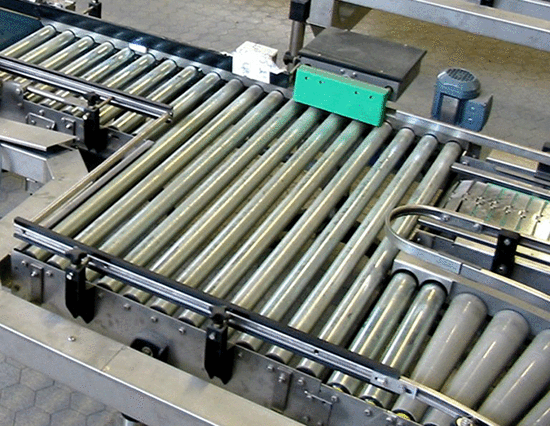

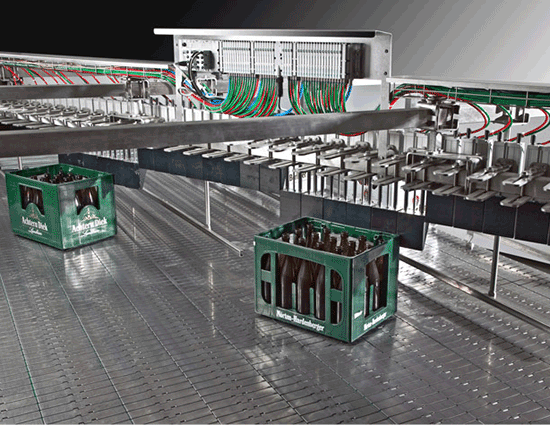

Dynamic segmented rejecter miho SK: 3 way cross rejection. The crates are being directed to two parallel lines via activatable segmented guiding.

Electro-pneumatic, incl. trigger light barrier, without conveyor.

Secure standing rejection of bottles, cans and carton packaging. Secure standing rejection even of difficult bottles in terms of shape and centre of gravity. Suitable for sorting tasks.

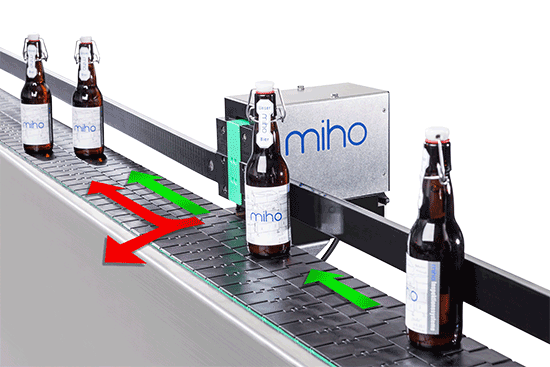

Reject system with linear drive for universal use in glass and plastic bottles as well as in cans or carton packaging (empty or filled). Rejection to two channels (for example, return belt / container) is possible by adjusting the stroke length for each class of fault. The machine is suitable for use in bottling plants with a capacity of up to 120 000 containers per hour.

Different container shapes and weights are compensated for due to the servo-control of the linear drive and have no influence on the motion sequence of the reject block. The rejection process is individually configured for different container types and can therefore be optimized to the respective container type.

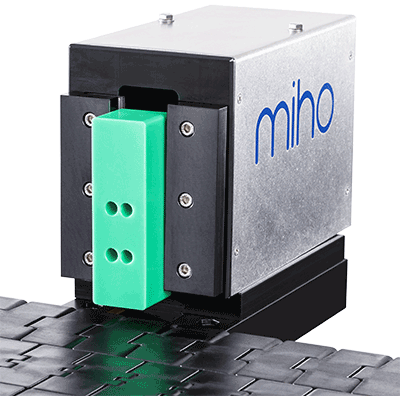

• For the reject of contaminated containers.
• Pneumatic reject system with a specially designed reject element.
• During the reject procedure a slightly vertical pressure is brought downwards upon the container. This increases the stability.
• The guiderail is connected with the horizontal adjustment of the reject system. Hence the exact distance between container and reject element can be guaranteed at all times.
• With 8mm or 15mm stroke.

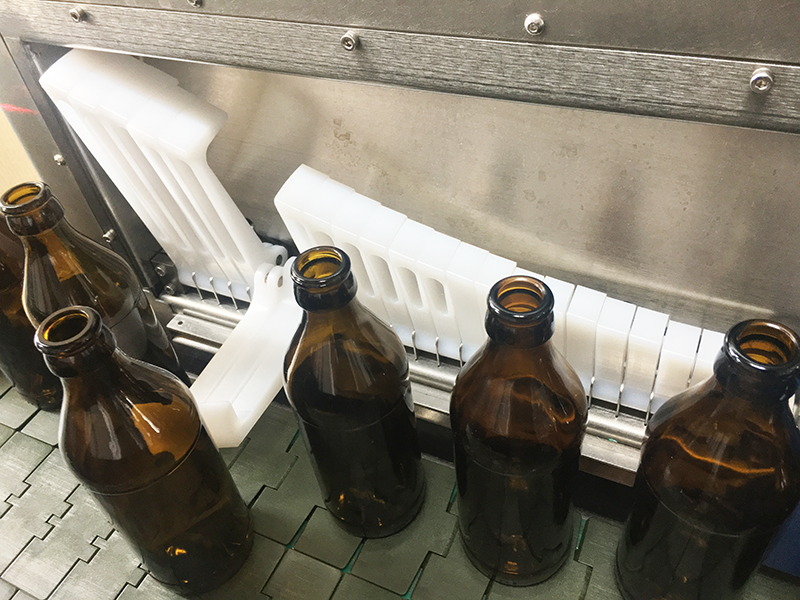

There newly developed finger rejector for the upright rejection of all types of cylindrical containers. Miho innovation: the up to 24 segment fingers are not driven pneumatically by compressed air but electromagnetically. This reduces the compressed air consumption in the filling line and thus saves money. In addition, the movement can be controlled more smoothly in both directions, which means less wear.

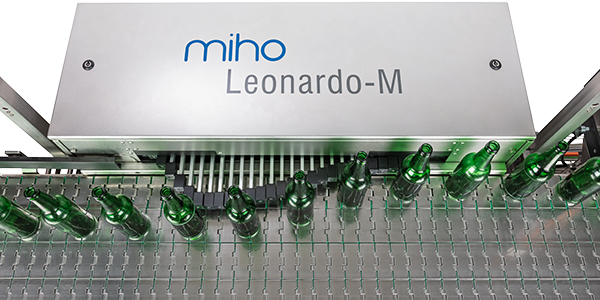

The Multi-Segment Rejector is an ideal system for upright rejection or sorting of empty containers. Thanks to its 24 rejection segments, which fold in and out quickly, faulty and unsuitable containers can be rejected easily without touching the preceding or following containers. Likewise, distribution of empty and filled containers is possible with this system. Suitable for serial installations, i.e. several rejection systems are arranged one after the other in order to be able to guide containers into several channels.
