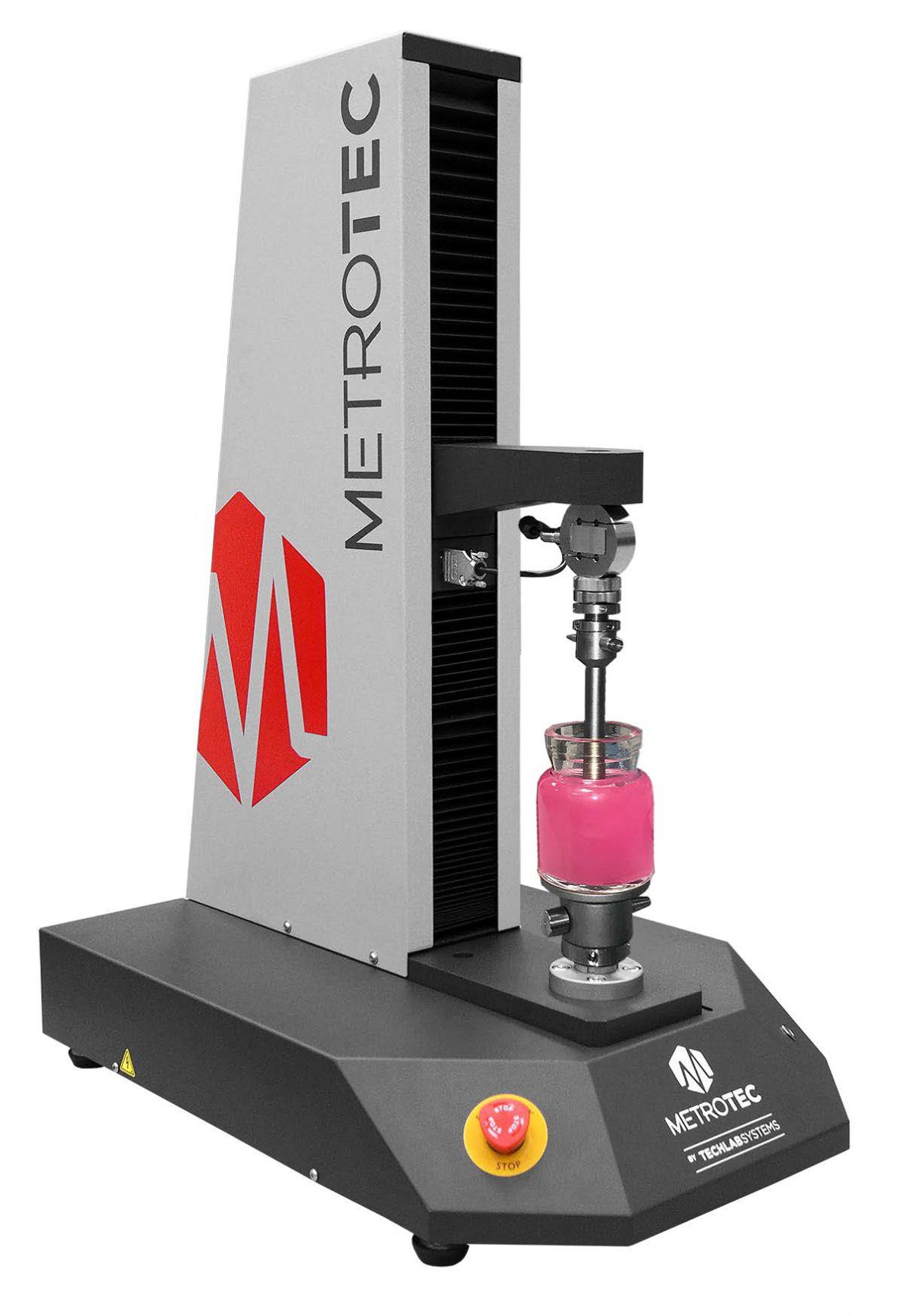

The Food Texture Analyzer (Texturometer) FTM-50 is a cost-effective and easy-to-use solution for rapid testing, detailed texture analysis in applications up to 1 kN (225 lbf).
The Texturometer uses interchangeable load cells as a force measurement element. Cyclic tensile and compression tests with load and extension limits are characteristic of standard equipment. The equipment can be adjusted with a series of jaws, fixings and accessories specifically designed for the food industry, as well as for general applications such as evaluation of the resistance and integrity of the food packaging.
The FTM-50 Texturometer is characterized by its innovative design that maximizes the workspace and simplifies both its operation and maintenance. Its large workspace allows to accommodate a wide range of test samples of large sizes and this can be increased with additional work platforms for special applications.
The Texturometer uses interchangeable load cells as a force measurement element. Cyclic tensile and compression tests with load and extension limits are characteristic of standard equipment. The equipment can be adjusted with a series of jaws, fixings and accessories specifically designed for the food industry, as well as for general applications such as evaluation of the resistance and integrity of the food packaging.
The FTM-50 Texturometer is characterized by its innovative design that maximizes the workspace and simplifies both its operation and maintenance. Its large workspace allows to accommodate a wide range of test samples of large sizes and this can be increased with additional work platforms for special applications.
The results can be managed to produce detailed analytical reports with the possibility of integrating them in Windows and exporting them to Windows base programs such as Excel …
- Large working area of 150 mm deep, capable of accommodating large samples
Characteristics:
- Force capacity: 1 kN
- Range Test Speeds : 0.01 to 1.000 mm / min
- Maximum return speed: 1,000 mm / min.
- Speed accuracy: +/- 0.2% speed selected (between 2 and 100% speed max.)
- Maximum crosshead travel: 500 mm *
- Throat depth: 150 mm
- Minimum Force Resolution: 0.0001N (load cell specific)
- Accuracy Load Cell: <0.5% between 1% and 100% FSD
- Resolution of the Extension: <0.15 microns
- Speed Sampling Data Strength (internal): 30,000 S / second
- Load Measurement System: EN ISO 7500: 2004 Class 0.5 ASTM E4
- Software: METROTEST
- Electrical Supply: 230Vac ± 10%, 50-60 Hz
- Maximum power: 400 VA
- Weight: 64 kg
- Working temperatures: 5 ° to 35 ° C
- Computerized Texturometer FTM-50
- All-in-One Touchscreen 22 “PC
- MetroTEST Software (With TPA Texture Profile Analysis)
