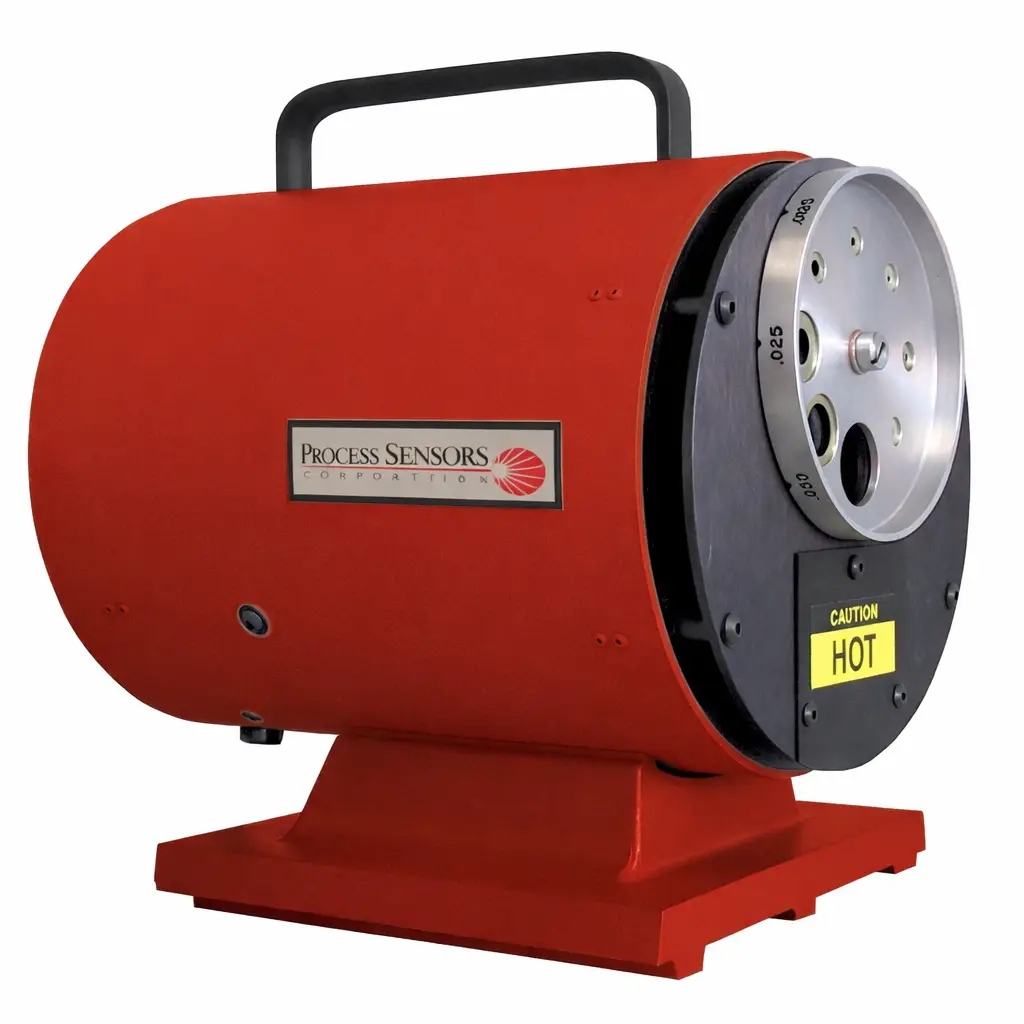

BBS1050 & BBS1200
Accurate IR Calibration in a Compact Source
The BBS1050 and BBS1200 Compact Blackbody Sources offer high accuracy in up to 1″ aperture in a compact form factor. Designed for compact, mid- to high-temperature applications (50 to 1200°C), making them ideal for smaller systems.
The BBS1050 and BBS1200 are compact, portable blackbody calibration sources designed for high-precision infrared temperature calibration. These systems provide reliable, high-emissivity radiance sources for calibrating infrared thermometers, thermal imaging cameras, detectors, and spectrometers in laboratory and field environments.
Engineered for mid- to high-temperature applications, both models offer a wide adjustable temperature range from 50°C up to 1050°C or 1200°C, along with excellent stability and accuracy (±0.2°C). Their compact design and multi-position aperture wheel allow flexible calibration setups, making them ideal for portable systems, collimators, and automated test stations.
Featuring a silicon carbide cavity with high emissivity (>0.99) and a digital PID controller, the BBS series ensures uniform radiation and consistent performance. With fast heat-up times, optional communication interfaces, and rugged construction, the BBS1050 and BBS1200 deliver dependable, high-quality calibration solutions for demanding industrial and laboratory applications.
| BBS1050 | BBS1200 | |
|---|---|---|
| Product Type | Compact Blackbody Calibration Source | Compact Blackbody Calibration Source |
| Temperature Range | 50°C to 1050°C | 50°C to 1200°C |
| Accuracy | ±0.2°C (NIST traceable) | ±0.2°C (NIST traceable) |
| Temperature Resolution | 0.1°C | 0.1°C |
| Stability (Short / Long) | ±0.1°C / ±0.2°C | ±0.1°C / ±0.2°C |
| Aperture Sizes (8 positions) | 1”, 0.6”, 0.4”, 0.2”, 0.1”, 0.125”, 0.050”, 0.025” | Same |
| Emissivity | > 0.99 | > 0.99 |
| Cavity | Silicon Carbide Target Tube | Silicon Carbide Target Tube |
| Heat-Up Time | 100–1000°C < 45 min | 100–1200°C < 70 min |
| Temperature Sensor | Embedded 0.01% Matched Type S | Embedded 0.01% Matched Type S |
| Control Method | Digital Self-Tuning PID Controller | Digital Self-Tuning PID Controller |
| Operating Temperature | 0°C to 50°C (fan cooled) | 0°C to 50°C (fan cooled) |
| Communication | RS232, RS485 or IEEE-488/GPIB (optional) | Same |
| Power Requirement | 90–125 VAC or 208–240 VAC, 50/60 Hz, 550 W max | Same |
| Source Dimensions | 11.75” H × 11.4” D × 8” W | Same |
| Controller Dimensions | 5.1” H × 13.4” D × 12” W | Same |
| Source Weight | 7.71 kg | Same |
| Controller Weight | 4.08 kg | Same |
