PSC-IR-USB Series

PSC-IR-USB Series

Loop-Powered IR Pyrometer with USB Configuration

The PSC-IR-USB Series is a loop-powered, fixed-focus IR pyrometer with direct USB-to-PC connectivity, covering -40°C to 2000°C with a 200ms response time. PSC Config software lets you adjust operational settings straight from your computer — available in dull-surface and high-reflection variants.

Download Brochure
Inquire Now

Loop-Powered Pyrometer with Direct USB Configuration

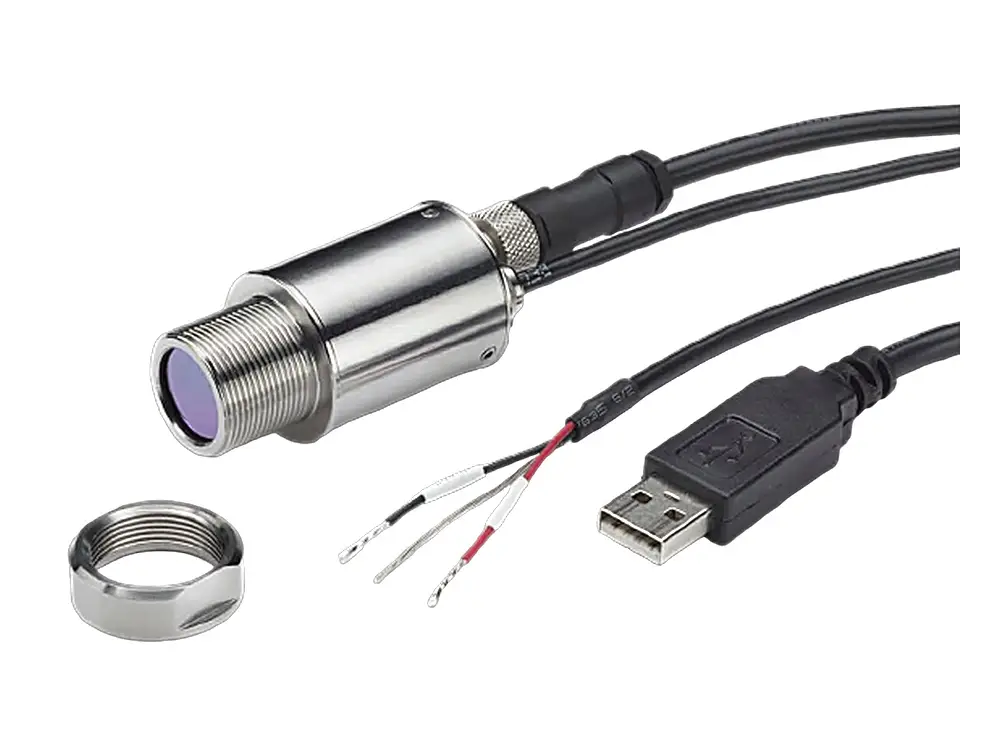

PSC-IR-USB series sensors are loop-powered, two-wire sensors with fixed focus optics, a 4-20mA output, and a USB-to-PC cable connection. Using the PSC Config software and supplied USB cable, operational settings can be adjusted directly from a PC — no separate interface hardware required. Temperature ranges span -40°C to 2000°C, with a 200ms response time.

Two Models to Suit Your Target Material

  • Low-Reflection / Dull Surface Model: Optimised for materials with lower reflectivity.
  • High-Reflection Model: Built specifically for shinier or more reflective surfaces.

Key Features

  • Loop-powered, two-wire installation for simple wiring.
  • Fixed focus optics for consistent, repeatable measurement.
  • 4-20mA analogue output for direct integration into existing control systems.
  • USB connectivity with PSC Config software for on-PC parameter adjustment.

Talk to the Techotrix team to find out which PSC-IR-USB model is the right fit for your target material.
