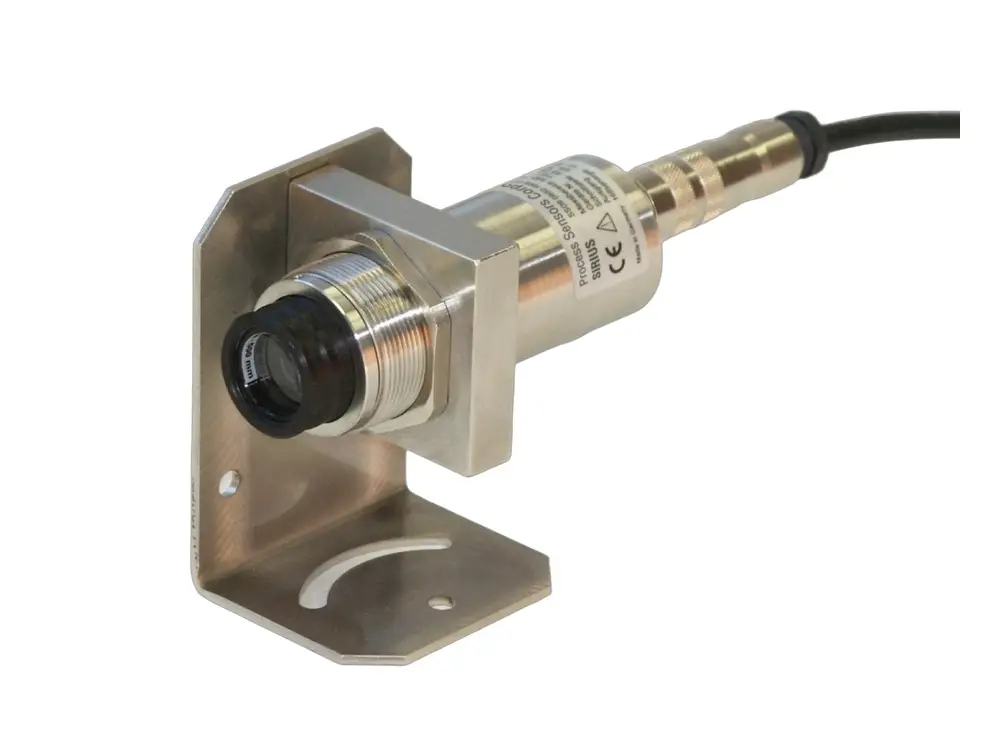

PSC-Sirius Series

Compact Short-Wavelength Pyrometer for Metals

The Sirius line of pyrometers was developed to meet the growing demand for small, compact and easy-to-install sensors with first-class optical and electronic characteristics, covering temperature ranges from 50°C to 2500°C. Sirius pyrometers provide digital/analogue outputs and operate at shorter wavelengths where the emissivity of un-oxidised metal surfaces is higher — making them an excellent choice for measurement of ferrous and non-ferrous metals above 50°C.

These pyrometers offer adjustable focus optics and are exceptionally robust, with no mechanical moving parts and the lens, detector and electronics contained in a stainless steel IP65 housing. By utilising digital signal processing, the Sirius line exceeds standard analogue pyrometers in precision and repeatability.

Three Models to Suit Your Application

• SS09: Temperature range 550°C to 2500°C, spectral response 0.7–1.1µm.
• SI16: Temperature range 250°C to 1800°C (multiple sub-ranges), spectral response 1.45–1.8µm.
• SI23: Short wavelength (2–2.6µm), for induction heating, metal heat-treat, kilns, vacuum furnaces, welding and composites above 50°C.

Key Features

• Fast 5ms response time, adjustable up to 10s.
• Precise laser sighting indicates the centre of the target area — switchable via push button, PSCwin software, external contact, or digital command.
• Isolated analogue output switchable from 0 to 4–20mA, with digital RS232 or RS485 communication.
• Peak picker (maximum value storage) compensates for interruptions or attenuation of the IR signal.
• Rugged stainless steel IP65 housing with no moving parts.

Software

PSCwin software supports automatic or manual set-up of the pyrometer, and recording and saving of graphics or table files — useful for quality assurance purposes since parameter settings are recorded alongside the data.

Talk to the Techotrix team to find out which Sirius model is the right fit for your application.
