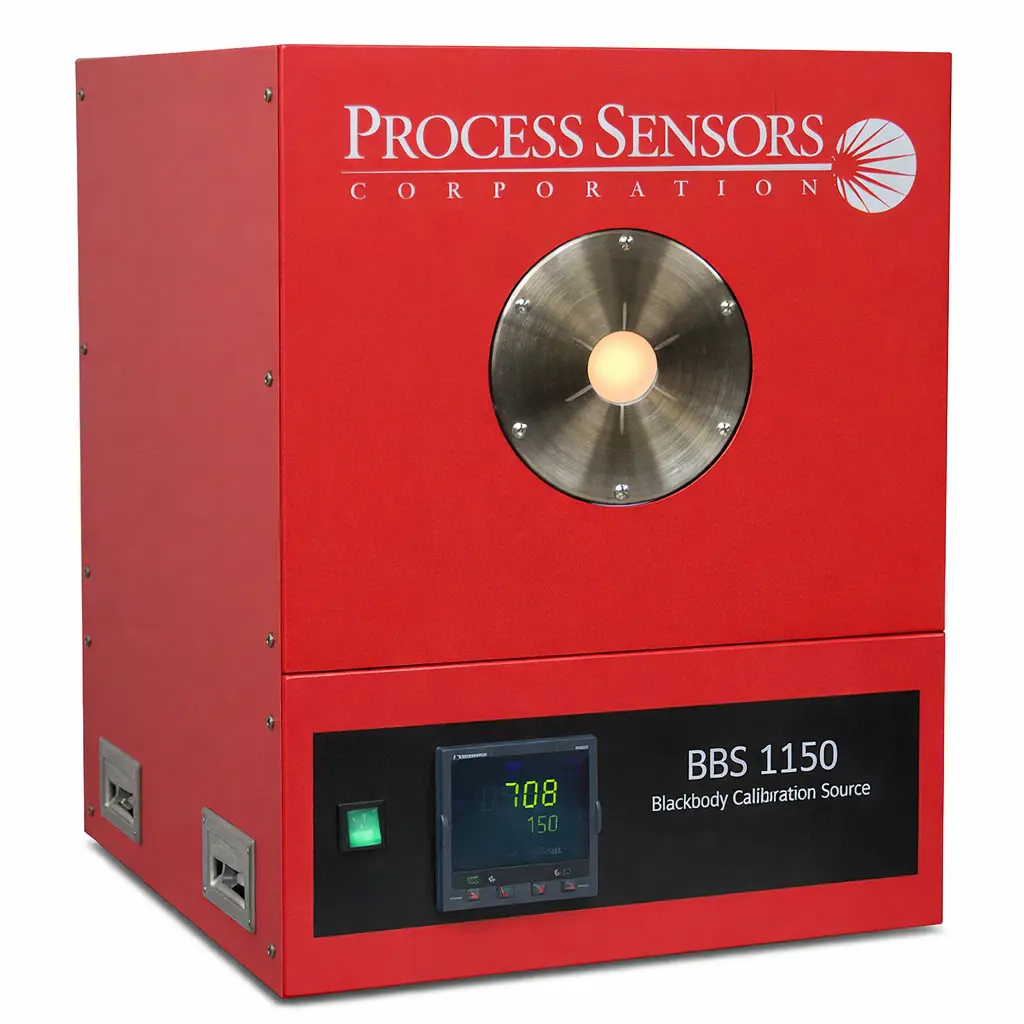

BBS1150

A Mid-to-High Temperature Blackbody Calibration Source

The BBS1150 is perfect for mid-to-high temperature applications, with user-selectable temperature set points within 200°C to 1150°C. Simply adjust the set point on the precision digital PID controller to any temperature within the specified range, and the blackbody will stabilise and begin reading.

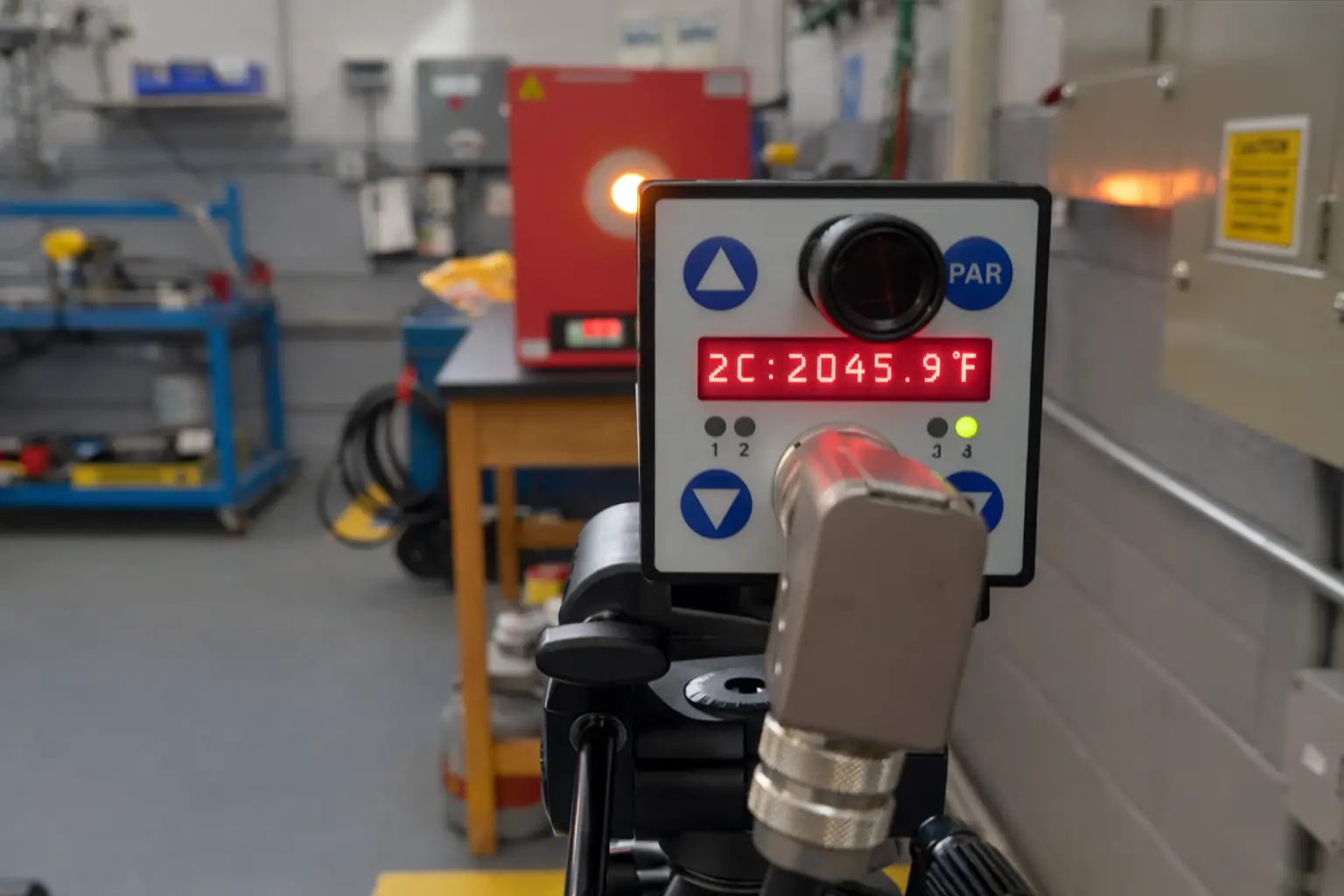

The PSC Model BBS1150 attains the set point temperature, stabilises, and produces the radiometric temperature readings necessary for precision calibration of non-contact infrared thermometers, thermal imaging detectors/cameras, focal plane array detectors, heat flux meters, spectrophotometers and optical devices.

Key Features

• User-selectable set points across the full 200°C–1150°C range.
• Precision digital PID controller for accurate, repeatable temperature control.
• Large 2-inch (51mm) aperture for easy alignment with the device under test.
• Emissivity greater than 0.995 for highly accurate radiometric reference.

Applications

Ideal for calibration and verification of non-contact infrared thermometers, thermal imaging cameras, focal plane array detectors, heat flux meters, spectrophotometers and other optical measurement devices requiring a stable mid-to-high temperature reference.

Talk to the Techotrix team to find out whether the BBS1150 is the right calibration source for your application.
