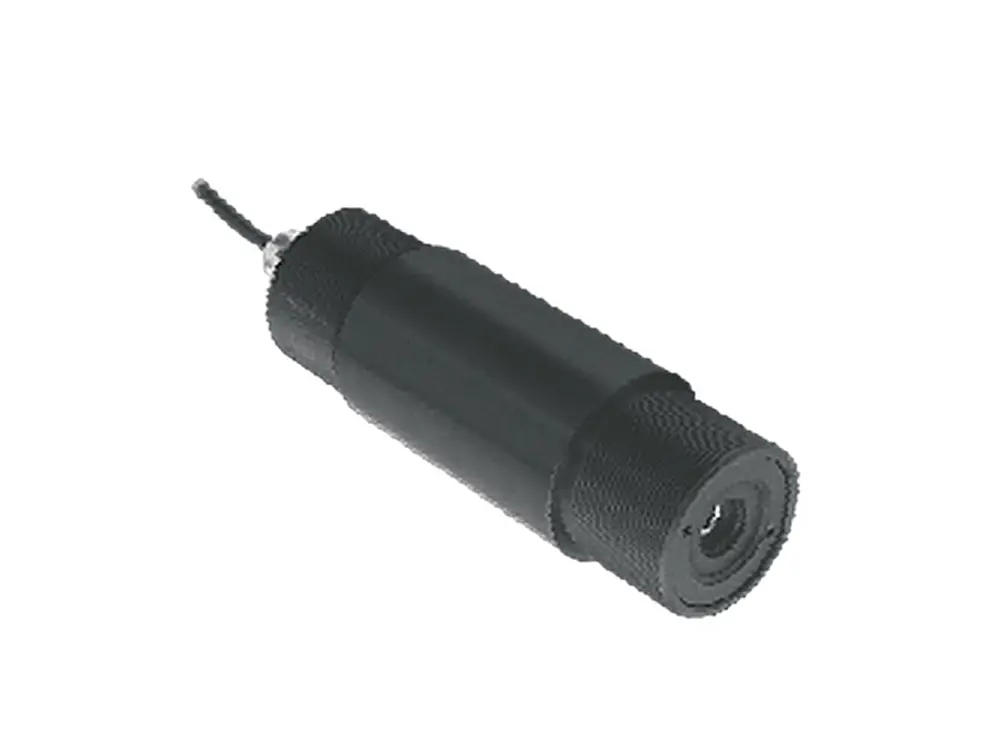

PSC-CX Pyrometer

Low-Cost 2-Wire IR Temperature Sensor

The PSC-CX self-contained, 2-wire loop-powered IR temperature sensor with 4-20mA output delivers high performance at great value. It offers simple 2-wire installation across a wide -30°C to 900°C temperature range, adjustable with PSC Connect software, with an optical resolution of 22:1.

Key Features

• High-performance, great-value pyrometer for general-purpose applications.
• Simple 2-wire, loop-powered installation.
• Fixed focus optics with an optical resolution (field of view) of 20:1.
• 4-20mA linear output for straightforward integration into existing systems.
• Optional PSC Connect software for parameter adjustment via PC.

Applications

Ideal for general-purpose, dull-surface applications where a simple, cost-effective 2-wire sensor is needed.

Talk to the Techotrix team to find out whether the PSC-CX is the right fit for your application.
