PSC-56 Series Pyrometer
Multi-Sighting High-Resolution Pyrometer Series
The PSC-56 Series (PSC-SR56N two-colour and PSC-G56N/PSC-S56N one-colour) offers a choice of four sighting methods, high-resolution fixed focus optics and five temperature ranges from 200°C to 3200°C. A feature-rich choice for induction heating, kilns, composites, steel and welding applications.
Rich-Featured Pyrometer with Four Sighting Methods

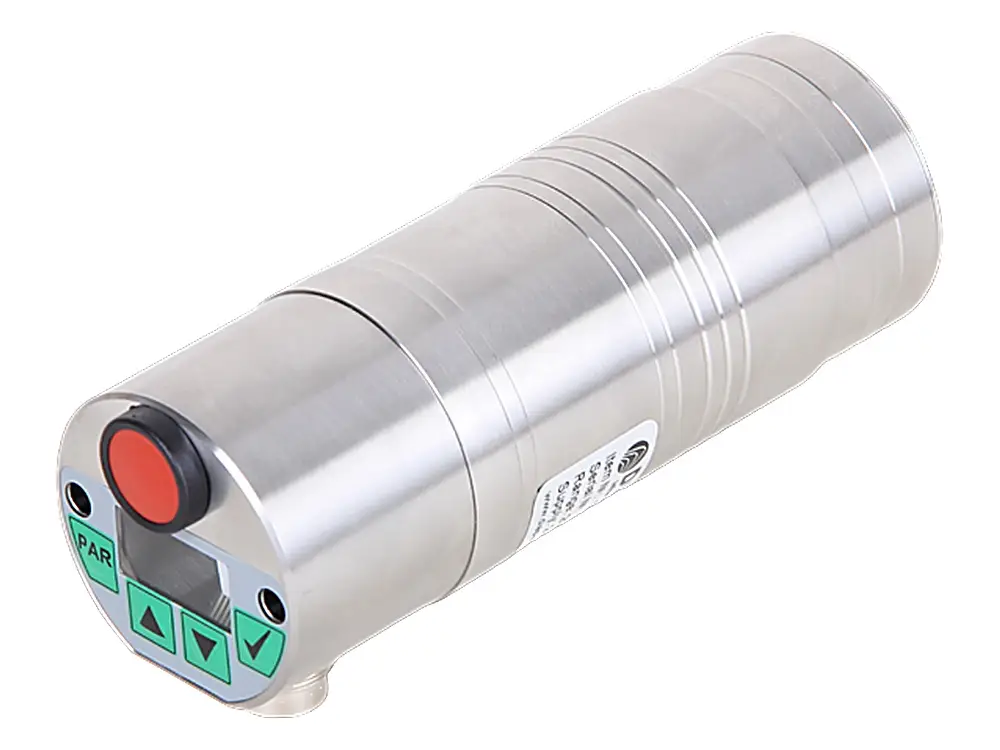

Rich in features, the self-contained two-colour PSC-SR56N and one-colour PSC-G56N/PSC-S56N pyrometers offer a choice of four sighting methods, high-resolution fixed focus optics with small spot sizes, a digital RS485 communication interface, analogue 4-20mA output and a fast speed of response. Five temperature ranges span 200°C to 3200°C, with an on-board temperature display menu.
Choose from integrated laser aiming, through-lens sighting, real-time colour video camera sighting, or an electronic viewfinder that lets the user observe a real-time colourised video image of the process under measurement. As with all Process Sensors two- and one-colour models, the PSC-SR56N can also be used as a single-wavelength pyrometer.
Key Features
- Choice of four sighting methods: laser, through-lens, video camera, or electronic viewfinder.
- High-resolution fixed focus optics with small spot sizes.
- 4-20mA analogue output plus RS-485 (galvanically isolated) Modbus RTU digital interface.
- Durable, compact companion stainless steel cooling jacket with integrated air purge stands up to harsh environments.
- All parameters adjustable via push-buttons on the sensor, or remotely via the free PSCSpot software with optional USB-to-RS485 adapter.
Applications
Ideal for induction heating, kilns, composites, sintering, steel and metals processing, vacuum furnaces and welding, as well as demanding research and development applications.
Talk to the Techotrix team to find out whether the PSC-56 Series is the right fit for your application.
| Temperature Ranges | Five ranges spanning 200°C to 3200°C |
| Colour Modes | PSC-SR56N (2-colour); PSC-G56N/PSC-S56N (1-colour) |
| Sighting Methods | Laser, through-lens, video camera, or electronic viewfinder |
| Output | 4-20mA analogue |
| Digital Interface | RS-485 (galvanically isolated), Modbus RTU, max 115 kBd |
| Adjustable Parameters | Ratio correction, emissivity, transmissivity, response time, data storage, sub-range |
| Software | Free PSCSpot (optional RS-485 to USB adapter) |
Choose the model that matches your measurement needs:
- PSC-SR56N: Two-colour (ratio) pyrometer, also switchable to single-wavelength mode.
- PSC-G56N / PSC-S56N: One-colour pyrometers for straightforward single-wavelength measurement.
Sighting method: Laser, through-lens, video camera, or electronic viewfinder — select based on your installation and visibility needs.
Cooling Jacket with Integrated Air Purge: Recommended accessory for harsh environments.
Contact the Techotrix team to build the right PSC-56 Series configuration for your application.
