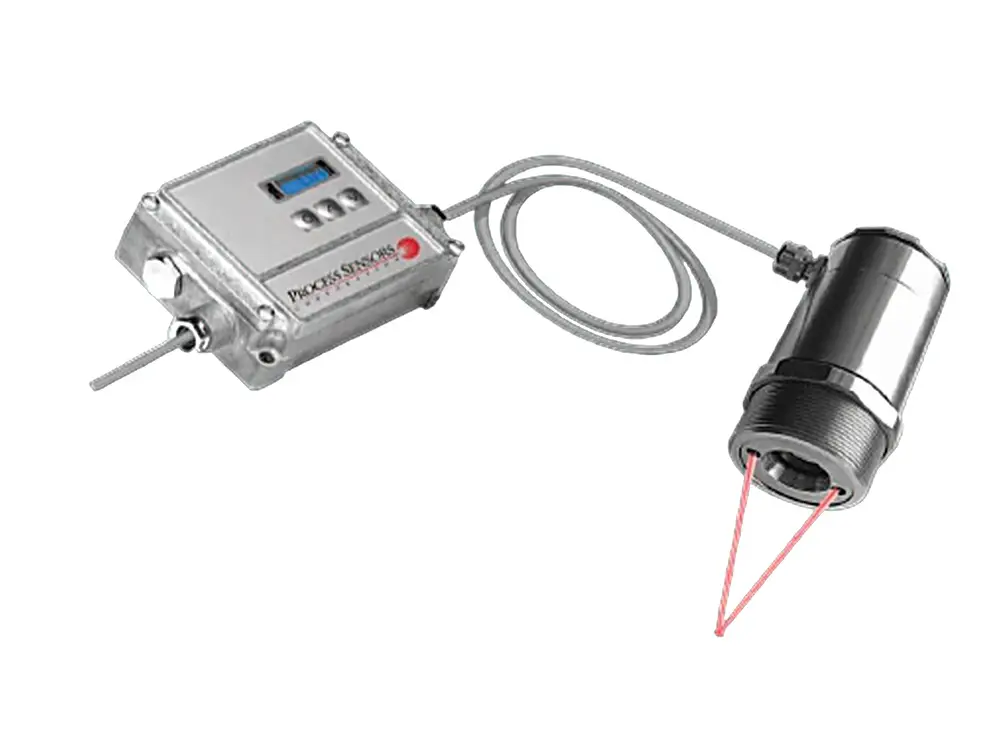

PSC-SSS Laser Series

Affordable, High-Resolution IR Temperature Sensor

The two-piece, 1-colour PSC-SSS-Laser Series offers high-resolution optics, dual lasers for aiming, fast response speed, an on-board backlit temperature display, and a large choice of wavelengths for a variety of industrial, medical and scientific applications.

The sensing heads are constructed from rugged stainless steel and offer a choice of high-resolution fixed focus optics providing target sizes as small as 0.020in (0.5mm) in diameter. The wide choice of spectral responses and temperature ranges from -50°C to 1800°C suit a huge range of applications.

Key Features

• Dual lasers for precise, confident aiming.
• High-resolution optics for small target spot sizes.
• On-board backlit temperature display with alarms.
• Multiple analogue (4-20mA) and digital outputs, including J & K thermocouples.
• Fast 1ms response time.
• Emissivity set manually on the sensor, or via PSC Connect software with optional USB connector — which also supports peak, valley and averaging functions, graphic temperature trend display, and data logging.

Applications

Suited to induction heating, metal processing, semiconductors, paper, plastics, webs, ovens, furnaces, glass, ceramics, thermoforming, food, powders, liquids, and hot material/aggregate on conveyors.

Talk to the Techotrix team to find out whether the PSC-SSS-Laser Series is the right fit for your application.
