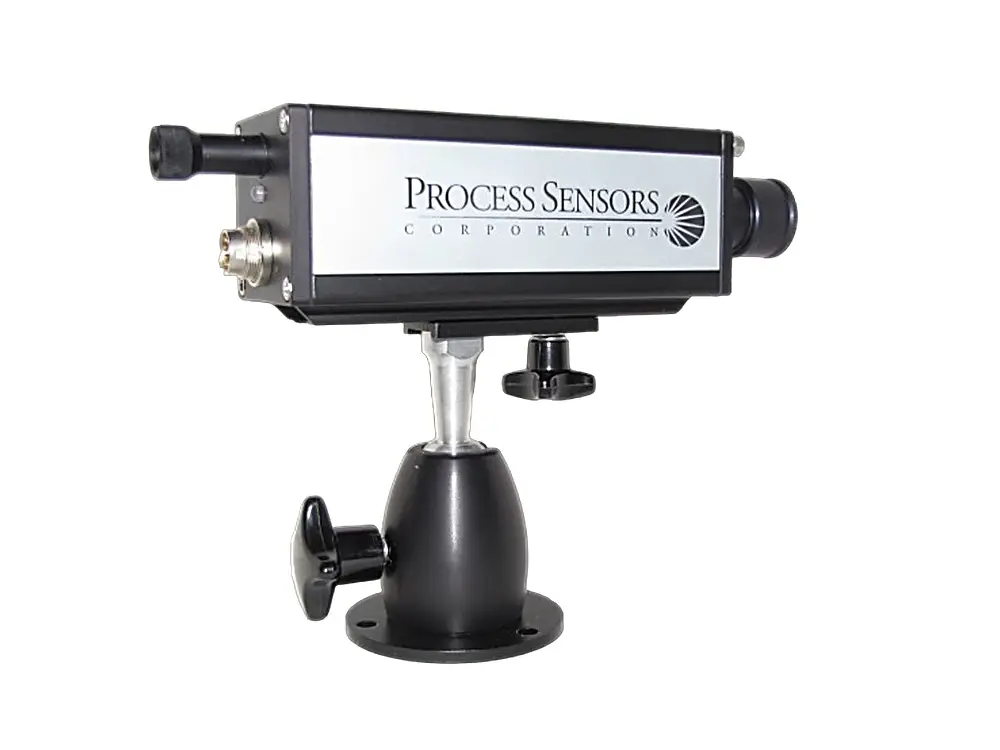

PSC Metis MY45 & MY46

Boiler & Furnace Flue Gas Pyrometers

The Metis MY45 and MY46 are precision on-line process pyrometers purpose-built for flue gas temperature measurement in incinerators and boilers. Part of the Metis Self-Contained series, they utilise digital signal processing to exceed standard analogue pyrometers in accuracy, repeatability and temperature range, with adjustable, focusable optics for pinpointing small targets.

The MY45 operates at 4.5µm, and the MY46 at 4.6µm — both measuring flue gas temperature accurately even through combustion by-products. Temperature ranges span 400°C to 2000°C across multiple sub-ranges.

MY47 — TÜV Certified Variant

The MY47 shares the same measurement principle as the MY46, but adds TÜV certification to DIN EN 15267-2 — making it suitable for regulated continuous emissions monitoring systems (CEMS) where certified equipment is required.

Key Features

• Precision on-line process temperature measurement with digital signal processing.
• Adjustable, focusable optics for pinpointing very small targets.
• Sighting options including through-lens, laser, or video.
• Isolated analogue output, selectable 0 to 4-20mA, with RS232, RS485 and optional Profibus digital communication.
• Adjustable emissivity settings for adaptation to material properties.

Software

SensorWin software supports parametrisation, data display and representation of measured temperatures, with stored values transferable to programs like Excel.

Applications

Purpose-built for flue gas temperature measurement in incinerators and boilers, including regulated applications requiring TÜV-certified monitoring equipment (MY47).

Talk to the Techotrix team to find out whether the Metis MY45, MY46 or MY47 is the right fit for your application.
