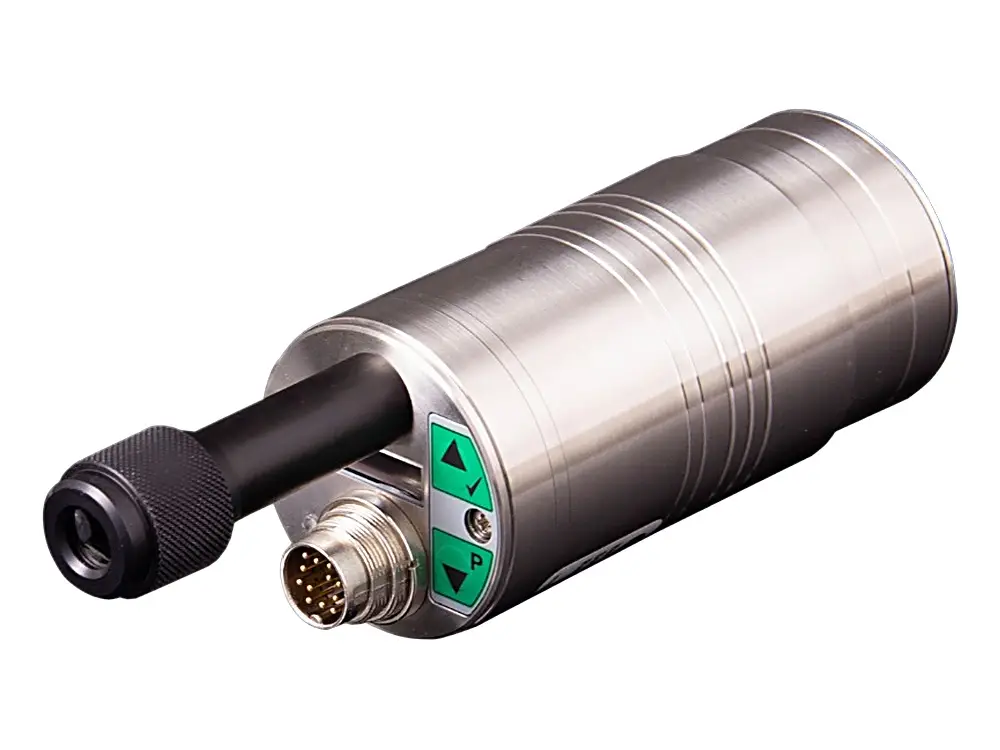

PSC-55N Series Pyrometer

High-Speed Pyrometer for Steel, Metals & Ceramics

The PSC-55N Series is a high-speed, 1- and 2-colour pyrometer designed for use by the steel and metals industries, ceramic and furnace industries, and soldering applications. It delivers precise temperature measurements from 200°C to 3000°C, operating in the shortwave spectral range with a fast, adjustable response time of 5ms to reduce or compensate for changes in target or surface emissivity.

Three sighting methods are available for precision aiming: through-lens sighting, an integrated red laser aiming light, or colour video. The video version is recommended for remote real-time viewing via a video monitor in a control room or laboratory, and also facilitates installation in difficult conditions when the pyrometer is hard to reach or the measured area is not easily accessible.

Key Features

• Programmable interactive menu/display with rear-panel push buttons for parameter adjustment: ratio correction, emissivity, sub-temperature range, built-in alarm, response time, peak picker and more.
• Two-colour PSC-55NT model easily switches from two-colour (ratio) to one-colour operation.
• Galvanically isolated RS-485 digital output, bus-capable using Modbus RTU protocol.
• Compact cylindrical size adapts easily to existing measurement and control systems for straightforward retrofitting.
• Stainless steel self-contained sensor with a cooling jacket rated up to 200°C (392°F).

Software

PSCSpot for Windows software is standard equipment, providing storage, processing and evaluation of real-time measured data, along with extensive statistical analysis, export of measured data as test files, and Microsoft Excel spreadsheet creation.

Talk to the Techotrix team to find out whether the PSC-55N Series is the right fit for your application.
