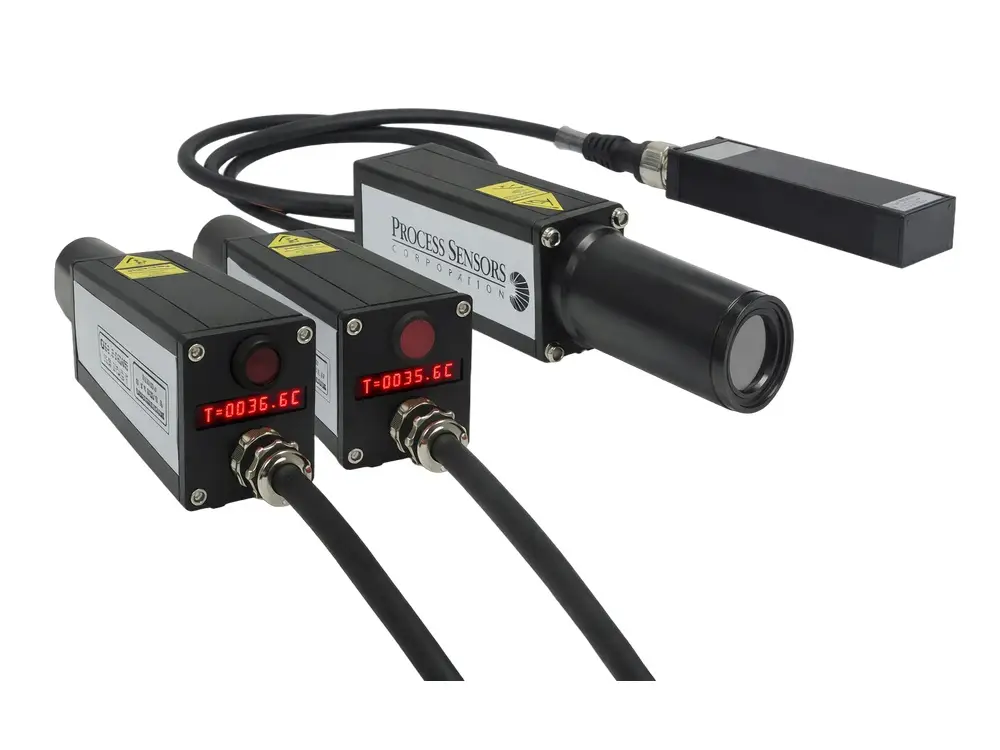

PSC Diadem Series

Ultra-High-Accuracy Transfer Standard Pyrometer

The Diadem Series is an ultra-precision transfer standard pyrometer — a high-accuracy solution for calibration verification compliance, covering temperature ranges from 250°C to 3500°C. The precision and long-term stability of the Diadem is used not only to maintain laboratory calibration standards, but also for difficult measurement tasks in demanding laboratory and R&D environments.

To achieve pinpoint accuracy, all Diadem components that could interfere with signal processing are separated and contained in the external power supply housing.

Key Features

• Thermostatically controlled detector for measurement stability.
• High-resolution A/D and D/A converters.
• 16-bit analogue output signal resolution.
• Display resolution of 0.01°C.
• Accuracy: up to 1500°C — 0.15% of measured value in °C + 1K; up to 2500°C — 0.2%; up to 3000°C — 0.3%; up to 3500°C — 0.4%.
• Traceable to the ITS-90 temperature scale.
• Sighting options include laser or through-lens, with fixed optics.
• RS-485 digital communication for integration and remote configuration.

Applications

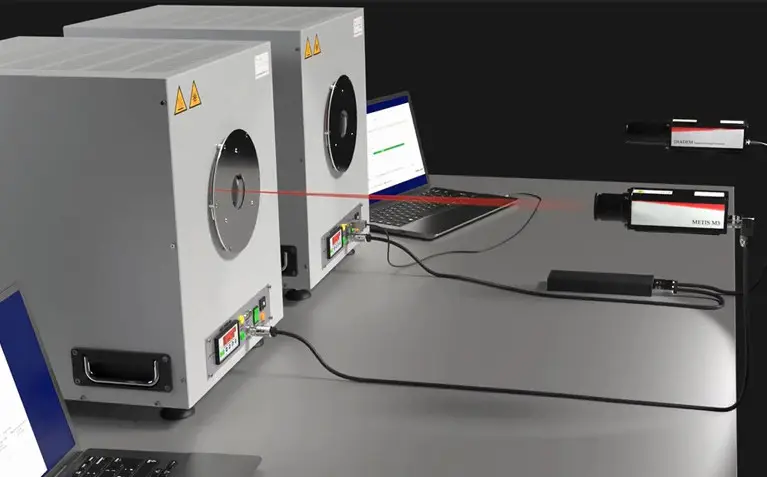

Used to verify calibration sources and to transfer measured values to calibration sources and pyrometers — ideal for calibration laboratories, R&D facilities and anywhere a traceable, ultra-precise temperature reference is required.

Talk to the Techotrix team to find out whether the Diadem Series is the right fit for your calibration application.
