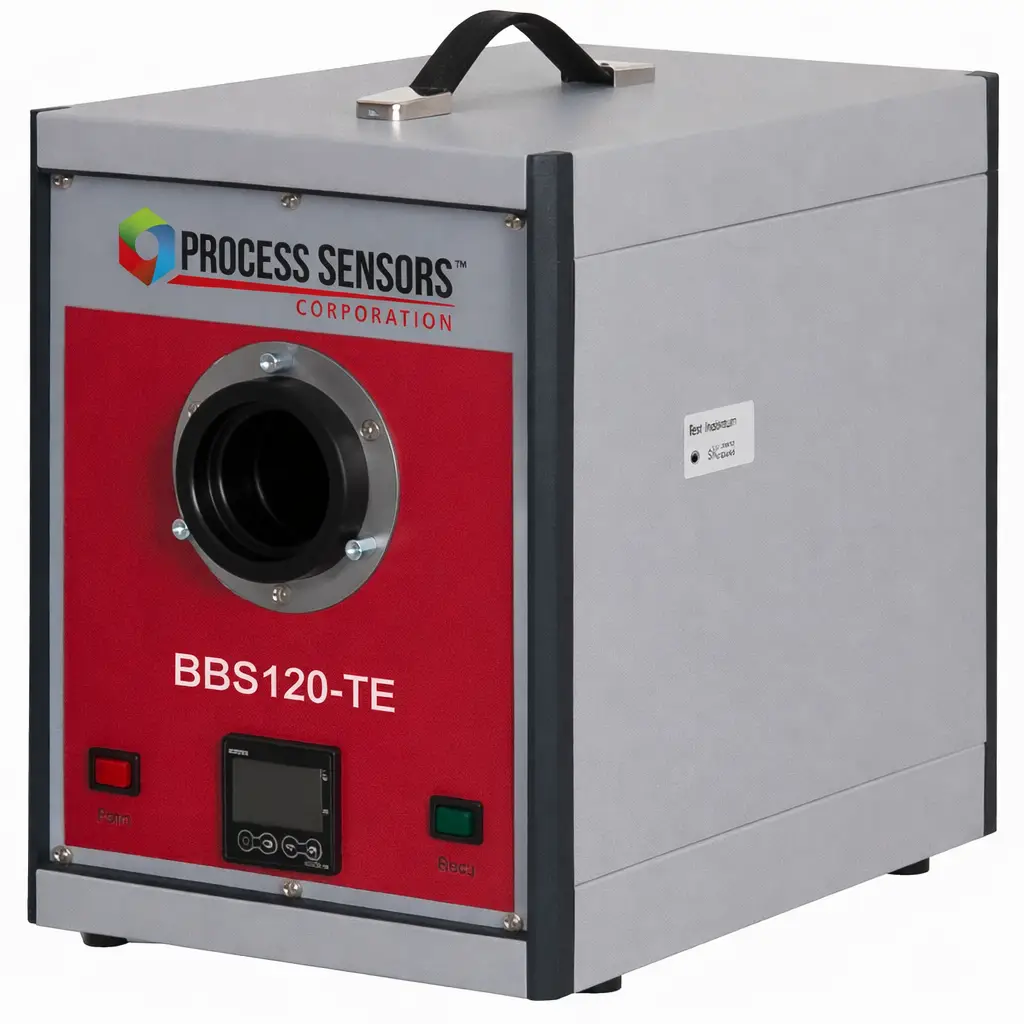

BBS120-TE
Cooled Blackbody Calibration Sources
The PSC-BBS120-TE is well-suited for calibrating and verifying non-contact infrared thermometers, thermal imaging cameras, FPA (focal plane arrays), and spectrometers. An optional USB interface with software enables the control of the blackbody via a PC. Temperature ranges from -15°C to 120°C.
The BBS120-TE is a compact and highly accurate blackbody calibration source designed for low-temperature infrared calibration applications. With a temperature range from -15°C to 120°C, it is ideal for calibrating infrared thermometers, thermal imaging cameras, and temperature sensors used in laboratory, medical, and industrial environments.
Equipped with a precision Pt100 Class A temperature sensor and a digital PID controller, the BBS120-TE delivers excellent accuracy, stability, and repeatability. Its high emissivity surface (0.98 ± 0.01) ensures reliable radiometric performance, making it suitable for precise calibration tasks.
The system supports RS-485 communication (with optional USB adapter) for easy integration with PC-based control systems, while features such as fast heat-up time and condensation prevention using dry air or nitrogen enhance usability in demanding environments.
Compact, efficient, and easy to operate, the BBS120-TE is an excellent solution for accurate low-temperature calibration of infrared measurement devices.
| Model | BBS120-TE |
| Product Type | Blackbody Calibration Source |
| Temperature Range | -15°C to 120°C |
| Aperture Diameter | 50 mm |
| Emissivity | 0.98 ± 0.01 |
| Uncertainty | ±0.5 K |
| Control Stability | 0.2 K |
| Display Resolution | 0.1 K |
| Heat-Up Time | 8 minutes |
| Temperature Sensor | Pt100 Class A |
| Controller | PID |
| Interface | RS-485 (optional USB adapter) |
| Dimensions (W × H × D) | 235 × 311 × 316 mm |
| Weight | Approx. 8 kg |
| Power Supply | 115/230 V AC, 200 VA |
