BBS1500-38
Large Aperture - Unique for Temperature Range

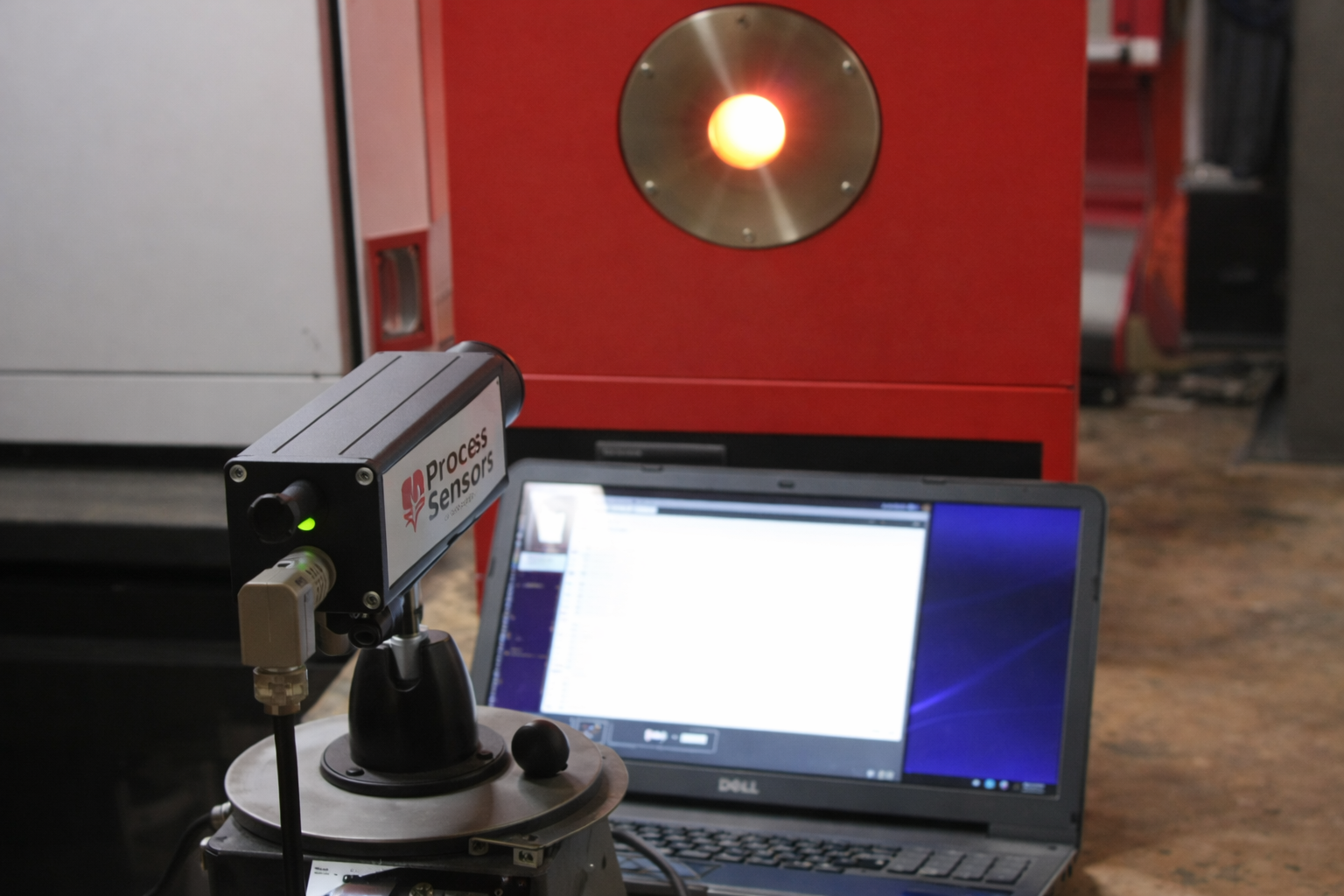

The BBS1500-38 is a highly stable calibration source that provides automatic calibration. It is ideally used for calibrating short-wavelength pyrometers and thermal imaging cameras between 300 and 1500°C. The large aperture size allows for easy alignment between the blackbody and the device under test.

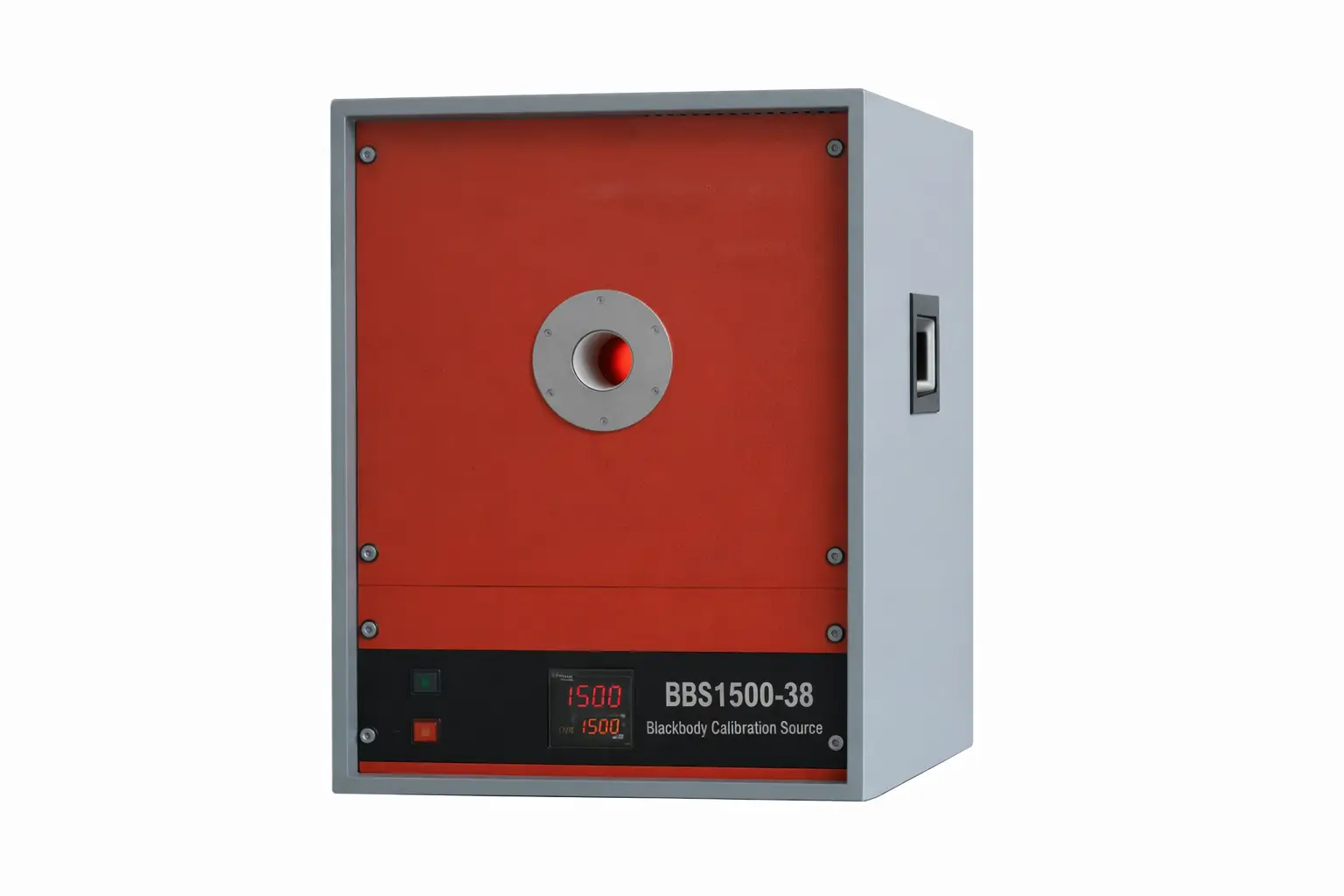

The BBS 1500-38 is an adjustable temperature blackbody source with a wide temperature range of 300 to 1500°C (572 to 2732°F) and a 38 mm (1.49”) aperture. It is capable of precise calibration of pyrometers/thermal imaging cameras with spot sizes of up to 1 inch. The BBS 1500-38 outperforms other blackbodies on the market within fast heat-up times: 1300°C in 50 minutes. With its cylindrical cavity for uniform temperature radiation and simultaneous display of set point and actual temperature values, this precision blackbody is a reliable and simple-to-operate device.
The BBS1500-38 is a high temperature blackbody calibration source providing high emissivity, uniformity, and stability. And is used as a precision Radiance Source for Calibration of Infrared Thermometers, FPA Detectors, Thermal Imaging, Cameras, Radiometers, Heat Flux Meters, and Spectrophotometers.
This premium blackbody calibration source is calibrated using an ultra-high accuracy transfer standard pyrometer.
| Model | BBS1500-38 |
| Product Type | Blackbody Calibration Source (Benchtop) |
| Temperature Range | 300°C to 1500°C |
| Aperture Diameter | 38 mm |
| Emissivity | 0.99 ± 0.005 |
| Measurement Uncertainty | 2°C + 0.0025 × T (°C) |
| Reproducibility | 0.5°C + 0.001 × T (°C) |
| Control Stability | 0.3°C |
| Display Resolution | 0.1°C |
| Temperature Consistency | 0.3 K + 0.001 × T (°C) (central area Ø 20 mm) |
| Heat-Up Time | 300°C: 30 min1300°C: 50 min |
| Cavity Material | Silicon Carbide (SiC) |
| Cavity Type | Cylinder with conical base |
| Cavity Depth | 225 mm |
| Temperature Sensor | Type R Platinum Thermocouple (PT13Rh) |
| Controller | PID |
| Interface | RS-485 (optional USB adapter & software) |
| Dimensions (W × H × D) | 380 × 530–545 × 500 mm |
| Weight | Approx. 37 kg (82 lbs) |
| Power Supply | 220–240 V AC, max 3 kW |
