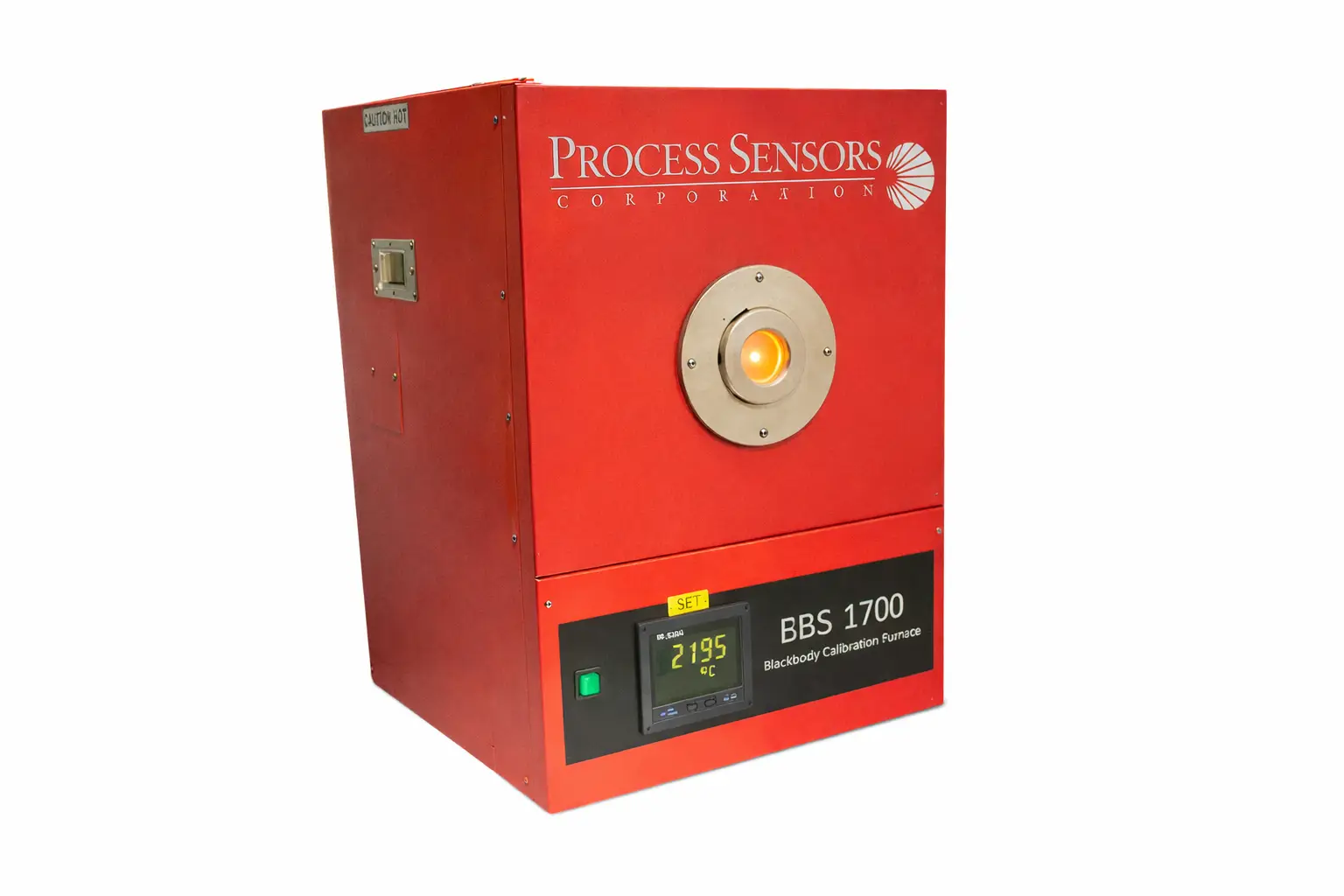

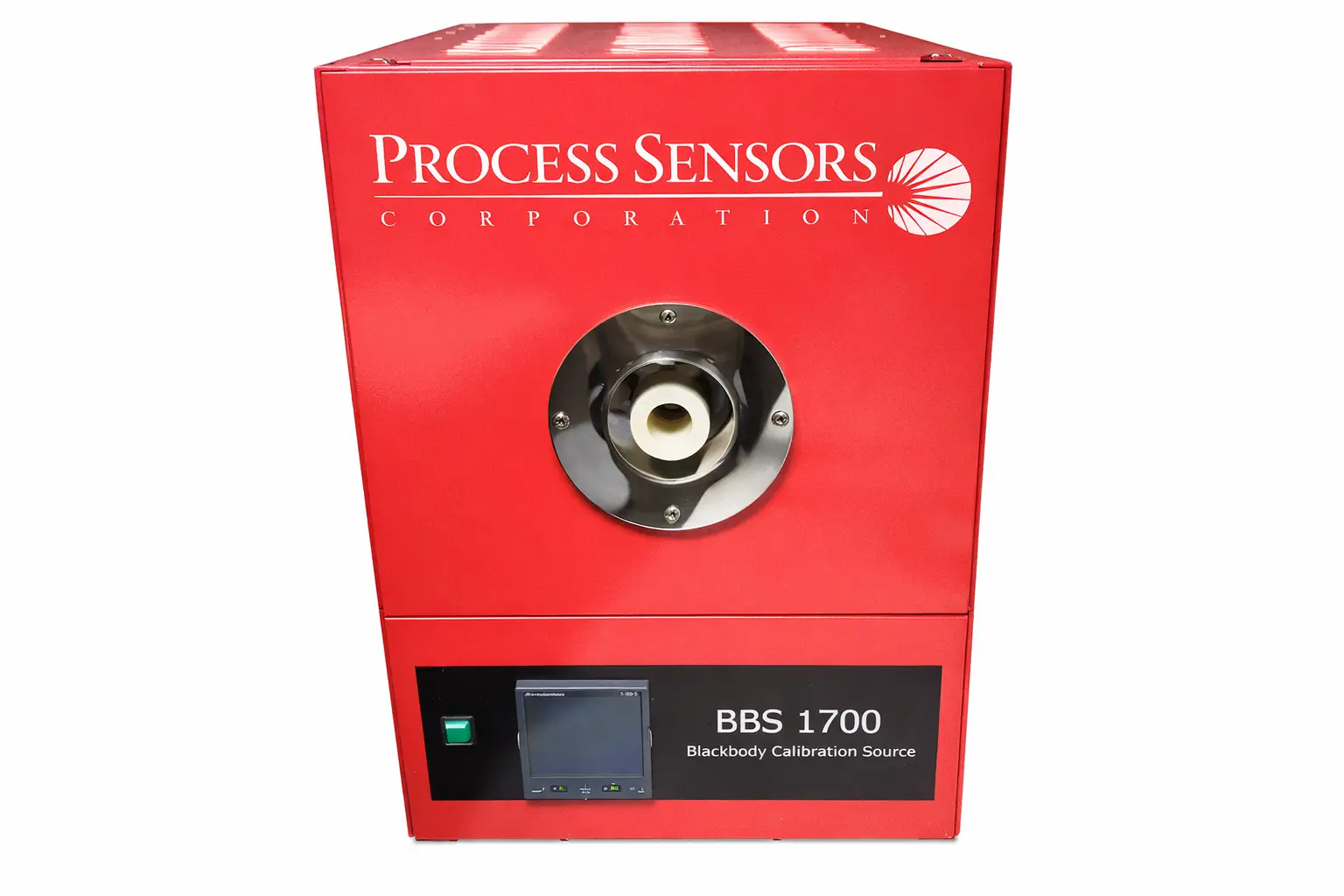

BBS1700

The BBS1700 precision blackbody radiation source is used for calibration verification and calibration of non-contact infrared thermometers/pyrometers, thermal imaging detectors/cameras, focal plane array detectors, and heat flux meters. This versatile blackbody source is also ideal for use with collimators and for automated calibration test stations. This blackbody calibration source provides a large 1-inch aperture, high accuracy and uniformity, long-term stability, and a fast slew rate. The use of a precision digital self-tuning PID controller, a thermostatically controlled fan-cooled enclosure, and an emissivity greater than 0.99 makes this blackbody ideal for calibration in laboratories, universities, and manufacturing facilities. Upon reaching the user-selectable set point temperature, the model BBS 1700 will stabilise and produce a temperature reading to within 0.5°C, assuring high accuracy calibration of non-contact infrared thermometers, thermal imaging camera systems, focal plane array detectors, spectro-photometers, etc.

Model	BBS 1700
Product Type	Blackbody Calibration Source
Temperature Range	300°C to 1700°C
Accuracy	±0.25% of reading ±1°C
Temperature Resolution	1°C
Stability	1°C per 8-hour period
Emitter Diameter	25 mm (1 inch)
Emissivity (Effective)	+0.99
Sensor Type	Precision platinum thermocouple
Control Method	Digital self-tuning PID controller
Warm-up Time	1 hour (room temp to 1000°C)
Operating Temperature	0°C to 44°C
Cooling	Fan cooled (rear air inlet)
Power Requirements	208 VAC ±10%, 50/60 Hz, 3.0 kW max (230 VAC optional)
Dimensions (W × H × D)	19” × 25” × 21”
Weight	80 kg (175 lbs)
Optional	115/230 VAC, 3 kW max
