BBS500-57
A Portable, Compact, Highly Stable, and Uniform Blackbody

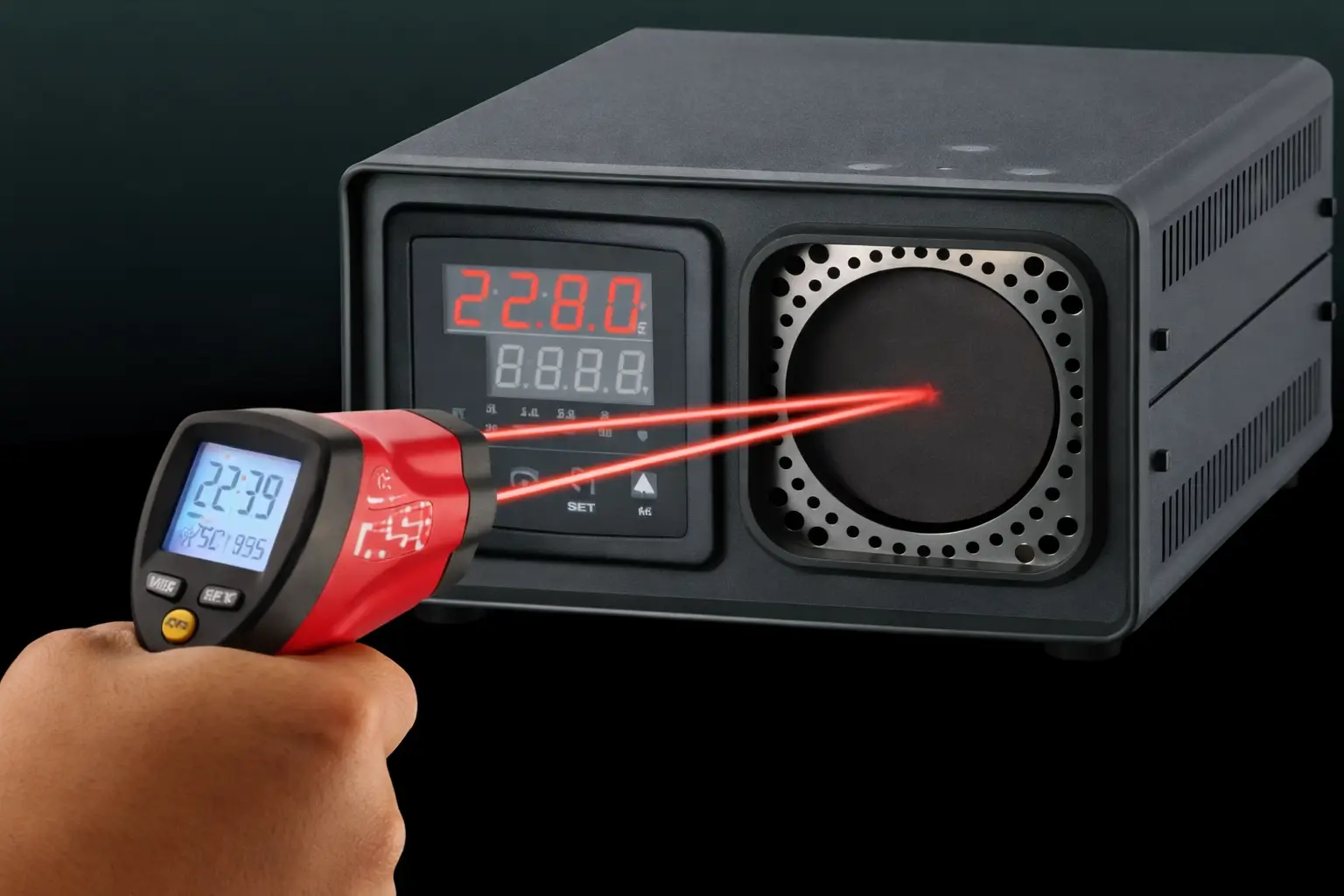

The BBS500-57 is a lightweight Blackbody ideal for calibrating pyrometers and thermal imaging cameras. Used for temperature ranges between 50 and 500 °C. Cost-efficient and easy to transport, this Blackbody can quickly be used in many plants, laboratories, and factories.

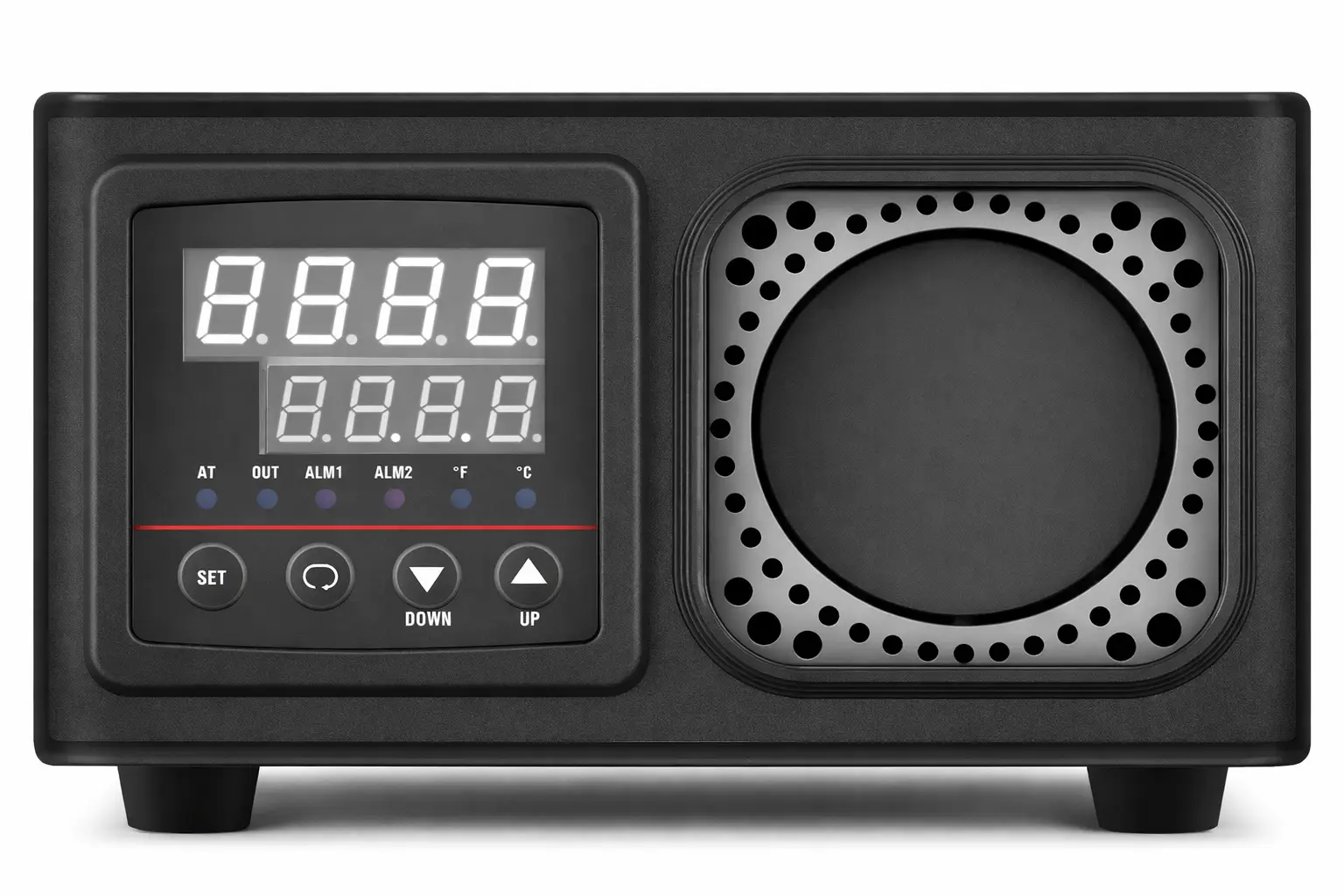

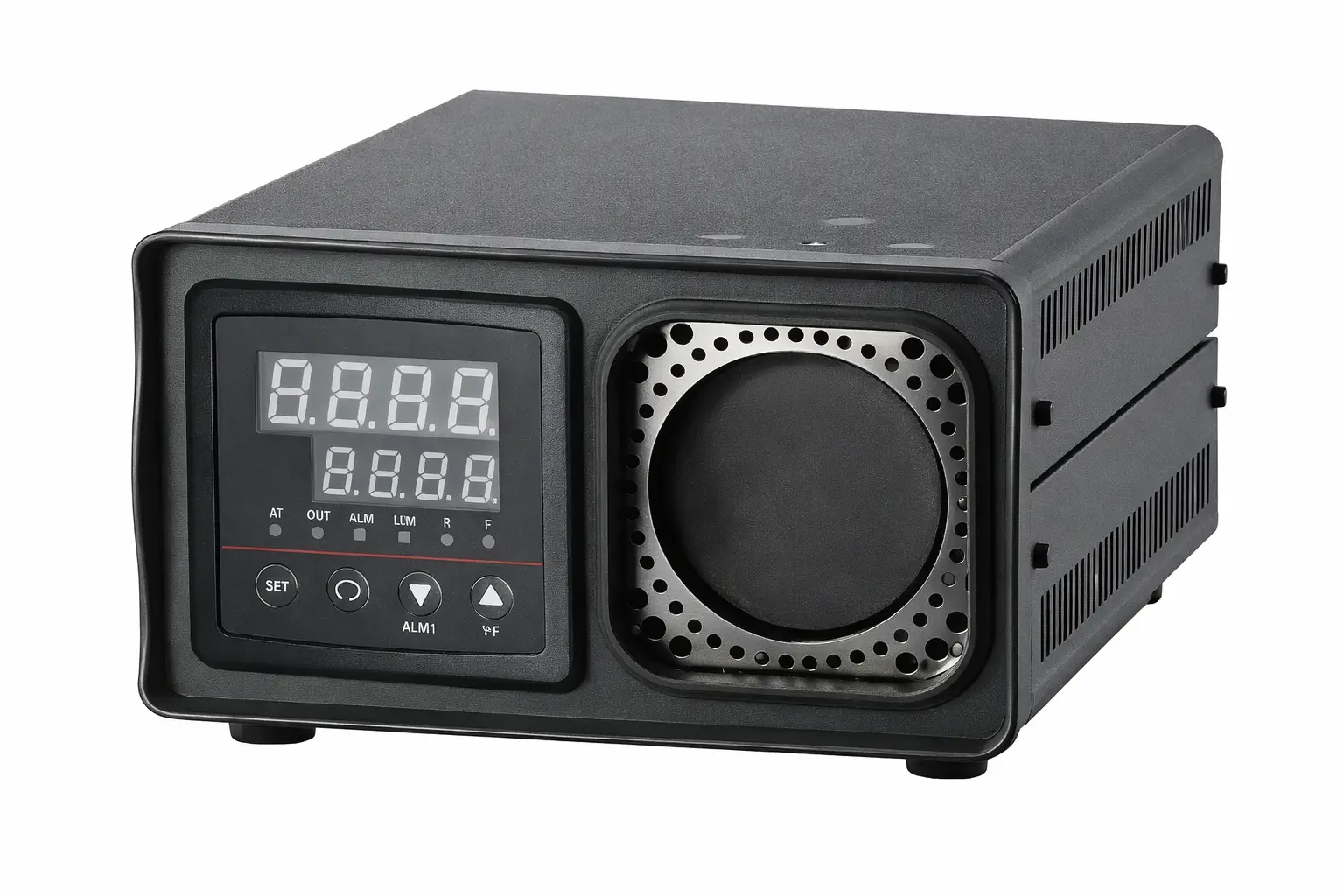

The BBS500-57 is a compact, portable blackbody calibration source designed for accurate calibration of infrared thermometers and thermal imaging cameras over the temperature range l for both on-site and laboratory calibration applications.
Engineered for reliability, the BBS500-57 features a large 57 mm aperture and high emissivity (0.95), ensuring uniform radiation and consistent measurement conditions. With excellent stability (±0.1°C) and precise temperature control, it delivers dependable calibration results for a wide range of infrared measurement devices.
The unit includes a secondary RTD insertion port for verifying contact temperature, enhancing calibration accuracy. Its simple operation, fast heat-up time, and robust design make it a practical solution for industries requiring quick, accurate, and repeatable infrared calibration.
| Model | BBS500-57 |
| Product Type | Portable Blackbody Calibration Source |
| Temperature Range | 50°C to 500°C |
| Accuracy | ±0.5°C at 100°C±1.8°C at 500°C |
| Temperature Resolution | 0.1°C |
| Stability | ±0.1°C at 100°C±0.3°C at 500°C |
| Aperture Diameter | 57 mm |
| Emissivity | 0.95 |
| Heat-Up Time | 40 minutes to 500°C |
| Temperature Sensor | Precision Platinum Thermocouple |
| Operating Temperature | 5°C to 35°C |
| Enclosure | Metal (painted) |
| Dimensions (W × H × D) | 180 × 114 × 233 mm |
| Weight | 2.68 kg |
| Power Requirements | 120 VAC, 3A or 230 VAC (±10%), 1.5A |
| Calibration Certificate | Traceable to National Standards Lab |
