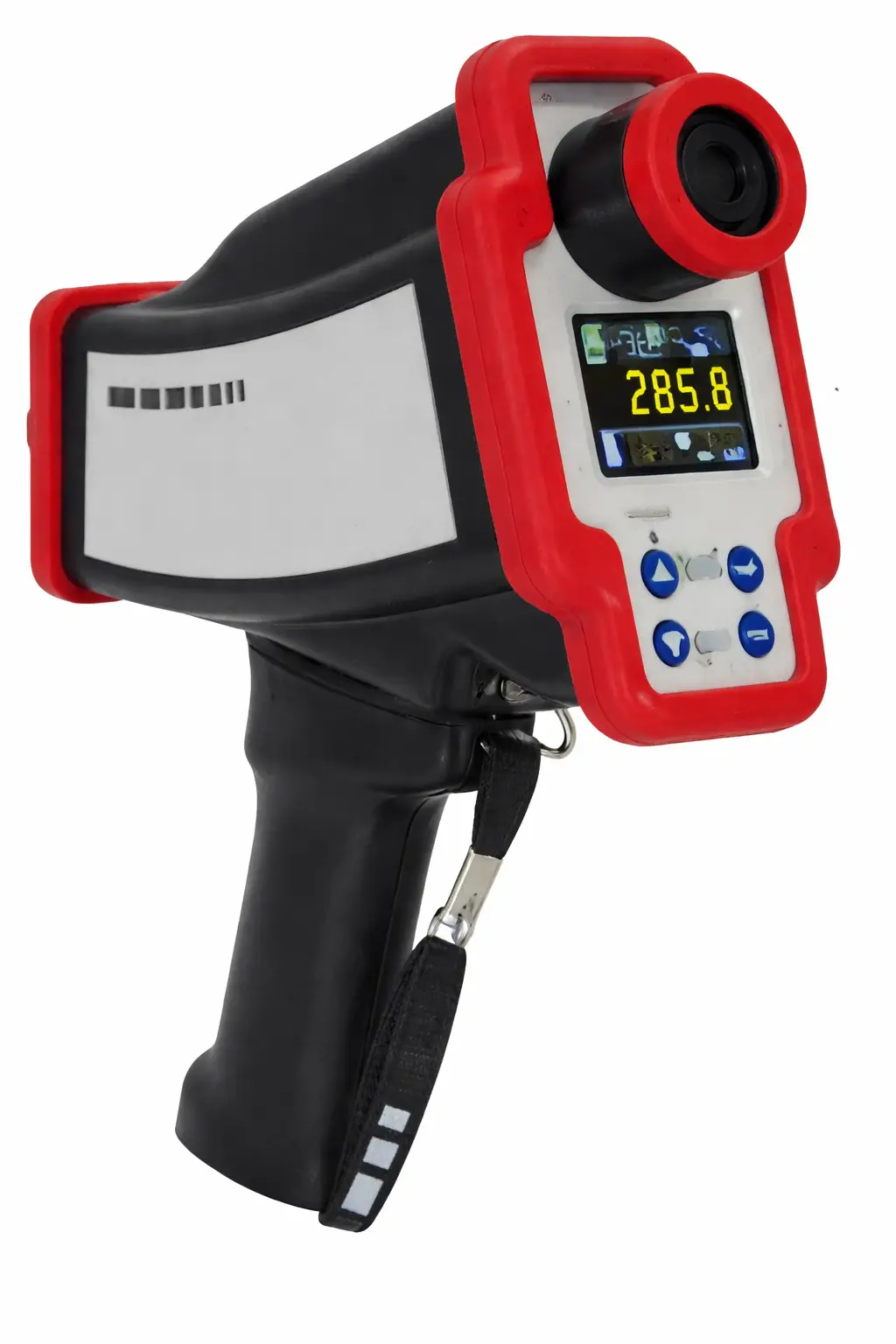

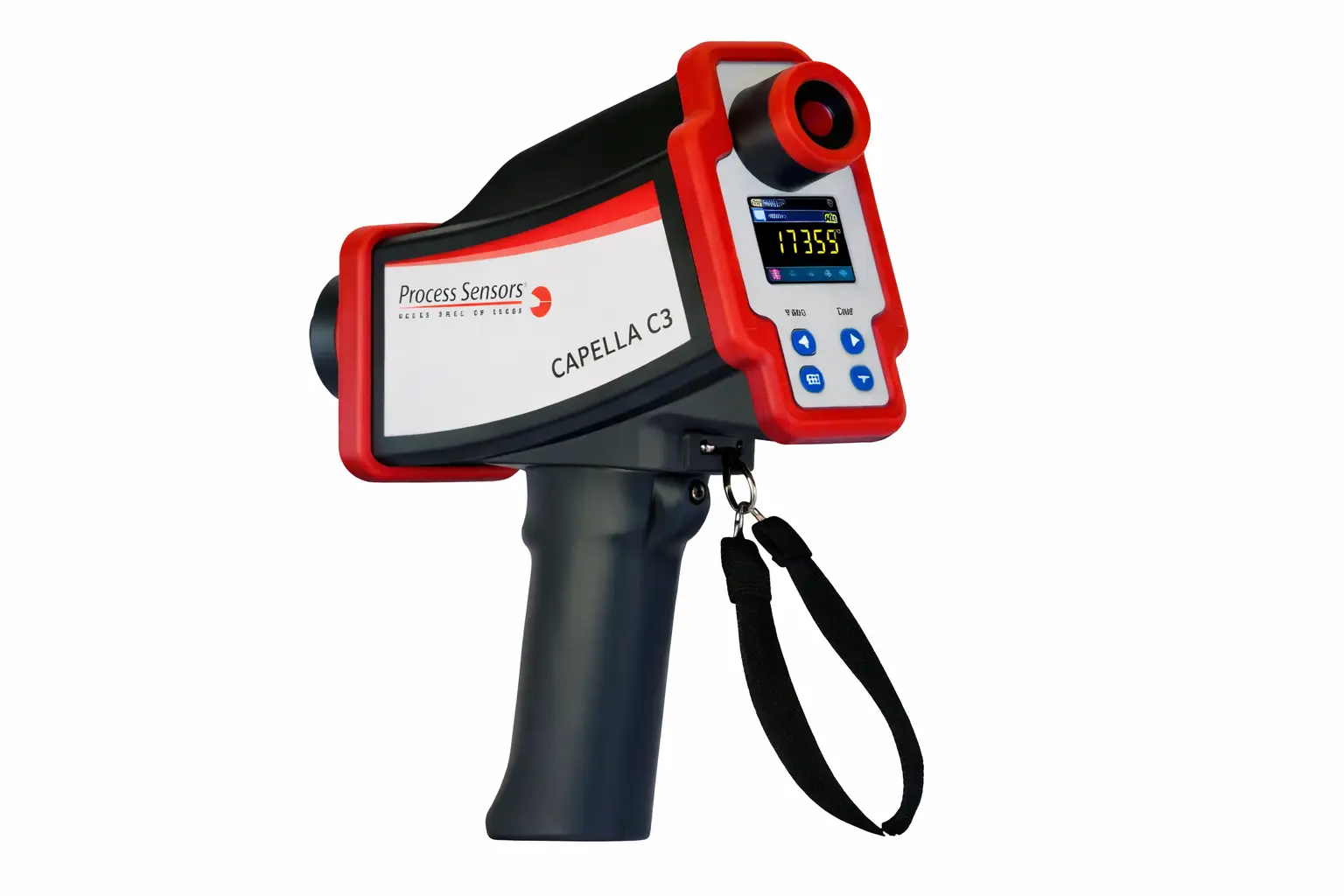

PSC-Capella C3 Series
Futuristic Portable Thermometer

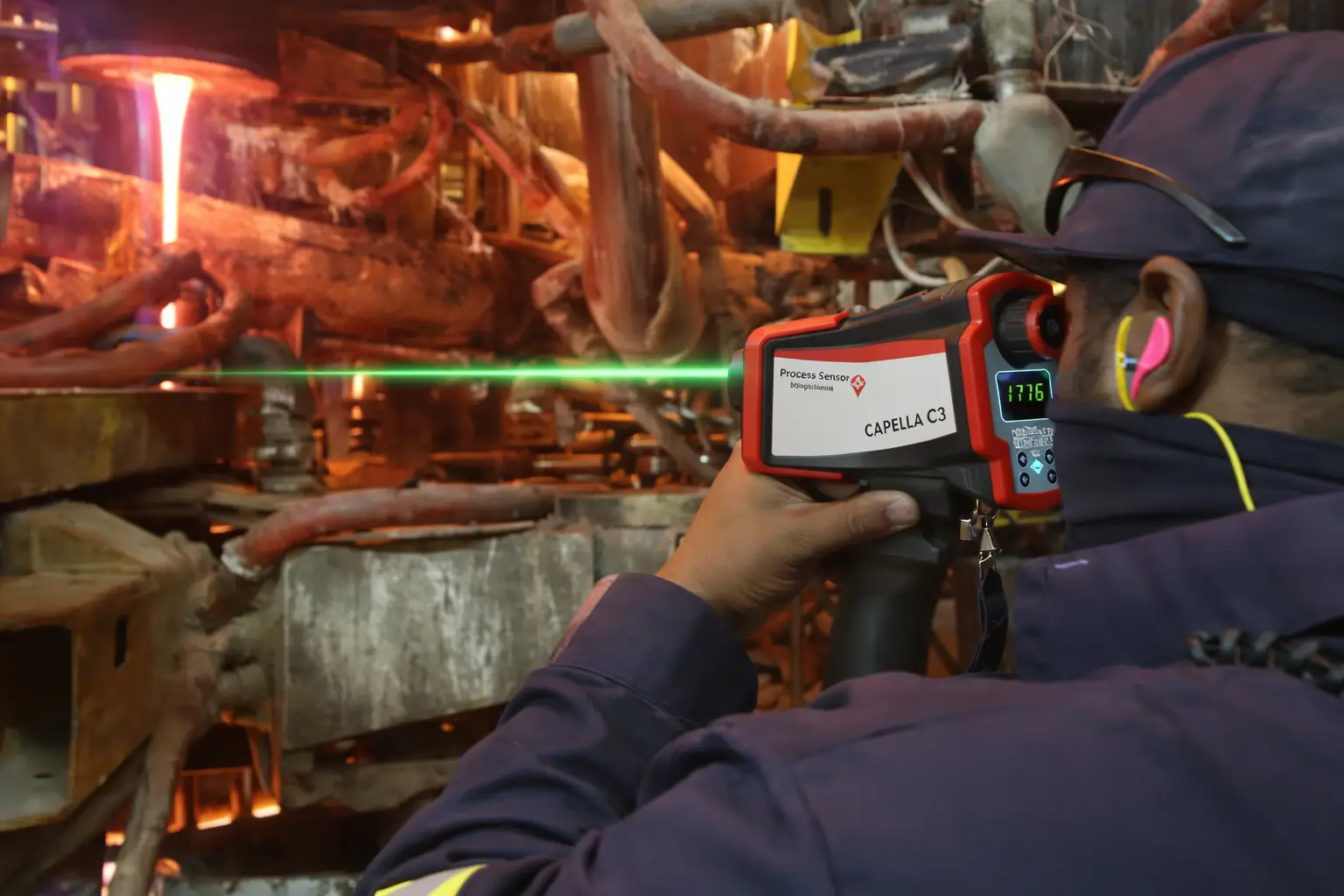

The Capella C3 Series of hand-held, battery-operated 1- and 2-colour IR thermometers brings all the advanced measurement capabilities of PSC fixed-mounted pyrometers to the workplace in portable form. This rugged, incredibly accurate portable series offers green laser aiming and through-the-lens sighting, ultra-fast response, and short-wave devices for precise non-contact measurement of metals, molten glass, furnace refractories, kilns, ceramics, composites, and semiconductor wafers and substrates. Features temperature ranges from 250°C to 3300°C.
The Capella C3 Series is a range of versatile handheld infrared thermometers designed for precise, non-contact temperature measurement in demanding industrial environments. Utilizing advanced short-wave infrared technology, these devices are especially suited for measuring shiny metals, molten materials, and high-temperature processes with exceptional accuracy.
Featuring both 1-color and 2-color pyrometer technology, the Capella C3 Series provides flexible measurement options. The 2-color mode enables accurate readings even when emissivity is unknown or when targets do not fully fill the measurement spot, making it ideal for complex industrial applications.

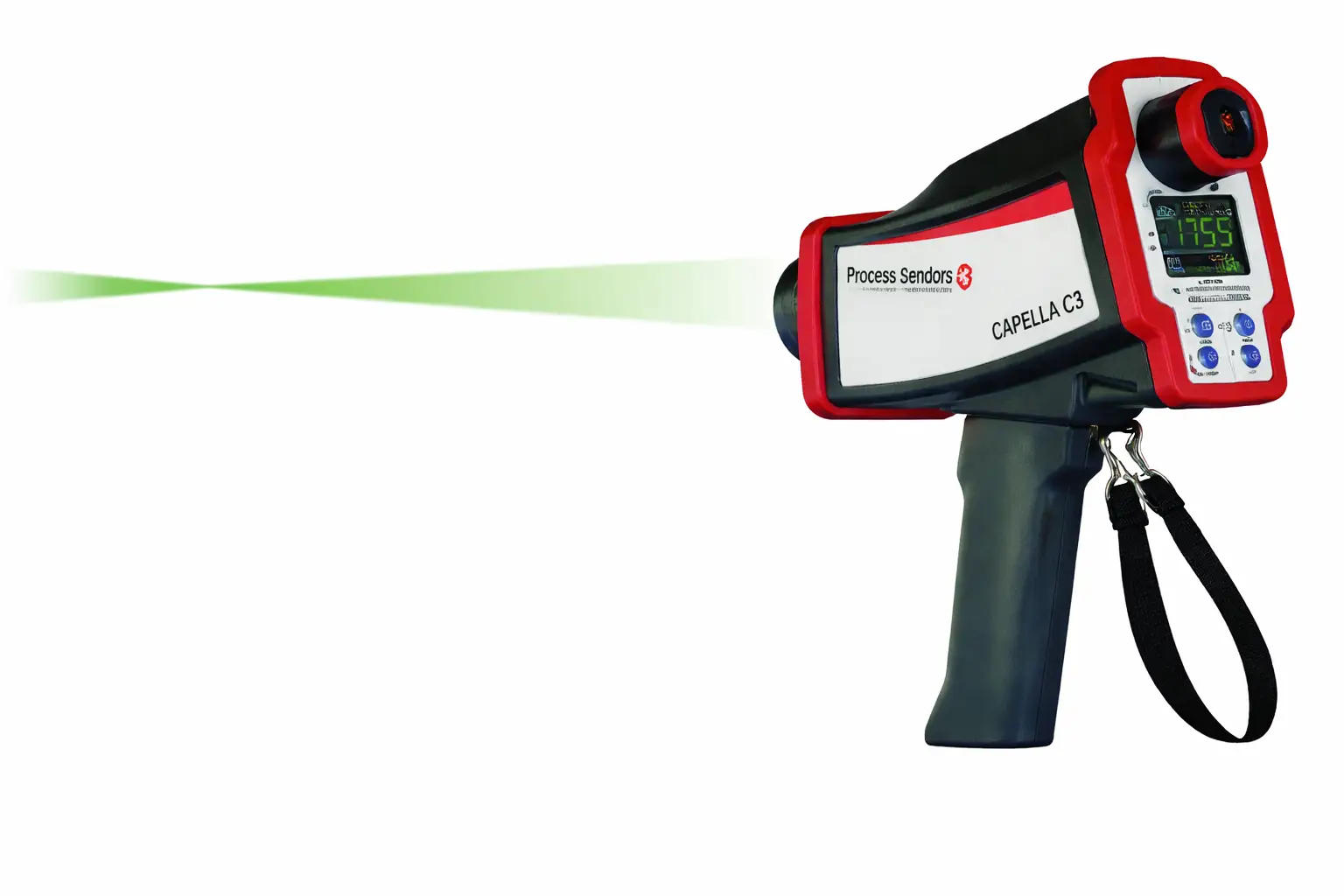

With ultra-fast response times under 1 ms, high optical resolution, and focusable optics capable of measuring from close range to distances up to 10 meters, the device ensures precise and reliable results. The integrated green laser targeting system and through-lens viewfinder allow accurate aiming even on glowing hot surfaces.

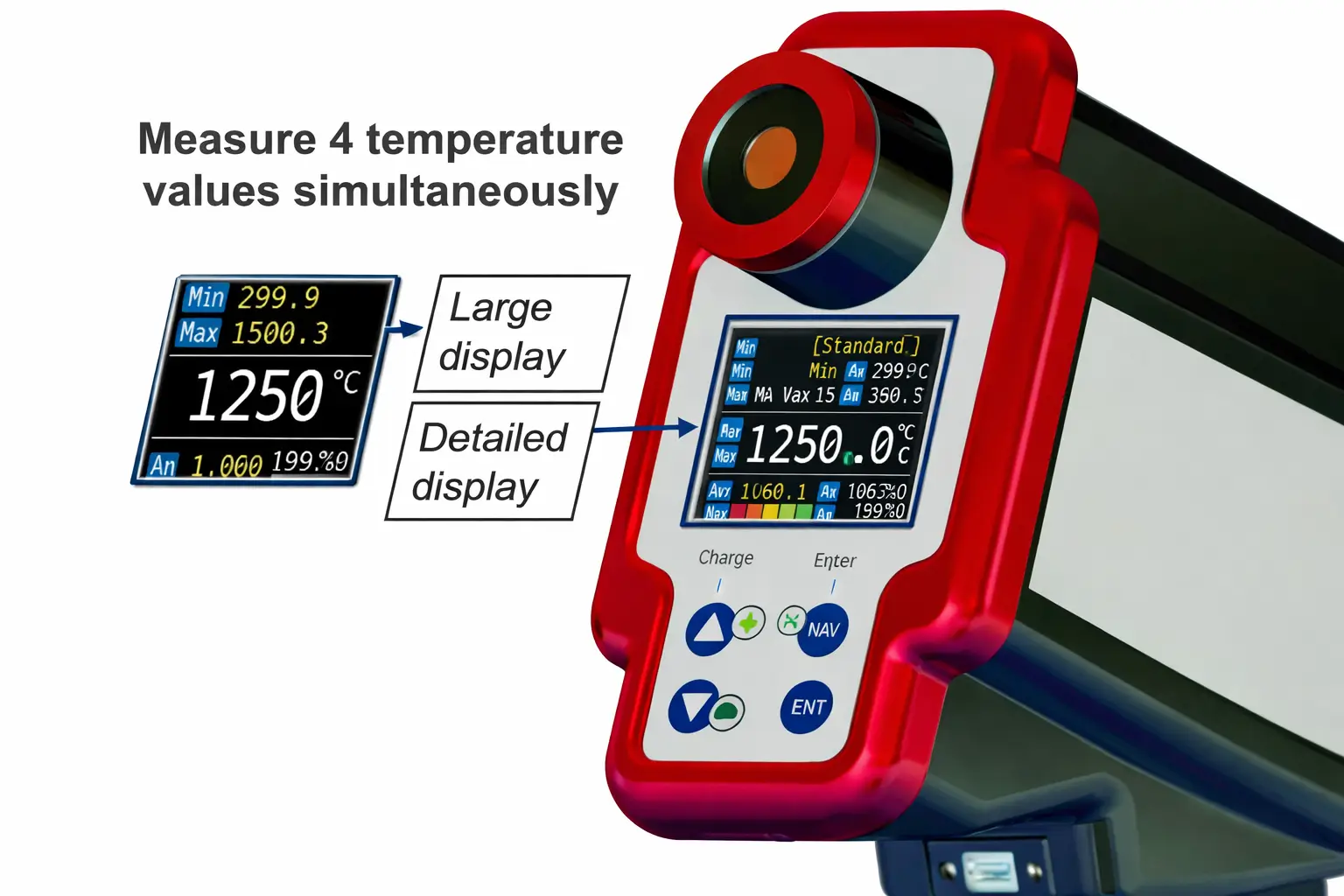

The rugged IP65-rated aluminum housing with shock-absorbing bumpers ensures durability in harsh environments, while built-in data storage (up to 32,000 readings) and USB/Bluetooth connectivity enable seamless data transfer and analysis. Combined with intuitive controls and OLED display options, the Capella C3 Series delivers a powerful, portable solution for industrial temperature monitoring and quality control.
| C309 | C316 | C318 | C311 (2-color) | C322 (2-color) | |
|---|---|---|---|---|---|
| Type | 1-color pyrometer | 1-color pyrometer | 1-color pyrometer | 2-color + 1-color mode | 2-color + 1-color mode |
| Temperature Range | 600–1600°C750–2500°C900–3000°C1000–3300°C | 250–1300°C350–1800°C400–2500°C | 180–1300°C100–700°C | 600–1400°C750–1800°C900–2500°C | 300–1000°C350–1300°C500–1800°C |
| Spectral Range | 0.7–1.1 µm / 0.87 µm | 1.45–1.8 µm | 1.65–2.1 µm | 0.75–0.93 µm / 0.93–1.1 µm | 1.45–1.65 µm / 1.65–1.8 µm |
| Detector | Silicon | InGaAs | InGaAs | 2 × Silicon | 2 × InGaAs |
| Response Time | < 1 ms | < 1 ms | < 1 ms | < 1 ms | < 1 ms |
| Exposure Time | < 0.5 ms | < 0.5 ms | < 0.5 ms | < 0.5 ms | < 0.5 ms |
| Accuracy | ≤2500°C: ±0.25% +1K>2500°C: ±0.5% | ±0.4% +1K (min. 2°C) | ±0.4% +1K (min. 2°C) | ±0.5% +2K | ±0.5% +2K |
| Repeatability | ±0.1% +1K | ±0.4% +1K (min. 1.6°C) | ±0.4% +1K (min. 1.6°C) | ±0.1% +1K | ±0.1% +1K |
| Optics / Focus | – | – | – | – | – |
| Measurement Distance | Up to 10 m | Up to 10 m | Up to 10 m | Up to 10 m | Up to 10 m |
| Spot Size (min.) | 0.3 mm | 0.3 mm | 0.3 mm | 0.3 mm | 0.3 mm |
| Display | OLED (160 × 128 px) | OLED | OLED | OLED | OLED |
| Data Storage | Up to 32,000 values | Same | Same | Same | Same |
| Connectivity | USB 2.0 & Bluetooth | Same | Same | Same | Same |
| Power Supply | Rechargeable Li-ion battery | Same | Same | Same | Same |
| Operating Temp. | 0°C to 60°C | Same | Same | Same | Same |
| Housing | Aluminum, IP65 | Same | Same | Same | Same |
| Weight | ~1200 g | Same | Same | Same | Same |
