PSC Surveyor Series
Cutting Edge Thermal Imaging Camera Systems

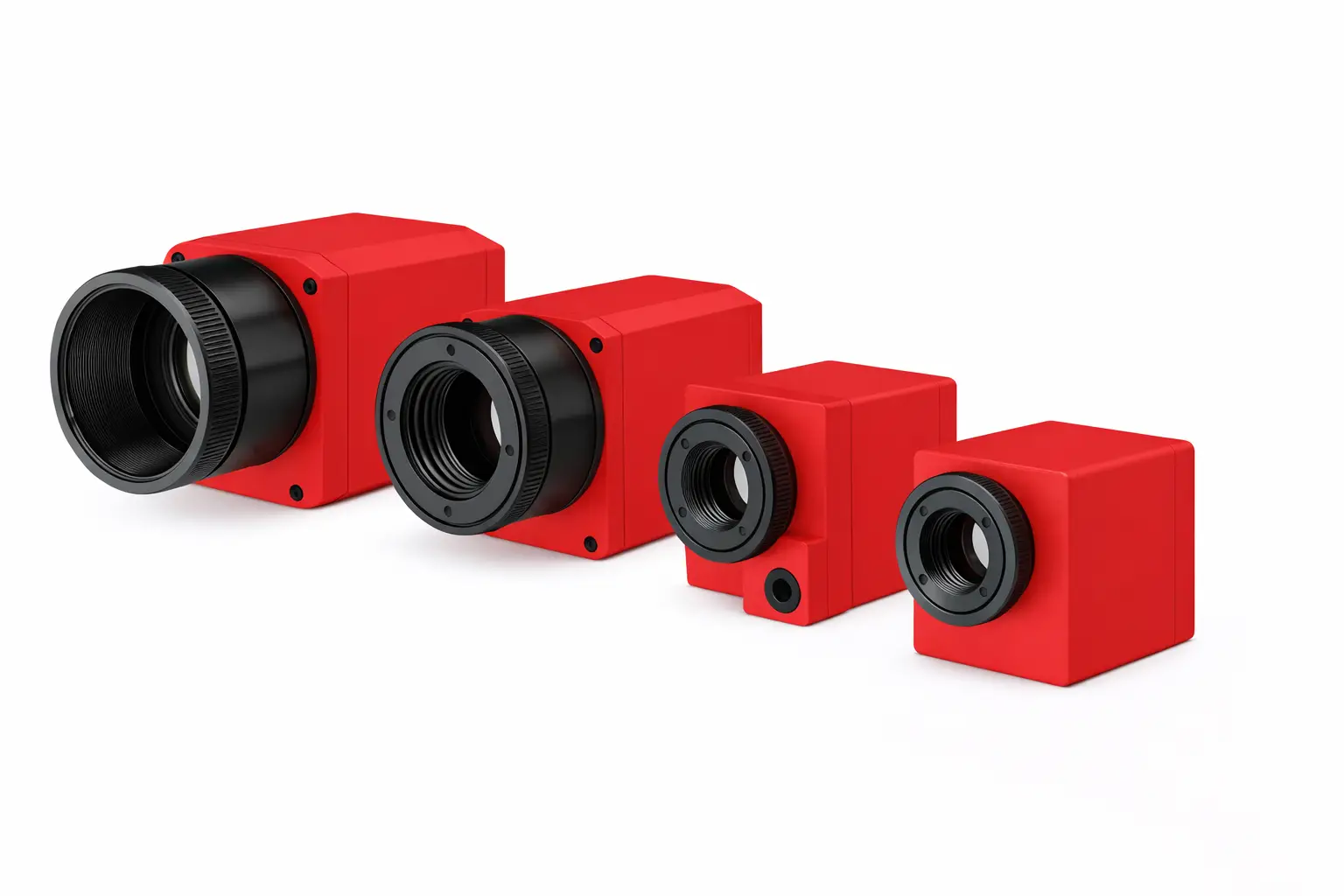

The Process Sensors Surveyor camera series offers a comprehensive range of imaging and line scanning camera systems to continuously monitor and control industrial processes. Measures temperatures starting from -20 to 1800°C
The Process Sensors Corporation (PSC) Surveyor camera series offers a comprehensive range of imaging and line scanning camera systems to continuously monitor and control industrial processes. These state-of-the-art camera systems provide real-time thermography with an astonishing 128 Hz frame rate.
The systems can be remotely triggered to respond to fast-occurring events, initiating alarms, outputs or capturing and recording data to a network for later retrieval and analysis. In addition, the Surveyor camera series can be switched in the field to line-scanner mode, allowing the camera to operate as a line-scan camera. These unique products are also used in laboratory and R&D applications, covering a temperature range from -20°C to 1800°C.
The Surveyor cameras are compact, radiometric and enable the operator to view and measure thousands of temperature points, line profiles or user-selectable areas or regions of interest (ROI’s) defined by a maximum, minimum or average temperature within these regions. The smart technology and space-saving design of each model bring new meaning to the word “simplicity” and set a benchmark for quality and performance.
The Surveyor cameras are available in a variety of models with a range of temperature ranges, resolutions, and lens options to optimise the performance criteria of the camera to your application. There is even the PSC-450-LWK model designed for aerial surveillance on drones. An optics calcuator for the various lens options is available here.
PSC-640 Surveyor
| Temperature Range | -20 to 900°C |
| Array Size | 640 x 480 |
| Frame Rate | 32 Hz |
| Spectral Range | 7.5 – 13 µm |
PSC-450 Surveyor
| Temperature Range | -20 to 1500°C |
| Array Size | 382 x 288 |
| Frame Rate | 80 Hz |
| Spectral Range | 7.5 – 13 µm |
PSC-400 Surveyor
| Temperature Range | -20 to 1500°C |
| Array Size | 382 x 288 |
| Frame Rate | 80 Hz |
| Spectral Range | 7.5 – 13 µm |

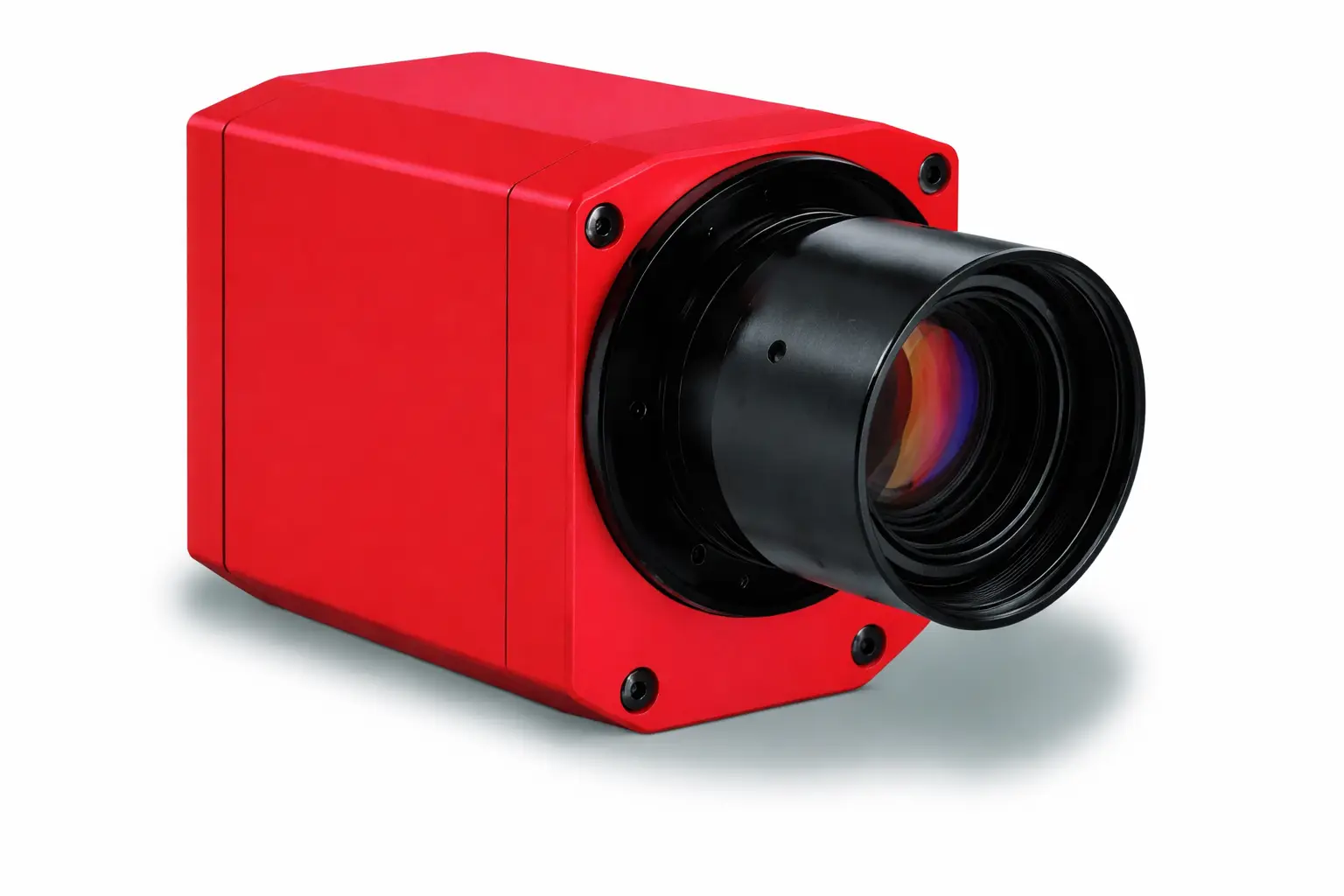

PSC-764-1 Surveyor
| Temperature Range | 450 to 1800°C |
| Array Size | 764 X 480, 382 X 288 |
| Frame Rate | 32/80 Hz |
| Spectral Range | 0.92 – 1.1 µm |
PSC-450-G7
| Temperature Range | 200 to 1500°C |
| Array Size | 382 x 288 |
| Frame Rate | 80 Hz |
| Spectral Range | 7.5 – 13 µm |
