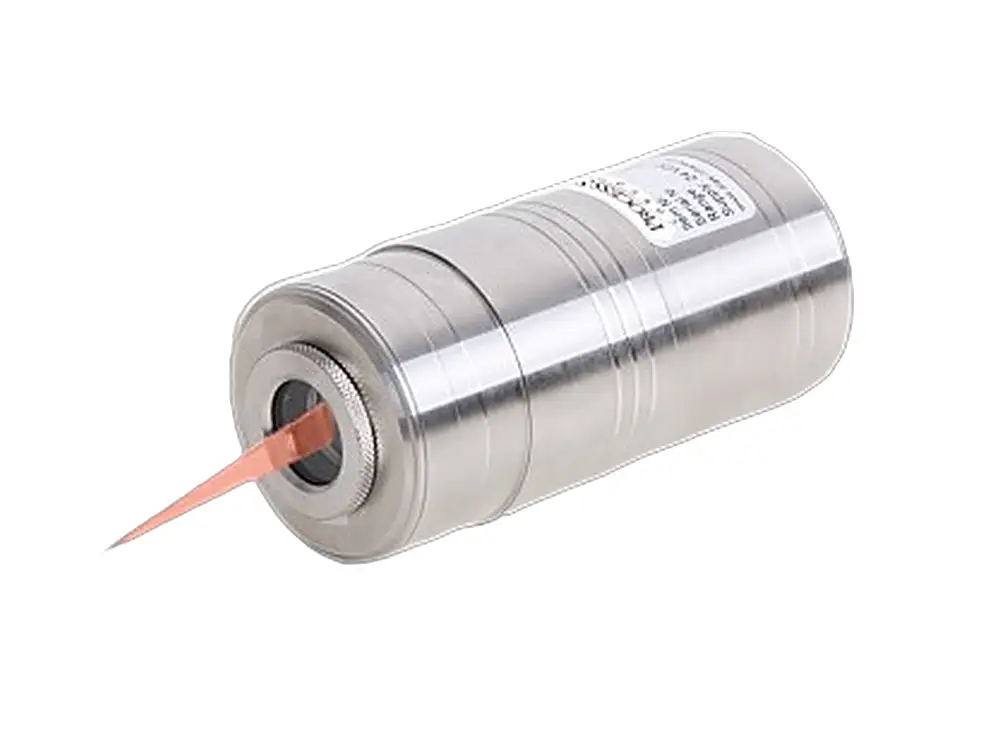

PSC-52LT Series Pyrometer

Laser-Sighted Pyrometer for Low-Reflective Surfaces

The digital PSC-52LT pyrometer, with integrated laser aiming, operates in the 8–14µm spectral range and is designed for precise temperature measurement of low-reflective surfaces and materials. It offers high-resolution laser-sighted, fixed focus optics with small spot sizes, and its optical and electronics parts are enclosed in a rugged stainless steel housing for use in harsh environments.

The PSC-52LT operates in the 0°C to 1000°C (32°F to 1832°F) temperature range with adjustable sub-temperature ranges. It features a fast, adjustable response time of 100ms, and is capable of measuring very small spot sizes from 0.24in (6mm).

Key Features

• Integrated laser aiming for precise, confident sighting.
• Standard loop-powered 4-20mA linear output for simple integration into existing measurement and control systems.
• Rugged stainless steel housing with a sealed quick-disconnect connector for the IR sensor cable.
• Heavy-duty protective cooling jacket with integrated air purge, available for harsh environment applications.
• Optional USB PC interface cable.

Software

PSCSpot for Windows software is standard equipment, provided for storage, processing and evaluation of real-time measured data. It provides extensive statistical analysis of data, export of measured data as test files, and creation of Microsoft Excel spreadsheets.

Applications

Typical applications include paper and packaging, food, glass and ceramics, conveyed materials, wood and composites, and textiles. Also ideal for rubber, plastics and gypsum board applications.

Talk to the Techotrix team to find out whether the PSC-52LT is the right fit for your application.
