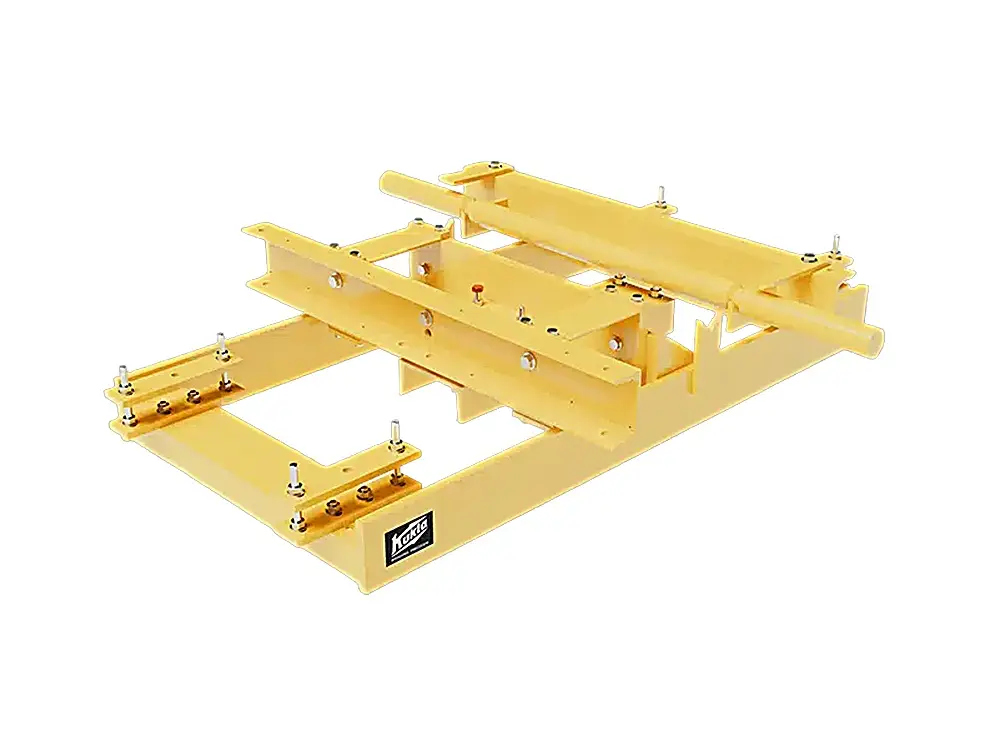

EBW-M-C2

Multiple Roller Belt Scale (Compact 2-Station)

Scales of the EBW-M-C2 series are suitable for installation into existing conveying belt systems, in a compact design. They are used for measuring and totalising bulk material flow, applied where high accuracy requirements meet space constraints.

The transmission of the load to the load cell is conducted by leverage, or the weighing bridge is mounted on several load cells. For speed measurement, a digital tacho is provided, either running on the return belt or attached to the tail pulley. Optionally, the scale can be equipped with a test weight device, which serves for a quick and easy check of the weighing accuracy.

Key Features

• Compact multiple roller design (2 measuring stations).
• Easy construction and installation in existing systems, even where space is limited.
• Optional test weight for quick, easy accuracy checks.
• Versatile in use.
• Minimal maintenance requirements.
• Heavy duty design.

Requirements

• Straight section at the area of the scale.
• Appropriate setting distance after material transfer.

Applications

Suitable for continuous measurement of bulk materials including coal, ores, wood pellets, grain, plastic waste and many other materials, especially in space-constrained installations.

Talk to the Techotrix team to find out whether the EBW-M-C2 is the right belt scale for your conveying system.
