Torque Tester – TMV-8
Electronic Bottle Cap Torque Tester

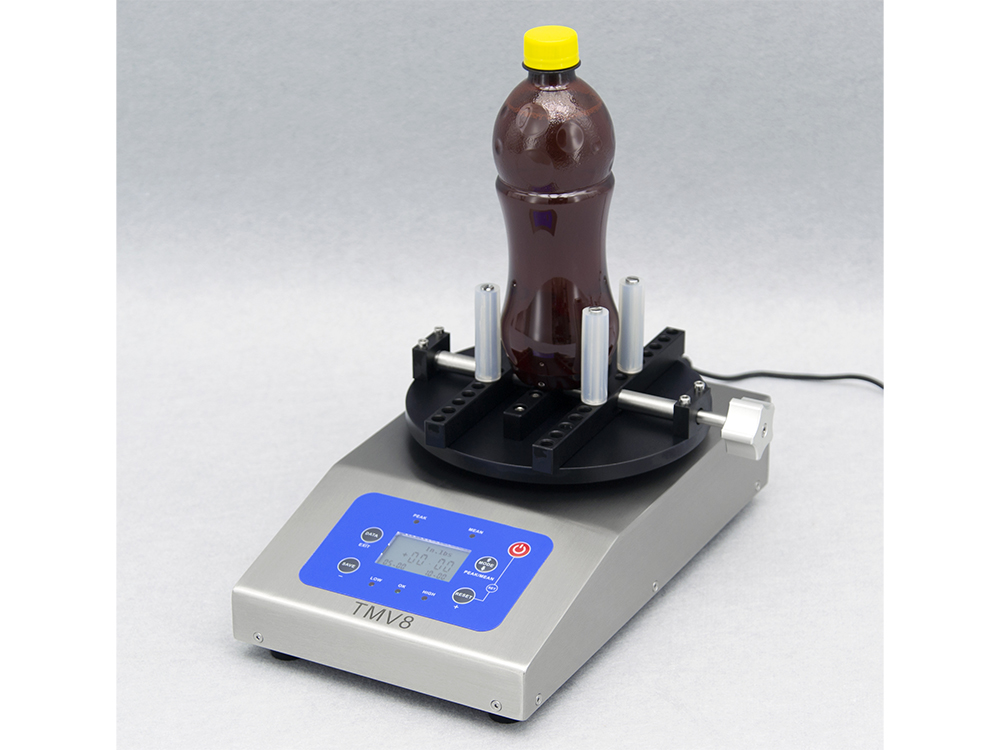

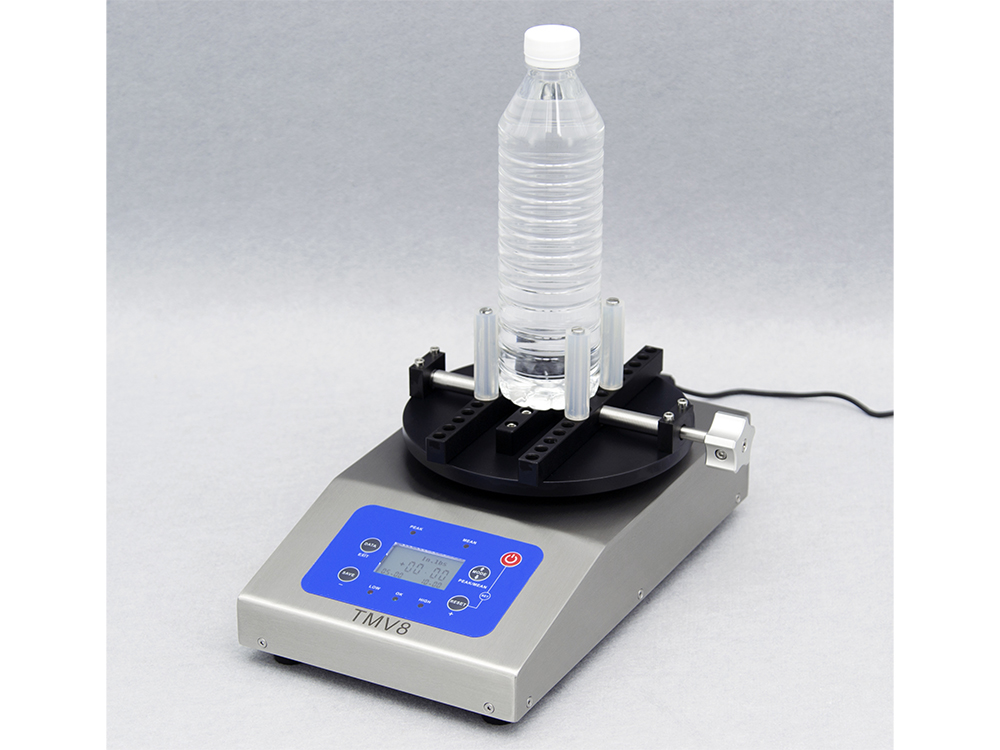

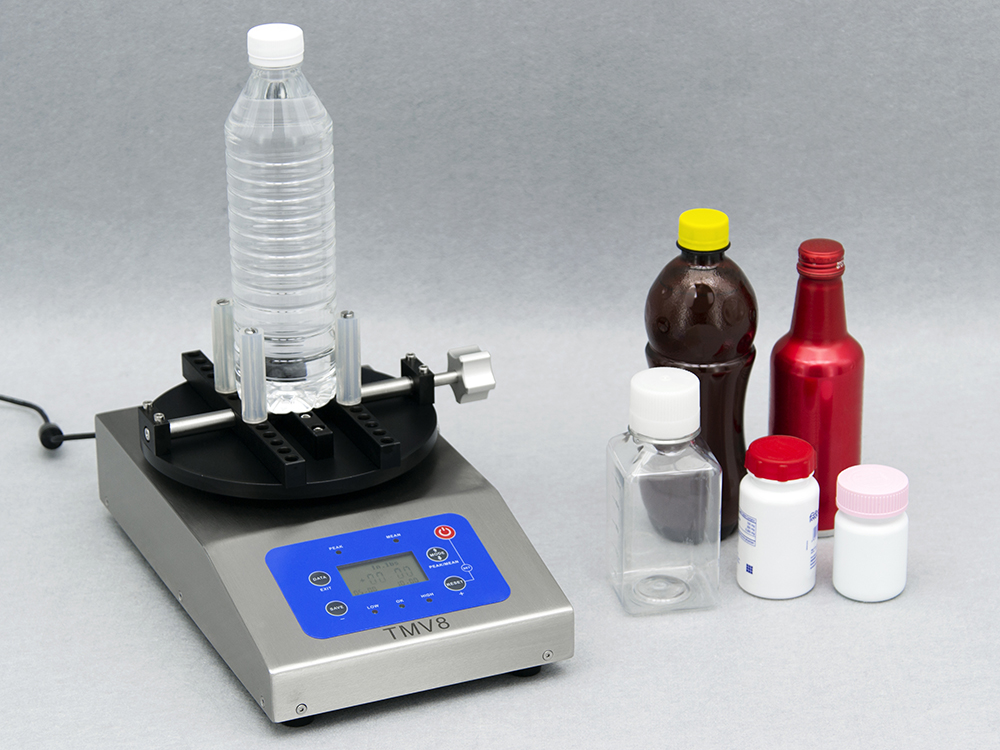

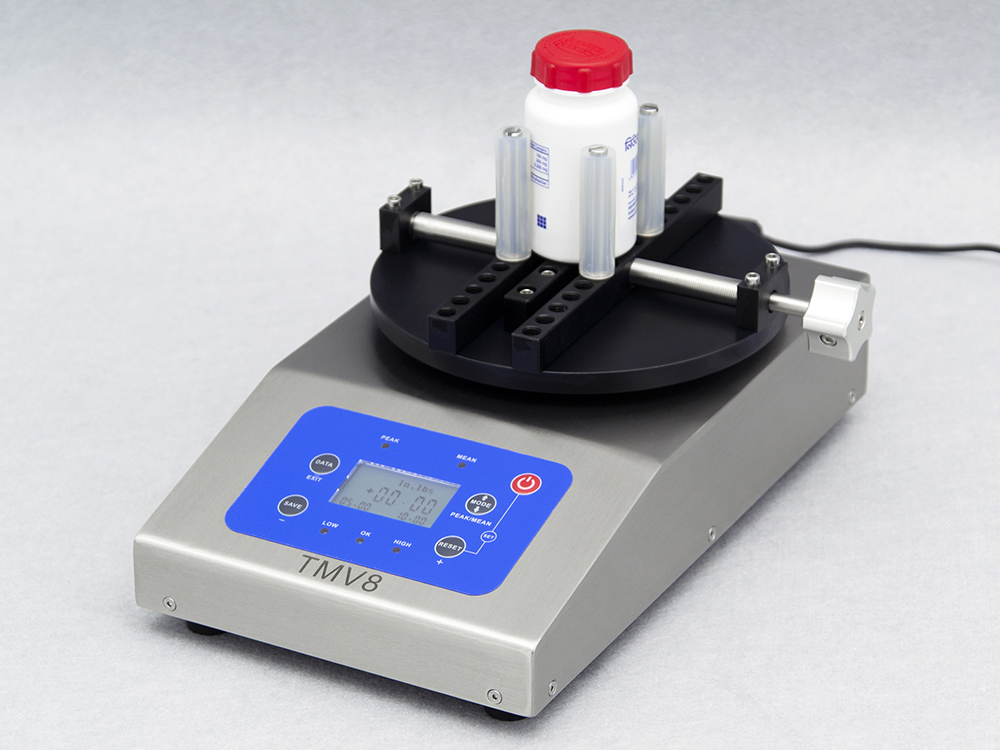

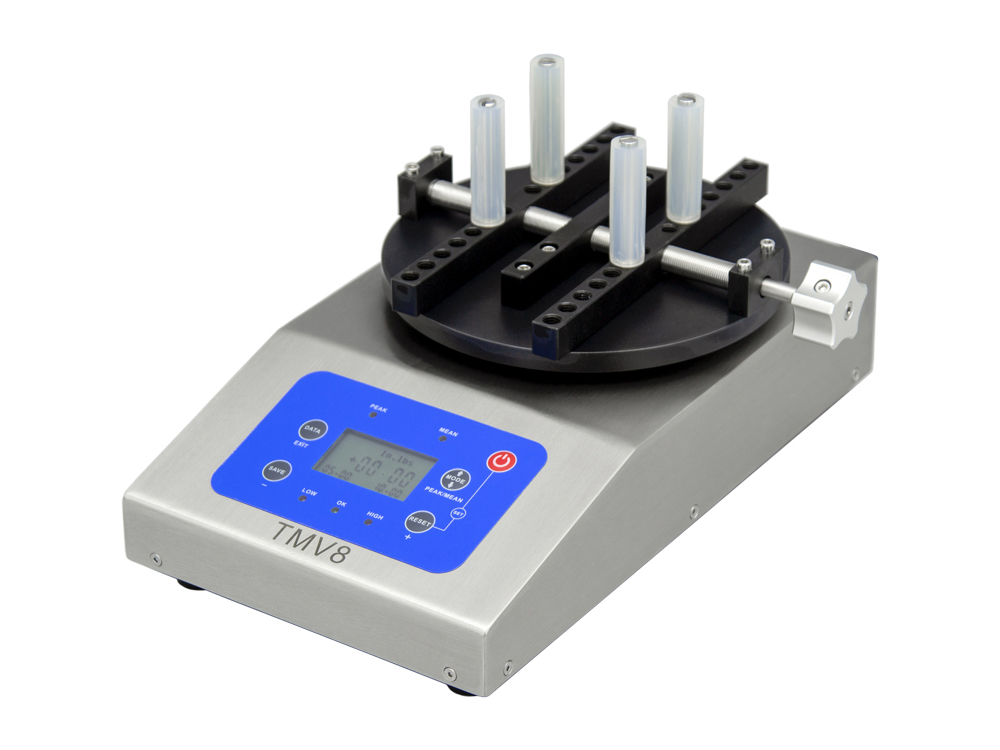

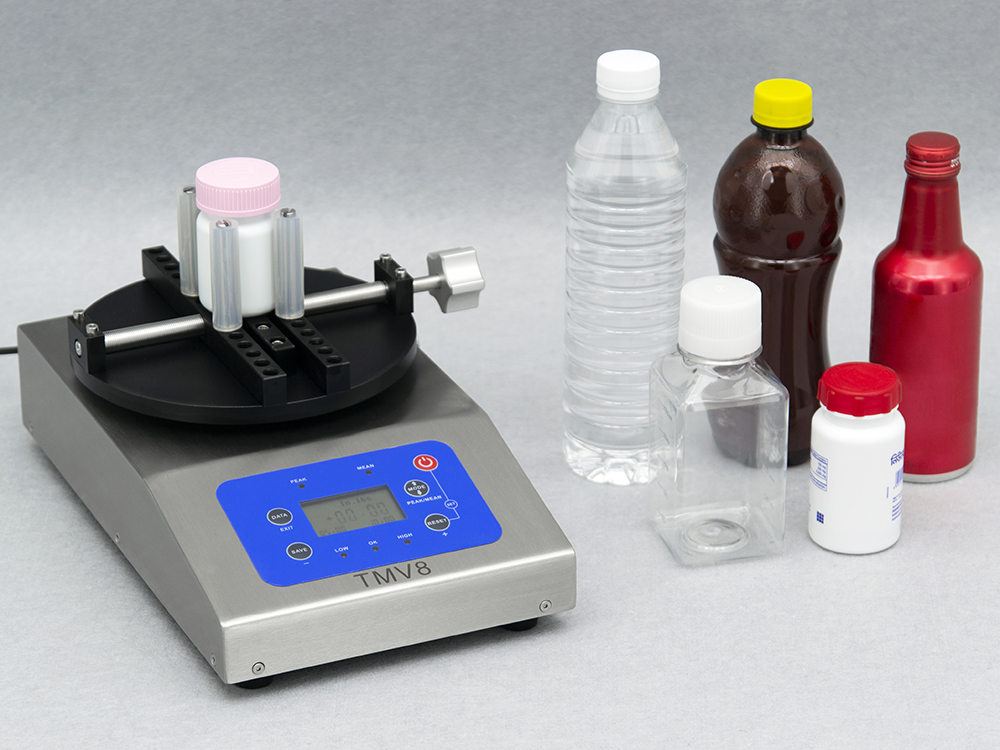

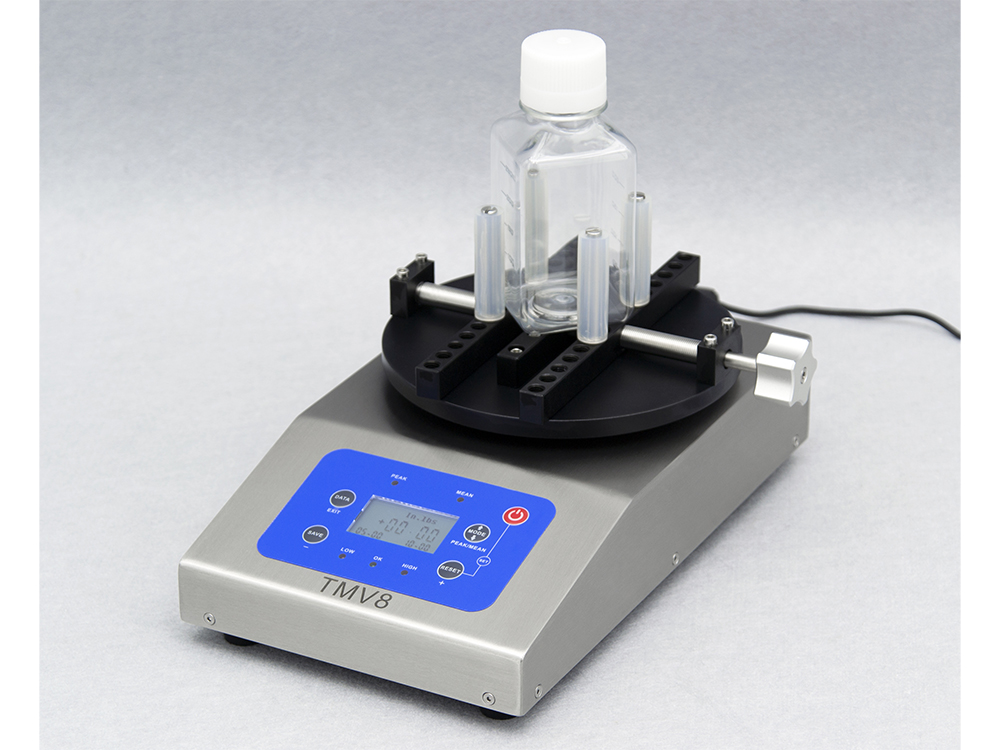

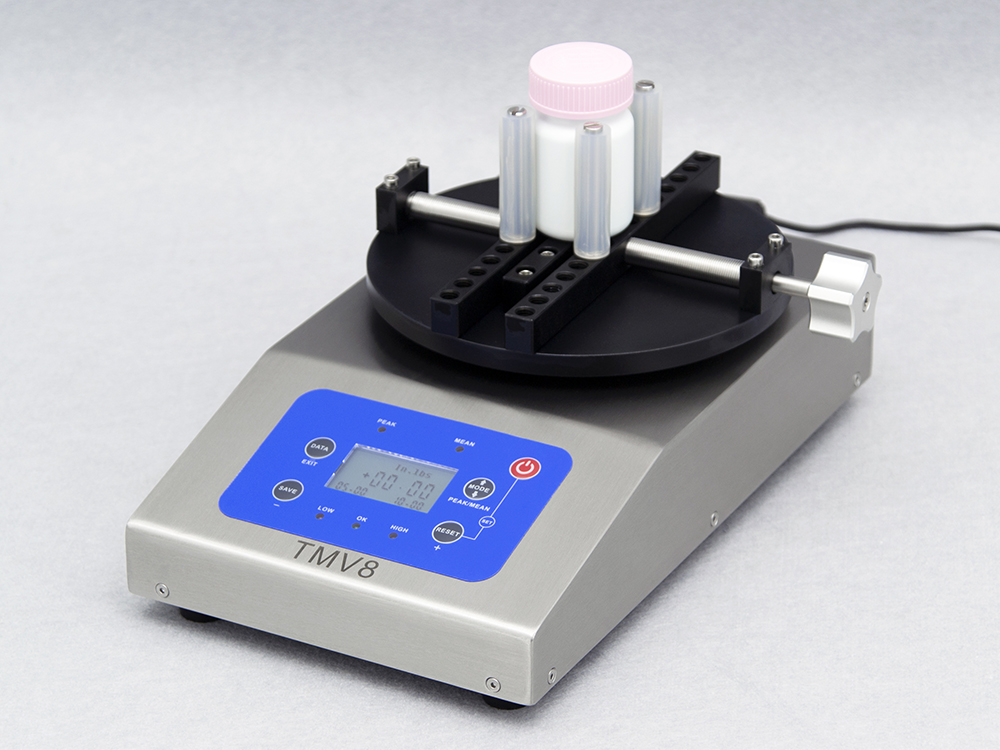

The TMV8 is an electronic torque tester with a special mechanical system that cancels non-coaxial and top-load influences, covering 00.00 to 99.00 Kgf.cm with ±0.5% accuracy. Its stainless steel frame and Agro measuring table suit reproducible bottle cap torque testing across operators.
Electronic Torque Tester
Our TMV range torque meters are equipped with special mechanics to cancel all vertical forces and non-coaxial measurements, alongside very fast electronics. The TMV8 allows opening and closing torque measurement with on-screen reading, through simplified but comprehensive functions. These particularities considerably improve the reproducibility of measurement between different operators.
Key Features
- Measures opening and closing torque directions.
- Two measuring modes: continuous and peak.
- Multiple units: Kgf.cm, In.lbs, N.m, N.cm.
- Storage and print for up to 999 measurements.
- Data record of maximum, minimum and average values.
- On-screen display of the given torque threshold.
- RS232 output for mini-printer connectivity.
- Delivered with a COFRAC calibration certificate.
Mechanical Specifications
Built with a durable stainless steel frame and an Agro measuring table accommodating samples from 25 to 155mm in diameter (other ranges available on request). Compact dimensions of 320 x 215 x 170mm at just 8kg make it easy to integrate into any testing environment.
Optional Enhancements
Available accessories include an Easy/Safe opening bloc, mini printer, calibration pack, and battery power option to tailor the tester to your specific needs.
Talk to the Techotrix team to find out whether the TMV8 is the right torque tester for your application.
| Measuring Range | 00.00 to 99.00 Kgf.cm |
| Accuracy | ± 0.5% of full scale |
| Measuring Modes | Continuous and peak |
| Units Supported | Kgf.cm, In.lbs, N.m, N.cm |
| Storage | Up to 999 measurements |
| Data Record | Max, min and average values |
| Output | RS232 for mini-printer |
| Power | AC 110–240V, 50/60Hz |
| Frame | Stainless steel |
| Measuring Table | Agro table, 25–155mm sample diameter (other ranges to order) |
| Dimensions | 320(L) x 215(W) x 170(H) mm |
| Weight | 8kg |
| Calibration | COFRAC calibration certificate included |
Optional accessories for the TMV8:
- Easy/Safe Opening Bloc: For simplified sample handling.
- Mini Printer: For immediate on-site result printing via RS232.
- Calibration Pack: For ongoing accuracy verification.
- Battery Option: For portable operation.
- Transportation Case: For safe transport between sites.
Contact the Techotrix team to select the right TMV8 configuration for your application.
