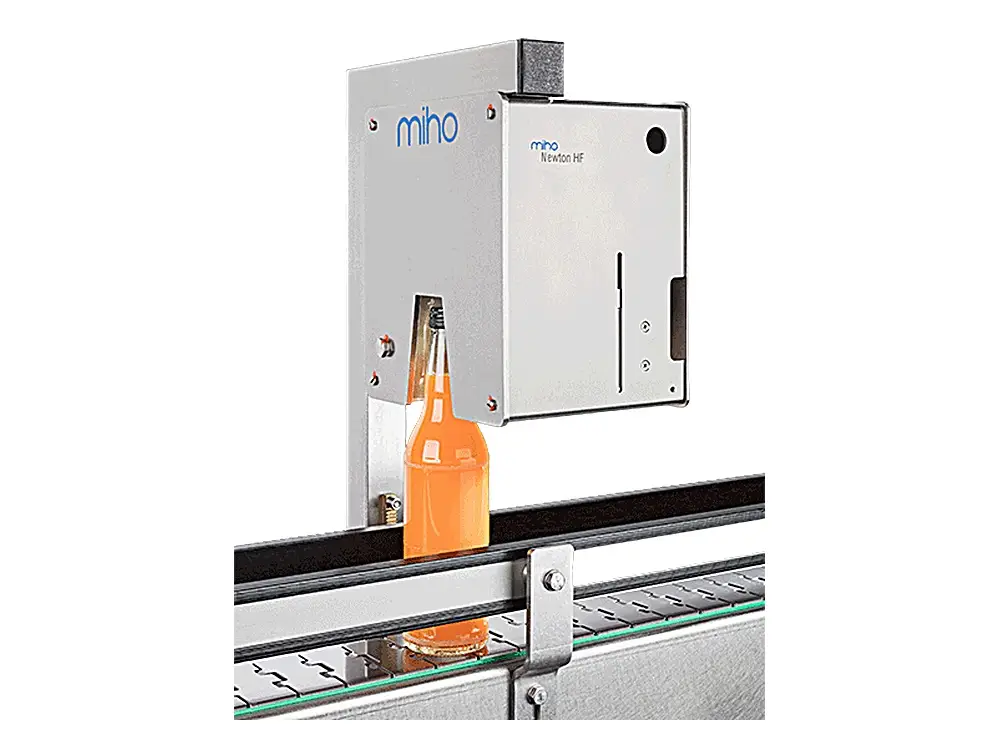

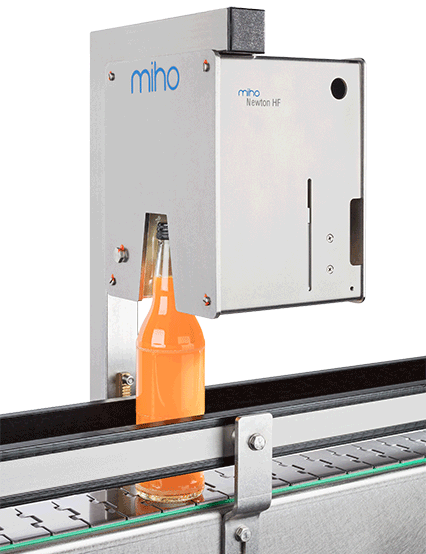

Newton HF 2
High-Frequency Fill Level Control
The miho Newton HF 2 checks fill level for underfilling and limited overfilling in transparent glass and PET bottles, using compact, easy-to-operate high-frequency measurement. Self-calibration compensates for temperature fluctuations, with comprehensive fault statistics available.
Fill Level Control (High-Frequency Technology)
The miho Newton HF 2 checks the fill level for any underfilling, and in a limited way also overfilling, in transparent glass and PET bottles. Inspection is carried out using a high-frequency (HF) measurement method, with easy handling. The system compensates for any fluctuations in temperature through self-calibration.
Key Features
- Compact construction.
- High-frequency technology.
- Easy to operate.
- Self-calibration compensates for temperature fluctuations.
- Comprehensive statistics for individual fault types.
- Serial fault detection implemented.
- Connection to external production data acquisition system possible.
- Handwheel height adjustment for bottle type changes.
- Preferable HF measuring method suited for metallised labels.
Limitations
Not suitable for swing-top bottles, long caps, tinfoil, or highly viscous products and spirits.
Applications
Typically installed at the filler outfeed for non-foaming products, or at the labelling machine outfeed — ideal for straightforward, reliable fill level verification on transparent glass and PET bottles.
Talk to the Techotrix team to find out whether the miho Newton HF 2 is the right fill level control solution for your line.
| Detection Method | High-frequency (HF) measurement |
| Compatible Containers | Transparent glass and PET bottles |
| Calibration | Self-calibrating (temperature compensation) |
| Adjustment | Handwheel height adjustment |
| Placement | Filler outfeed (non-foaming) or labeller outfeed |
| Not Suitable For | Swing-top bottles, long caps, tinfoil, highly viscous products, spirits |
Optional accessories for the miho Newton HF 2:
- Metal Cap Detection: Inductive proximity switch, with height adjustment.
- Plastic Cap Detection: Via cap diameter width measurement.
- Natural Cork Detection: Light sensor with height adjustment.
- Re-Cooler Water Detection: Light barrier sensor with height adjustment.
- miho AWeS Software Package: Production data acquisition to the Weihenstephan standard.
Contact the Techotrix team to confirm the right Newton HF 2 configuration for your line.
