iPR EX

Explosion-Protected Process Refractometer

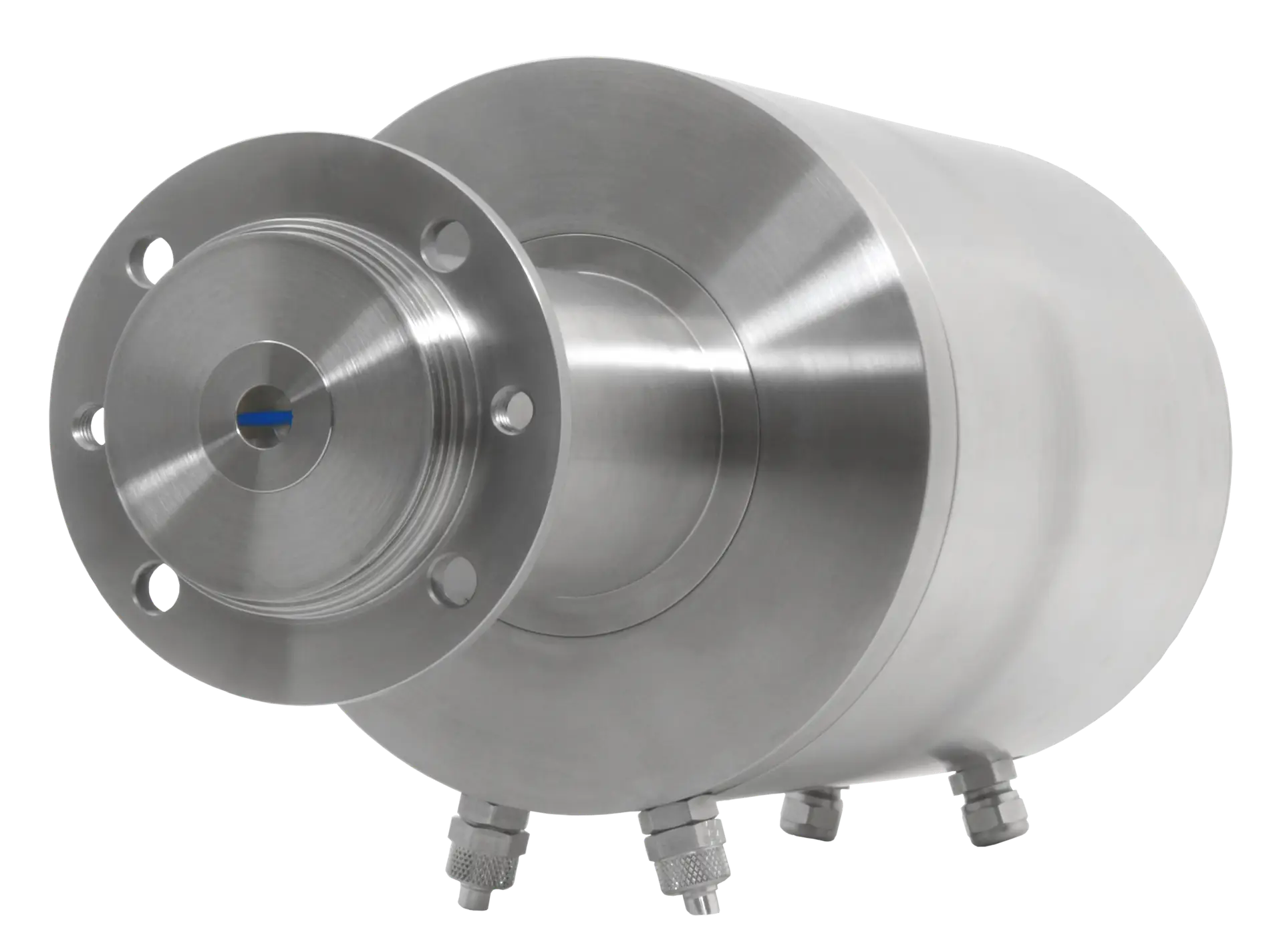

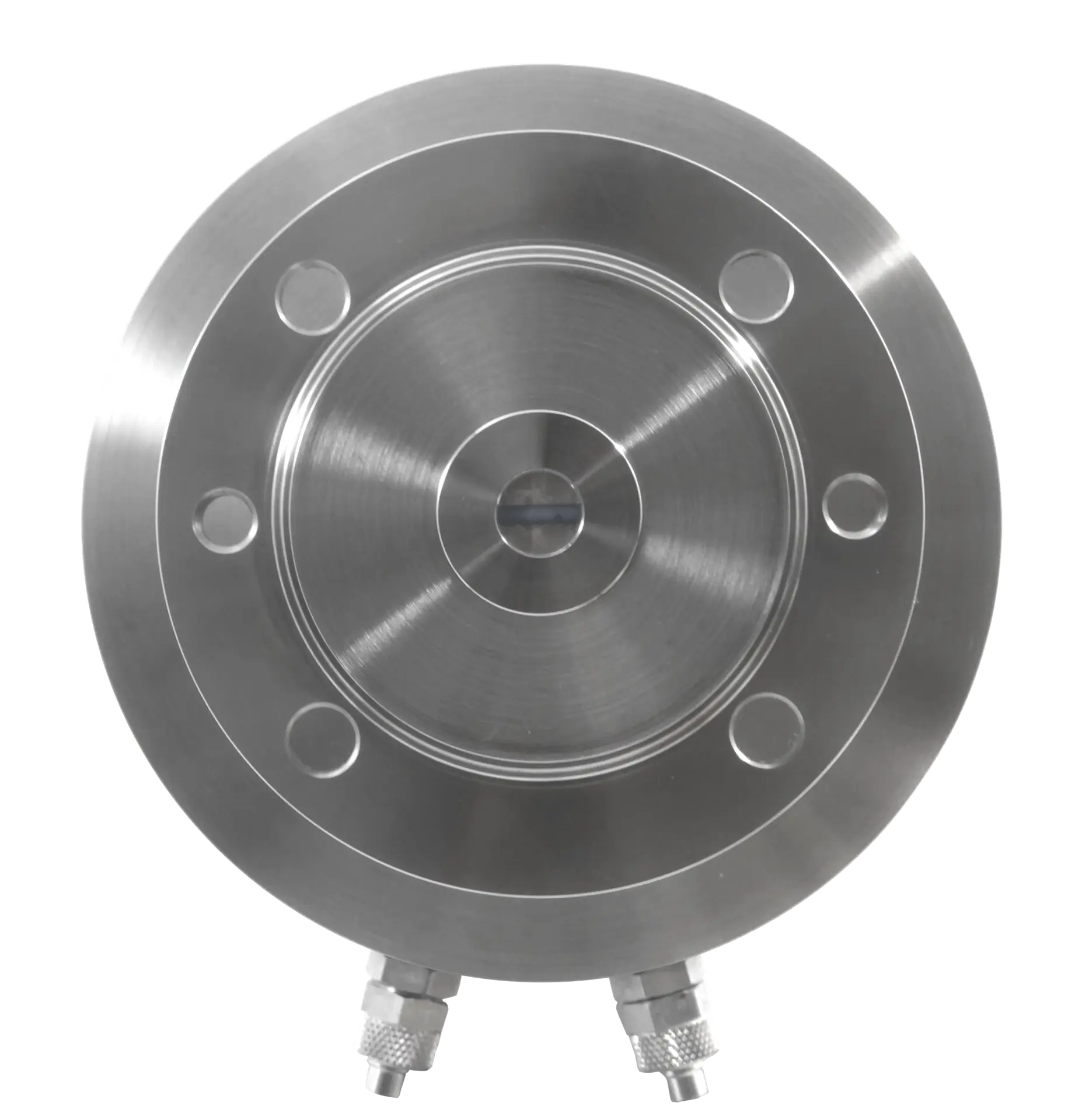

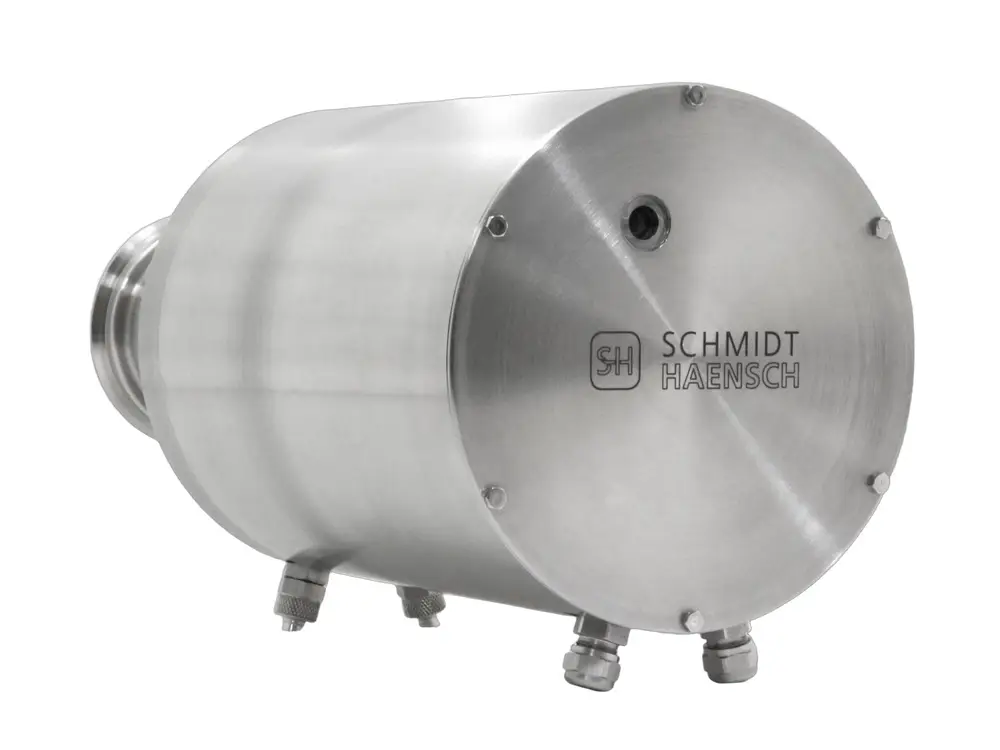

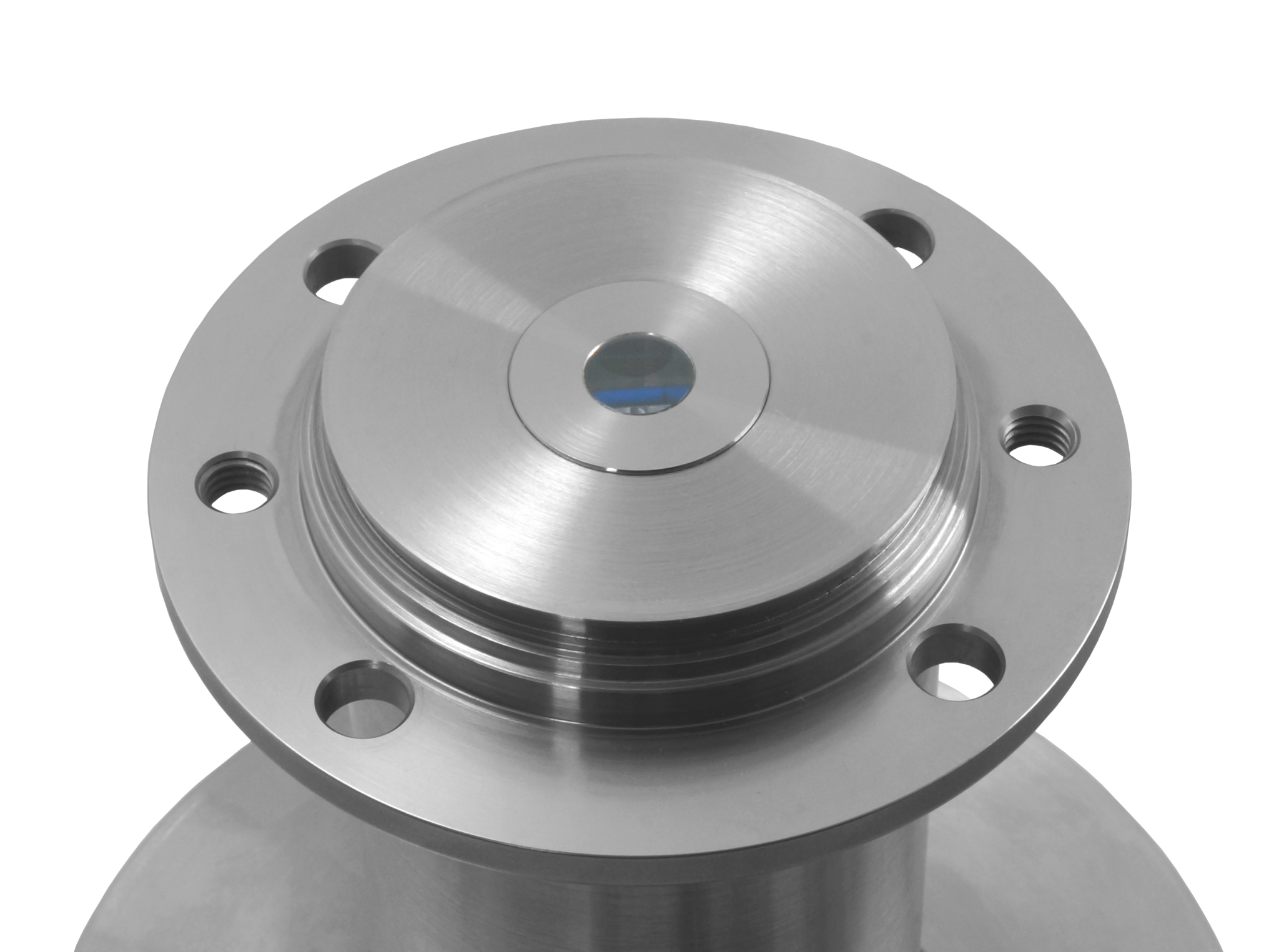

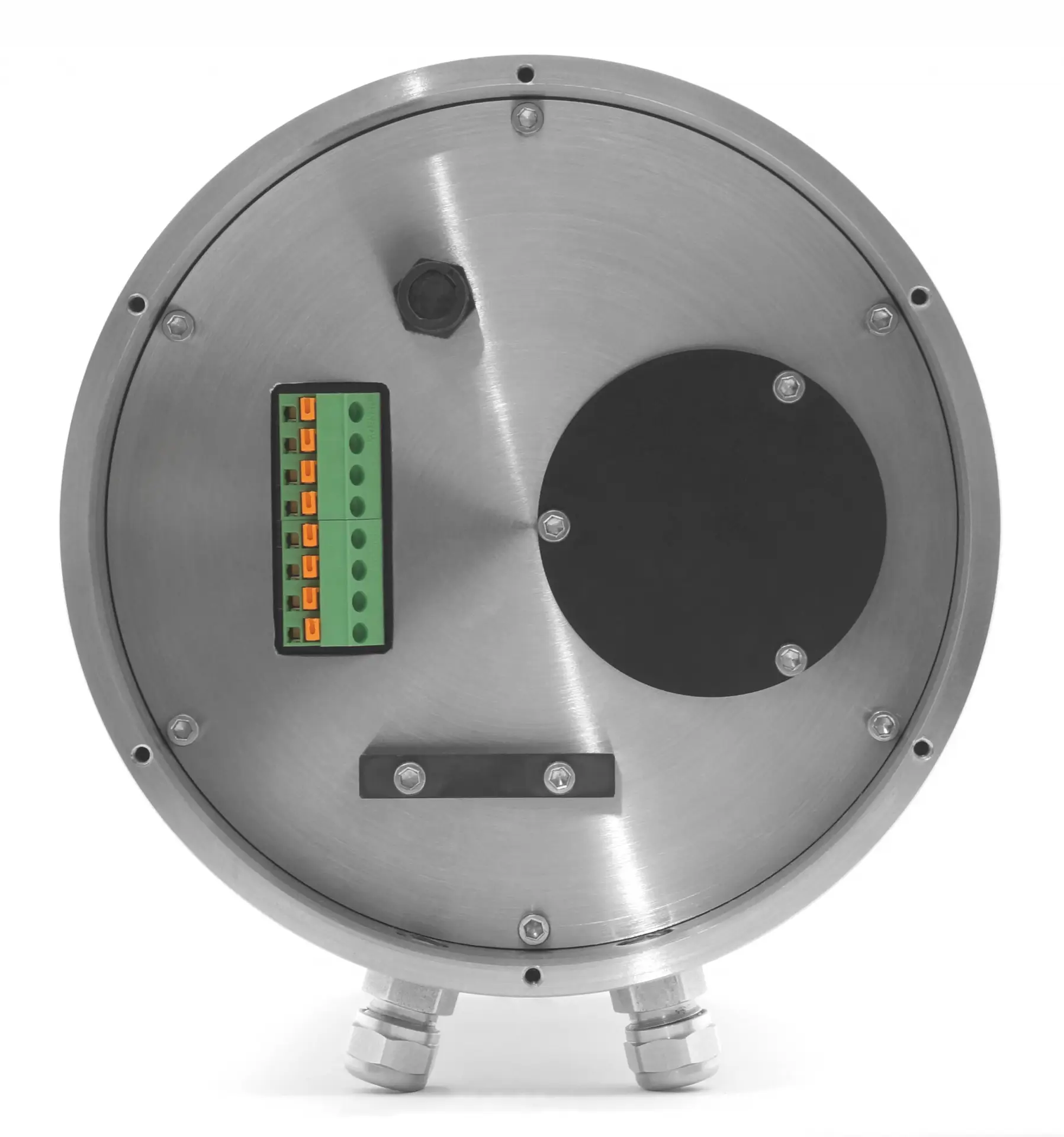

The explosion protection version of the SCHMIDT + HAENSCH process refractometer consists of an intrinsically safe, single-certified sensor, which can be installed in hazardous areas. It is chemical resistant, food safe, and delivers reliable and hygienic measurements, fully in-line with your production process.

Key Features

• Explosion-protected version of the iPR B⁴.
• Suitable for all applications in explosion-proof areas.
• Certified according to European Classification ATEX II 1 G Ex ia IIC T4 Ga.
• Permanent in-line real-time measurement of the concentration of dissolved solids.

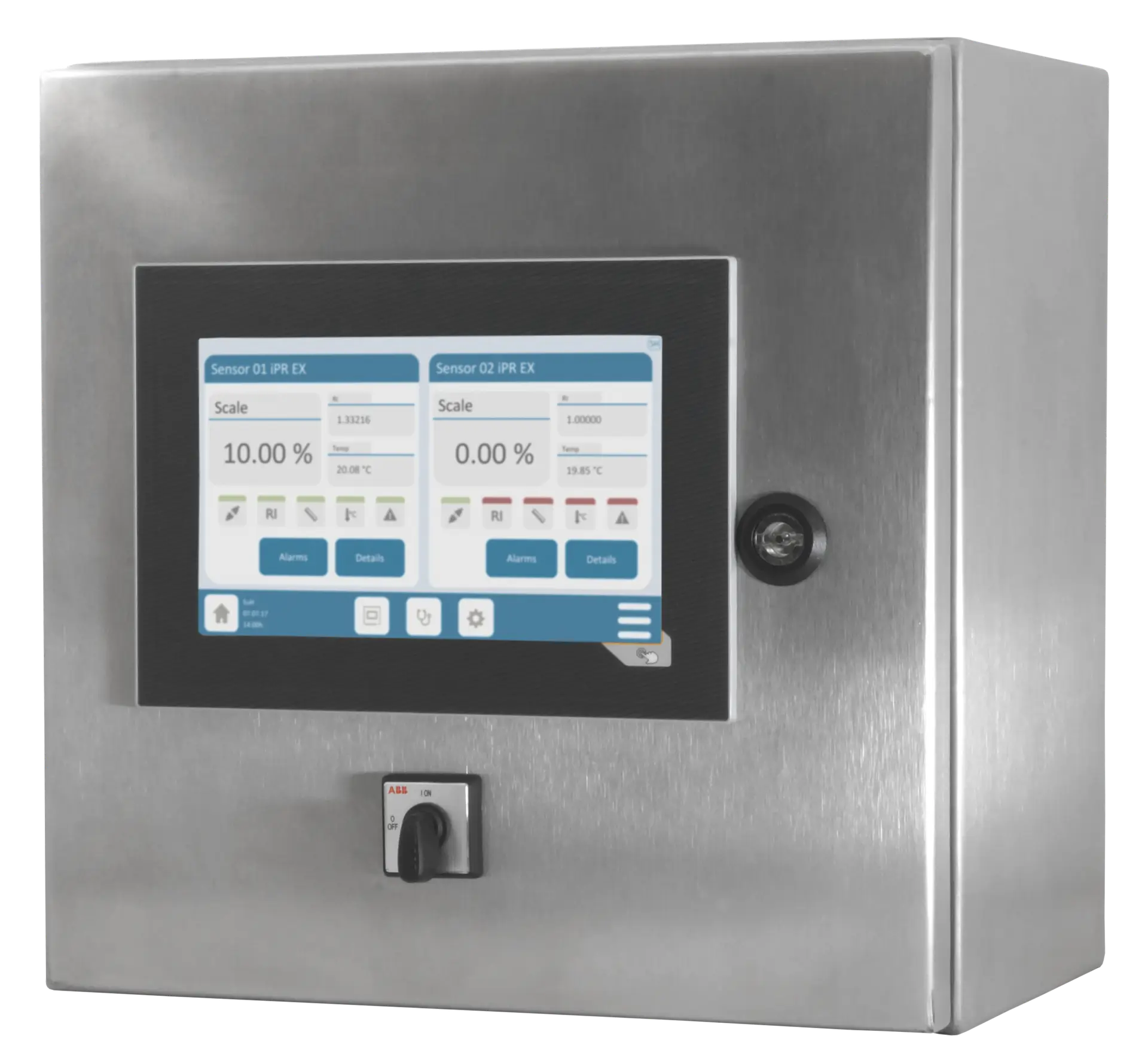

• 7″ touch screen, individually configurable.
• Measured data output via Ethernet as 24V or 4-20mA signal, or controllable relay.
• Serial RS232/485 interfaces, CAN bus or OPC server for data transmission to other systems.
• Up to two measuring heads connectable simultaneously.

Applications

Suitable for the automotive, aviation, petrochemical and refinery industries where explosion protection is required for in-line refractive index and concentration monitoring.

Talk to the Techotrix team to find out whether the iPR EX is the right explosion-protected refractometer for your hazardous-area process.
