PVG-A, D, P, SA or SD
Pressure or Vacuum Gauge
The PVG Series Pressure or Vacuum Gauge measures pressure or vacuum in cans and bottles across a -1 to 6 bar range, available in analog (PVG-A), digital (PVG-D), portable (PVG-P) and pocket (PVG-S) models. Simply place the sample under the gauge, lower the lever, and read the value.
Pressure or Vacuum Gauge
The PVG is used to measure the pressure or vacuum of cans or bottles. Simply place the sample under the manometer or vacuum meter and lower the lever, then read the value.
Key Features
- Easy to use.
- Measures both vacuum and pressure.
- Different accuracy classes available.
- Fits all kinds of samples.

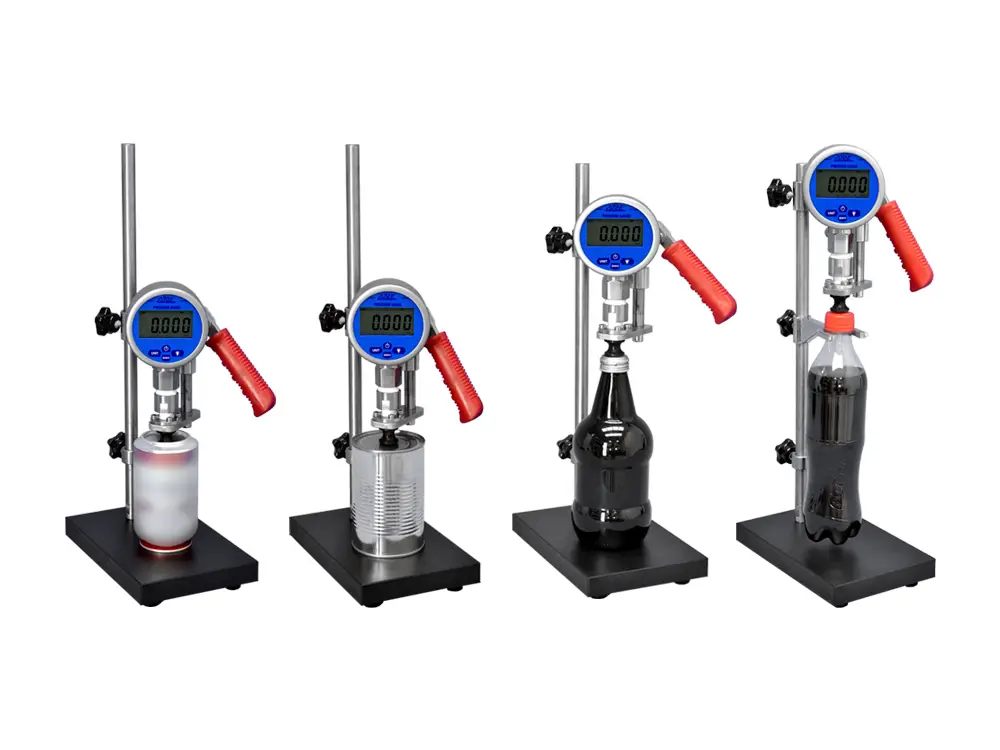

- Digital model (PVG-D): resolution 0.001 bar, precision 0.1% F.S.

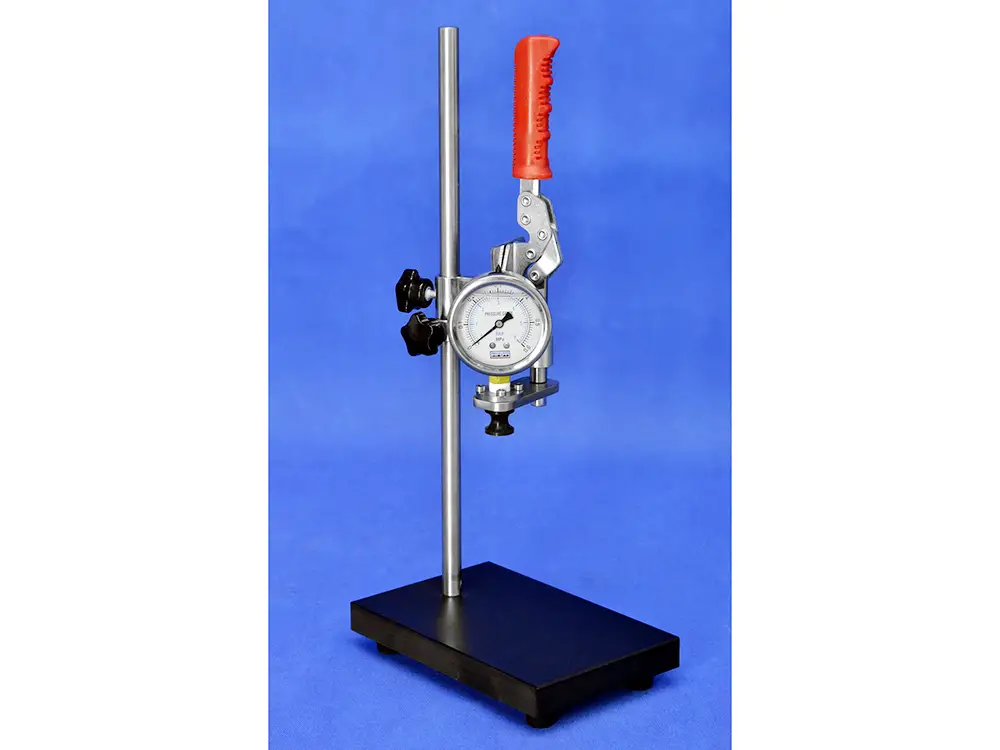

- Analog model (PVG-A): vacuum range -1 to 0 bar, pressure range 0-6 bar, precision ±5% F.S.

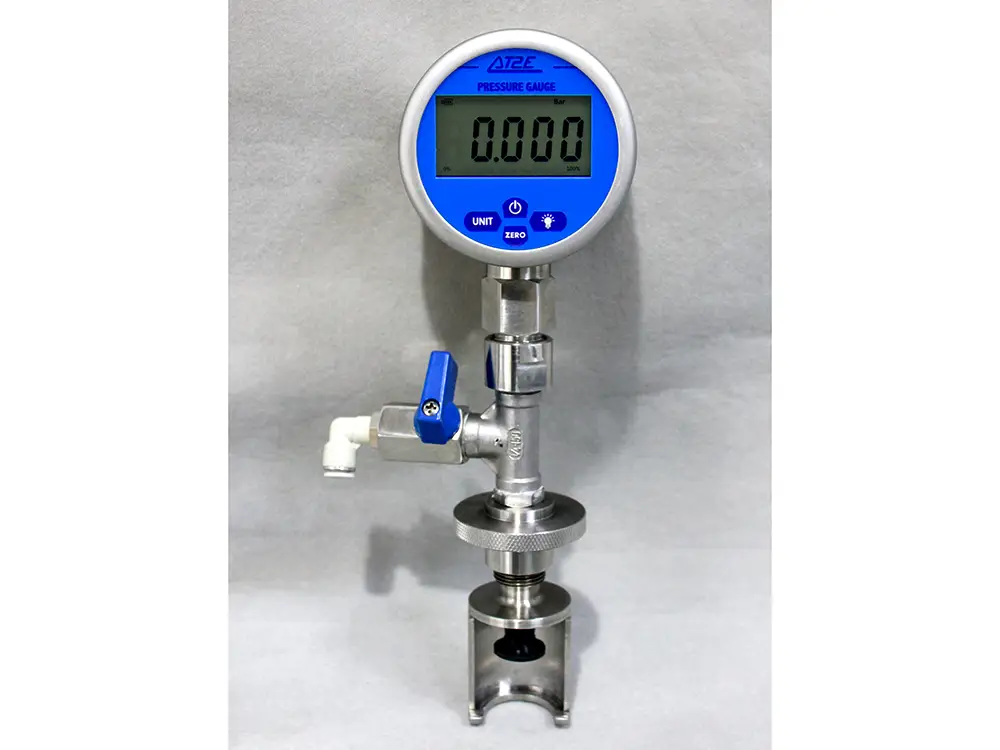

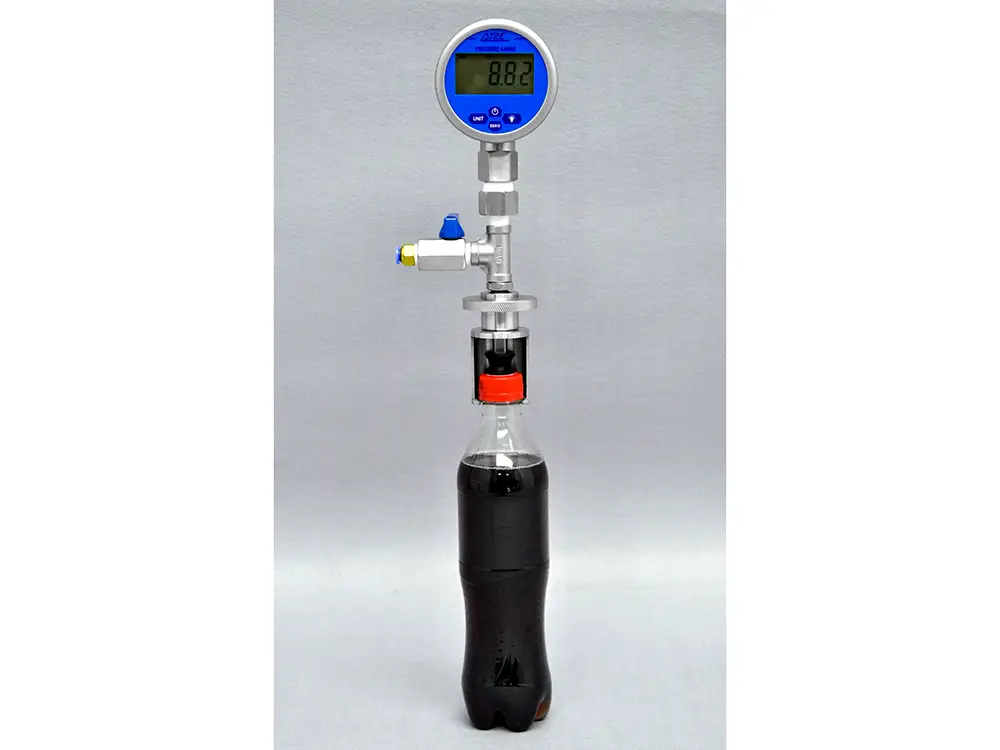

- Portable model (PVG-P): install under the finish neck, pierces the cap without leakage.

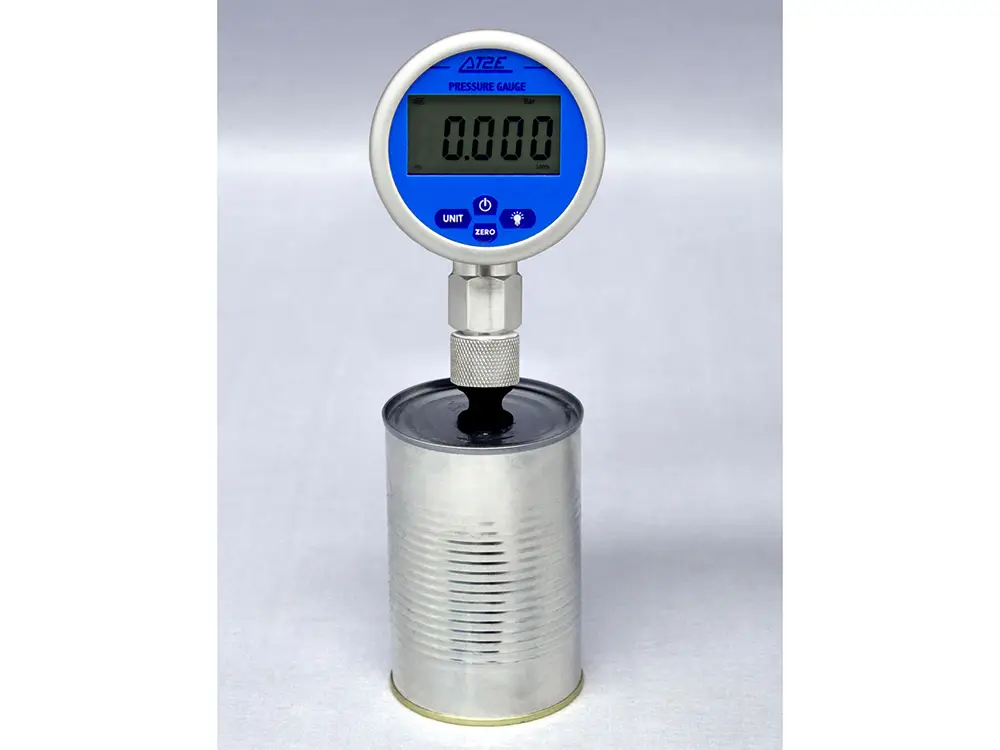

- Pocket model (PVG-S): pierce the sample directly with the needle for quick reading.
Applications
Essential for beverage, brewing and packaging quality control needing quick, reliable pressure or vacuum checks on cans, bottles and PET containers.
Talk to the Techotrix team to select the right PVG model for your pressure or vacuum testing needs.
| Measuring Range | -1 to 6 bar (-15 to 85 psi) |
| Units | kgf/cm², MPa, kPa, bar, psi |
| Resolution | 0.001 bar (digital models) |
| Precision (PVG-D) | 0.1% F.S. |
| Precision (PVG-A) | ±5% F.S. |
| Weight | ~3kg |

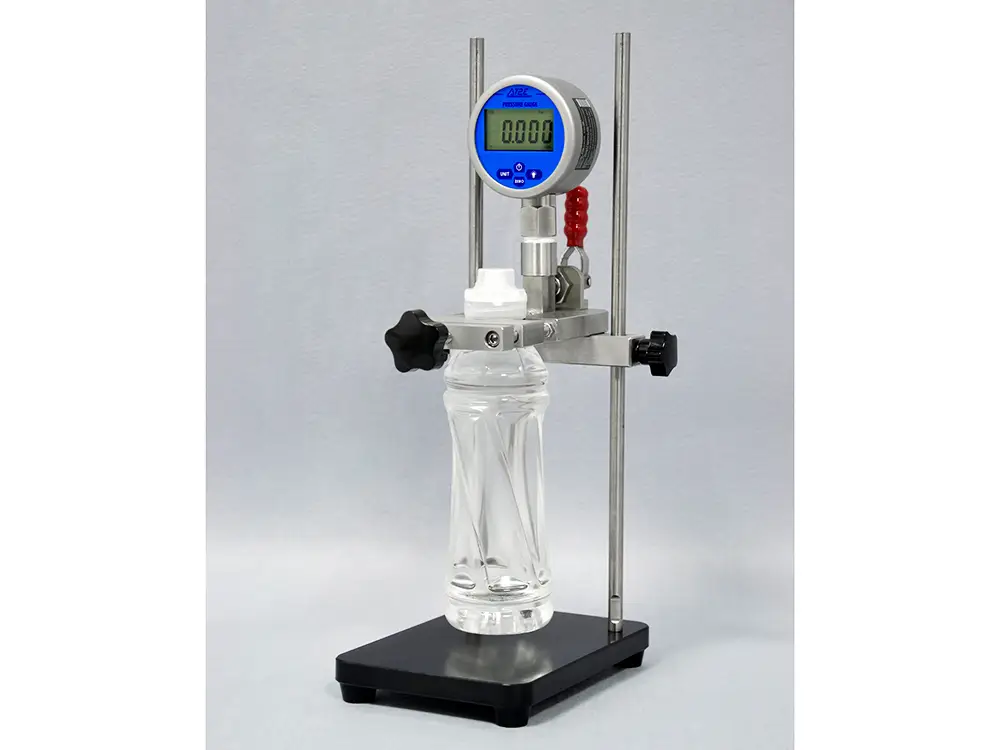

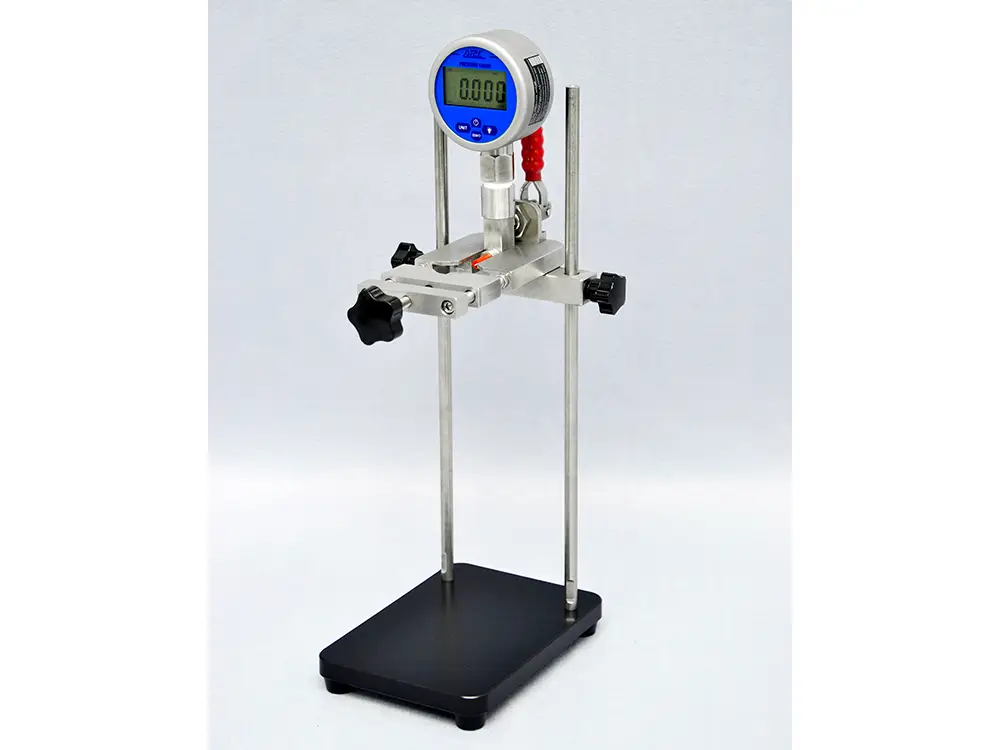

Available models: PVG-A (analog, benchtop), PVG-D (digital, benchtop), PVG-P (portable, PET bottles), PVG-S/PVG-SA/PVG-SD (pocket/portable versions), PVG-DS (sport cap testing). Optional Neck Support for PET Bottles and Calibration Certificate.
Contact the Techotrix team to select the right PVG model for your sample type and testing environment.
