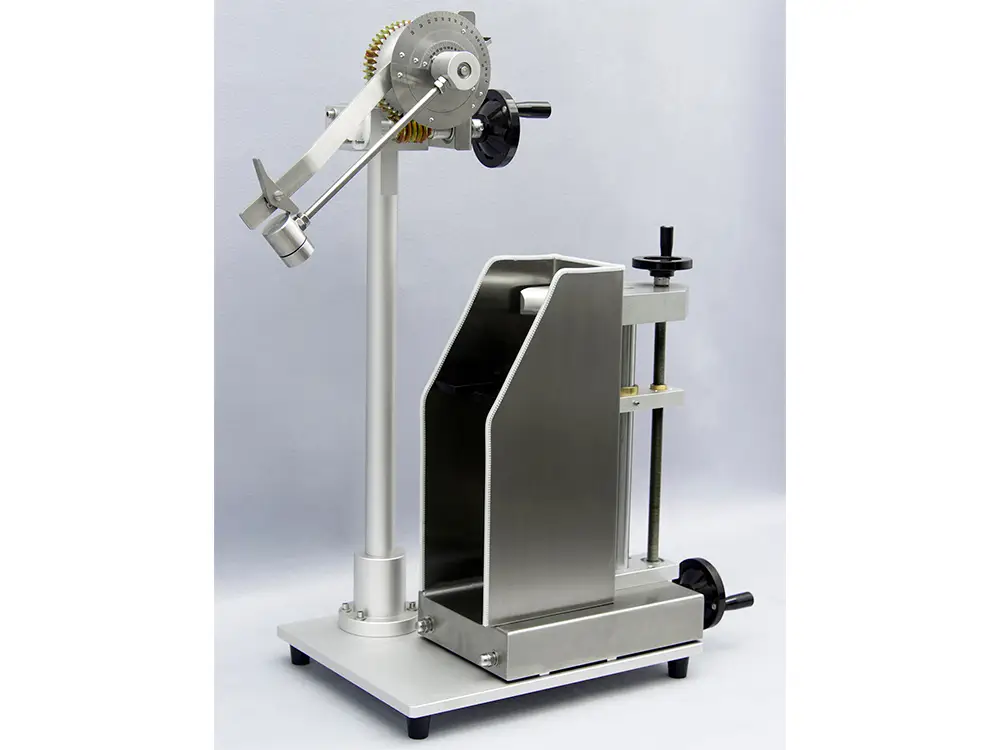

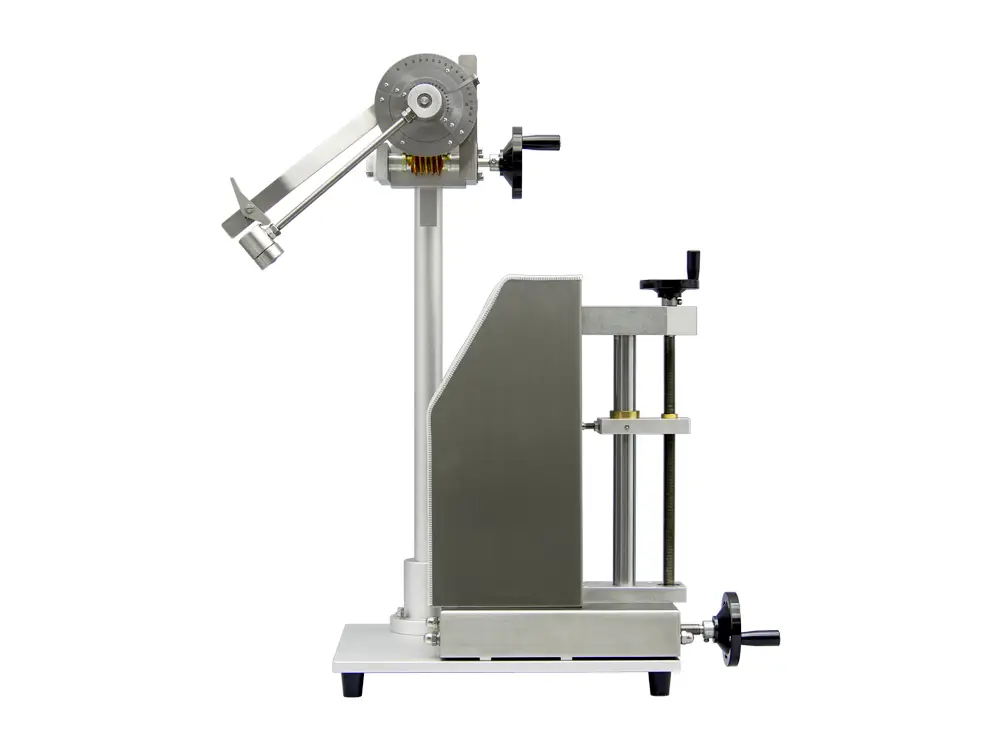

GBIT

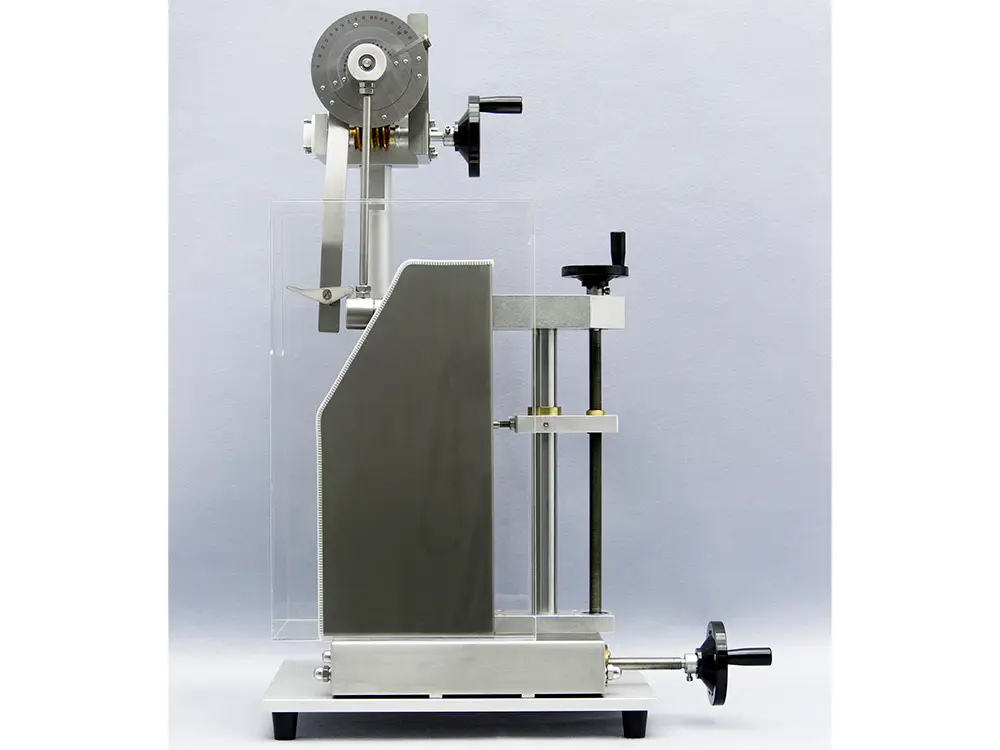

Glass Bottle Impact Tester

Glass breaks. The question is whether it meets your resistance standard. The GBIT Glass Bottle Impact Tester simulates real transport and handling impacts, giving you objective data on your bottle’s mechanical resistance before it reaches the supply chain — reducing breakage, waste and liability.

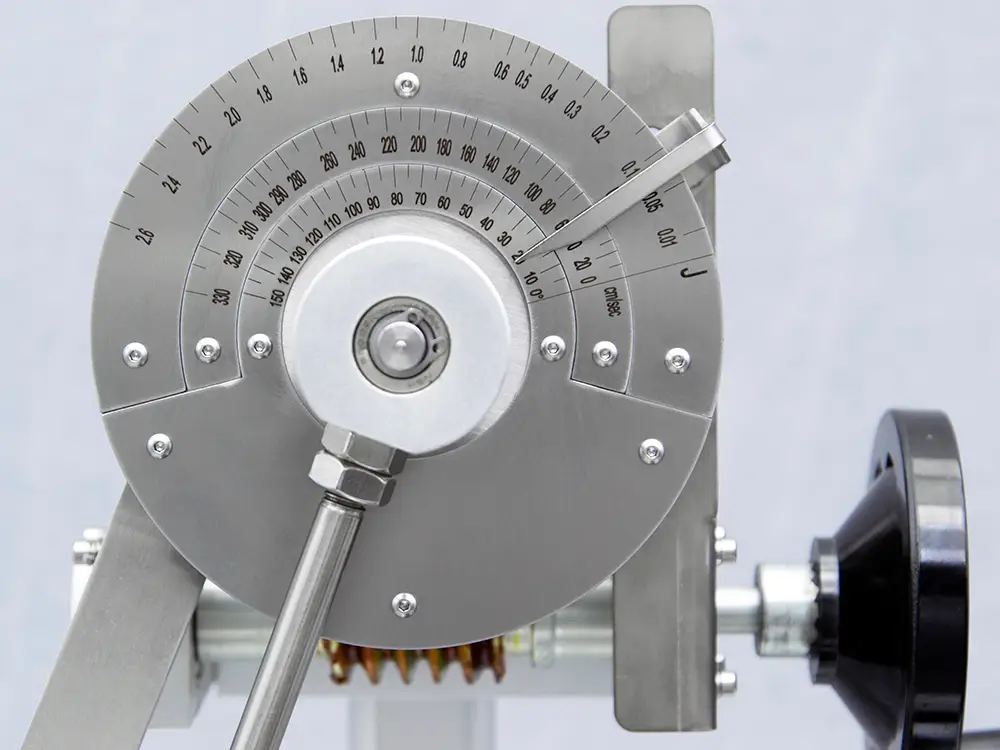

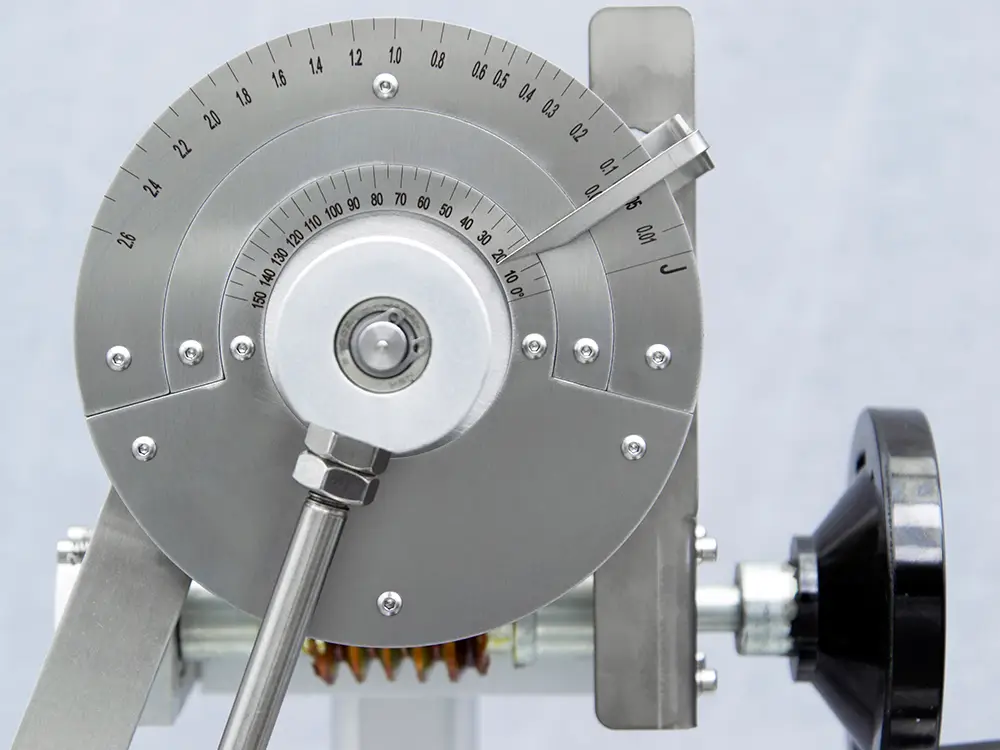

The tester operates on the principle of energy conservation. The energy applied to the bottle during impact is determined by the pendulum’s potential energy at its starting position. By setting the pendulum at a specific angle, its potential energy corresponds to a particular impact energy value. Upon release, the impact on the bottle is measured to determine if the bottle is damaged.

Key Features

• Sample diameter range: Ø20-130mm (clamps for other sizes available).
• Impact height: 5-305mm.
• Max impact energy: 2.6J.
• Resolution: 0.1J (impact energy >0.6J); 0.05J (impact energy <0.6J).

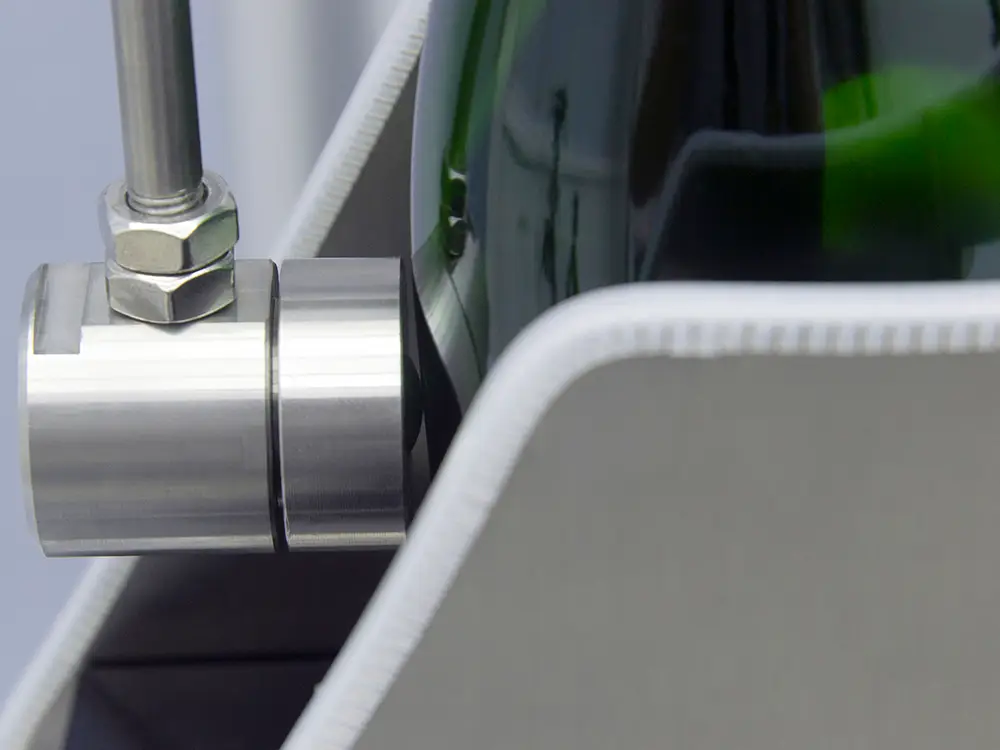

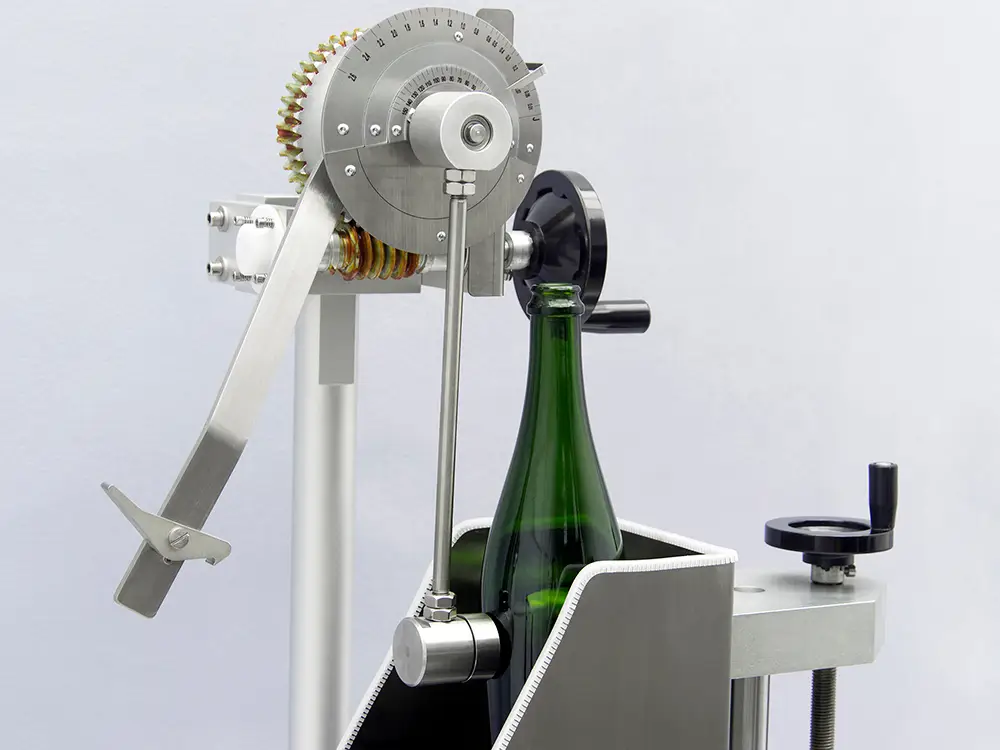

• Pendulum strike mechanism for precise, repeatable testing.

Applications

Essential for glass container manufacturers needing to verify bottle and jar durability against real transport and handling impacts before products reach the supply chain.

Talk to the Techotrix team to find out whether the GBIT is the right impact tester for your glass container quality control.
