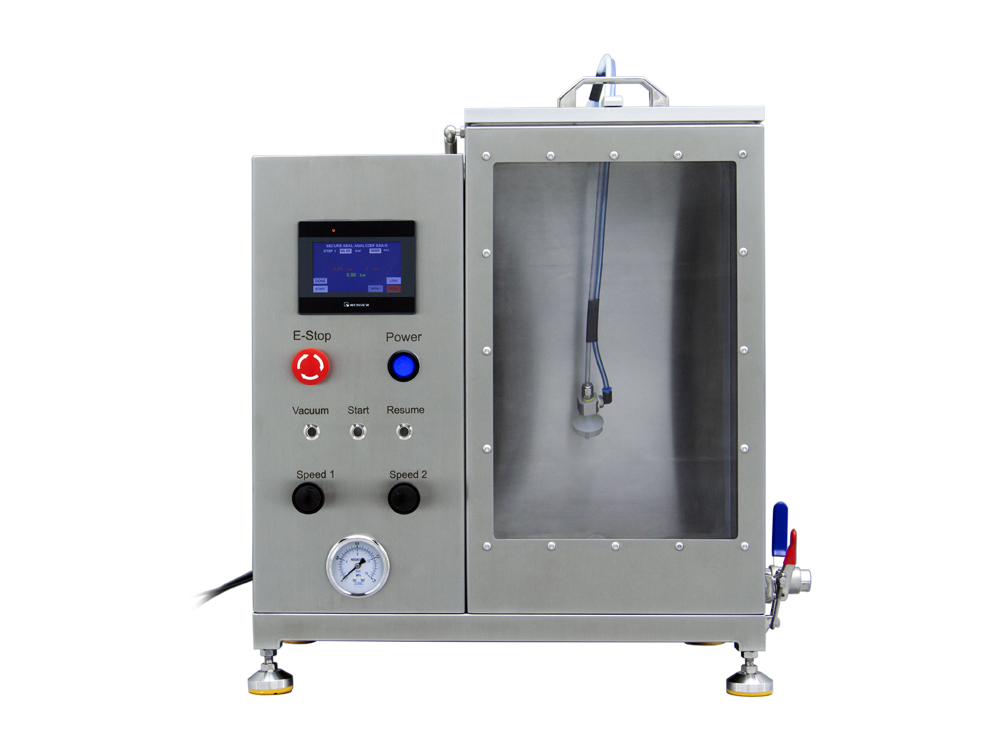

SSA-D
Secure Seal Analyzer (Standard Model)
The SSA-D Secure Seal Analyzer delivers precise data on container seal integrity using AT2E’s patented piercing system for accurate, non-destructive measurement. Covering 0-16 bar at 0.01 bar resolution, its touchscreen and stainless steel build suit bottles, cans and preforms.
Secure Seal Analyzer (Standard Model)
Seal quality isn’t visible to the naked eye — the SSA-D Secure Seal Analyzer makes it measurable, because a seal that looks good isn’t always a seal that holds. AT2E’s SSA-D tests the secure seal performance of products using AT2E’s patented needle, making installation and piercing very quick and easy in any medium. By vacuum technology and special design, the needle uses a self-holding function on the tested product.
The SSA-D is also compatible with the needle of the classic Secure Seal Tester (typical screwed needle).
Key Features

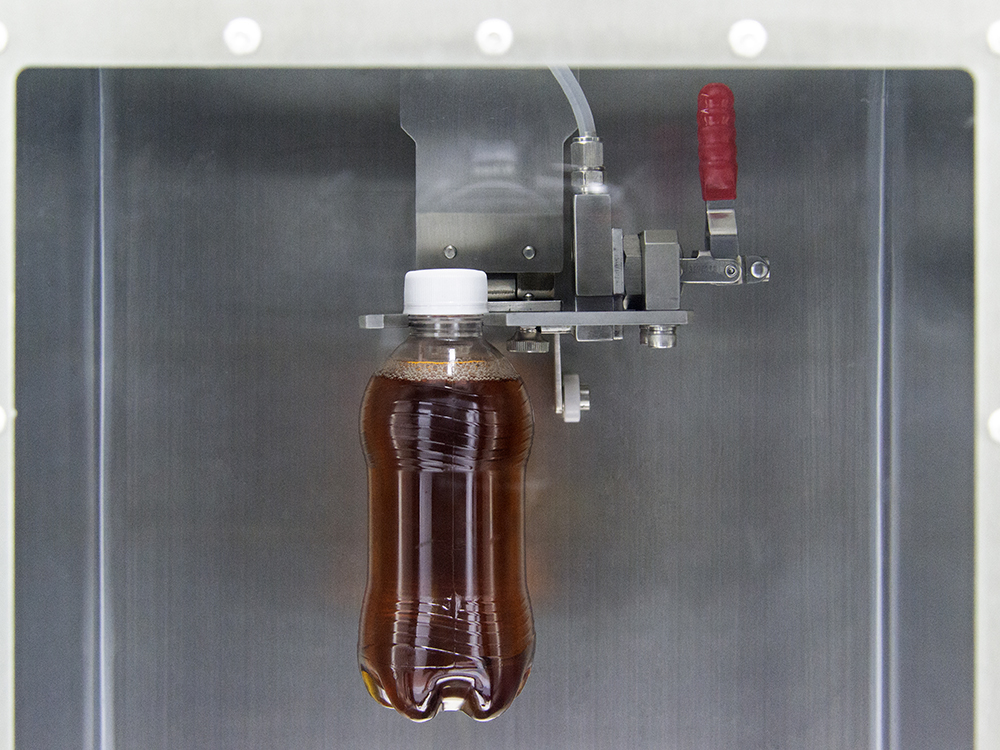

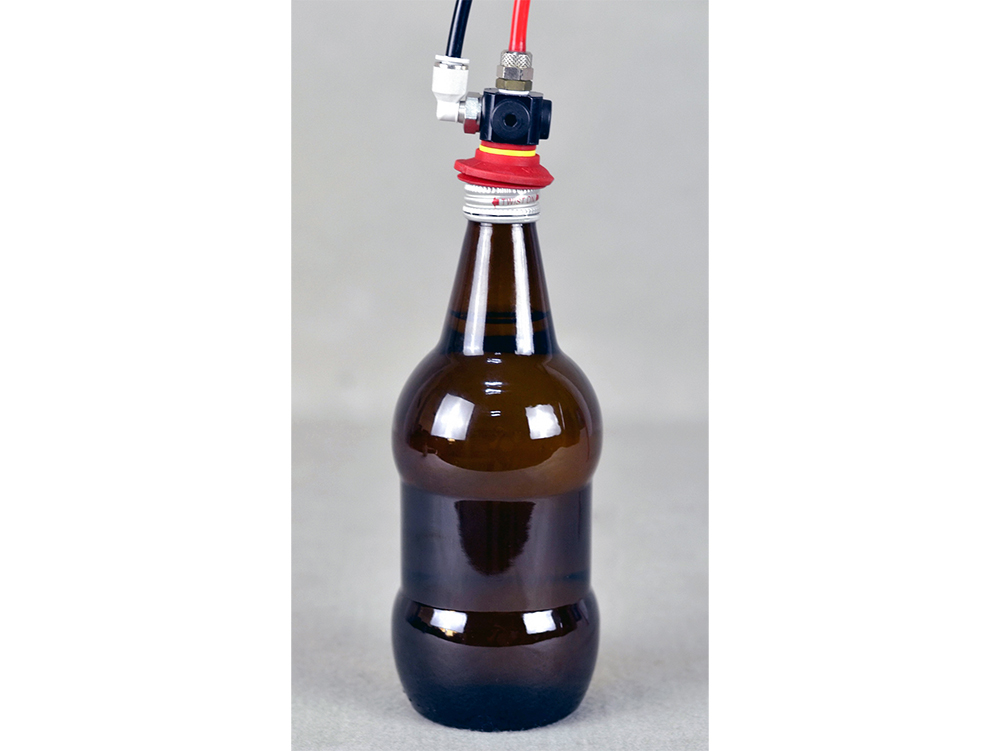

- AT2E patented piercing needle for quick, easy installation with self-holding vacuum function.
- Compatible with classic screwed needle for flexibility.
- Stainless steel design resistant to explosion during testing, ensuring operator safety.
- Touchscreen control — visual and easy to operate.
- Adjustable pressure and holding time (two-stage settings) to meet different test requests.
Applications

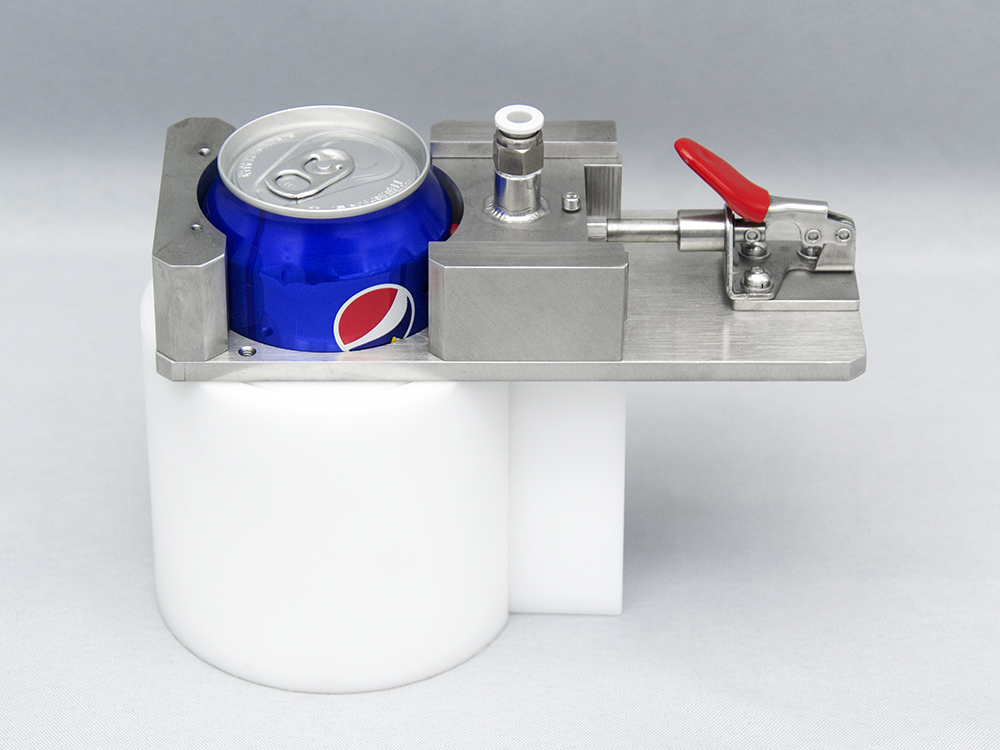

Ideal for detecting potential leaks or weaknesses in seals on bottles, cans and preforms, ensuring product safety and quality under controlled test conditions.
Talk to the Techotrix team to find out whether the SSA-D is the right secure seal analyzer for your application.
| Measuring Range | 0–16 bar (0–230 psi) |
| Resolution | 0.01 bar (0.14 psi) |
| Settings | Adjustable pressure, two-stage holding time |
| Control | Touchscreen |
| Frame | Stainless steel, explosion resistant |
| Overall Size | 390 x 550 x 750mm |

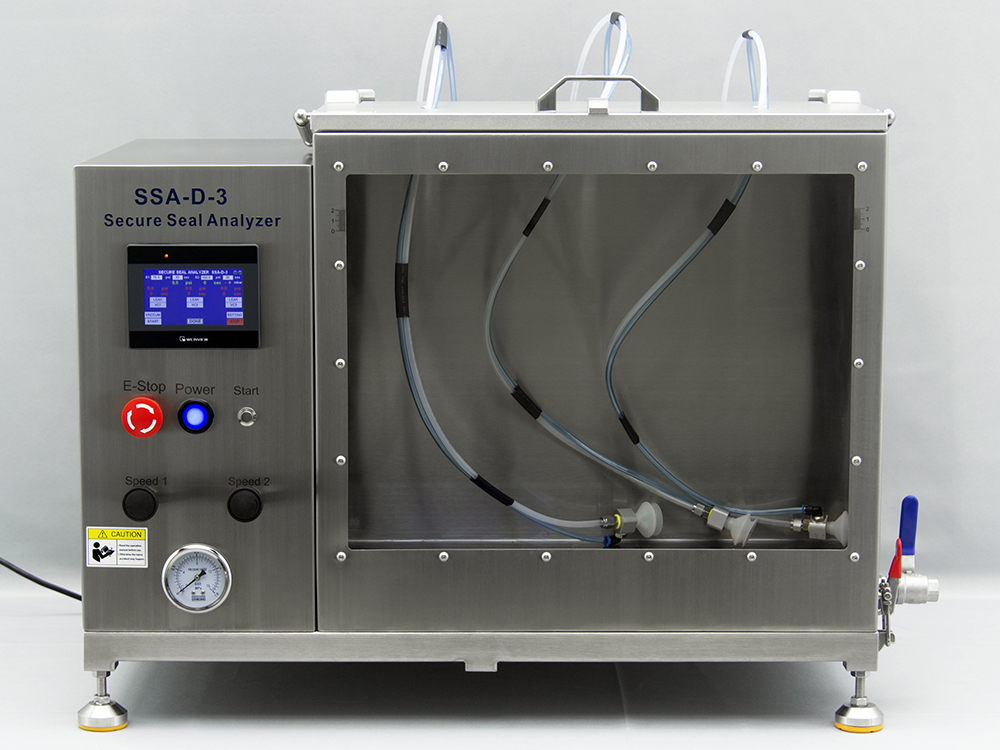

Related model: SSA-D-3, a 3-station version allowing simultaneous testing of three samples for higher throughput.
Contact the Techotrix team to select the right SSA-D configuration for your seal integrity testing.
