HSP
High-Speed Pneumatic Pusher

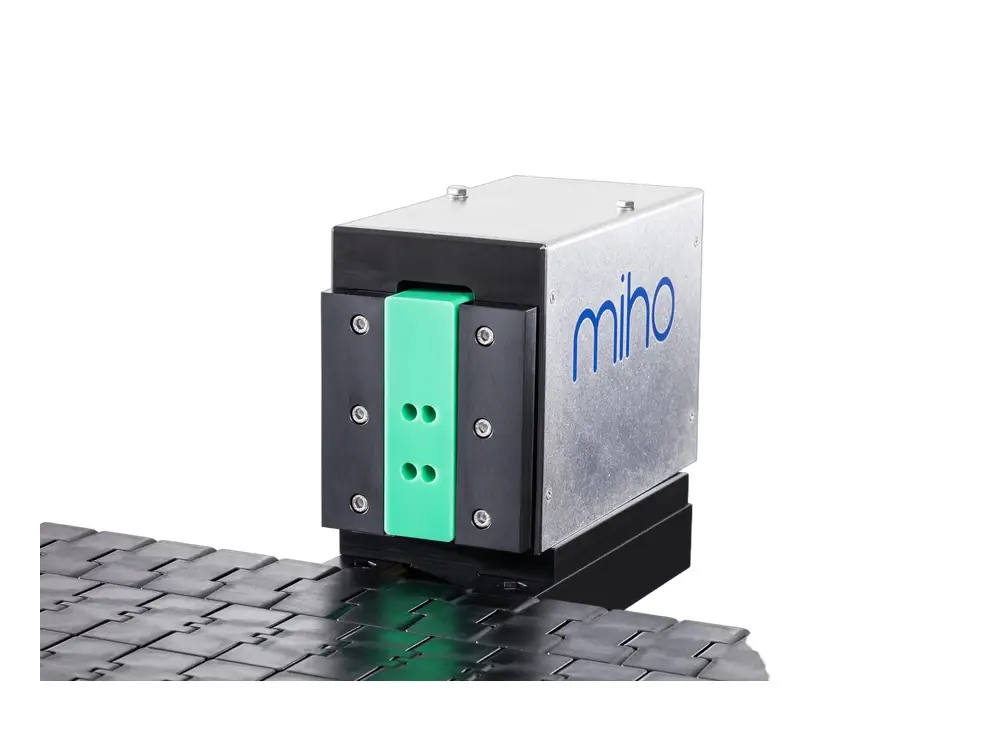

The miho HSP is a pneumatic pusher for high-speed container rejection, handling up to 120,000 containers/hour with reject monitoring built into the basic device. Its specially designed reject element applies slight vertical pressure for improved container stability during rejection.
High-Speed Pneumatic Pusher
The miho HSP is a pneumatic reject system with a specially designed reject element. During the reject procedure, a slightly vertical pressure is brought downwards upon the container, increasing stability. The guiderail is connected to the horizontal adjustment of the reject system, so the exact distance between container and reject element is guaranteed at all times.
Key Features
- Pneumatic pusher with compressed air reservoir included.
- Line speed up to 120,000 containers/hour.
- Reject monitoring included in the basic device.
- Specially designed reject element for improved container stability.
- Guiderail linked to horizontal adjustment for precise reject element positioning.
- Compact design.
Applications
Ideal for beverage bottling lines needing a reliable, high-speed rejection solution for containers of different geometry and fill level, with built-in reject verification.
Talk to the Techotrix team to find out whether the miho HSP is the right pneumatic pusher for your line.
| Reject Type | Pneumatic pusher |
| Line Speed | Up to 120,000 containers/hour |
| Reject Monitoring | Included in basic device |
| Compressed Air | Reservoir included |
| Design | Compact |
Optional accessories for the miho HSP:
- miho Blow-Off Device: For rejection of plastic containers and shards.
- miho Safety Cover: Stainless steel with foam rubber inlay, optional “container full” detection.
- miho AWeS Software Package: Production data acquisition to the Weihenstephan standard.
Contact the Techotrix team to confirm the right HSP configuration for your line.
