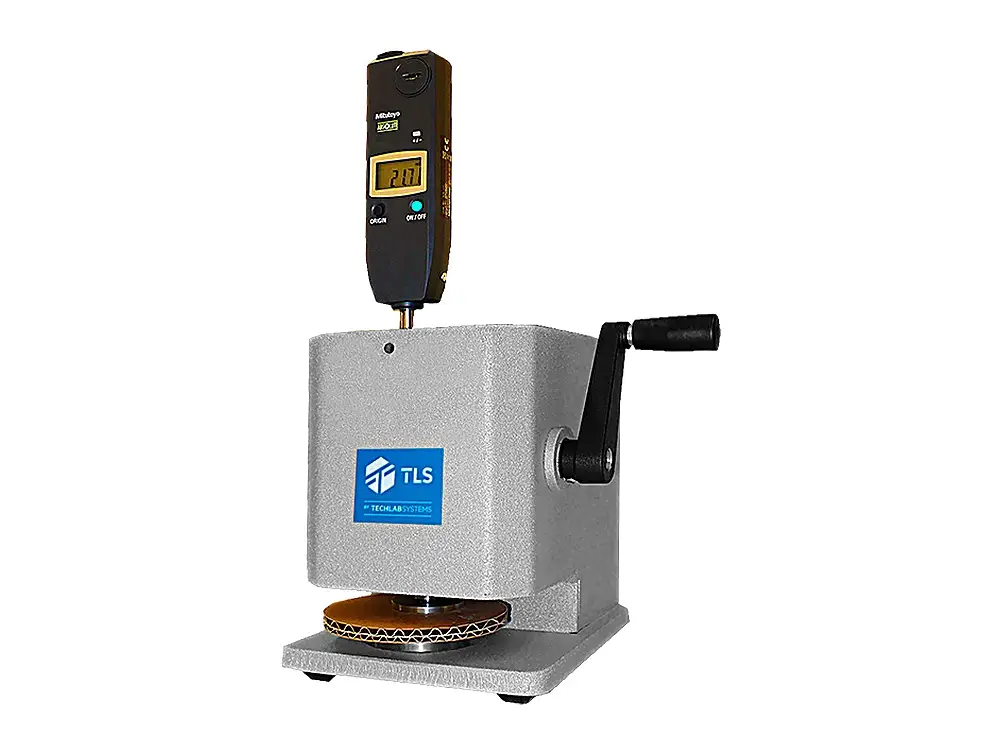

M5-CO Digital Micrometer
Digital Micrometer for Corrugated Cardboard
The M5-CO Digital Micrometer effectively and quickly determines the thickness of corrugated cardboard, per DIN EN ISO NF UNE 3034, FEFCO No.3 and SCAN P31, covering a 0-15mm range with 0.01mm (10 micron) resolution. Digital display with zero-reset delivers robust, precise thickness readings.
Digital Micrometer for Corrugated Cardboard
Effective instrument for quickly and accurately determining the thickness of corrugated cardboard, according to standards DIN EN ISO NF UNE 3034, FEFCO No.3 and SCAN P31.
Standard Features
- Range: 0 to 15mm.
- Resolution: 0.01mm (10 microns).
- Contact area: 10cm².
- Contact pressure: 20kPa (200g/cm²).
- Digital display with reset to “0” function.
- Manual drive by ergonomic handle.
- Robust and precise equipment.
- Compatible with the LYNX Quality Integral Management Plus and Pro System.
Applications
Essential for corrugated board manufacturers needing precise, standardised thickness measurement for quality control and material characterisation.
Talk to the Techotrix team to find out whether the M5-CO is the right thickness gauge for your corrugated cardboard testing.
| Standards | DIN EN ISO NF UNE 3034, FEFCO No.3, SCAN P31 |
| Range | 0–15mm |
| Resolution | 0.01mm (10 microns) |
| Contact Area | 10cm² |
| Contact Pressure | 20kPa (200g/cm²) |
| Display | Digital, reset to “0” |
| Drive | Manual, ergonomic handle |
Compatible with the LYNX Quality Integral Management Plus and Pro System for data integration.
Contact the Techotrix team to confirm the right M5-CO configuration for your corrugated cardboard thickness testing.
