ACWD-1
Automatic Bottle Cutting & Weighing Device
The ACWD-1 Automatic Bottle Cutting & Weighing Device cuts PET bottles into up to 5 predetermined sections and precisely weighs each one, covering 0-500g at 0.01g resolution. Full automation ensures consistent cutting accuracy and reliable section weight analysis data.
Automatic Bottle Cutting & Weighing Device

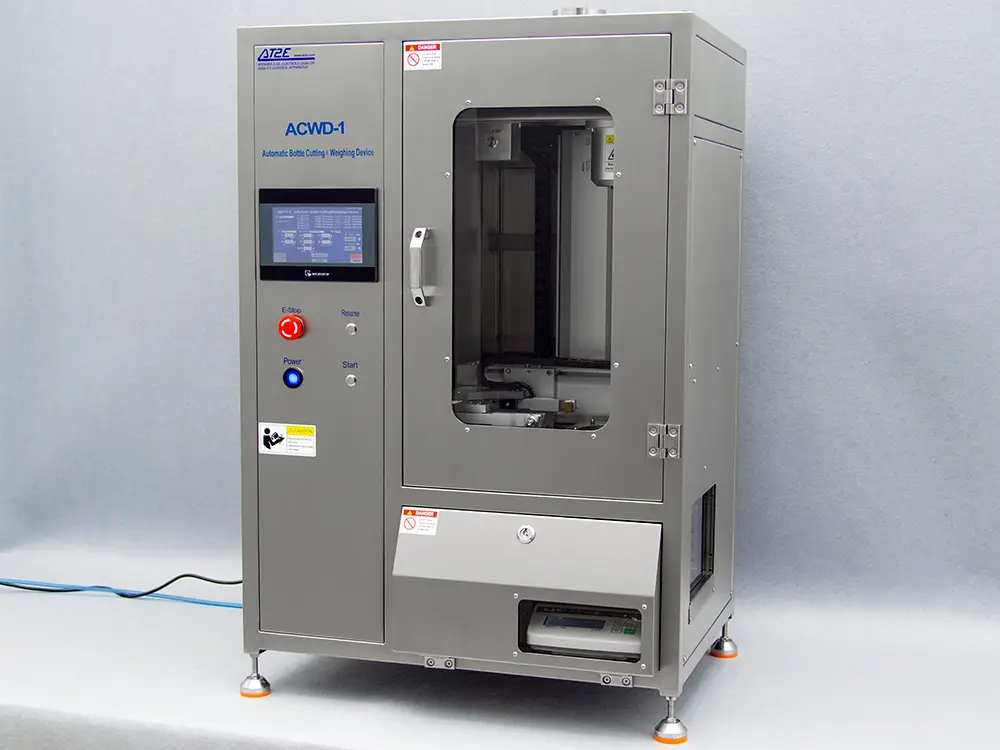

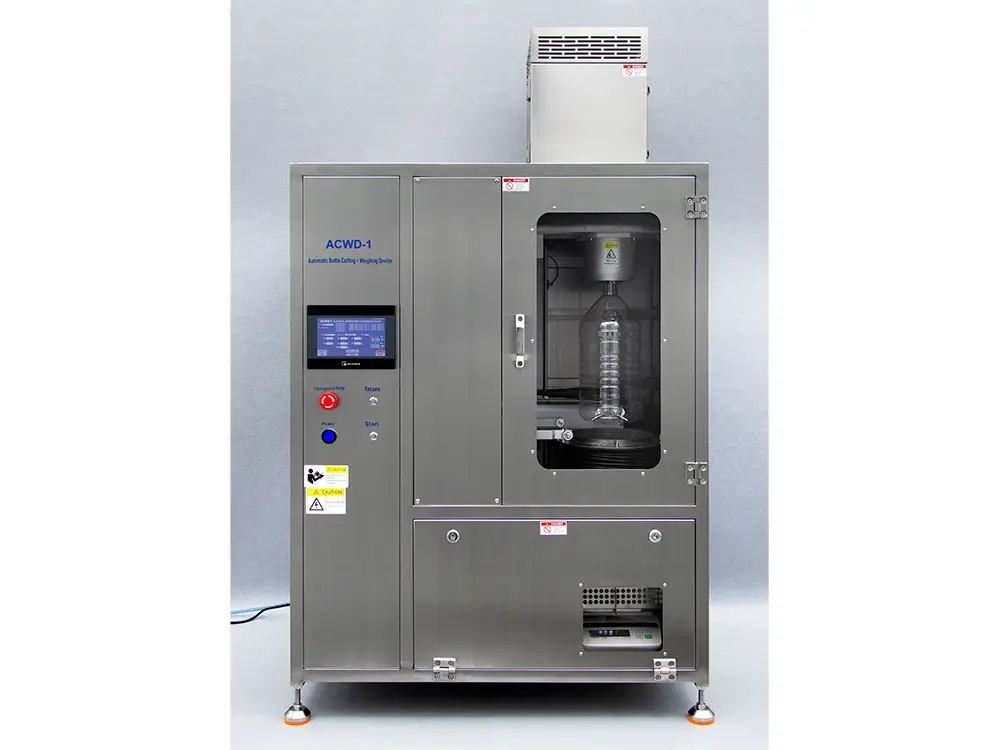

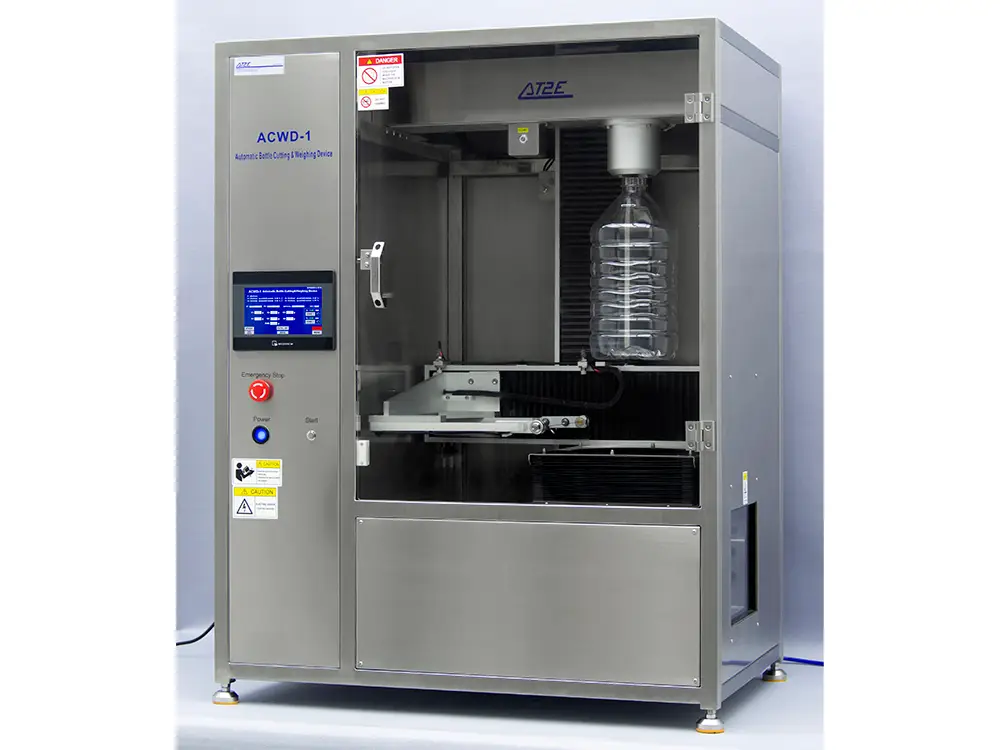

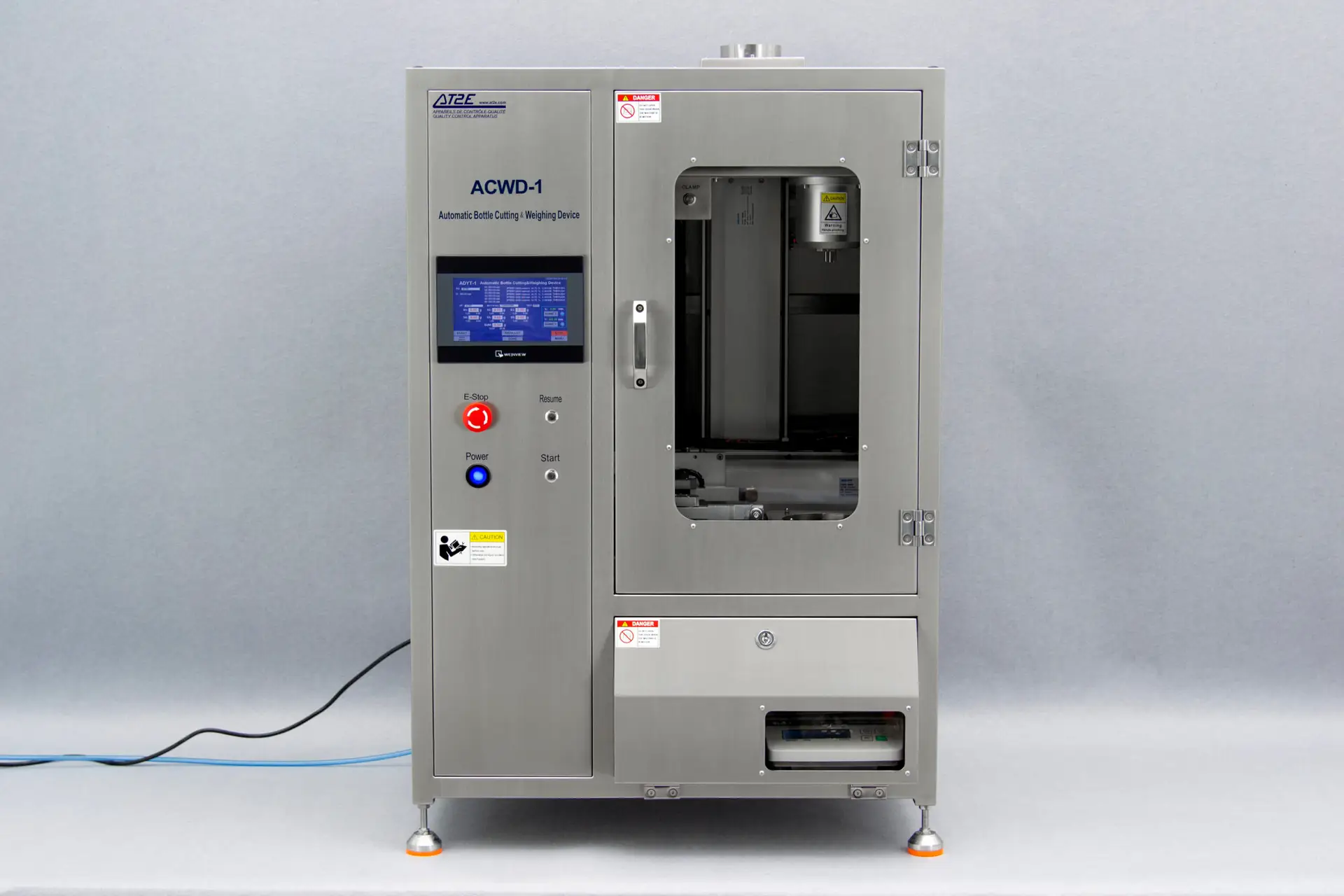

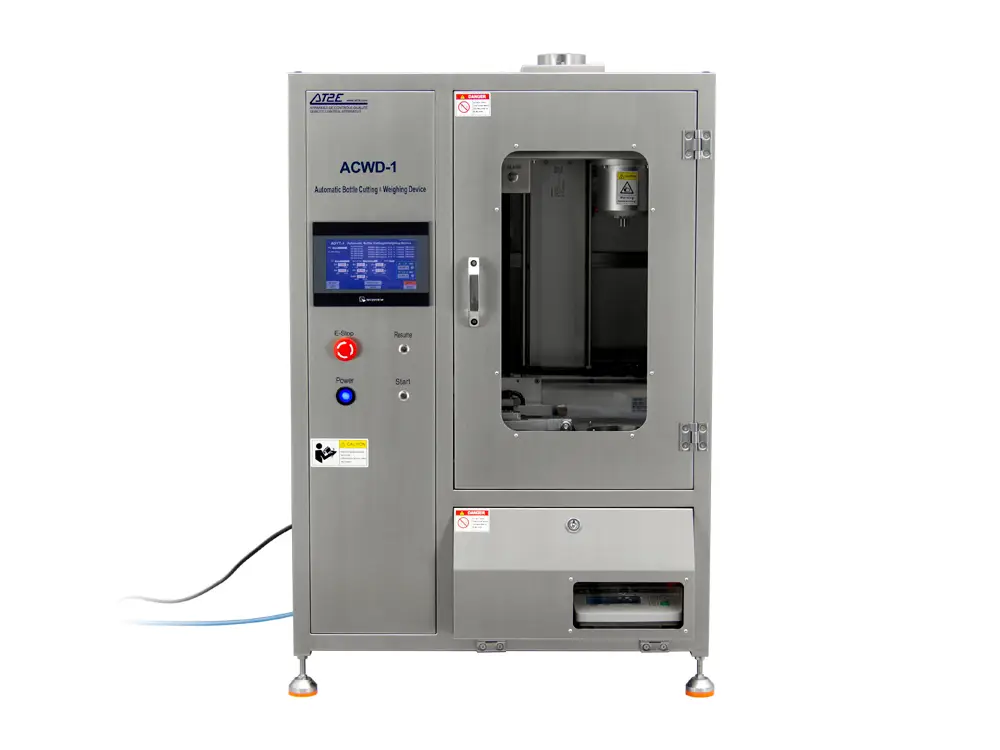

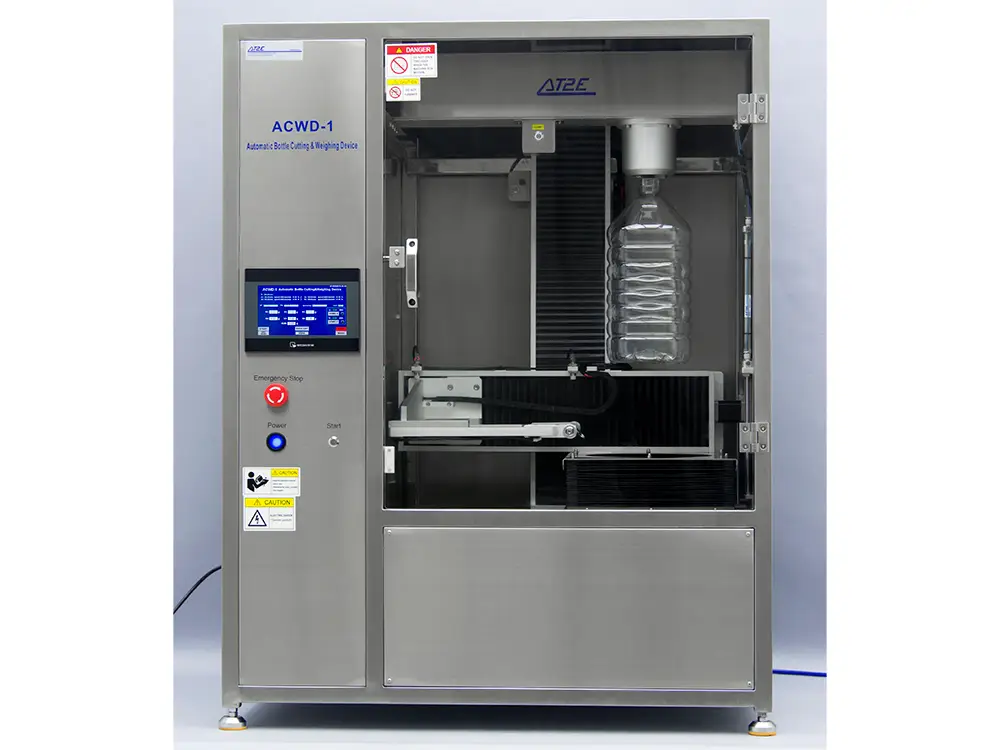

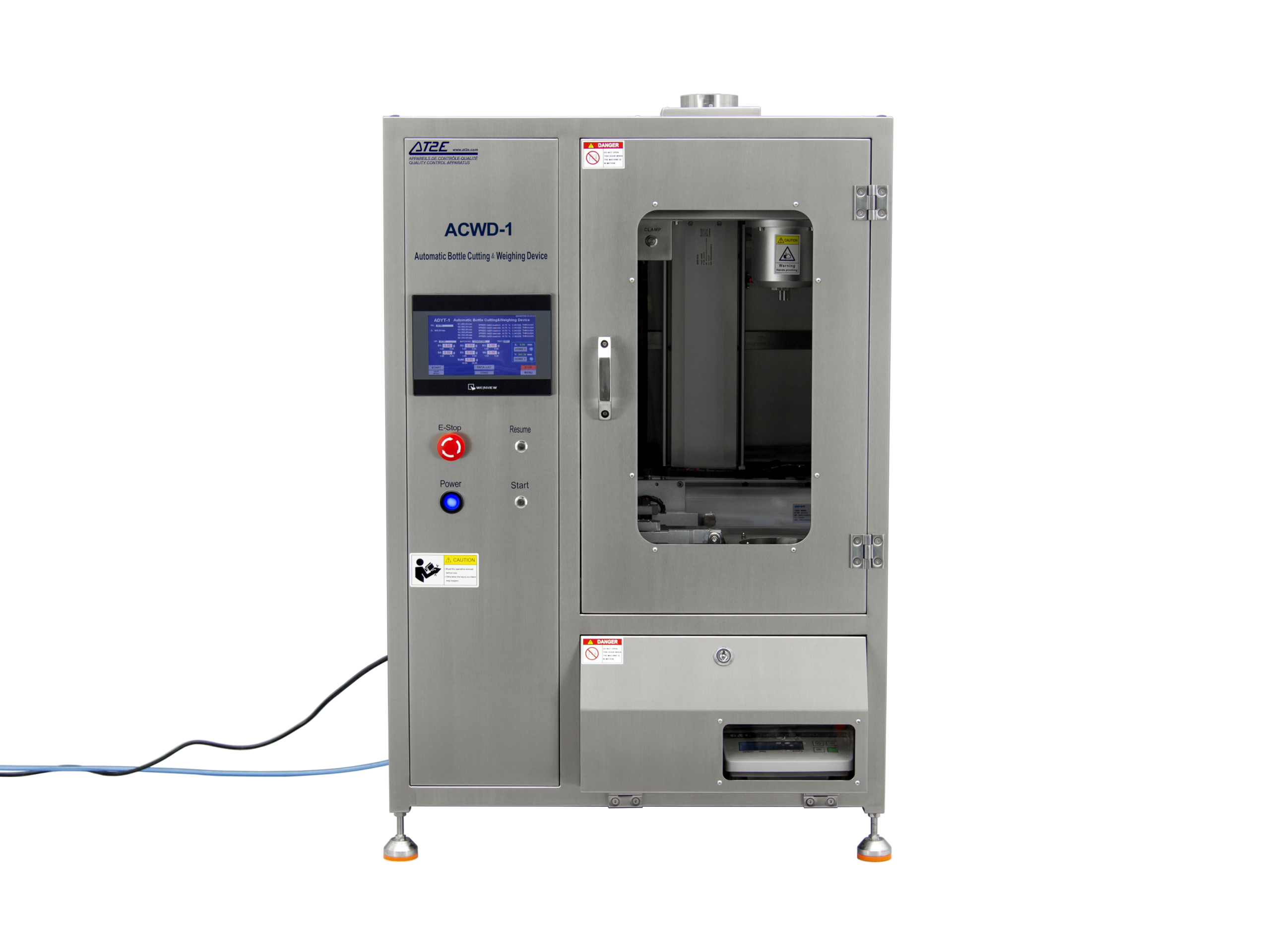

The AT2E ACWD-1 is an automated device designed for cutting and weighing PET bottles, providing precise section weight analysis. This device improves the accuracy and reliability of quality control data by automating the process of cutting containers into up to five predetermined sections and weighing each section.
Full automation allows the device to position bottles precisely for cutting and weighing, leading to consistent cutting accuracy and repeatability, and reliable data for quality control analysis.
Key Features
- Full automation — automatically positions for precise cutting and weighing of bottle sections.
- Consistent cutting accuracy and repeatability for reliable analysis.
- Results reviewable directly on the device’s screen or through connected software.
- Handles bottles up to 360mm height, 30–115mm diameter.
- Weighing range 0–500g with 0.01g resolution.
Applications
A cost-effective, efficient solution for bottle section weight analysis, enhancing quality control processes in PET bottle production.
Talk to the Techotrix team to find out whether the ACWD-1 is the right cutting and weighing device for your line.
| Max Sample Height | 360mm |
| Sample Diameter Range | 30–115mm |
| Sections Per Bottle | Up to 5 |
| Weighing Range | 0–500g |
| Weighing Resolution | 0.01g |
| Motor Speed | 5–50rpm |
| Air Supply | 5–8 bar (75–115 psi) |
Related model: ACWD-A, a higher-capacity version cutting up to 6 sections, accommodating diameters up to 165mm, with optional QUALIWEIGH software for data analysis.
Contact the Techotrix team to select the right ACWD model for your bottle section weight analysis.
