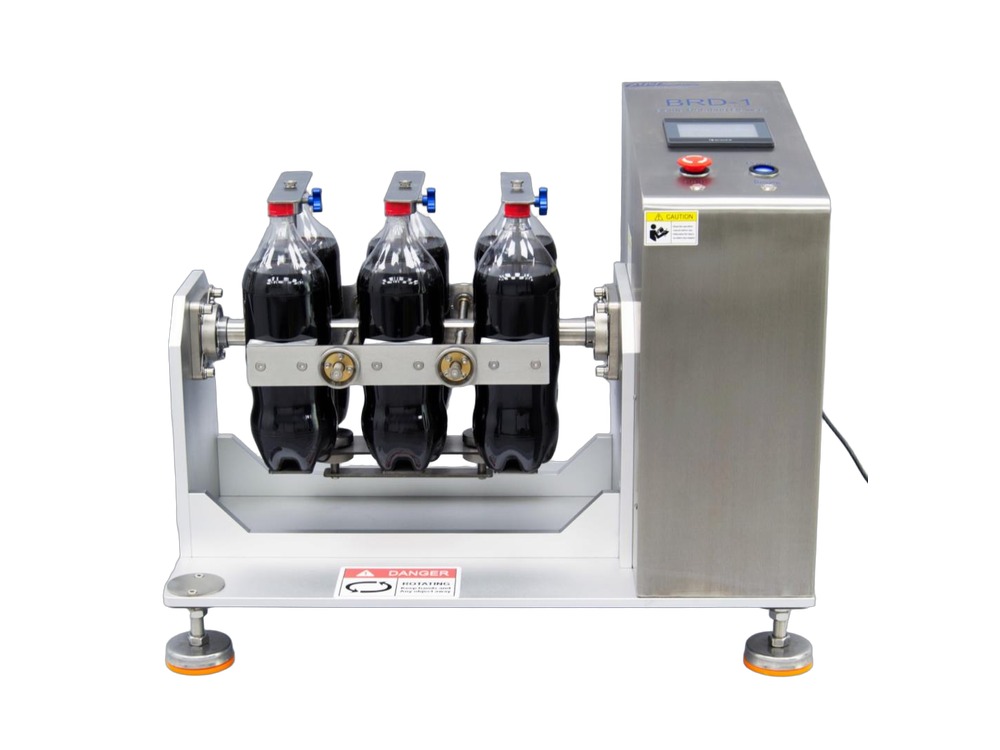

BRD-1
Bottle Rotating Device
The BRD-1 Bottle Rotating Device is a finely designed instrument for the shaking process of bottled products by rotation, with a compatible clamping unit for bottles 55-125mm diameter and up to 350mm height. Rotation speed and time are fully adjustable for different test requirements.
Bottle Rotating Device
BRD-1 Bottle Rotating Device is a finely designed instrument for the shaking process of bottled products by means of rotation. The compatible clamping unit can clamp bottles with diameters from 55-125mm and bottle heights up to 350mm. Rotation speed and time are adjustable, providing more flexibility for different test requirements. Cover design ensures the safety of operators.
Key Features
- Rotation speed adjustable: 10%-99% (4-40 rpm).
- Rotation time adjustable: 1-999 sec.
- Touch screen control, user-friendly and easy operation.
- Stainless steel frame and cover design, safe and durable.
- 6-position capacity.
Applications
Essential for beer and soft drink quality control, mixing carbonated and other bottled products for consistent, reproducible sample preparation ahead of further testing.
Talk to the Techotrix team to find out whether the BRD-1 is the right bottle rotating device for your quality control needs.
| Bottle Diameter | 55–125mm (other range by order) |
| Bottle Height | Max. 350mm (other range by order) |
| Rotation Speed | 10%–99% (4–40 rpm) |
| Rotation Time | 1–999 sec |
| Power Supply | AC 220V (AC 110V optional) |
| Dimensions | 780 x 500 x 650mm |
| Weight | 75kg |
Custom bottle diameter and height ranges available by order.
Contact the Techotrix team to confirm the right BRD-1 configuration for your bottled product testing needs.
