CTLT

Cosmetic Tube Leak Tester

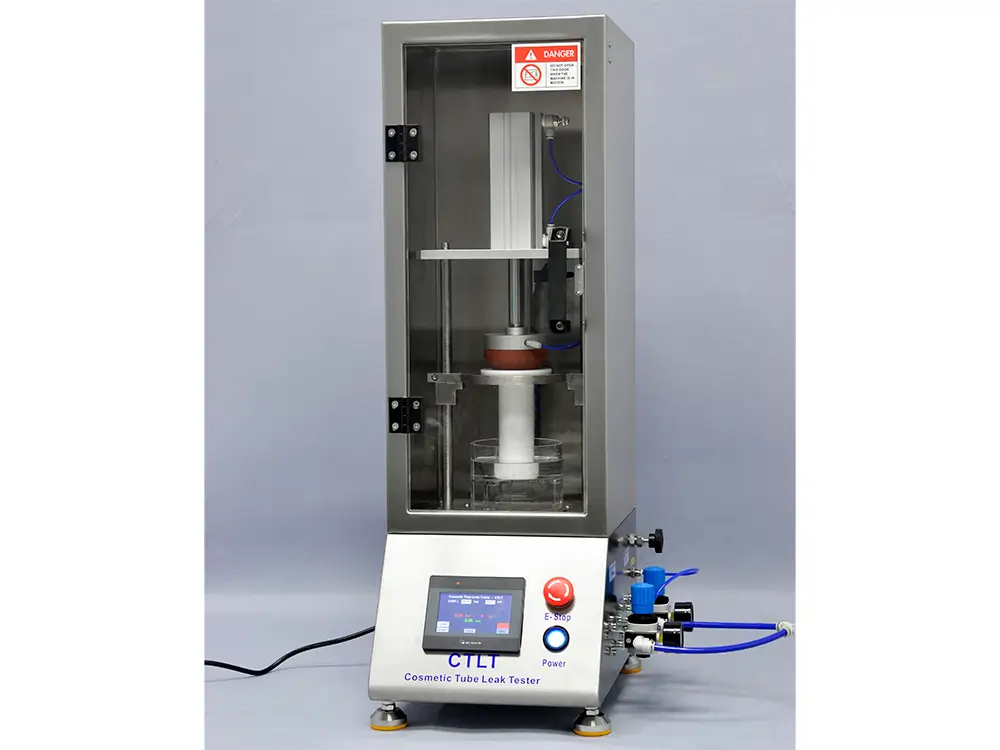

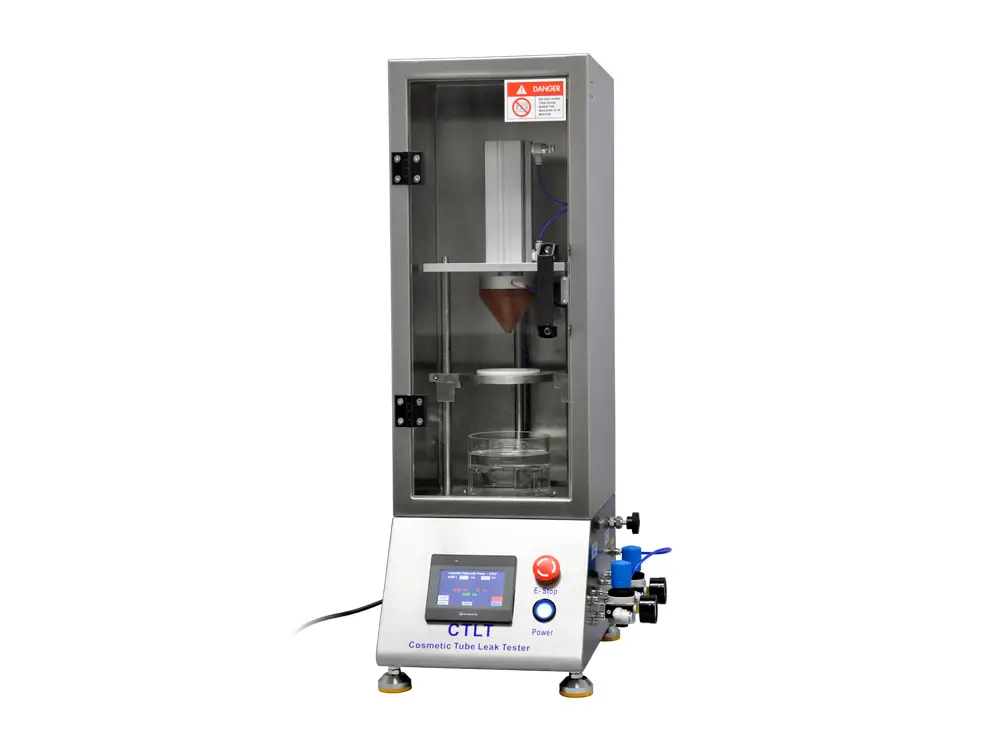

The AT2E CTLT Cosmetic Tube Leak Tester checks the seal integrity of cosmetic tubes. A rubber gasket seals the tube from the bottom, and a set pressure is then applied to test the tube’s pressure resistance. Touchscreen controlled and easy to use, with adjustable pressure and holding time to meet the testing needs of different products.

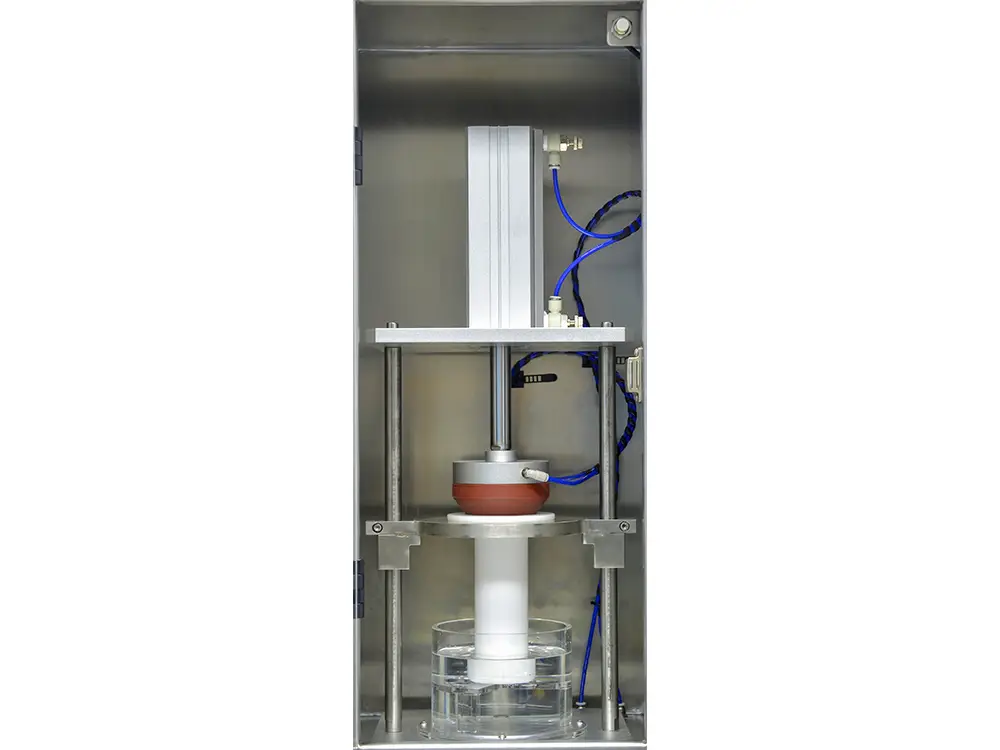

Its stainless steel housing and closed test chamber withstand any burst during testing and ensure operator safety, providing a simple, convenient solution for cosmetic tube quality control.

Key Features

• Rubber gasket seal forms a temporary seal at the tube bottom for pressurised testing.
• Touchscreen display for visual, easy operation.
• Adjustable pressure and holding time to suit different products.
• Stainless steel frame and enclosed test chamber for explosion resistance and operator safety.
• Accommodates tube diameters from 1″ to 2″ (25–50mm) — custom sizes available on request.

Applications

Essential for cosmetic packaging quality control, ensuring tubes are securely sealed and resistant to leakage before they reach the filling line or customer.

Talk to the Techotrix team to find out whether the CTLT is the right tube leak tester for your application.
