MTE 100 – 300kN

Electromechanical Universal Testing Machine (100-300kN)

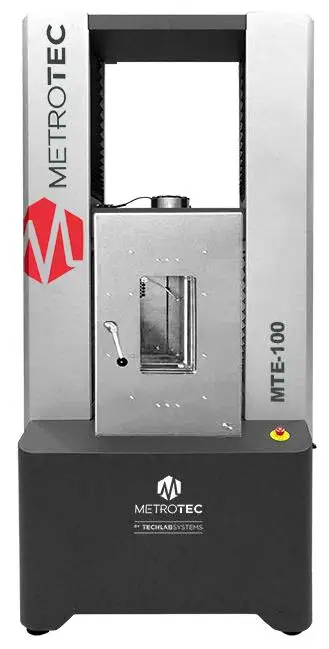

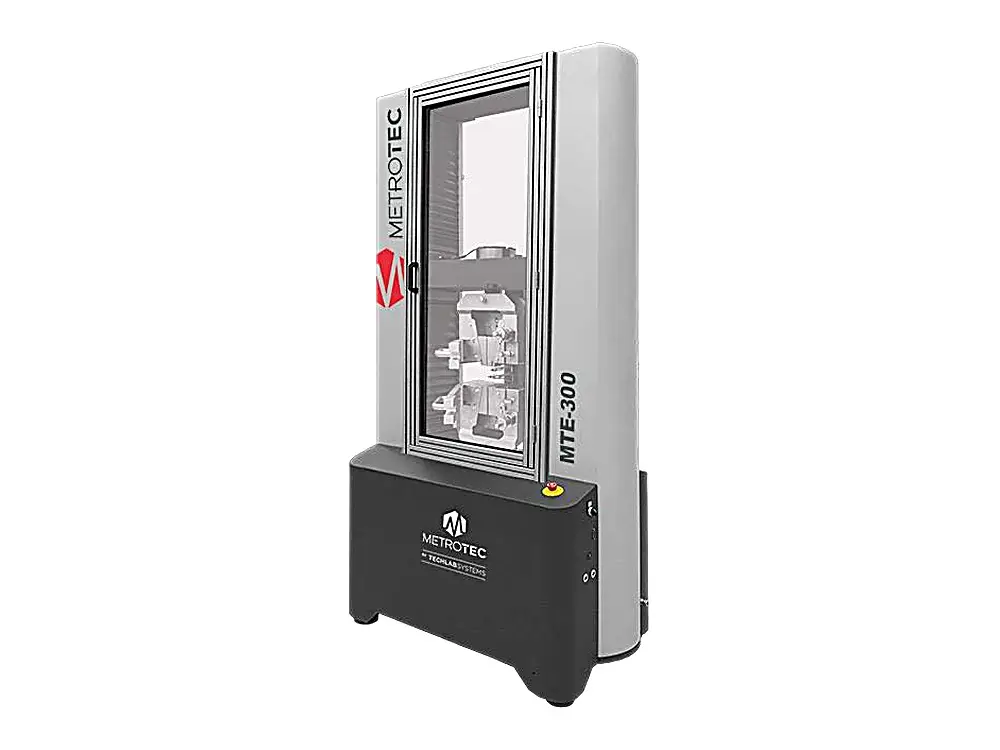

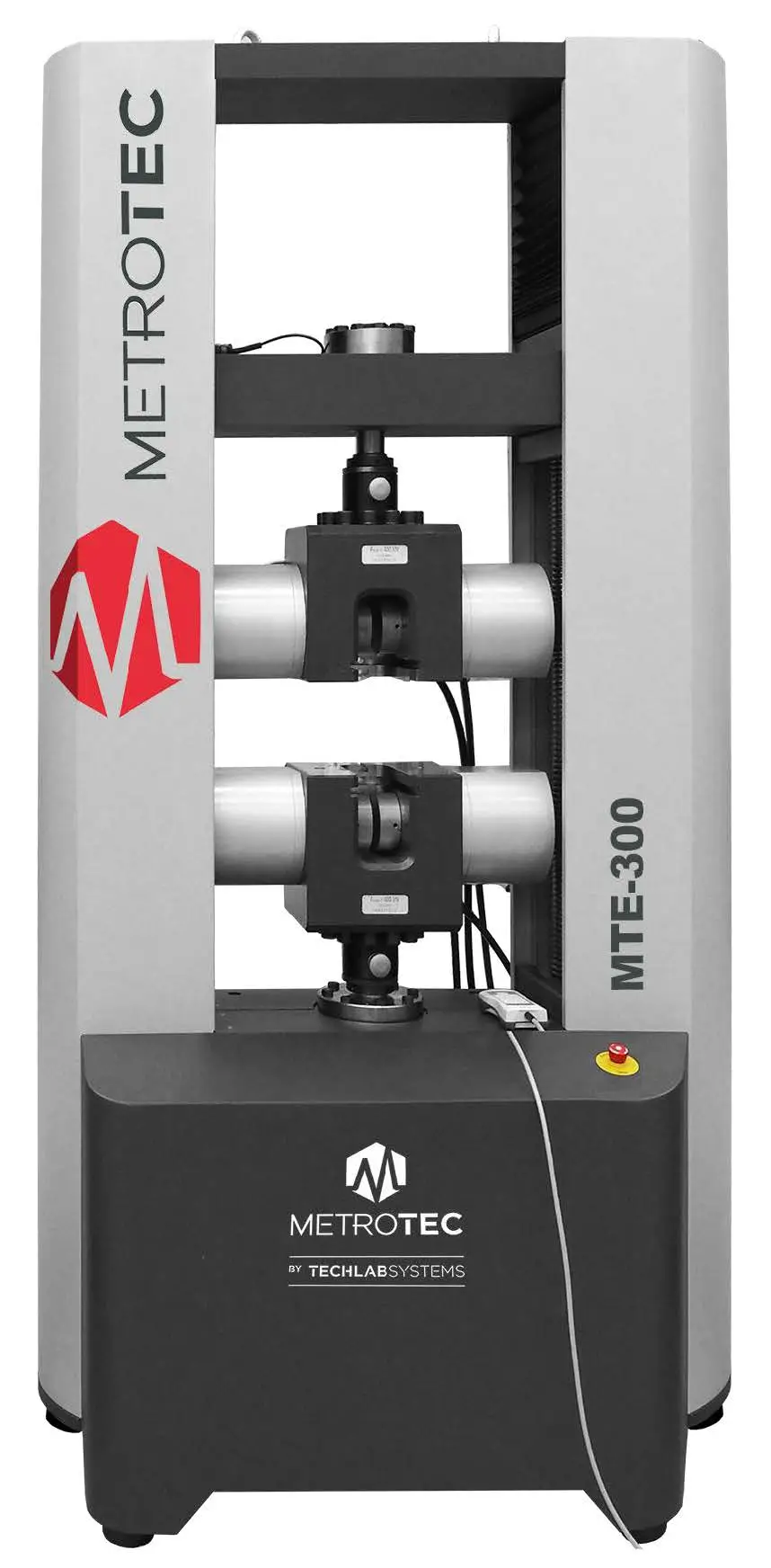

Universal materials testing machines with 2 columns, designed to perform tensile, compression, flexion and shear tests on samples of materials such as metals, alloys, plastics, rubber, composites, wood, textiles, ropes and cables. The MTE-100/200/300 universal computerised testing machines are made up of a robust floor frame housing the test frame, driven by dual ball-recirculation screws.

Key Features

• Capacity range: 100-300kN (models MTE-100, MTE-200, MTE-300).
• Robust floor-standing frame.
• Very clear, intuitive, attractive interface design.
• Choice of different units for each result.
• Route of all graph points, point by point.
• Label association to each graph.
• Creation and management of standard curves.
• Test limits independent of graph limits.
• Automatic specimen break detection with adjustable auto-stop.
• RS-232 output interface with USB converter.
• Compatible with the T-LAB Laboratory Management System.

Applications

Suitable for steel wire rod, wind components, metallic cables, galvanised metal sheets, copper sheets/strips, textile ribbons, mechanical constructions, transmission belts and ropes (metallic, plastic and textile). Meets ISO 7500-1, ASTM-E4, EN 10002-2, BS 1610 and DIN 51221.

Talk to the Techotrix team to find out whether the MTE 100-300kN is the right universal testing machine for your heavy-duty material testing.
