PT48
Digital Puncture Tester

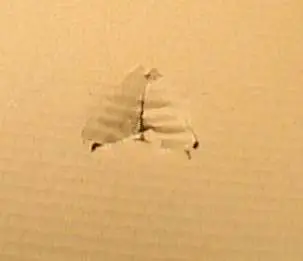

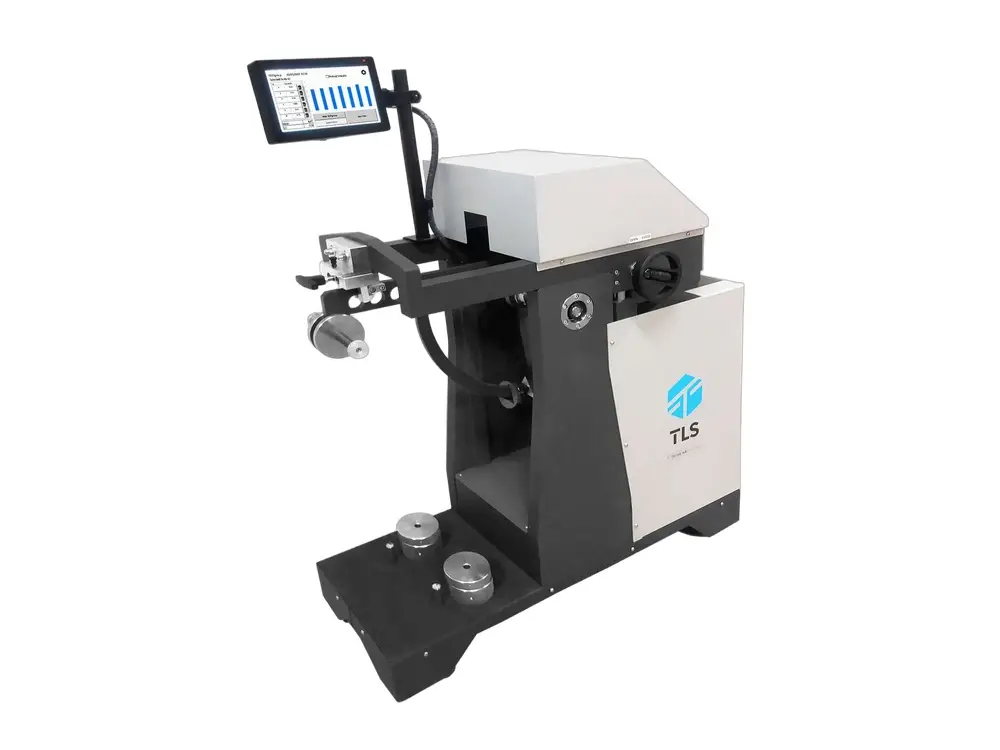

The PT-48 Digital Puncture Tester determines the absorbed energy or puncture resistance of corrugated and compact cardboard, covering up to 48J with 4 reading scales (6, 12, 24, 48J) on a 10″ touchscreen. Its robust steel pendulum frame minimises vibration energy loss for accurate results.
Digital Puncture Tester
The PT-48 is a machine designed to determine the absorbed energy or puncture resistance of corrugated and compact cardboard, especially those used in the manufacture of packaging.
Key Features
- Capacity: 48J.
- 4 reading scales: 6, 12, 24 and 48J.
- Digital reading on 10″ touchscreen.
- Robust steel frame, designed to avoid energy loss due to vibration during the test.
- Pendulum release mechanism with safety system.

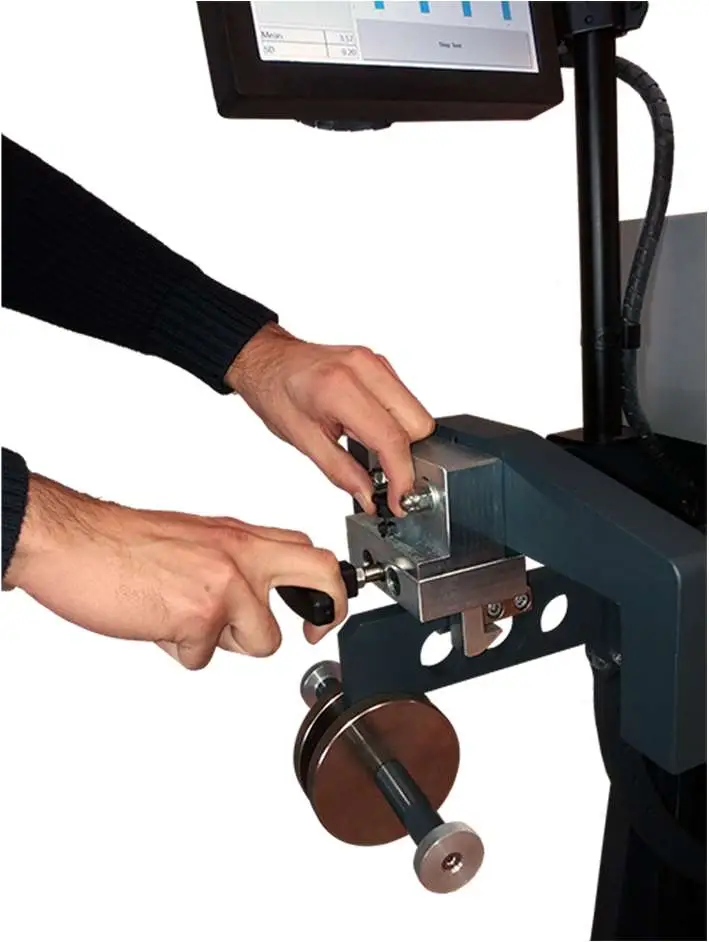

- Self-tightening jaws with adjustable pressure to hold the sample.
- 90° circular arc arm pendulum.

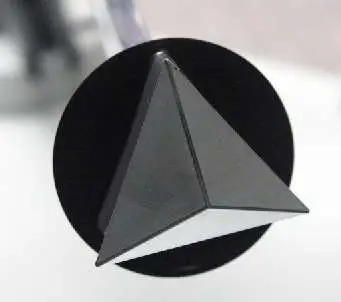

- Triangular pyramid firing head.
- Reading resolution across the 4 scales: 0.01J.
- USB output interface.
- Compatible with the T-LAB Laboratory Management System.
- CE marked.
Applications
Suitable for corrugated board, compact board, board boxes and board packaging, meeting DIN 53142, FEFCO 5, ISO 3036, SCAN P23 and TAPPI T803 standards.
Talk to the Techotrix team to find out whether the PT-48 is the right puncture tester for your corrugated board testing.
| Capacity | 48J |
| Reading Scales | 6, 12, 24, 48J |
| Resolution | 0.01J (all scales) |
| Display | 10″ touchscreen |
| Firing Head | Triangular pyramid |
| Pendulum Arc | 90° |
| Output | USB |
| Standards | DIN 53142, FEFCO 5, ISO 3036, SCAN P23, TAPPI T803 |
Compatible with the T-LAB Laboratory Management System for data integration.
Contact the Techotrix team to confirm the right PT-48 configuration for your board and packaging testing requirements.
