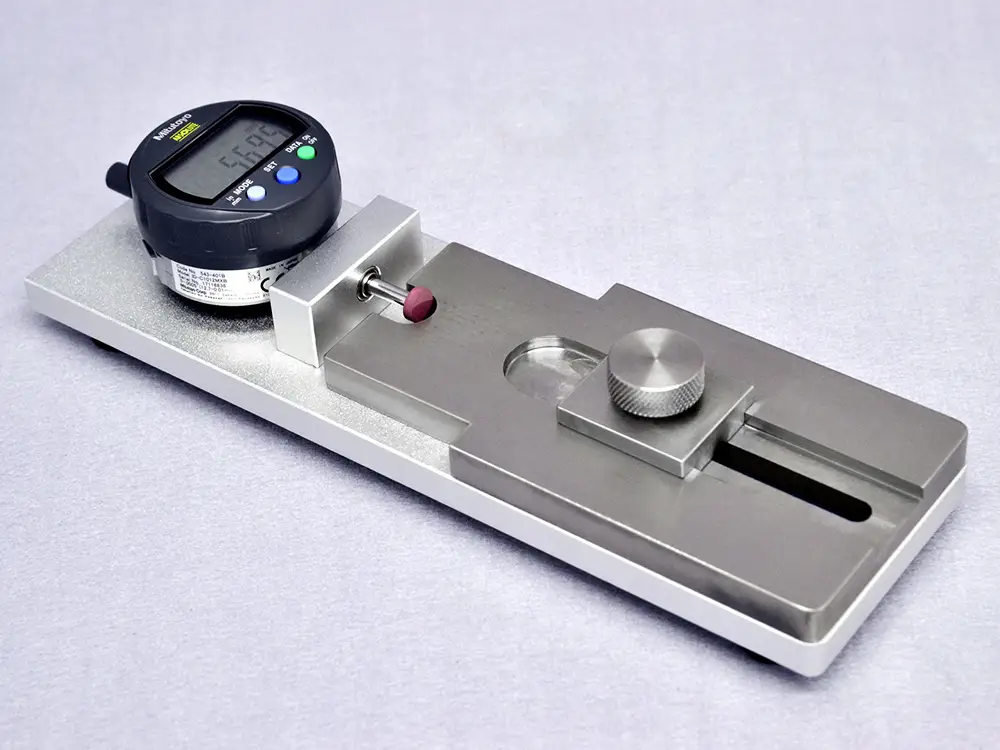

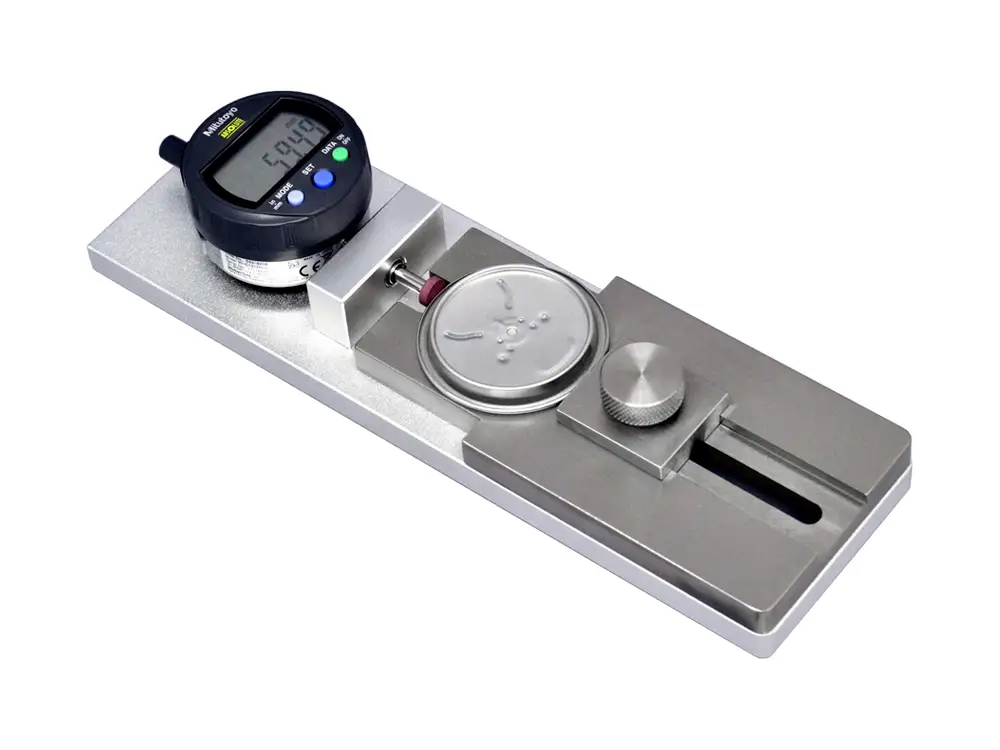

ECDG-1
End Curl Diameter Gauge
The ECDG-1 End Curl Diameter Gauge delivers quick, accurate measurement of curl diameters on aluminium can ends, covering Ø50-Ø110mm with 0.01mm resolution and ±0.01mm accuracy. Calibration blocks are included for specific end types, ensuring consistent, reliable results.
End Curl Diameter Gauge

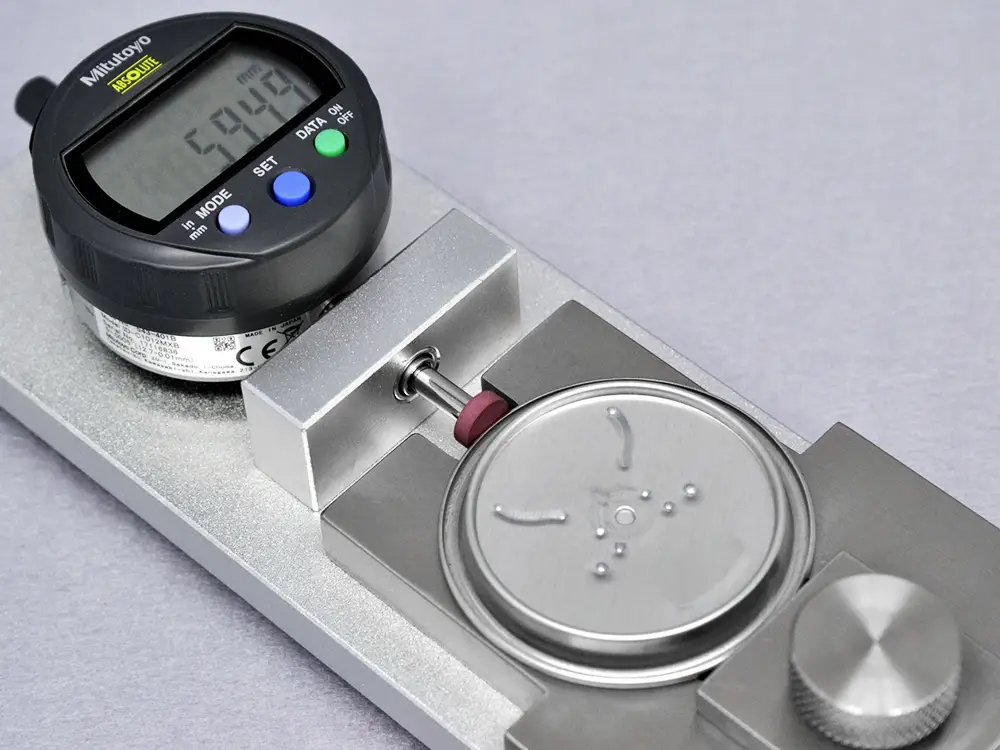

The ECDG-1 End Curl Diameter Gauge is specifically designed for fast and accurate measurement of curl diameters in aluminium can ends. It’s an essential tool for quality control in can manufacturing, ensuring precise measurements for optimal product quality.

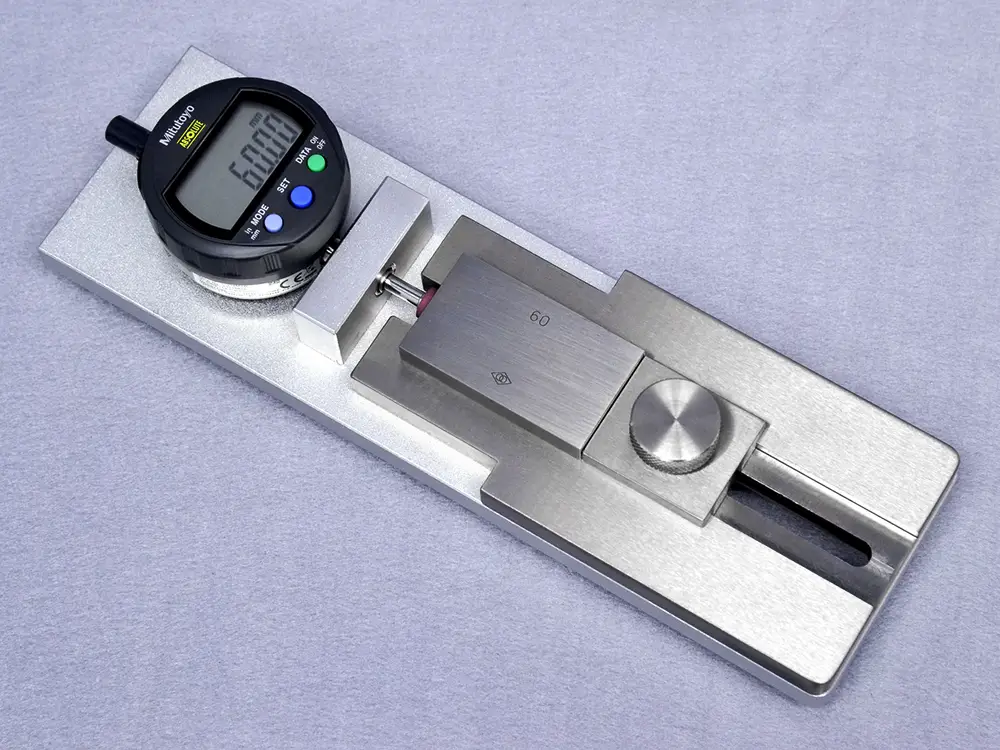

Easy-operation design offers a fast and accurate measurement of curl diameter. For each end type, a corresponding calibration block is supplied.
Key Features
- Measuring range: Ø50-Ø110mm.
- Resolution: 0.01mm. Accuracy: ±0.01mm.
- Sample end type: 113#-401# (larger by order).
- Calibration blocks tailored to specific end types.
- Robust construction for long-lasting performance.
- Can connect to SPC system via DTB-1 Data Transporting Box and cable, minimising manual recording errors.
Applications
Essential for can manufacturing quality control, ensuring aluminium can end curl diameters meet specification.
Talk to the Techotrix team to find out whether the ECDG-1 is the right end curl diameter gauge for your can end quality control.
| Measuring Range | Ø50–Ø110mm |
| Resolution | 0.01mm |
| Accuracy | ±0.01mm |
| Sample End Type | 113#–401# (larger by order) |
| Dimensions | 265(L) x 80(W) x 195(H)mm |
| Net Weight | 2kg |
Calibration blocks tailored to specific end types included. Can connect to SPC systems via the optional DTB-1 Data Transporting Box and cable.
Contact the Techotrix team to confirm the right ECDG-1 configuration for your can end type.
