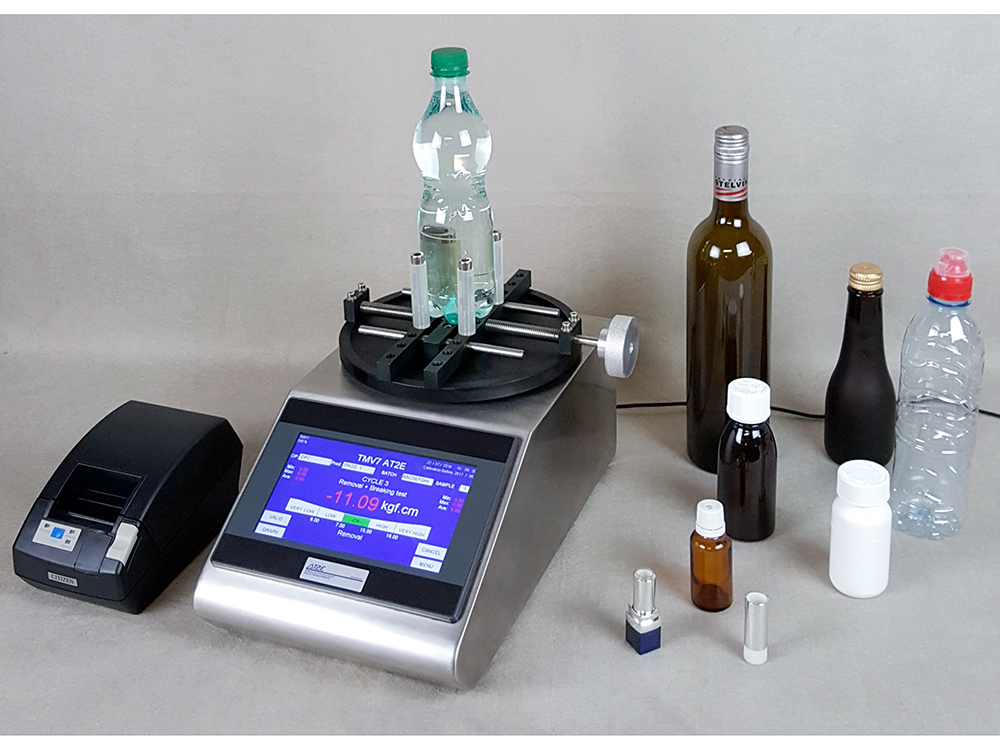

TMV7
Touch Screen Electronic Torque Tester
The TMV7 is a touchscreen electronic torque tester with a special mechanical system that cancels non-coaxial and top-load influences, offering a choice of Agro or fast-squeeze measuring tables. Its stainless steel frame and QUALITORQ FDA-CFR21-11 software option suit regulated packaging quality control.
Touch Screen Electronic Torque Tester
Our torque testers are designed with a special mechanical system for measuring torque which cancels most non-coaxial and top-load influences on the measurement. These features cancel most operator-induced influences on the measurement for maximum repeatability.
Key Features
- Touchscreen display for simple, intuitive operation.

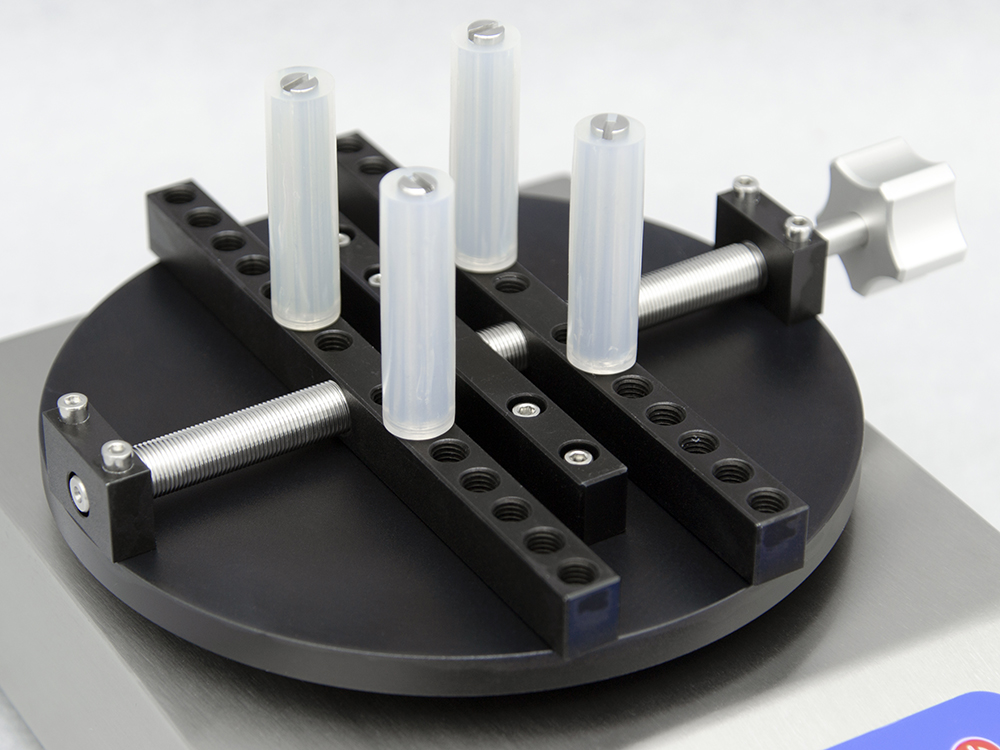

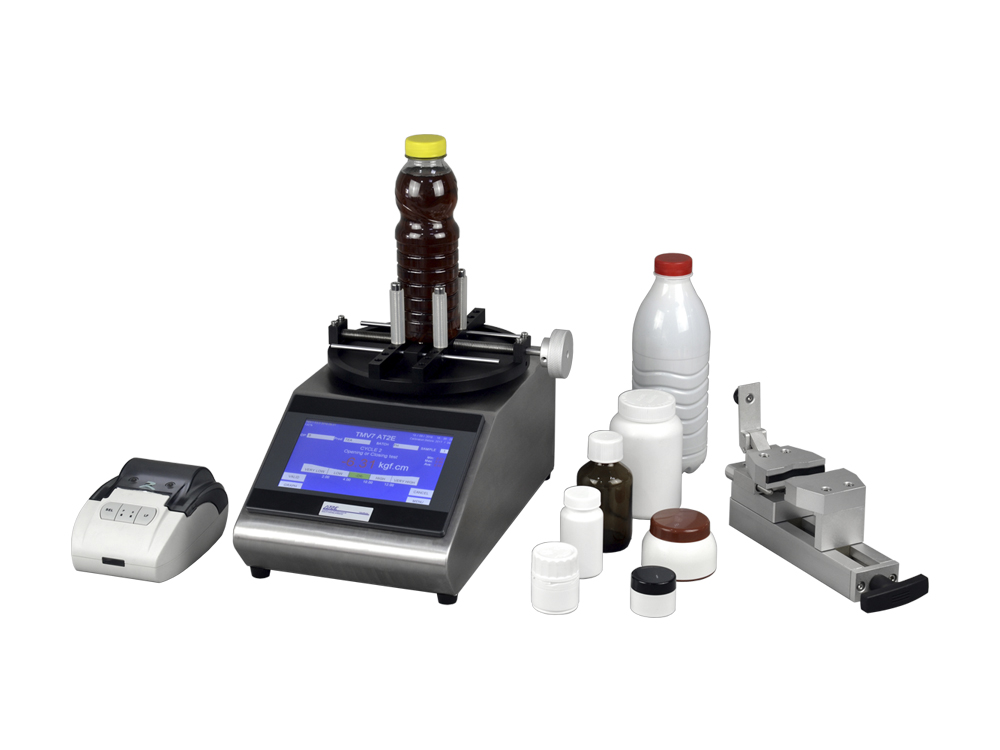

- Choice of measuring table: Agro (sample range 25–180mm) or fast squeeze system (sample range 25–100mm), with other ranges available to order.
- Stainless steel frame for durability in industrial environments.
Mechanical Specifications
Dimensions of 370(L) x 252(W) x 255mm with the Agro table, or 370(L) x 252(W) x 282mm with the fast squeeze system. Weighs 7kg.
Optional Enhancements
- QUALITORQ Software FDA-CFR21-11 for data storage and statistical analysis.
- Easy/Safe opening bloc.
- Mini printer.

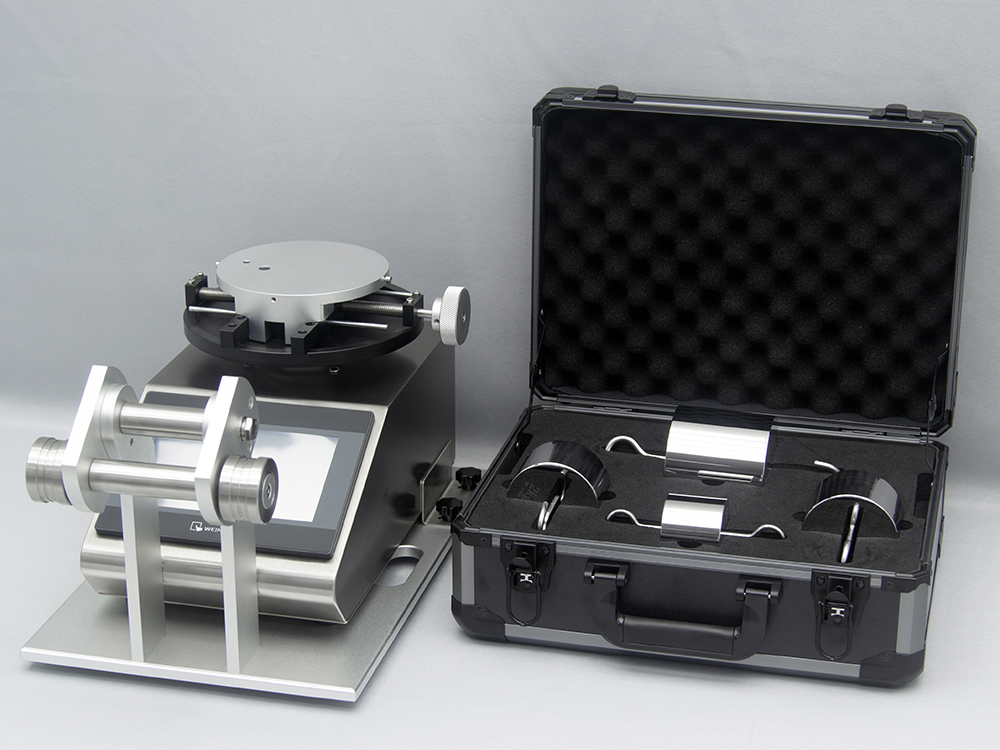

- Calibration pack.
- Portable case.
- Battery.
Talk to the Techotrix team to find out whether the TMV7 is the right torque tester for your application.
| Frame | Stainless steel |
| Measuring Table Options | Agro (25–180mm), Fast Squeeze (25–100mm), other ranges to order |
| Dimensions (Agro Table) | 370(L) x 252(W) x 255mm |
| Dimensions (Fast Squeeze) | 370(L) x 252(W) x 282mm |
| Weight | 7kg |
| Control | Touchscreen |
Optional accessories for the TMV7:
- QUALITORQ Software FDA-CFR21-11: For data storage and statistics analysis.
- Easy/Safe Opening Bloc: For simplified sample handling.
- Mini Printer: For immediate on-site result printing.
- Calibration Pack: For ongoing accuracy verification.
- Portable Case: For safe transport.
- Battery: For portable operation.
Contact the Techotrix team to select the right TMV7 configuration for your application.
