ATR V/VT
Compact Refractometer with Intuitive Touchscreen
The Schmidt+Haensch ATR V/VT is a compact laboratory refractometer with an intuitive touchscreen, offering precise refractive index and Brix measurement with ±0.0001 RI accuracy. Available as ATR V 301 or ATR VT 301.
ATR V/VT

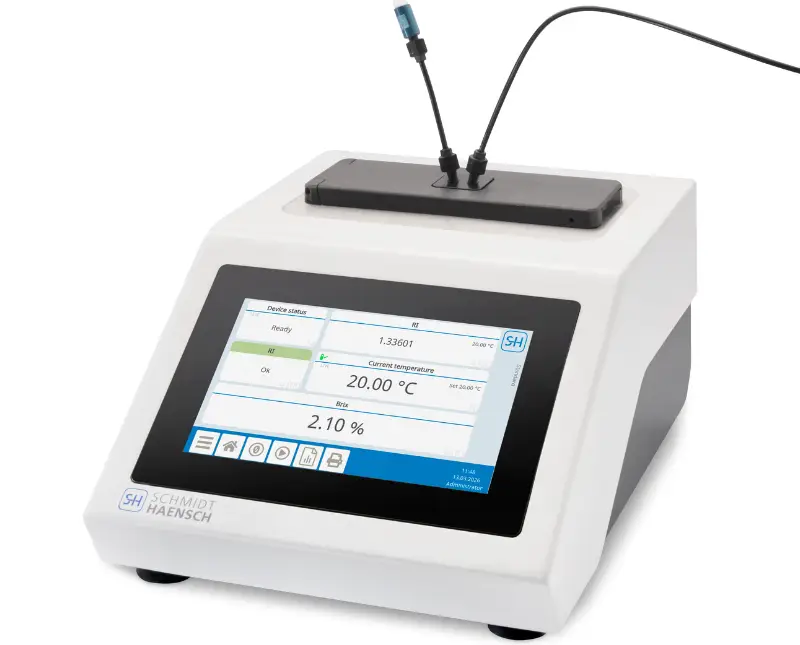

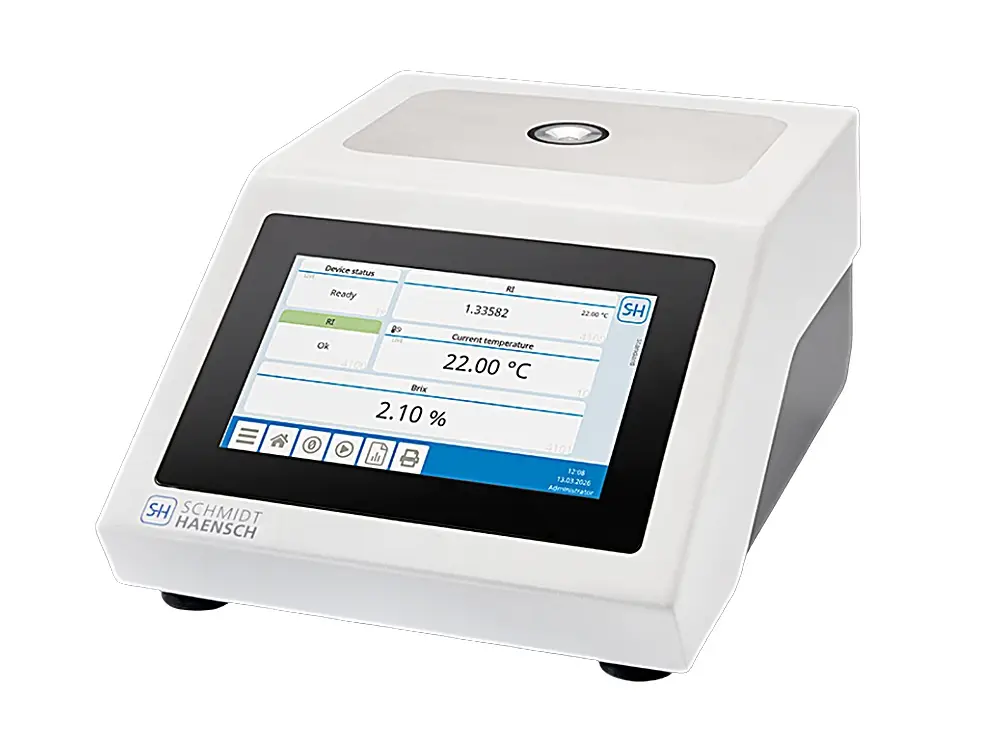

The Schmidt+Haensch ATR V/VT is a compact laboratory refractometer with an intuitive touchscreen interface, designed for precise, easy-to-use refractive index and concentration measurement. Available as the ATR V 301 or ATR VT 301, both models share the same high-accuracy optical measurement system. The ATR V/VT covers refractive index (RI), Sucrose (Brix), and other standard measuring scales, making it suitable for a wide range of laboratory quality control applications.
Key Features
- Measuring range: 1.3200–1.5800 RI / 0–100 Brix.
- Accuracy: ±0.0001 RI / ±0.05 Brix.
- Reproducibility (precision): ±0.0001 RI / ±0.05 Brix.
- LED light source with interference filter (589nm wavelength).
- Intuitive touchscreen operation for straightforward laboratory use.
Applications
Suited to laboratory refractive index and concentration measurement across food and beverage, chemical, and general quality control applications.
| Light Source | LED, interference filter 589nm |
| Measuring Scales | Refractive Index (RI), Sucrose (Brix), and standard scales |
| Measuring Range | 1.3200–1.5800 RI / 0–100 Brix |
| Accuracy | ±0.0001 RI / ±0.05 Brix |
| Reproducibility (Precision) | ±0.0001 RI / ±0.05 Brix |
| Interface | Touchscreen |
Available as ATR V 301 or ATR VT 301. Contact the Techotrix team to confirm the right ATR V/VT configuration for your application.
